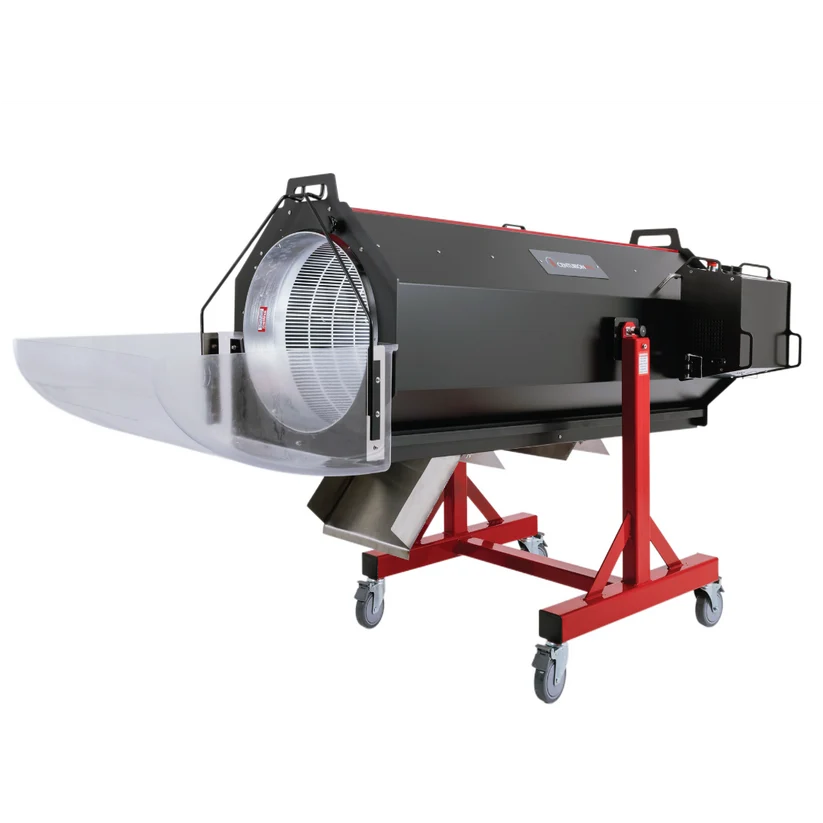

CenturionPro Bud Sorting Machine

The CenturionPro Bud Sorting Machine is a high-capacity commercial size sorter designed to automate one of the most time-consuming stages of post-harvest processing.

Capable of sorting up to 125 pounds of properly dried plant material per hour, the machine separates each batch into four distinct size categories. This replaces slow and inconsistent hand-grading while helping facilities create repeatable product classifications for packaging, inventory, and pricing.

• Sorting Capacity: Up to 125 lbs/hr
• Sort Categories: Four Distinct Sizes
• Construction: Commercial Stainless Steel
• Warranty: 3-Year Manufacturer Warranty

The CenturionPro Sorter uses Soft Tumble Technology to move dried material gently through a 66-inch stainless steel sorting tumbler. As the material travels through the drum, progressively sized openings separate it into four groups based on diameter.

The machine sorts material into:

• Bigs larger than 3/4 inch
• Mediums larger than 1/2 inch
• Smalls larger than 1/4 inch
• Fines smaller than 1/4 inch

Integrated Variable Speed Control allows operators to adjust tumbler speed according to material density, size, dryness, and desired processing rate. Lower settings support more delicate movement, while higher speeds increase material flow for larger commercial batches.

The oversized tumbler measures approximately 66 inches long and 20 inches in diameter, providing the capacity required for large harvests while maintaining controlled material movement.

An integrated hopper supports steady loading into the sorting chamber. Two discharge chutes guide separated material toward collection points, allowing operators to organize finished sizes as they exit the machine.

Catch bins are not included and must be supplied separately. Facilities should position appropriately sized bins beneath each discharge area before operation.

The CenturionPro Sorter is built entirely from stainless steel, supporting dependable commercial use, straightforward sanitation, and compliance-focused processing environments. The supplied product information identifies the machine as meeting GMP and FDA material standards.

Tool-less disassembly and quick-release components simplify cleaning between batches. Operators can access major processing surfaces without lengthy teardown procedures, reducing downtime and making regular sanitation more practical.

The machine operates on a standard North American 110V connection and draws approximately 3 amps. International operation is supported at 220V and approximately 1.5 amps.

A 1/4 HP motor powers the tumbler while maintaining low electrical demand. This allows the machine to integrate into existing processing facilities without requiring the heavy electrical infrastructure associated with some industrial equipment.

The complete system measures approximately 88 inches long, 36 inches wide, and 53 inches high. At approximately 265 pounds, it provides a stable commercial platform for continuous high-volume sorting.

Backed by a 3-year manufacturer warranty, the CenturionPro Bud Sorting Machine is built for facilities that need faster grading, consistent size categories, gentle material handling, commercial stainless steel construction, and dependable production capacity.

Up to 125 lbs Per Hour

The CenturionPro Sorter processes up to approximately 125 pounds of properly dried plant material per hour. Actual throughput depends on:

• Material dryness
• Batch density
• Initial size variation
• Tumbler speed
• Loading consistency
• Hopper feed rate
• Tumbler cleanliness
• Discharge-bin capacity
• Operator experience

Four Distinct Sort Sizes

The machine separates material into four size categories: Bigs greater than 3/4", Mediums greater than 1/2", Smalls greater than 1/4", and Fines smaller than 1/4". These consistent categories help simplify:

• Product grading
• Packaging
• Inventory control
• Batch valuation
• Quality assurance
• Customer specifications
• Production planning

Soft Tumble Technology

Soft Tumble Technology moves properly dried material through the sorting drum using controlled rotation rather than aggressive handling. Benefits include:

• Gentle material movement
• Reduced surface damage
• Consistent sorting
• Better preservation of finished appearance
• Controlled commercial throughput
• No aggressive suction system
• Repeatable results between batches

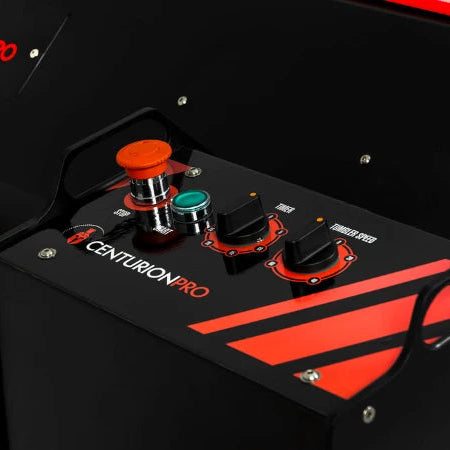

Integrated Variable Speed Control

Variable Speed Control comes standard with the CenturionPro Sorter. Operators can adjust tumbler movement to match the characteristics of each batch.

Lower speeds support:

• Delicate dried material
• Slower, more controlled sorting
• Reduced tumbling impact
• Greater inspection time
• Irregularly shaped material
• Smaller test batches

Higher speeds support:

• Increased material flow
• Larger commercial batches
• Greater hourly throughput
• Faster discharge
• Denser material
• Continuous production

Consistent Mechanical Grading

Manual sorting can vary from one operator or shift to another. The fixed sorting openings help create more repeatable size classifications across different operators, multiple shifts, separate harvests, large production runs, contract-processing batches, and packaged product lines.

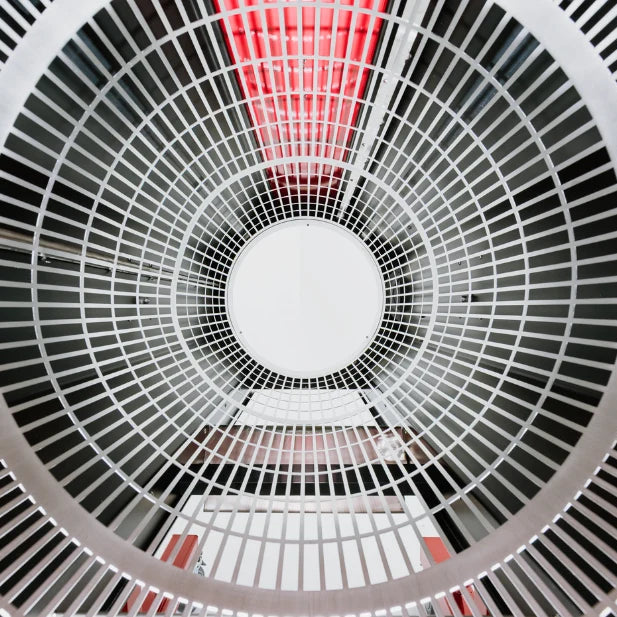

66-Inch Sorting Tumbler

The machine includes one stainless steel sorting tumbler measuring approximately 66 inches long and 20 inches in diameter. Its substantial length provides enough sorting area for high-volume processing while allowing material to progress gradually through each size section.

Stainless Steel Construction

The CenturionPro Sorter is constructed entirely from stainless steel. This provides:

• Corrosion resistance
• Commercial durability
• Straightforward sanitation
• Smooth processing surfaces
• Long service life
• Compliance-focused construction
• Reliable high-volume performance

GMP and FDA Standards

The supplied product information identifies the machine’s stainless steel construction as meeting GMP and FDA standards. Facilities remain responsible for confirming local sanitation requirements, applicable processing regulations, internal cleaning procedures, documentation standards, and facility-specific compliance obligations.

Integrated Feed Hopper

The included hopper directs dried material into the sorting tumbler. The hopper helps:

• Maintain consistent loading
• Reduce material spillage
• Improve operator workflow
• Support continuous processing
• Limit direct contact with the tumbler opening
• Create a controlled feed point

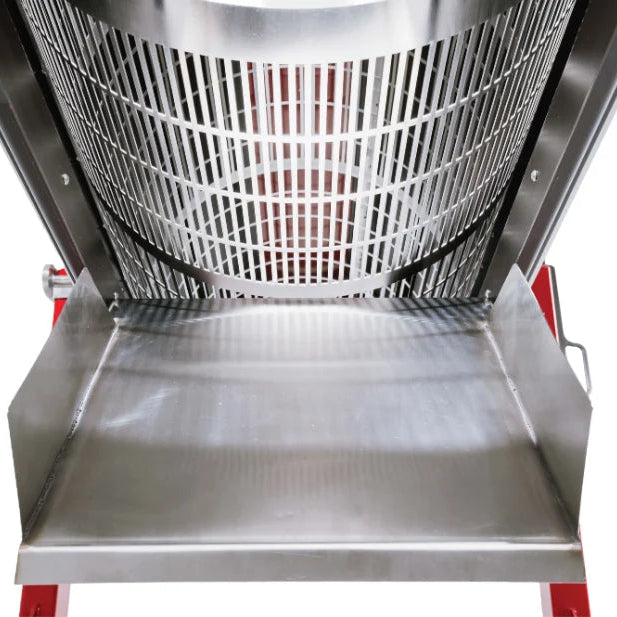

Two Discharge Chutes

Two included chutes guide sorted material away from the machine. The overall sorting system creates four size categories through its staged tumbler and discharge arrangement. Operators should position suitable collection bins beneath the discharge points before starting the machine.

Catch Bins Not Included

Collection bins are not supplied with the sorter. Before operation, facilities should provide bins that are:

• Appropriately sized
• Clean and dry
• Stable during loading
• Easy to remove when full
• Clearly labelled by size category
• Compatible with the chute height and position

Tool-Less Disassembly

Major components are designed for removal without specialized tools. This helps reduce the time required for batch changeovers, deep cleaning, tumbler access, chute cleaning, visual inspection, routine maintenance, and production setup.

Quick-Release Components

Quick-release mechanisms provide easier access to processing surfaces. This makes it more practical to clean the machine between different batches and maintain consistent sanitation procedures during large harvest periods.

Standard 110V Operation

North American operation requires approximately 110V and 3 amps. International operation requires approximately 220V and 1.5 amps. This low current draw allows the sorter to integrate into many existing processing facilities without specialized high-amperage electrical service.

Efficient 1/4 HP Motor

A 1/4 HP motor powers the sorting tumbler. The motor provides enough controlled movement for high-volume sorting while keeping electrical consumption relatively low.

Large Commercial Footprint

The complete machine measures approximately 88 inches long, 36 inches wide, and 53 inches high. Facilities should verify doorway clearance, hallway width, loading-dock access, final installation space, operator clearance, cleaning access, and collection-bin placement before delivery.

Stable 265-Pound Construction

The machine weighs approximately 265 pounds. Its commercial weight provides a stable processing platform while still allowing planned repositioning using appropriate material-handling equipment. The machine should not be moved manually without proper equipment and trained personnel.

Designed for Properly Dried Material

The CenturionPro Sorter is intended for dry processing. Material should be properly prepared before loading. Material that is too moist may move inconsistently, stick to processing surfaces, sort inaccurately, accumulate inside the tumbler, or slow discharge. Material that is excessively brittle may break during tumbling, create additional fines, lose surface material, or change size classification during processing.

Improved Packaging Workflow

Consistent size separation helps packaging teams work with more uniform material. This may improve package consistency, visual presentation, fill-weight control, product categorization, inventory management, batch documentation, and pricing accuracy.

Reduced Manual Sorting Labor

The CenturionPro Sorter greatly reduces the repetitive work associated with hand-grading. Operators can focus instead on loading, collection-bin management, quality control, packaging, documentation, equipment cleaning, and inventory tracking.

Recommended Operating Practices

• Read the complete owner’s manual before operation.
• Position the machine on a stable, level floor.
• Confirm adequate clearance around the hopper, tumbler, and chutes.
• Verify all guards and quick-release components are secured.
• Inspect the tumbler before each shift.
• Position clean collection bins beneath every discharge point.
• Clearly label collection bins by size category.
• Process only properly dried plant material.
• Remove foreign objects before loading.
• Begin with a small test batch.
• Start at a lower speed setting.
• Increase speed gradually after observing material flow.
• Feed material consistently rather than dumping oversized loads.
• Do not overfill the hopper.
• Monitor all discharge points.
• Replace collection bins before they overflow.
• Keep hands, tools, clothing, and jewelry away from moving parts.
• Stop the machine if unusual noise, resistance, or vibration develops.
• Disconnect electrical power before cleaning or servicing.
• Clean the tumbler, hopper, and chutes between batches.
• Allow all washed components to dry completely before operation.

Preparing Material for Sorting

Before loading the machine:

• Confirm the material is properly dried.
• Remove large stems and foreign objects.
• Break apart tangled clusters when appropriate.
• Remove debris that could block sorting openings.
• Confirm the collection bins are ready.
• Test a small sample before full production.
• Inspect the sorted categories.
• Adjust tumbler speed based on the result.

Loading the Hopper

Feed material into the hopper at a controlled rate. Avoid loading more material than the tumbler can process consistently. Overfeeding may:

• Reduce sorting accuracy
• Cause material buildup
• Restrict tumbler movement
• Overload discharge chutes
• Mix size categories
• Increase cleanup time

Setting the Tumbler Speed

Begin with the Variable Speed Control at a lower setting. Observe material movement, sorting accuracy, discharge rate, surface condition, chute flow, and collection-bin fill rate. Increase speed gradually until the desired balance between throughput and sorting quality is reached.

Managing Collection Bins

Collection bins should be monitored throughout operation. Operators should:

• Label each bin clearly.
• Keep bins aligned with the correct discharge point.
• Prevent overfilling.
• Replace full bins promptly.
• Keep separate batches from mixing.
• Record finished weights when required.
• Clean bins between product runs.

Verifying Sort Accuracy

Inspect material from each collection category during initial operation. Check that large material is not entering smaller categories, fines are moving through the correct section, tumbler speed is not too high, the machine is not overloaded, sorting openings remain clear, and chutes are not mixing categories.

Cleaning & Maintenance

Cleaning After Each Use

• Disconnect electrical power.
• Allow the tumbler to stop completely.
• Remove remaining material from the hopper.
• Empty all collection bins.
• Open quick-release components.
• Remove loose material from the tumbler.
• Clean the sorting openings.
• Clean both discharge chutes.
• Wipe down stainless steel surfaces.
• Inspect the motor and drive area.
• Allow every component to dry fully.
• Do not reconnect power until the machine is completely dry.

Tumbler Cleaning

• Remove loose material using a soft brush.
• Inspect every sorting opening for blockage.
• Wash with warm water and an approved cleaner when required.
• Rinse thoroughly.
• Avoid abrasive tools that may damage the surface.
• Allow the tumbler to dry fully before operation.
• Confirm all openings are clear before reassembly.

Hopper Cleaning

• Empty the hopper completely.
• Remove buildup from corners and seams.
• Wash with an approved cleaner.
• Rinse thoroughly.
• Inspect for damage or loose hardware.
• Dry completely before reinstalling or operating.

Chute Cleaning

• Remove both chutes when required.
• Brush away loose material.
• Wash and rinse all contact surfaces.
• Inspect attachment points.
• Confirm there are no blockages.
• Dry completely before reinstallation.
• Secure every chute before startup.

Stainless Steel Surface Care

• Use cleaners approved for stainless steel.
• Avoid harsh abrasives.
• Wipe in the direction of the finish when practical.
• Rinse away cleaning residue.
• Prevent prolonged exposure to corrosive chemicals.
• Dry all surfaces to reduce spotting.
• Inspect welds and seams regularly.

Variable Speed Control Care

• Keep the control enclosure clean and dry.
• Do not spray water directly onto the controls.
• Inspect the speed dial and electrical connections.
• Stop using the machine if speed becomes inconsistent.
• Do not modify the control system.
• Have electrical repairs completed by qualified personnel.

Motor and Drive Inspection

• Disconnect electrical power.
• Inspect the motor and drive system regularly.
• Listen for unusual noise.
• Check for vibration or inconsistent tumbler movement.
• Inspect mounting hardware.
• Remove buildup near moving components.
• Replace worn parts with approved components.
• Have major repairs completed by qualified technicians.

Quick-Release Inspection

• Inspect all quick-release mechanisms regularly.
• Remove trapped debris.
• Confirm each mechanism locks securely.
• Replace worn or damaged hardware.
• Never operate the machine with a loose release point.
• Verify all components before startup.

Sorting Opening Inspection

• Check every size opening before each shift.
• Remove lodged plant material.
• Inspect for bending or deformation.
• Confirm edges remain smooth.
• Stop using the machine if any sorting section is damaged.
• Do not alter opening sizes.

Exterior Cleaning

• Disconnect electrical power.
• Wipe exterior surfaces using a lightly dampened cloth.
• Do not spray water into the motor, controls, bearings, or wiring.
• Do not submerge any machine component.
• Dry all surfaces before storage or operation.

Storage

• Clean and dry the machine before storage.
• Store indoors in a dry location.
• Protect the power cord and control box.
• Keep the hopper and chutes clean.
• Prevent heavy objects from resting on the tumbler.
• Keep sorting openings free from debris.
• Protect the machine from impact.
• Cover the system when appropriate.

Professional Warranty Coverage

The CenturionPro Bud Sorting Machine includes a 3-year manufacturer warranty. The supplied product information states that the warranty does not cover operator abuse or error.

Potential warranty exclusions may include:

• Improper operation
• Accidental damage
• Operator error
• Insufficient maintenance
• Unauthorized modifications
• Electrical damage
• Damage caused by improper cleaning
• Normal wear
• Improper installation

All sales are identified as final in the supplied listing. Keep proof of purchase and follow all manufacturer registration, maintenance, and warranty-claim procedures.

Why Choose the Bud Sorting Machine

• Sorting Capacity: Up to 125 lbs/hr
• Sort Categories: Four Distinct Sizes
• Construction: Commercial Stainless Steel
• Warranty: 3-Year Manufacturer Warranty

What's Included

• CenturionPro Bud Sorting Machine
• Stainless Steel Sorter Tumbler
• Integrated Feed Hopper
• Two Discharge Chutes
• Variable Speed Control
• 1/4 HP Motor
• Stainless Steel Frame
• Power Cord
• Owner’s Documentation

Catch bins are not included.
