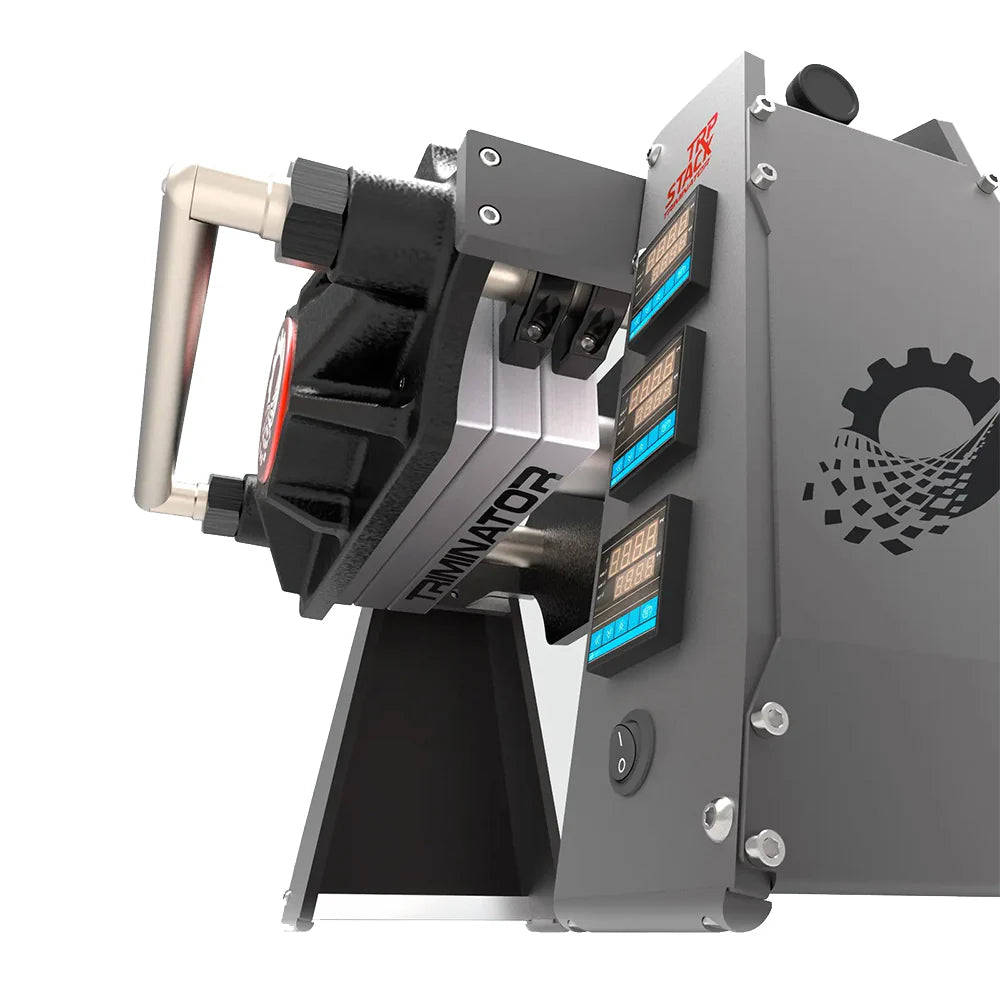

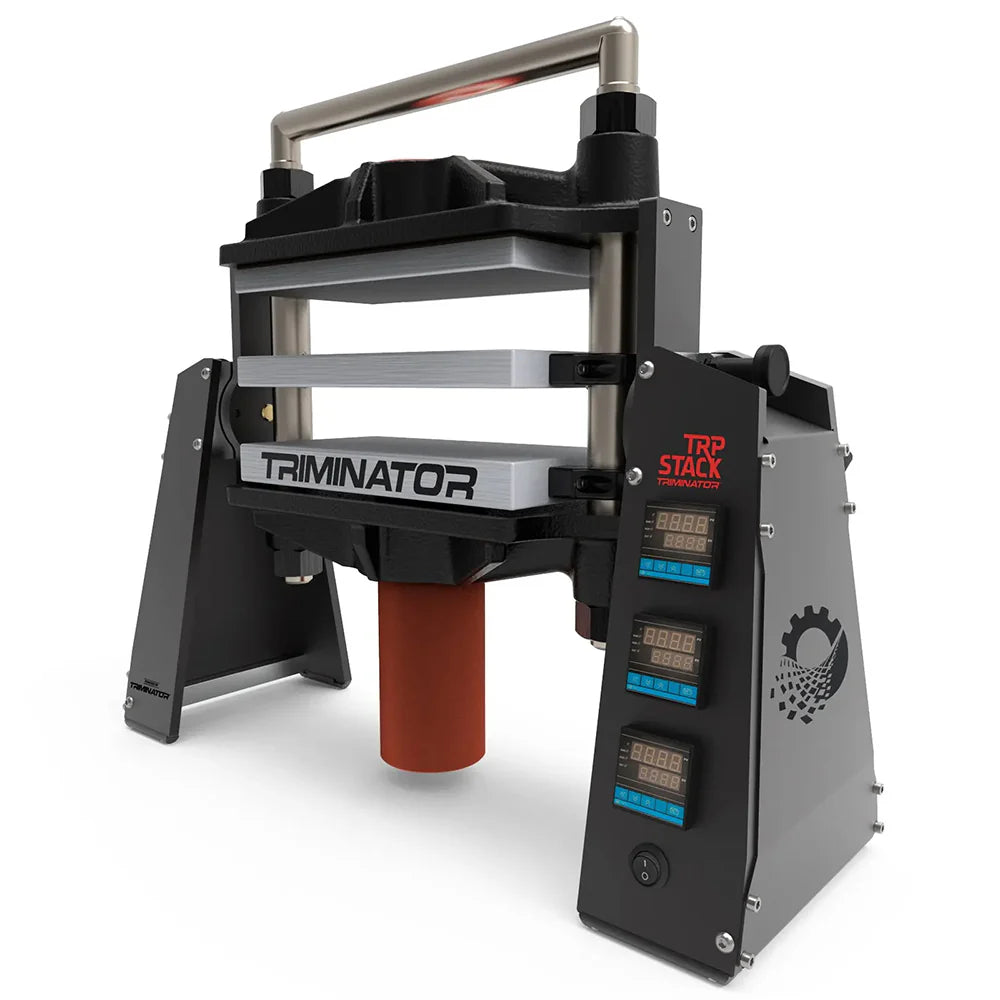

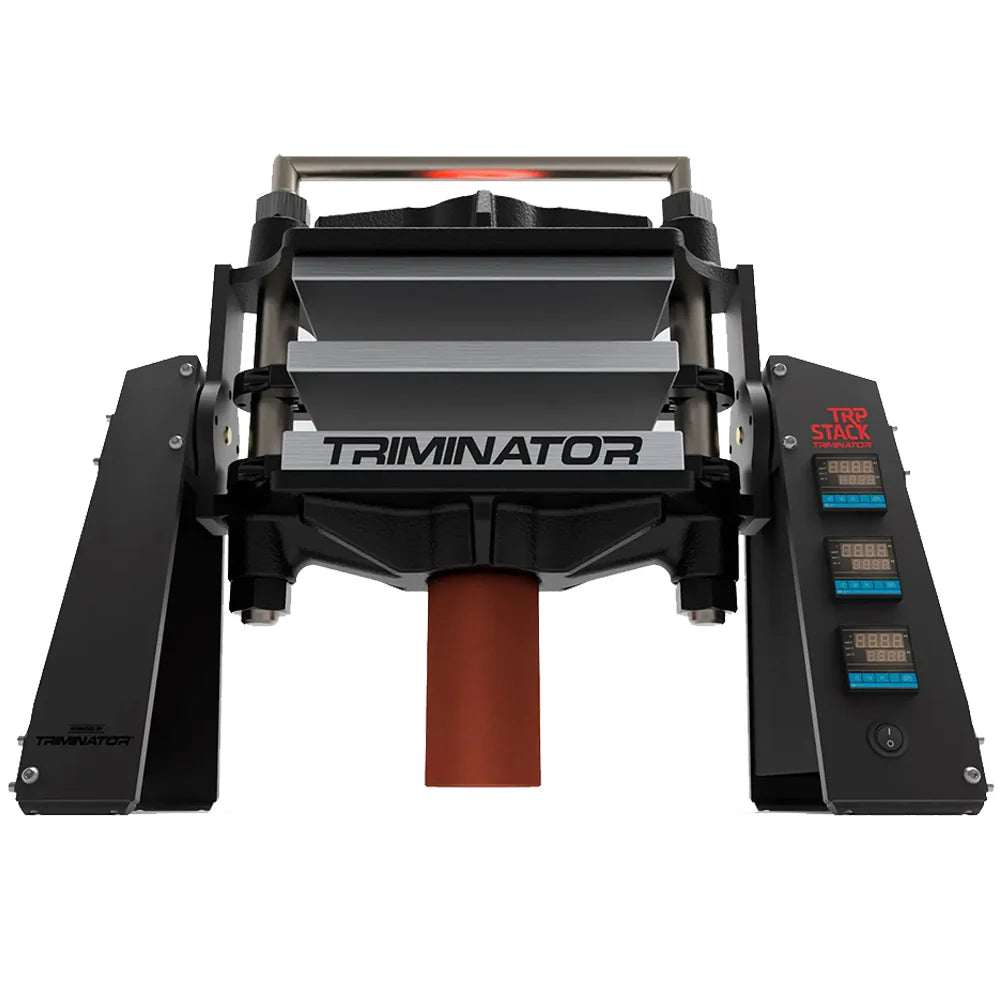

Triminator TRP Stack 25 Ton Multi-Platen Hydraulic Rosin Press

The Triminator TRP Stack 25 Ton Hydraulic Rosin Press is a commercial-grade solventless extraction system designed for professional technicians and high-volume production facilities that need greater capacity, precise temperature control, and faster cooling between pressing cycles.

Built with a multi-platen configuration, the TRP Stack provides twice the pressing surface of the standard TRP while maintaining the same powerful 25 tons of hydraulic force. Its expanded design allows operators to process up to 0.75 lb of prepared material per cycle, significantly improving throughput in demanding commercial environments.

The TRP Stack features Triminator’s Easy Pivot™ Drip Tech System, allowing the entire platen assembly to rotate smoothly by pulling a handle. This directs freshly extracted rosin away from the heated plates and onto a cooler collection surface, helping stop prolonged heat exposure and preserve valuable aromatic compounds.

Three large 6" × 10" food-grade aluminum platens provide two separate pressing zones. Their high thermal mass maintains stable temperatures during extended production sessions, while six precision heating elements help distribute heat consistently across the entire working surface.

Independent PID temperature controls allow operators to manage platen temperatures precisely. This provides greater control over extraction recipes and makes it easier to adjust operating conditions for different materials, filter bags, consistencies, and production goals.

The proprietary Power Frame™ was developed through extensive finite element analysis and engineered to withstand up to 25 tons of force. Cast from high-strength steel in Northern California, the frame minimizes flex while maintaining consistent pressure across both pressing zones.

A high-visibility open design gives operators clear access to the working area before, during, and after each cycle. With up to 3.25 inches of clearance between all three platens when fully open, loading and unloading larger batches remains straightforward.

The TRP Stack is compatible with manual, air-powered, and electric hydraulic pumps, allowing facilities to select the operating system that best matches their production workflow. The press includes the hydraulic cylinder, but the pump is sold separately.

Operating on 120V power, the press requires a dedicated 20-amp circuit. Its heavy-duty construction, large working capacity, precision controls, and integrated drip technology make it a scalable solution for serious commercial solventless extraction.

25 Tons of Hydraulic Force

The TRP Stack delivers up to 25 tons of pressing force through its heavy-duty hydraulic cylinder.

This high-pressure capability allows operators to work at lower temperatures while maintaining strong extraction performance.

Multi-Platen Commercial Design

Three aluminum platens create two separate pressing zones, doubling the available surface area compared with the standard TRP.

This expanded configuration increases output without requiring a second machine.

Easy Pivot™ Drip Technology

The platen assembly rotates smoothly through the pull of a handle.

This allows freshly extracted material to drip quickly onto a cooler surface, limiting prolonged heat exposure and supporting improved quality retention.

Up to 0.75 lb Per Press

The multi-platen configuration allows operators to process up to 0.75 lb of prepared material in a single cycle.

This higher capacity helps reduce cycle counts and improve daily commercial throughput.

Three 6" × 10" Aluminum Platens

Large food-grade aluminum platens provide ample production space while maintaining a short travel distance for extracted oils.

Their high thermal mass supports consistent temperature and efficient heat transfer across both pressing zones.

Six Precision Heating Elements

Six integrated heating elements provide controlled, uniform heat across the platen assembly.

This helps maintain consistent temperatures during repeated commercial production cycles.

Independent PID Temperature Control

Individual PID controllers allow precise temperature adjustment across the heated platens.

Operators can fine-tune pressing parameters to suit different materials and extraction preferences.

Heavy-Duty Power Frame™

The proprietary Power Frame™ was engineered through extensive stress simulations to withstand demanding commercial workloads.

Its high-strength steel construction reduces flex and supports consistent pressure distribution.

High-Visibility Working Area

The open-frame design provides a clear view of both pressing zones throughout operation.

Operators can monitor progress while maintaining easy access for loading, adjustment, and collection.

Flexible Hydraulic Pump Options

The TRP Stack is compatible with manual, air-powered, and electric hydraulic pumps.

This flexibility allows facilities to select a pump based on production volume, available infrastructure, and preferred operating method.

What's Included

• Triminator TRP Stack Rosin Press
• Hydraulic Cylinder
• Three Heated Aluminum Platens
• Integrated Easy Pivot™ Drip Tech System
• Power Cord
• User Manual

Note: Hydraulic pump is sold separately. Air-powered pump configurations require an external compressed-air source.
