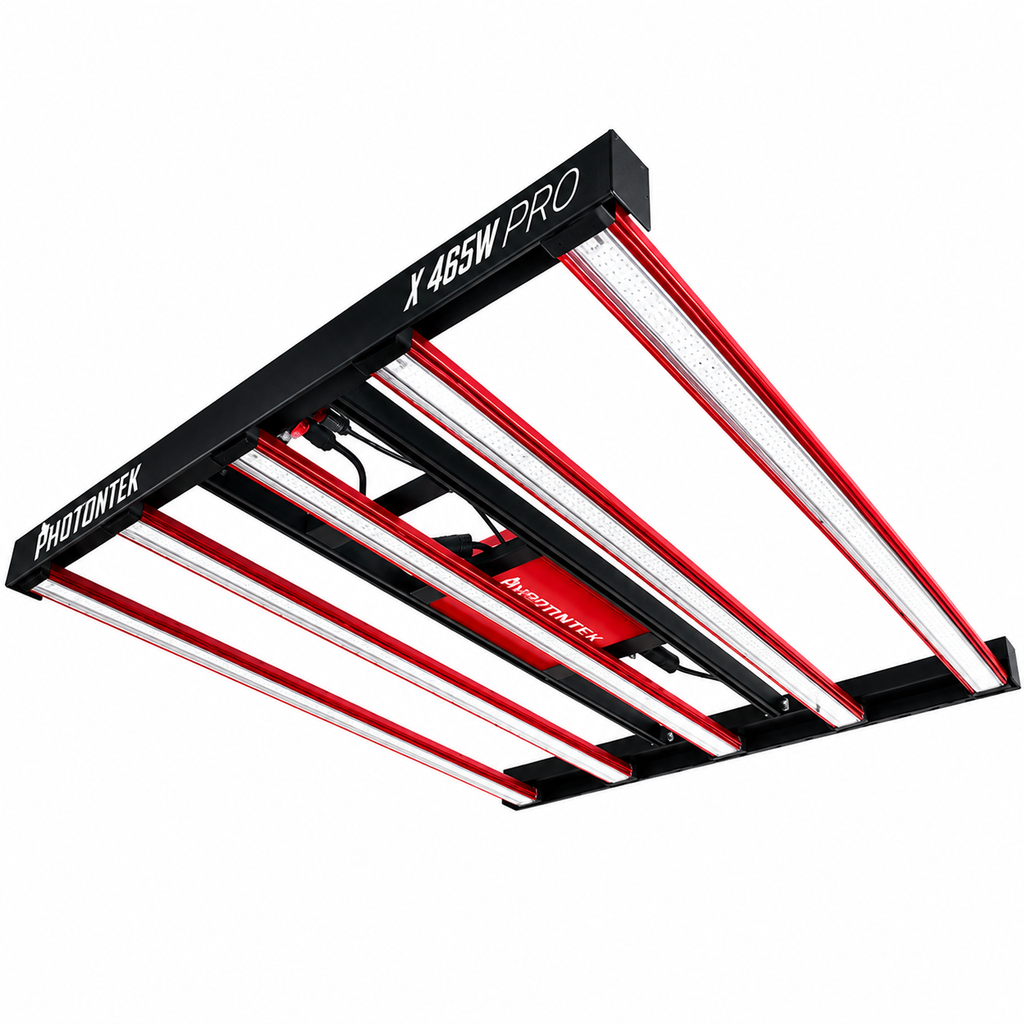

PhotonTek X 465W Pro LED Grow Light

The PhotonTek X 465W Pro LED Grow Light is a high-efficiency, full-spectrum horticultural fixture designed for grow tents, indoor rooms, multi-layer systems, and controlled-environment agriculture. Producing 1,256 µmol/s of PPF at an efficacy of 2.7 µmol/J, it delivers strong plant-usable light while maintaining efficient power consumption at 465 watts.

Built with premium Osram and LUMILEDS diodes, the X 465W Pro provides a balanced full-spectrum output suitable for propagation, vegetative growth, and flowering. This allows operators to use one fixture throughout the full production cycle without changing lighting systems between stages.

Its linear multi-bar layout creates a broad, even distribution of light across the canopy. The fixture is designed for coverage areas ranging from approximately 3' × 3' to 4' × 4', making it an excellent choice for compact indoor gardens and commercial growing environments where uniform intensity is essential.

The X 465W Pro uses PhotonTek’s modular Activ-Adapt magnetic light bar system, allowing individual LED bars to be removed, replaced, or reconfigured without replacing the complete fixture. This serviceable design simplifies maintenance and supports long-term operation.

Five low-powered LED bars distribute electrical load and heat across a wide surface area. This reduces diode operating temperatures, improves light maintenance, and allows the fixture to use passive thermal management without cooling fans.

The included 0–10V dimmer provides OFF, 25%, 50%, 75%, and 100% output settings. Operators can adjust intensity according to plant age, production stage, room conditions, and canopy requirements without sacrificing fixture efficiency.

For larger facilities, the X 465W Pro can be connected to the PhotonTek Digital Lighting Controller or another compatible 0–10V control system. External control supports scheduling, automated dimming, temperature safety management, and simulated sunrise and sunset operation across multiple fixtures.

The driver can remain mounted to the fixture or be positioned remotely using separately available extension cables. Remote mounting helps reduce heat directly above the canopy and provides greater flexibility in compact or multi-level growing environments.

With an IP65-rated fixture, a projected service life of approximately 60,000 hours, and a 5-Year Manufacturer Warranty, the PhotonTek X 465W Pro is engineered for growers who need dependable output, modular serviceability, and precise intensity control. The manufacturer’s specification sheet confirms its 465W power consumption, 1,256 µmol/s PPF output, 2.7 µmol/J efficacy, passive cooling, and 3' × 3' to 4' × 4' coverage range.

1,256 µmol/s PPF Output

The X 465W Pro produces 1,256 µmol/s of photosynthetic photon flux, providing the intensity required for productive indoor horticultural applications.

Its output is distributed across the complete fixture rather than concentrated beneath a single central light source.

2.7 µmol/J Fixture Efficacy

With an efficacy rating of 2.7 µmol/J, the fixture converts electrical power into plant-usable light efficiently.

This supports strong output while helping reduce operating costs compared with less efficient legacy lighting technologies.

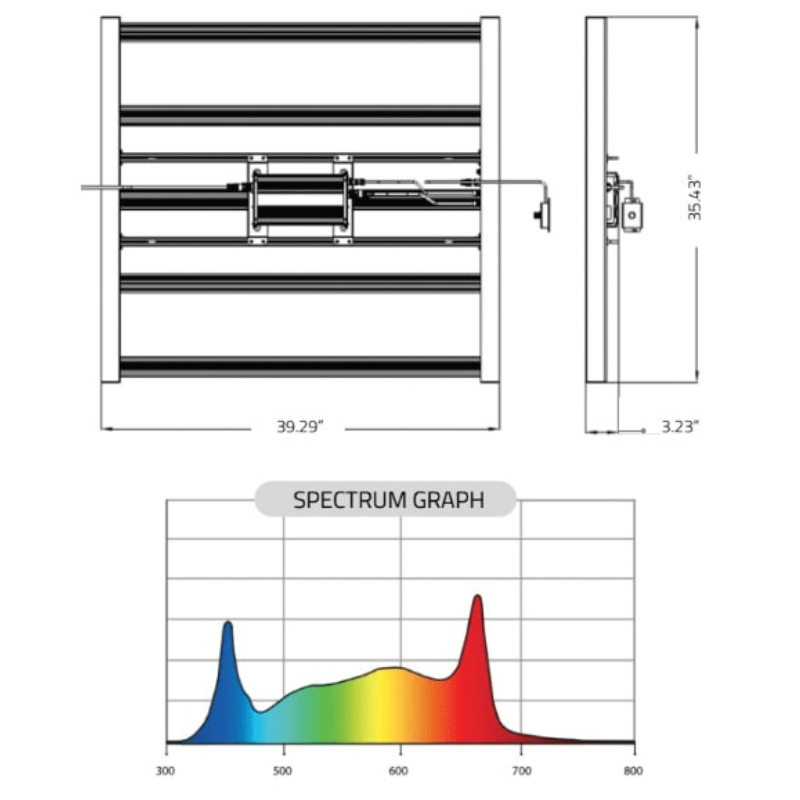

Full-Spectrum Lighting

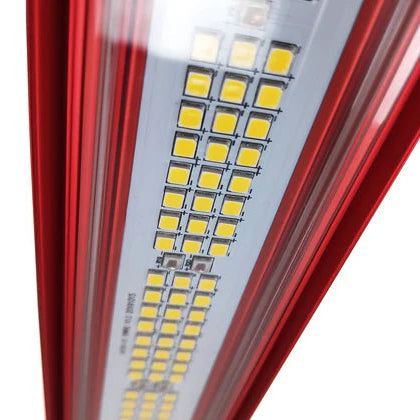

Premium Osram and LUMILEDS diodes provide a balanced full-spectrum output for the complete plant development cycle.

The fixture can support propagation, vegetative growth, and flowering without requiring separate spectrum-specific lighting systems.

Broad Multi-Bar Distribution

The linear bar configuration spreads light evenly across the growing area.

This design helps reduce concentrated hot spots, improve perimeter coverage, and maintain more consistent intensity across the canopy.

Activ-Adapt Magnetic Bars

PhotonTek’s Activ-Adapt system uses removable magnetic LED bars for simplified installation and maintenance.

Individual bars can be replaced without discarding the complete fixture, improving serviceability and reducing long-term ownership costs.

3' × 3' to 4' × 4' Coverage

The X 465W Pro is designed for indoor growing areas ranging from approximately 3' × 3' to 4' × 4'.

Its compact dimensions make it suitable for grow tents, single benches, low-ceiling rooms, and multi-layer systems.

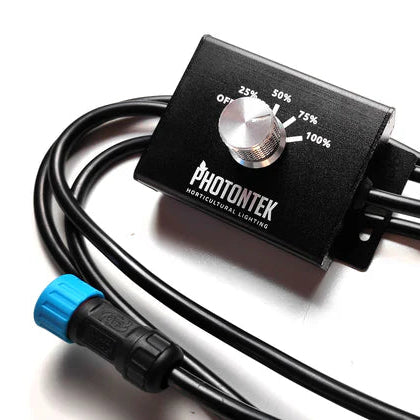

Five-Level Dimming

The included dimmer provides OFF, 25%, 50%, 75%, and 100% output settings.

This allows operators to match light intensity to each stage of plant development while avoiding unnecessary power consumption during lower-intensity periods.

Universal 0–10V Control

The fixture can be controlled with the PhotonTek Digital Lighting Controller or another system using a compatible 0–10V signal.

RJ-based control systems may also be used with the appropriate RJ-to-0–10V signal converter.

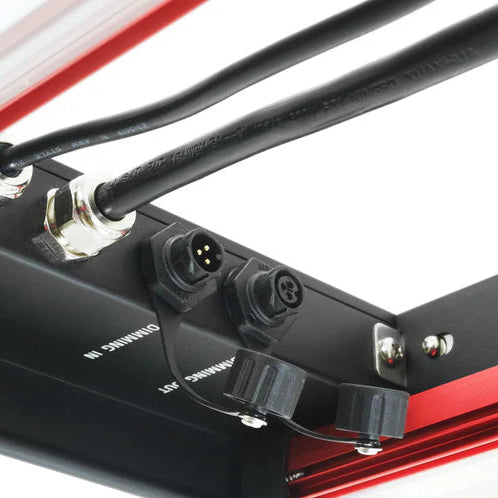

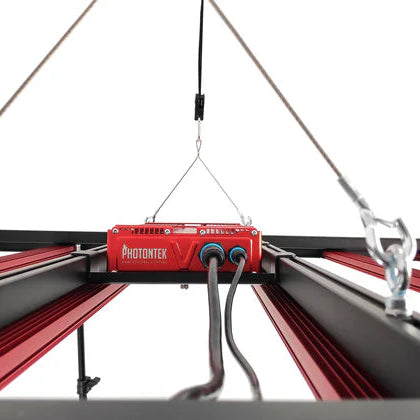

Detachable Driver

The 465W PhotonTek driver can remain attached to the fixture or be mounted remotely.

Remote placement can reduce heat above the canopy and provide greater flexibility when configuring compact or stacked growing systems.

Passive Thermal Management

The open-frame bar design dissipates heat without fans or moving cooling components.

Passive cooling reduces noise, limits maintenance requirements, and supports stable diode performance over time.

IP65-Rated Protection

The fixture carries an IP65 protection rating, providing resistance against dust and water exposure commonly encountered in controlled indoor growing environments.

It should still be installed and operated according to PhotonTek’s safety and environmental guidelines.

60,000-Hour Rated Life

Premium diodes, low operating temperatures, and passive thermal management contribute to a rated service life of approximately 60,000 hours.

This long operating interval supports dependable production with fewer fixture replacements.

5-Year Manufacturer Warranty

The PhotonTek X 465W Pro is protected by a 5-Year Manufacturer Warranty beginning on the original purchase date.

Coverage applies to qualifying defects in materials and workmanship. Misuse, improper installation, unauthorized modifications, and failure to follow manufacturer instructions are excluded.

What's Included

• PhotonTek X 465W Pro LED Fixture
• Five Full-Spectrum Magnetic LED Bars
• PhotonTek 465W Driver with Connecting Cables
• LED Frame and Support Structure
• 0–10V Light Dimmer with Velcro
• Power Cable
• Two Metal Cable Hangers
• User Manual
