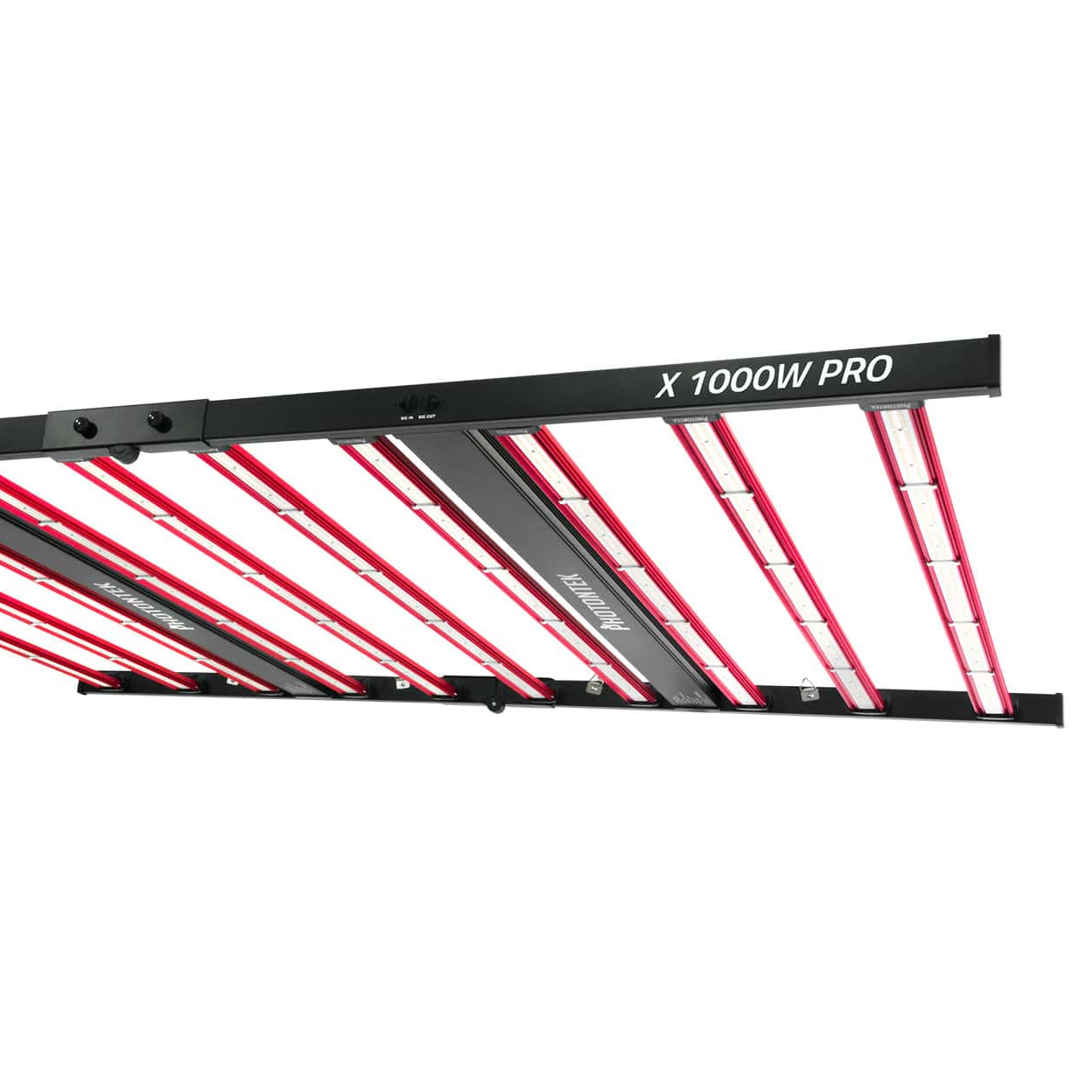

PhotonTek X 1000W Pro LED Grow Light

The PhotonTek X 1000W Pro LED Grow Light is a commercial-grade, full-spectrum horticultural fixture engineered for large rectangular growing areas, indoor rooms, tents, benches, and multi-layer production systems. Producing 2,925 µmol/s of PPF at an efficacy of 2.9 µmol/J, it delivers intense plant-usable light across a broad 6.5' × 5' footprint.

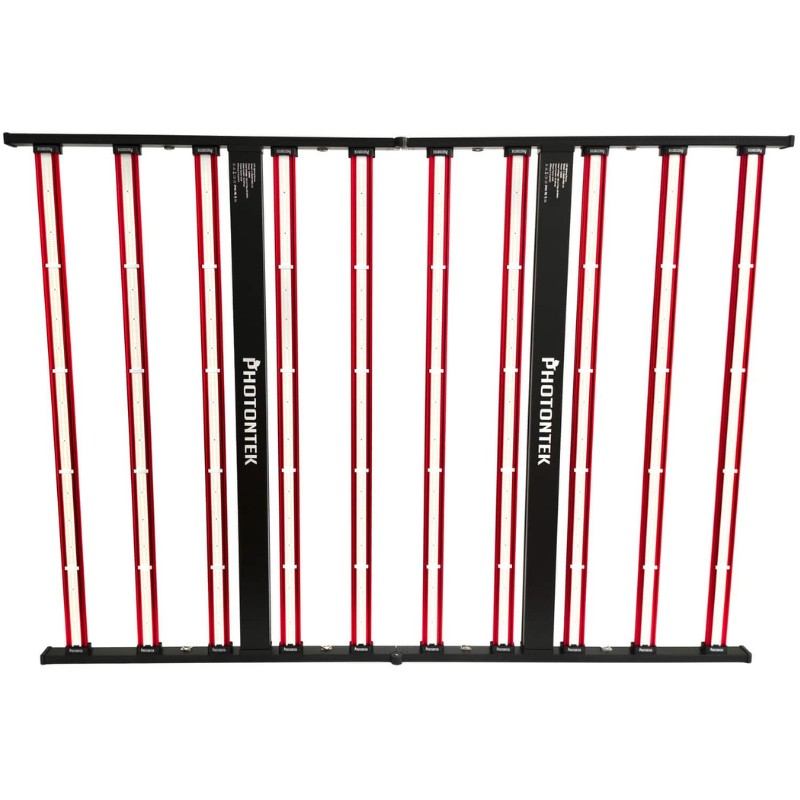

Designed as PhotonTek’s largest single linear-bar fixture, the X 1000W Pro uses ten full-spectrum LED bars to distribute output across a wider canopy than conventional square fixtures. This rectangular configuration helps maintain consistent PPFD across long benches and production areas while reducing excessive intensity directly beneath the center of the fixture.

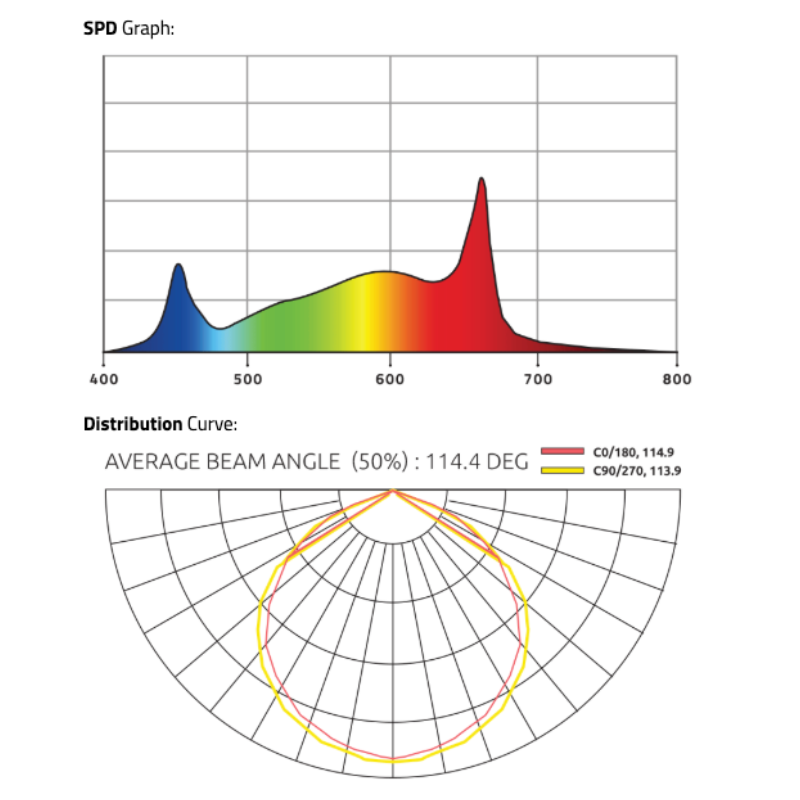

Higher-spec LUMILEDS white diodes and Osram 660 nm red diodes produce a balanced full-spectrum output suitable for propagation, vegetative development, and flowering. The fixture can remain in place throughout the complete production cycle, reducing the need for stage-specific lighting equipment.

The foldable frame incorporates two intelligent 500W PhotonTek drivers positioned across the center structure. This integrated design balances fixture weight, simplifies installation, and supplies power to the ten modular LED bars. Input power varies by supply voltage, reaching approximately 1,025W at 120V and 1,005W at 277V.

PhotonTek’s Activ-Adapt magnetic light bar system allows individual bars to be installed, removed, or replaced without replacing the entire fixture. The intelligent drivers automatically adjust power consumption according to the number of connected bars, allowing operators to run fewer than ten bars when full output is not required.

An included 0–10V dimmer provides OFF, 25%, 50%, 75%, and 100% output settings. This allows light intensity to be matched to plant development, canopy requirements, and environmental conditions while maintaining the same relative spectral distribution.

The fixture can also be connected to the PhotonTek Digital Lighting Controller or another compatible 0–10V platform. External control supports centralized scheduling, automated dimming, temperature safety functions, sunrise and sunset simulation, and control of up to 100 fixtures.

Its passive thermal design dissipates heat through the open frame and individual aluminum light bars without fans or moving cooling components. This reduces noise and maintenance while supporting stable diode performance over extended operating periods.

The LED bars incorporate PhotonTek’s protective Clear Glue technology, helping improve resistance to moisture and corrosion without significantly reducing light transmission. The complete fixture carries an IP65 water and dust resistance rating for controlled indoor horticultural environments.

With a projected operating life of approximately 60,000 hours and a 5-Year Manufacturer Warranty, the PhotonTek X 1000W Pro is built for professional growers who require high output, broad rectangular coverage, modular serviceability, and centralized lighting control. PhotonTek’s official specification sheet confirms the 2,925 µmol/s output, 2.9 µmol/J efficacy, ten-bar configuration, dual integrated drivers, and 6.5' × 5' footprint.

2,925 µmol/s PPF Output

The X 1000W Pro produces 2,925 µmol/s of photosynthetic photon flux, providing the intensity required for demanding commercial horticultural applications.

Its ten-bar configuration spreads this output over a large rectangular area instead of concentrating light beneath a single central source.

2.9 µmol/J Fixture Efficacy

With an efficacy of 2.9 µmol/J, the fixture converts electrical power into plant-usable light efficiently.

This high efficacy supports strong photon delivery while helping reduce electrical and cooling demands compared with less efficient legacy lighting systems.

6.5' × 5' Rectangular Coverage

The X 1000W Pro is engineered for a broad 6.5' × 5' growing footprint.

Its rectangular layout is particularly well suited to long benches, commercial rooms, large tents, and production areas where square fixtures may leave uneven perimeter coverage.

Full-Spectrum Output

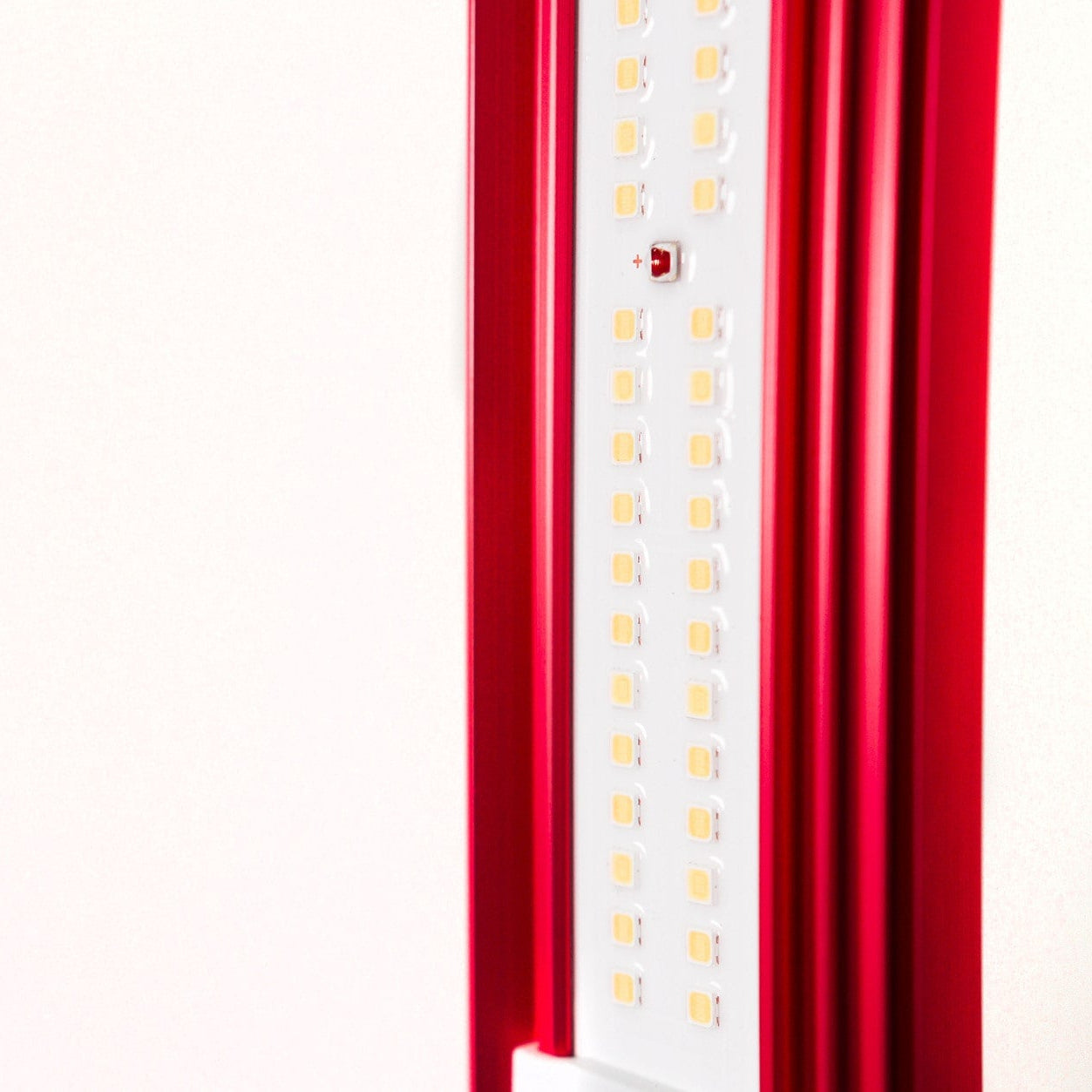

Higher-spec LUMILEDS white diodes and Osram red diodes generate a balanced full-spectrum output for complete-cycle plant development.

The spectrum supports propagation, vegetative growth, and flowering without requiring separate fixtures for different production stages.

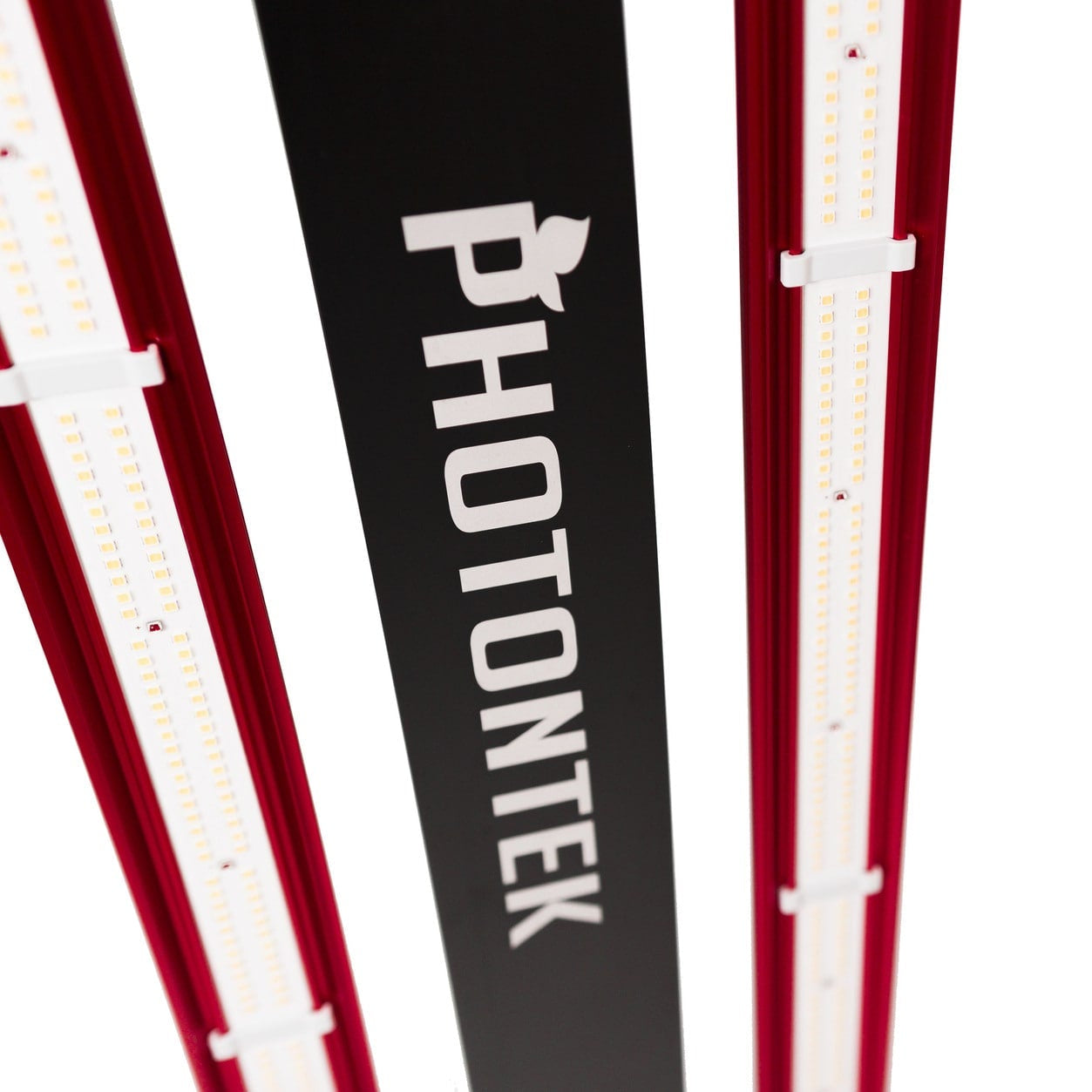

Ten-Bar Linear Array

Ten evenly spaced LED bars create a wide ceiling of light across the canopy.

This layout improves edge-to-edge distribution, reduces concentrated hot spots, and helps maintain more consistent intensity throughout the full growing area.

Activ-Adapt Magnetic Bars

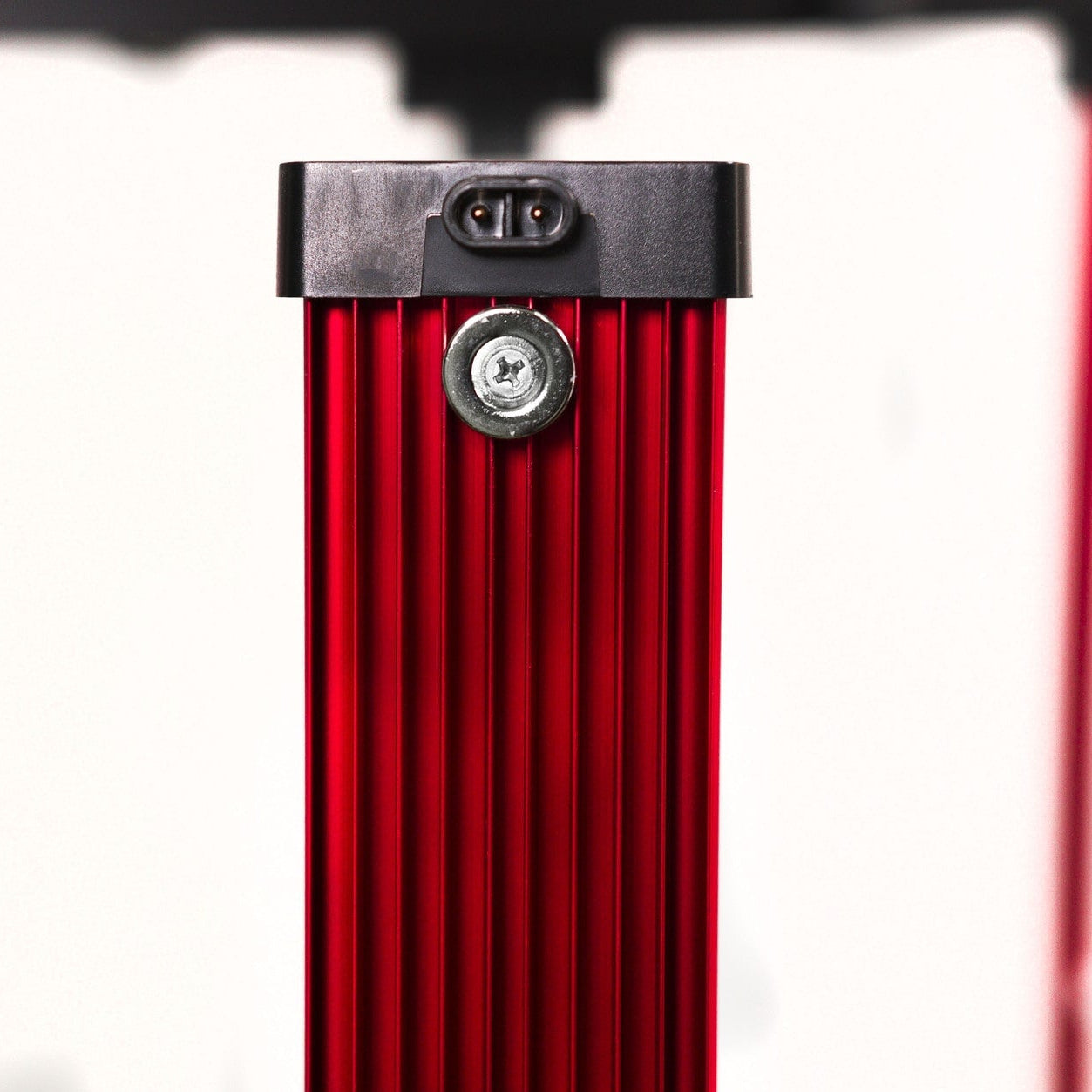

PhotonTek’s Activ-Adapt system uses removable magnetic LED bars for simple installation, replacement, and configuration.

Individual bars can be serviced without replacing the complete fixture, reducing downtime and extending the practical life of the lighting system.

Intelligent Power Adjustment

The dual integrated drivers automatically adjust power consumption based on the number of installed LED bars.

When fewer bars are connected, the drivers reduce power draw accordingly, providing additional flexibility for lower-intensity production stages or customized layouts.

Foldable Commercial Frame

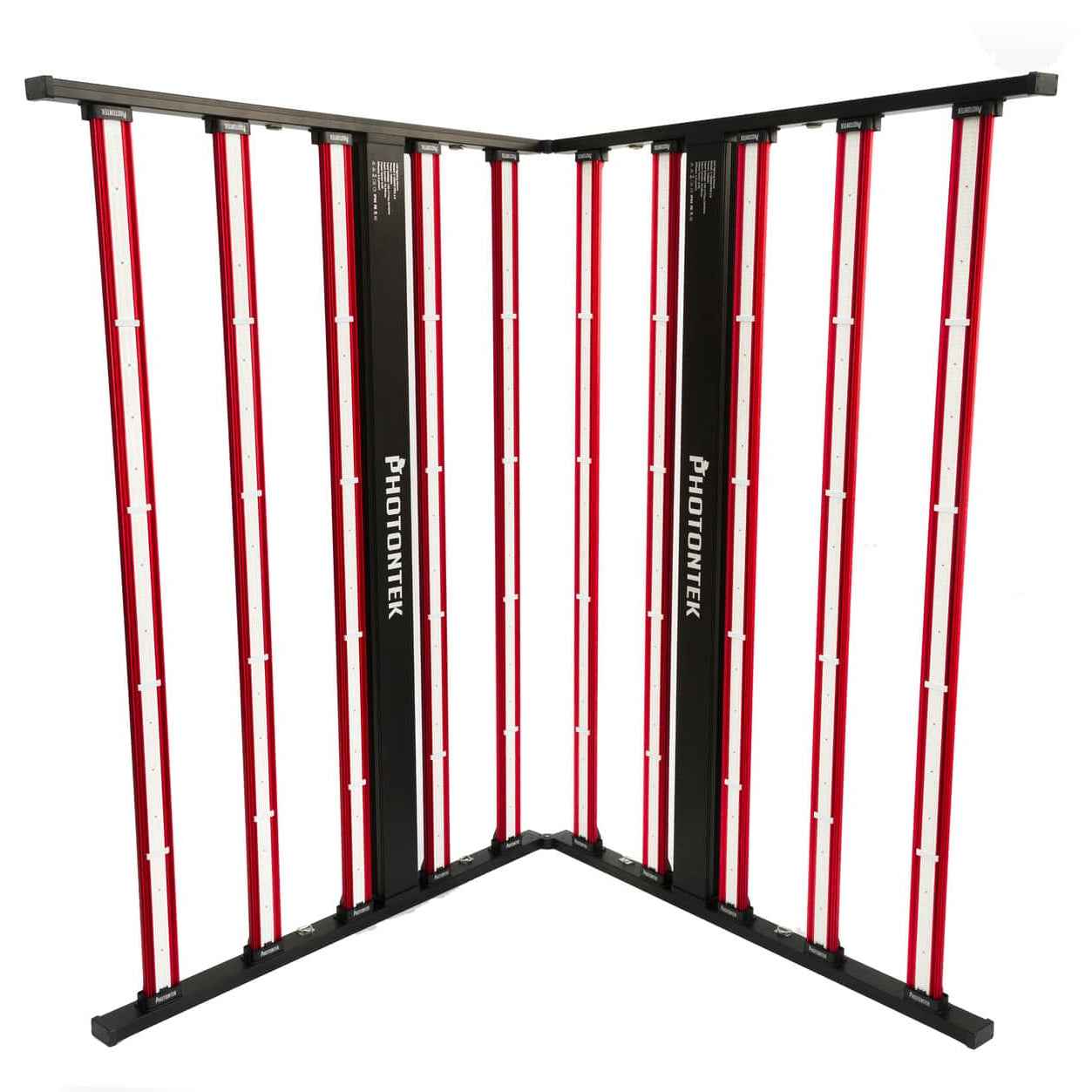

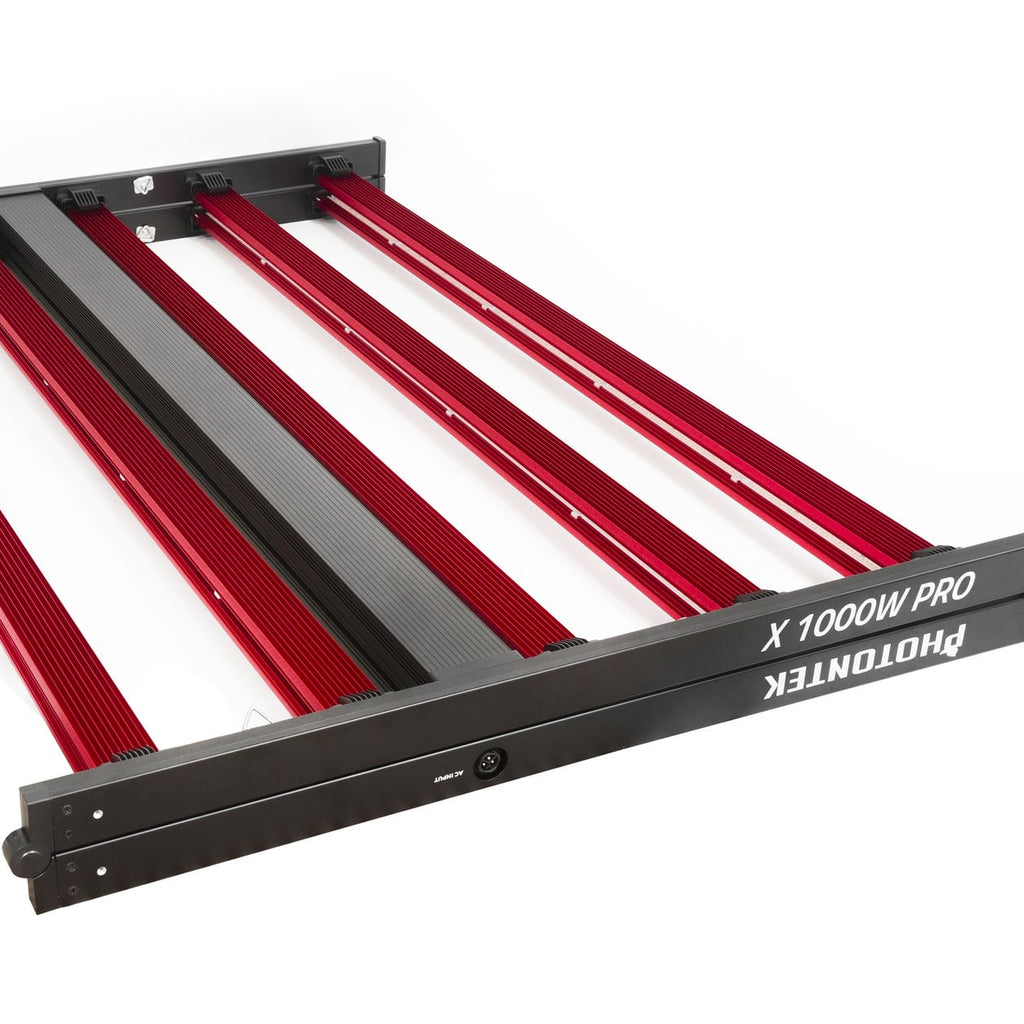

The large frame folds at its center hinges to simplify transportation, storage, and installation.

Included hinge-lock plates secure the fixture in its fully opened position and help maintain structural balance during operation.

Dual Integrated Drivers

Two incorporated 500W Pro drivers distribute power across the fixture.

The integrated design supports balanced operation while eliminating the need to mount a separate external driver assembly.

Five-Level Dimming

The included 0–10V dimmer provides OFF, 25%, 50%, 75%, and 100% settings.

Operators can reduce intensity during early plant development and increase output as canopy demand rises.

External Lighting Control

The fixture is compatible with the PhotonTek Digital Lighting Controller and other systems using a standard 0–10V signal.

External control supports automated timing, dimming, temperature protection, and coordinated management of up to 100 fixtures.

Passive Thermal Management

The open-frame bar design removes heat through natural convection without cooling fans.

Passive operation reduces noise and mechanical maintenance while helping preserve diode output over the fixture’s operating life.

IP65-Rated Protection

The X 1000W Pro carries an IP65 water and dust resistance rating.

It is designed for climate-controlled indoor growing rooms and damp horticultural environments but should not be installed outdoors or exposed to direct water spray.

60,000-Hour Rated Life

Premium diodes, passive cooling, and industrial-grade drivers contribute to a rated operating life of approximately 60,000 hours.

This long service interval supports continuous production while reducing fixture replacement frequency.

5-Year Manufacturer Warranty

PhotonTek protects the X 1000W Pro with a 5-Year Manufacturer Warranty beginning on the original purchase date.

The warranty applies to qualifying defects in materials and workmanship under normal operating conditions. Improper installation, misuse, unauthorized modification, and failure to follow manufacturer instructions are excluded.

What's Included

• Ten PhotonTek 100W Pro 2.9 Full-Spectrum Magnetic LED Bars
• Foldable Frame Structure
• Two Integrated 500W Pro Drivers
• Driver and Bar Connecting Cables
• Two Hinge-Lock Metal Plates with Thumb Screws

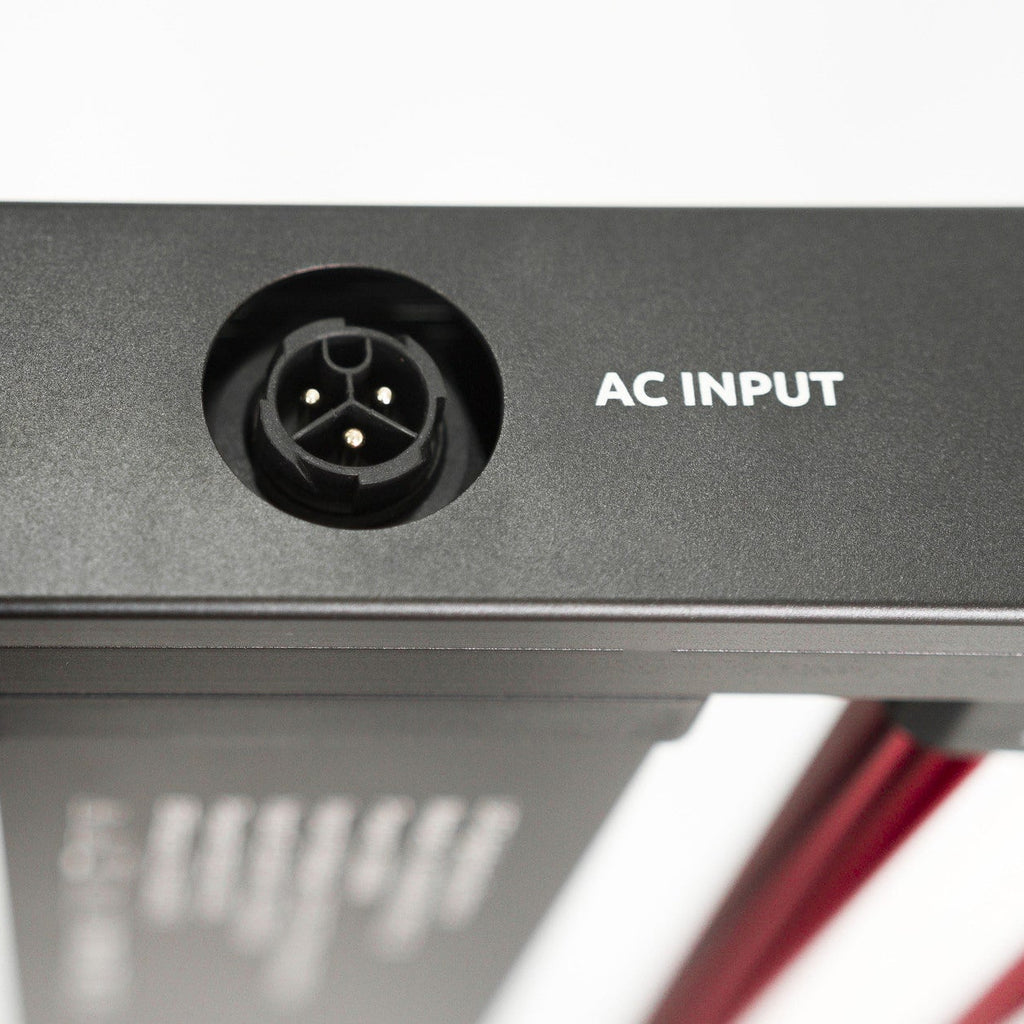

• Voltage-Appropriate Power Cable
• 0–10V Light Dimmer with Velcro

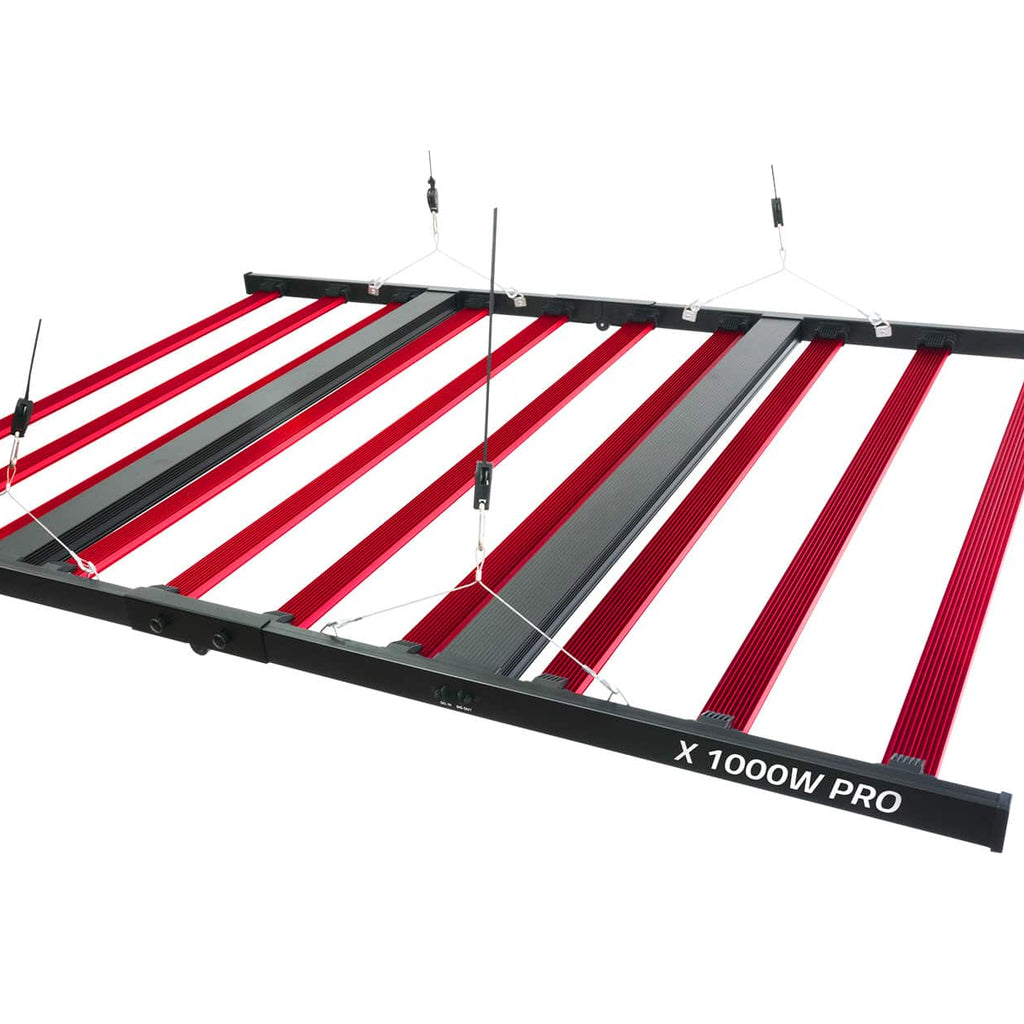

• Four Metal Cable Hangers
• User Manual
