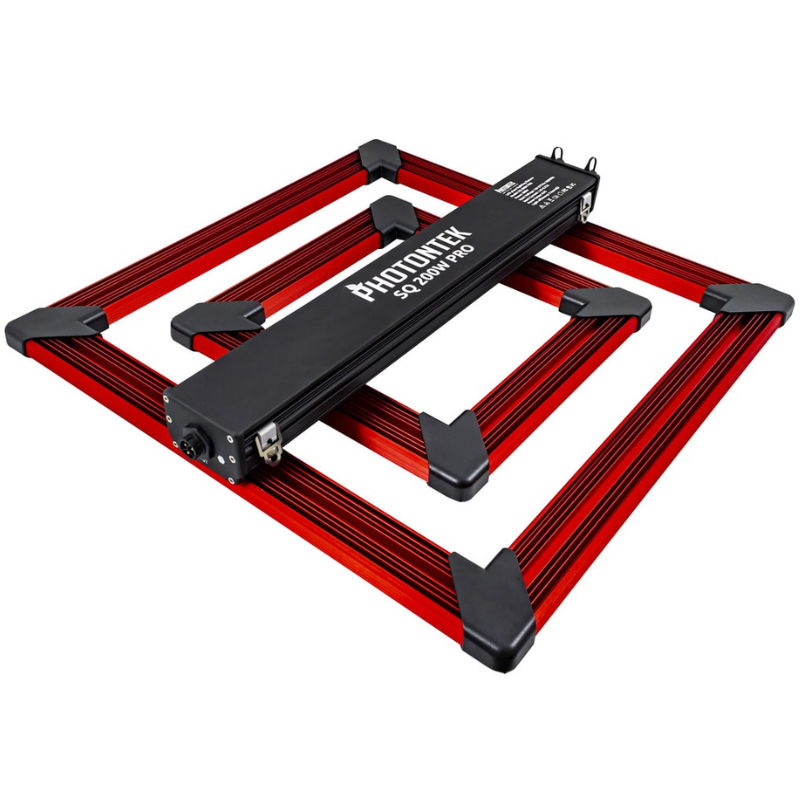

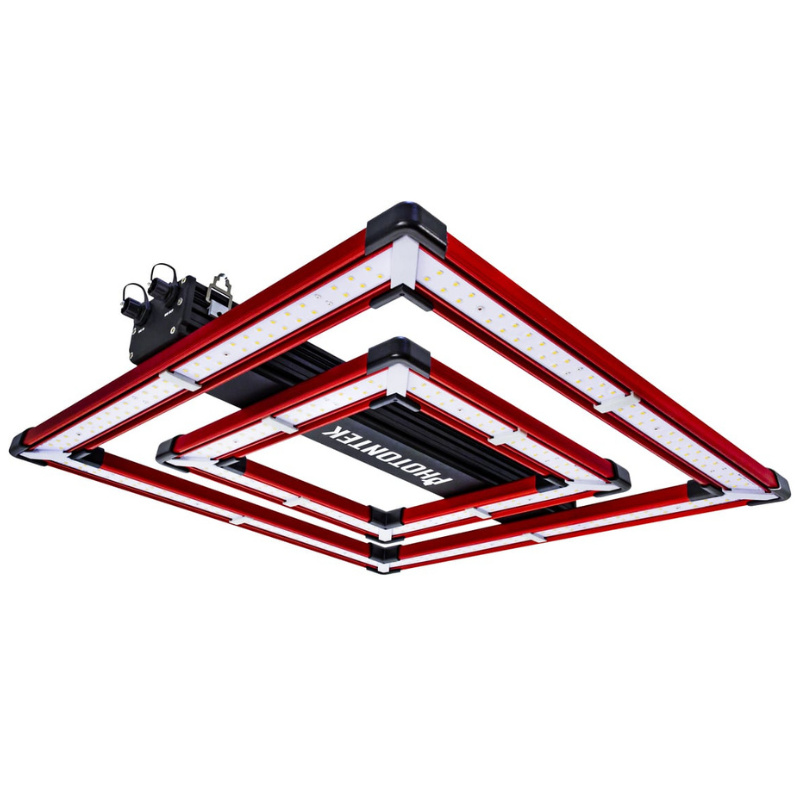

PhotonTek SQ200W Pro LED Grow Light

The PhotonTek SQ200W Pro LED Grow Light is a compact, full-spectrum horticultural fixture designed for grow tents, indoor rooms, propagation areas, and small controlled-environment growing spaces. Producing 508 µmol/s of PPF at an efficacy of 2.5 µmol/J, it delivers efficient plant-usable light across footprints up to 2.6' × 2.6'.

Its square bar configuration is engineered to distribute light evenly across compact growing areas. Unlike concentrated board-style fixtures, the SQ200W Pro spreads output toward the edges and corners of the canopy, helping reduce hot spots while maintaining uniform intensity at relatively short hanging distances.

The fixture uses higher-spec white, deep red, and far-red diodes to produce a balanced full-spectrum output for propagation, vegetative development, and flowering. This complete-cycle spectrum allows operators to use one fixture throughout the entire production process.

PhotonTek’s Clear Glue protection technology covers the LED bars with a thin protective layer that maintains approximately 99% light transmittance. The coating helps protect the diodes from moisture, dust, and corrosion while contributing to the fixture’s IP65 rating.

The SQ200W Pro uses passive thermal management instead of fans. Its aluminum heat sink and open square-bar construction remove heat through natural convection, reducing operating noise and eliminating moving cooling components that require maintenance.

An included 0–10V dimmer provides OFF, 25%, 50%, 75%, and 100% output settings. Operators can lower intensity during propagation and early growth before increasing output as canopy demand rises.

The fixture can also be connected to the PhotonTek Digital Lighting Controller or another compatible 0–10V control system. External control supports automated scheduling, dimming in 1% increments, temperature safety functions, sunrise and sunset simulation, and centralized management of up to 100 fixtures.

Its compact 20.65-inch square frame and low 8.82-pound weight make the SQ200W Pro easy to install in small tents, compact rooms, vertical spaces, and dedicated propagation areas. The low-profile design also helps preserve usable vertical space in tight environments.

Rated for approximately 60,000 operating hours and protected by a 5-Year Manufacturer Warranty, the PhotonTek SQ200W Pro is built for growers who need efficient full-spectrum lighting, compact coverage, and dependable long-term operation.

508 µmol/s PPF Output

The SQ200W Pro produces 508 µmol/s of photosynthetic photon flux while drawing only 205 watts.

This output level provides the intensity required for complete-cycle indoor horticultural applications in compact growing spaces.

2.5 µmol/J Fixture Efficacy

With a fixture efficacy of 2.5 µmol/J, the SQ200W Pro converts electrical energy into plant-usable light efficiently.

This helps reduce wasted electricity and heat compared with older or less efficient lighting systems.

Up to 2.6' × 2.6' Coverage

The fixture is designed for growing areas up to approximately 2.6' × 2.6'.

Its compact square footprint makes it especially well suited to 2' × 2' tents, closets, propagation zones, and smaller indoor rooms.

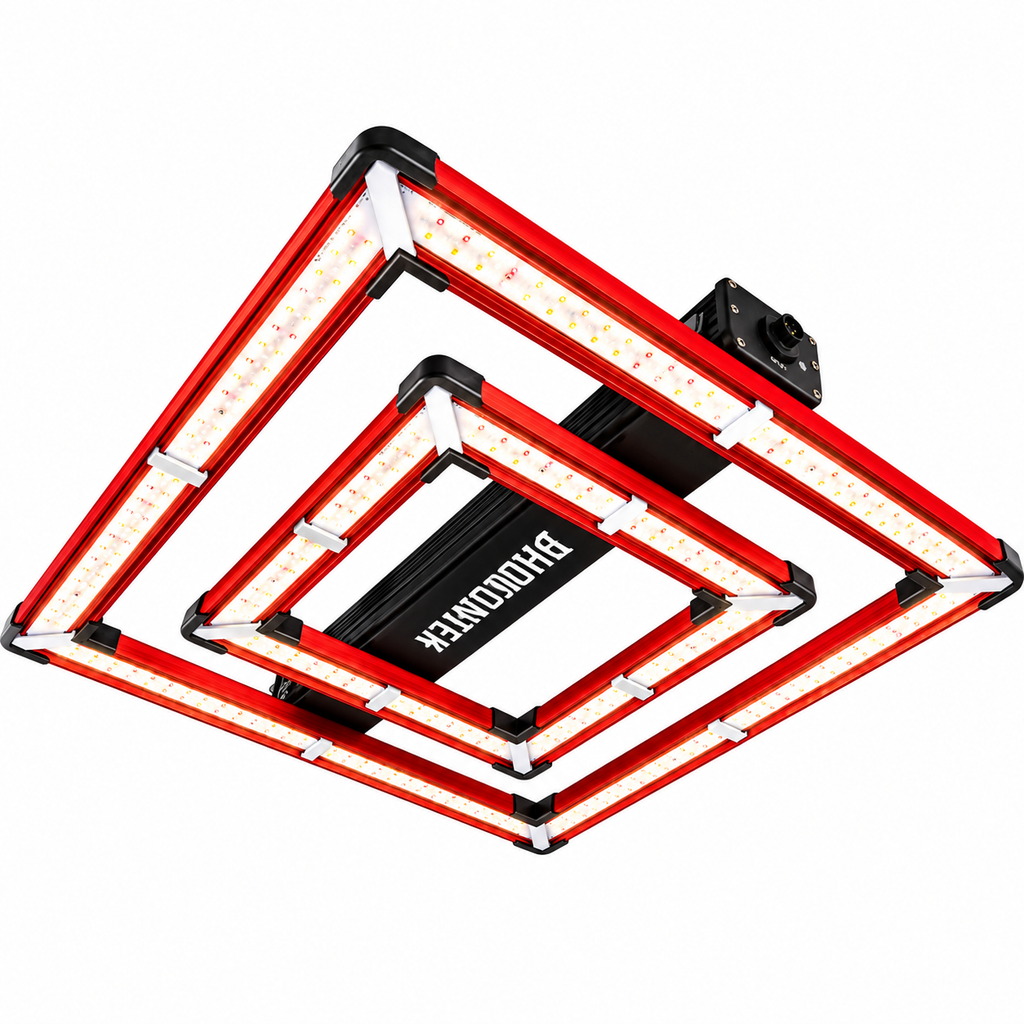

Square Bar Light Distribution

The square LED bar configuration spreads light toward the perimeter of the growing area.

This helps improve edge and corner coverage while reducing concentrated intensity directly beneath the center of the fixture.

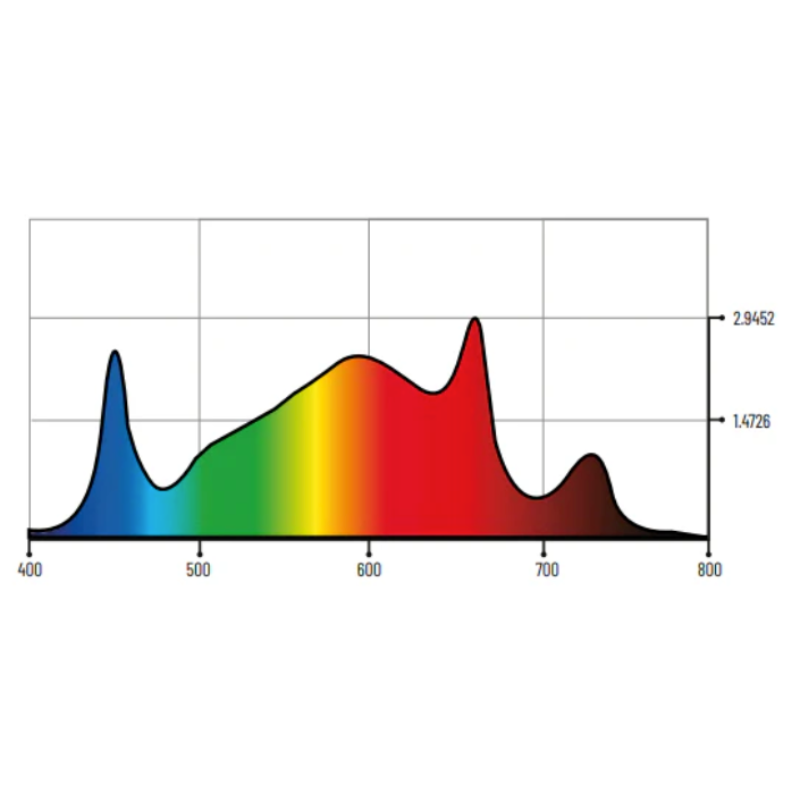

Balanced Full-Spectrum Output

A blend of white, deep red, and far-red diodes produces a stable full-spectrum output.

The fixture can support propagation, vegetative growth, and flowering without requiring separate lighting systems for each stage.

Clear Glue Protection

PhotonTek’s Clear Glue coating provides approximately 99% light transmittance while helping protect the diodes from environmental exposure.

The protective layer also improves corrosion resistance and simplifies routine cleaning.

Five-Level Dimming

The included 0–10V dimmer provides OFF, 25%, 50%, 75%, and 100% output settings.

Light intensity can be matched to plant age, canopy development, environmental conditions, and production requirements.

Digital Lighting Control

The SQ200W Pro is compatible with the PhotonTek Digital Lighting Controller.

The controller supports scheduling, automated dimming, temperature protection, sunrise and sunset simulation, and centralized control of up to 100 fixtures.

Universal 0–10V Compatibility

The fixture can also operate with compatible third-party systems using a standard 0–10V signal.

RJ-based control platforms may be connected using the appropriate RJ-to-0–10V adapter.

Passive Thermal Management

The advanced heat sink removes heat through natural convection without fans.

Passive cooling reduces noise, limits maintenance, and supports dependable long-term diode performance.

IP65-Rated Protection

The fixture carries an IP65 water and dust resistance rating for controlled indoor growing environments.

It should still be protected from direct spray, standing water, condensing moisture, and outdoor exposure.

Compact Low-Profile Design

At only 20.65" × 20.65" × 2.82", the SQ200W Pro fits easily into compact production spaces.

Its low-profile construction helps preserve valuable vertical clearance between the fixture and canopy.

60,000-Hour Rated Life

Premium diodes, passive cooling, and quality electrical components contribute to a rated service life of approximately 60,000 hours.

This long operating interval helps reduce fixture replacement frequency.

5-Year Manufacturer Warranty

PhotonTek protects the SQ200W Pro with a 5-Year Manufacturer Warranty covering qualifying defects in mechanical and electronic components under normal operating conditions.

Improper installation, misuse, unauthorized modification, and failure to follow manufacturer instructions are excluded.

What's Included

• PhotonTek SQ200W Pro LED Fixture with Integrated Driver
• Voltage-Appropriate Power Cable
• 0–10V Light Dimmer with Velcro
• Two Metal Cable Hangers
• User Manual
