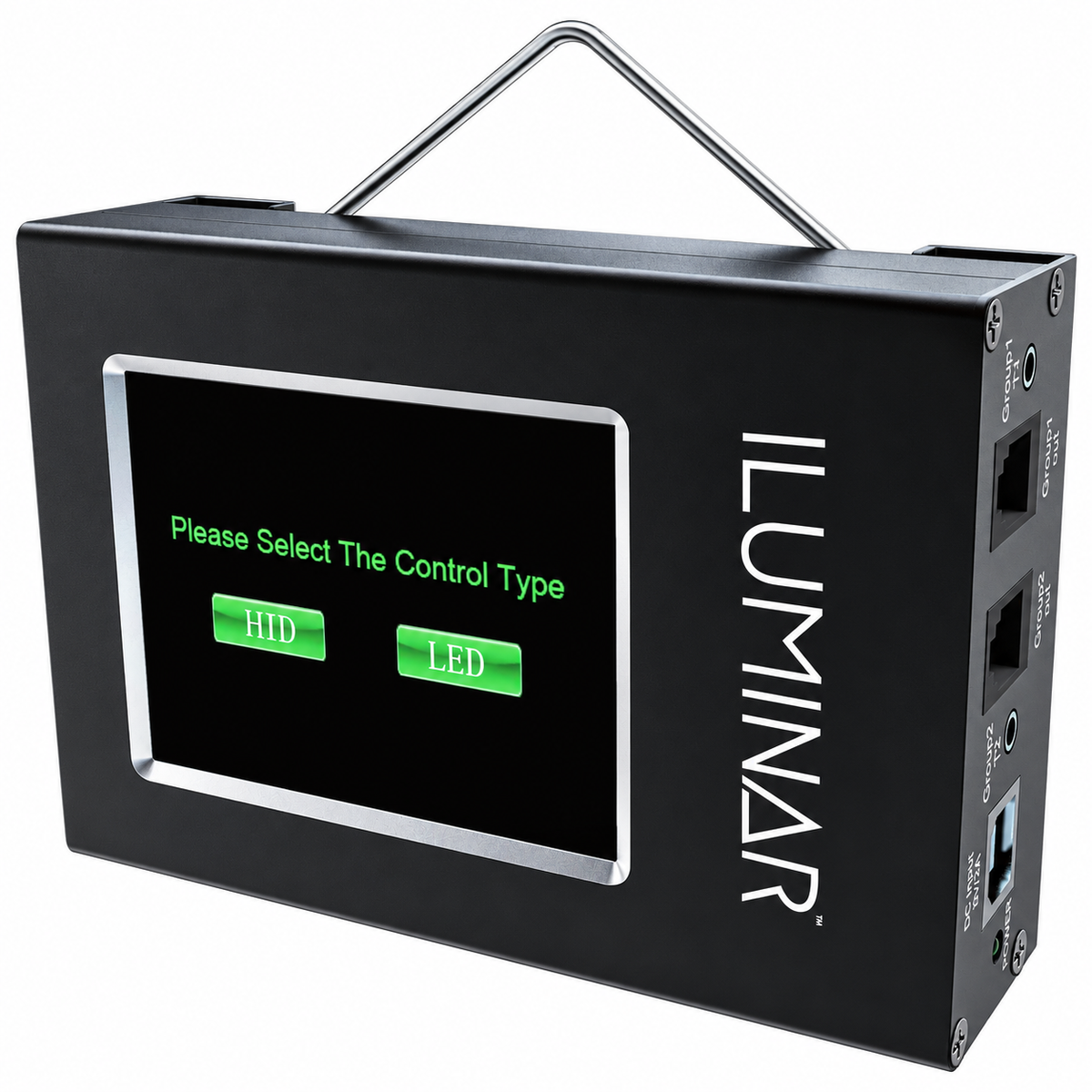

ILUMINAR Touch+ Lighting Controller

The ILUMINAR Touch+ Controller provides centralized lighting control for LED, CMH, HPS and MH systems. Two independent channels can manage up to 60 fixtures each, for 120 fixtures total, with scheduling, dimming, sunrise and sunset simulation and temperature-based protection through an LCD touchscreen.

• Capacity: Up to 120 Fixtures
• Zones: 2 Independent Channels
• Automation: Sunrise + Sunset
• Protection: Dual Temperature Monitoring

Control Two Independent Lighting Zones

Each channel operates independently, so two rooms or lighting groups can run separate schedules and settings within a 24-hour cycle.

Up to 120 Fixtures

Each zone supports up to 60 fixtures, for a maximum of 120 fixtures per controller, with a maximum cord distance of 180 m per zone.

LED, CMH, HPS & MH Control

The Touch+ is designed to manage multiple lighting technologies from one controller.

• LED mode: 20–100% dimming range
• HID mode: 50–115% control range

Sunrise & Sunset Simulation

Programmable sunrise and sunset transitions can be enabled independently, with transition periods from 10 to 60 minutes, providing gradual changes in lighting output instead of immediate on/off switching.

Dual Temperature Protection

Two temperature probe inputs monitor the individual lighting zones. Temperature protection can be set from 70–120°F (21–49°C), and the sensors can automatically dim or shut down connected lighting when room temperatures exceed the selected limit.

LCD Touchscreen Interface

The integrated LCD touchscreen provides access to zone selection, manual or automatic operation, dimming, temperature limits, schedules and sunrise/sunset settings. The display also shows real-time temperature readings from connected sensors.

Battery Backup

An integrated battery backup retains controller data, so programmed settings are saved.

What’s Included

• Touch+ Controller
• Temperature Sensor Cables
• Data Cable
• 2 × 3m Telephone Cables
• Mounting Screws & Wall Anchors
• Plug Adapter
