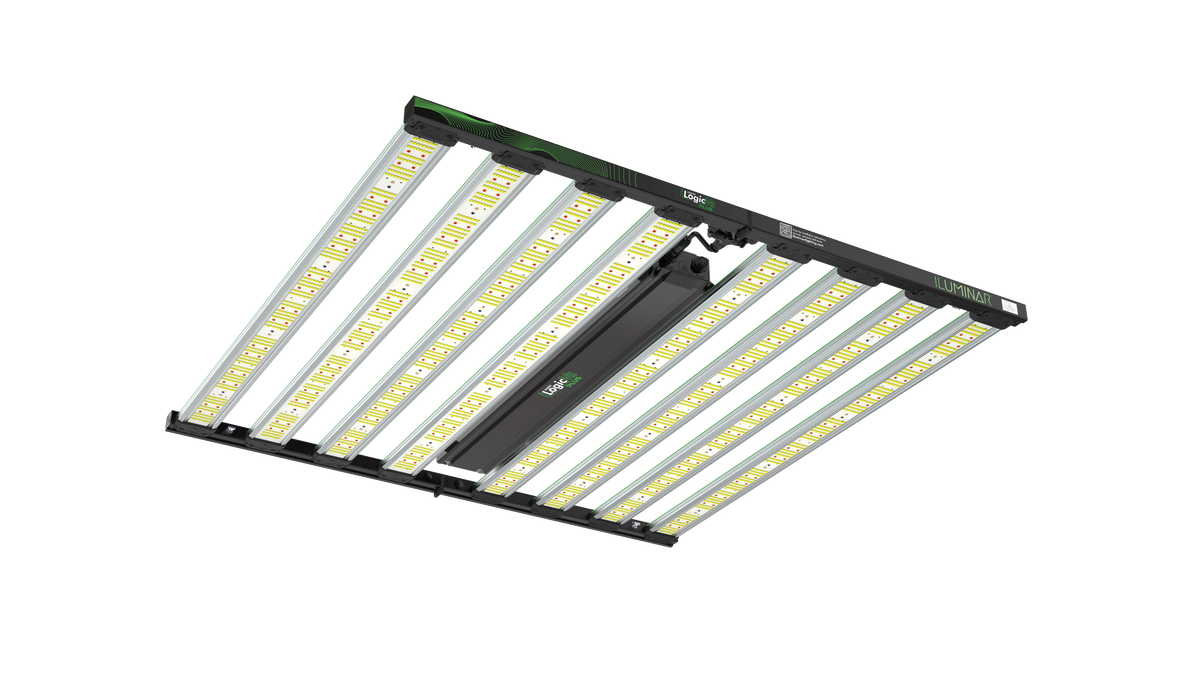

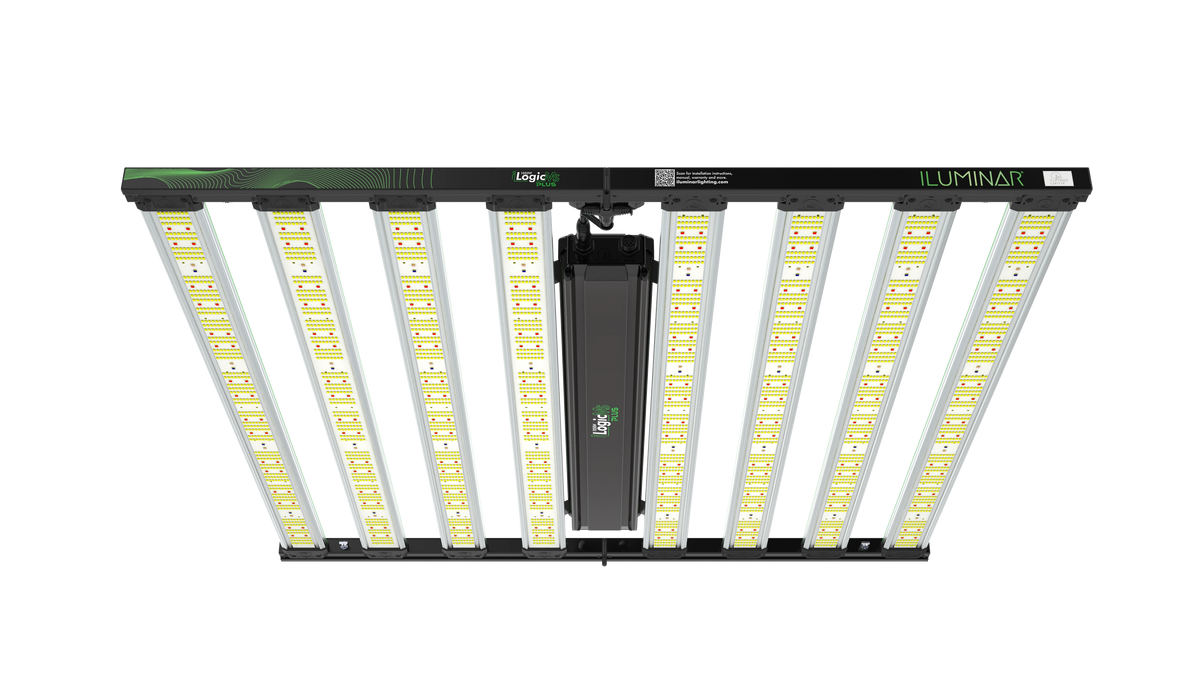

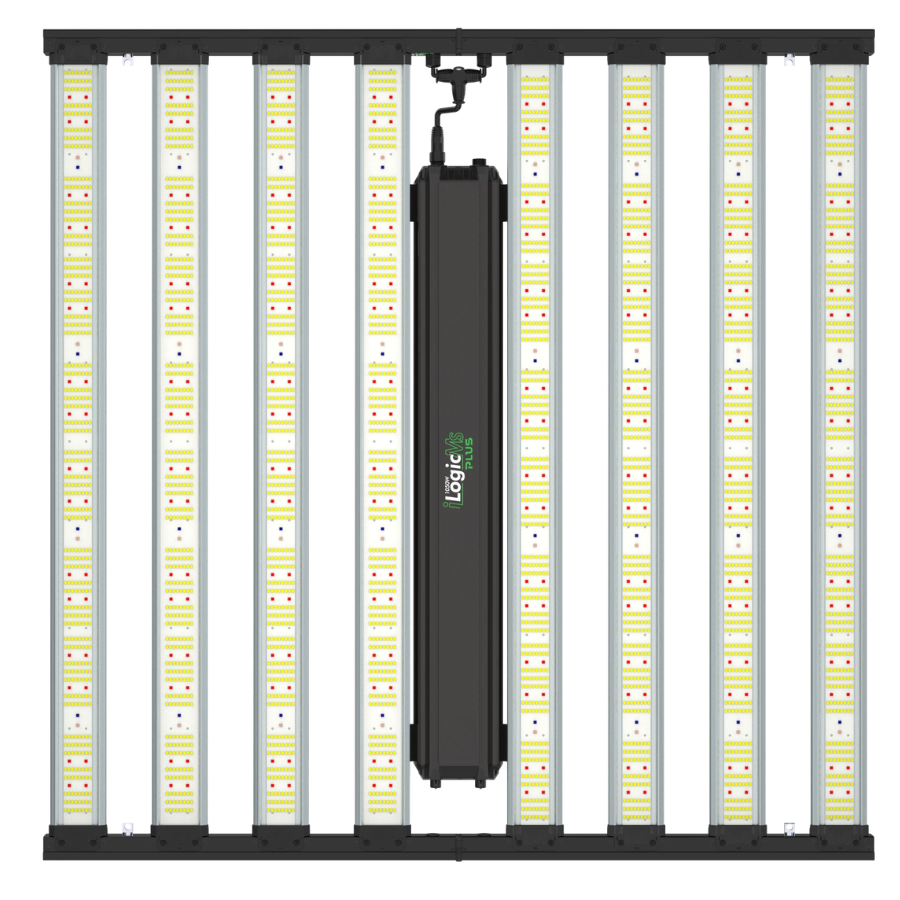

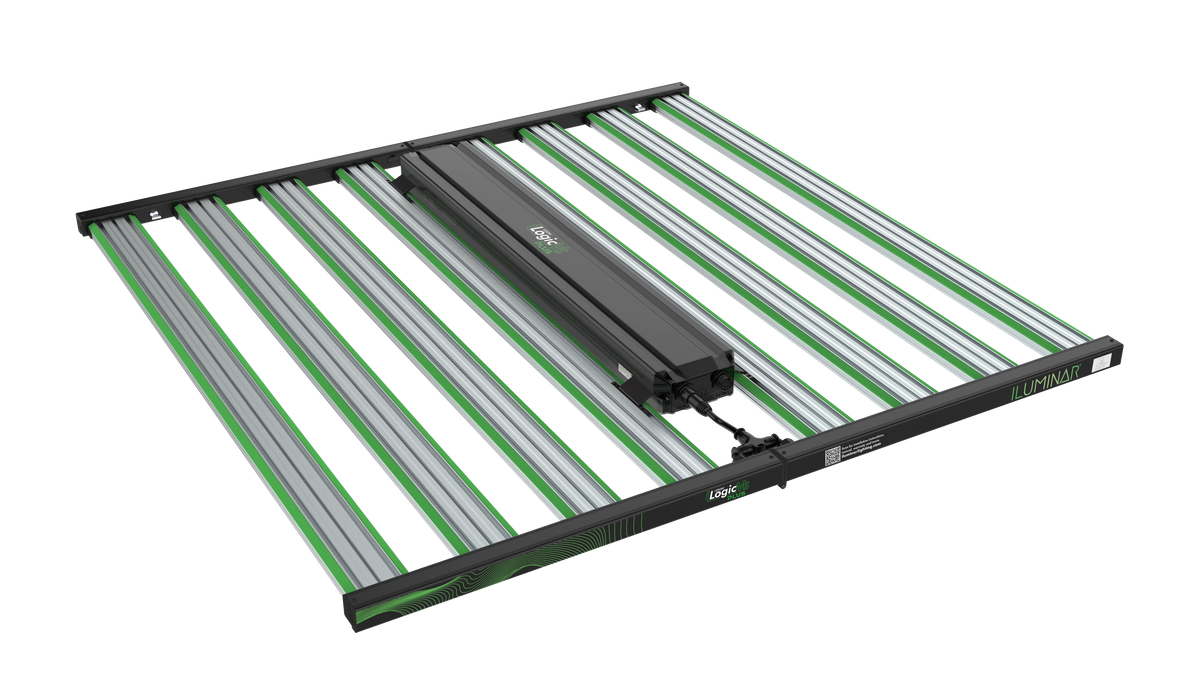

ILUMINAR iLogic MS Plus 1050W Multi Spectrum LED Grow Light

The ILUMINAR iLogic MS Plus 1050W is a high-output commercial LED grow light with independently controllable full-spectrum, UV and far-red channels. At full power, it delivers 3446 µmol/s ePAR PPF at 3.05 µmol/J, combining high-intensity output with precise spectrum control.

• Power: 1050W Tunable LED
• Output: 3446 µmol/s ePAR PPF
• Efficacy: 3.05 µmol/J
• Spectrum: Full Spectrum + UV + Far-Red

The fixture is powered by Sosen LED drivers and built on the same folding, serviceable platform as the rest of the iLogic MS Plus line.

Independently Controllable Spectrum

The iLogic MS Plus provides independent control over its full-spectrum, UV and far-red output, so spectrum intensity and timing can be programmed for different stages of the light cycle.

Samsung LM281B+ Pro Diode Array

The LED array combines Samsung LM281B+ Pro full-spectrum diodes with dedicated 660nm, UV and far-red diodes.

3446 µmol/s ePAR PPF

At 1050W, the fixture produces 3446 µmol/s ePAR PPF, delivering extremely high light output from its 43.3” × 43.3” footprint.

3.05 µmol/J Efficacy

An ePAR efficacy rating of 3.05 µmol/J provides efficient photon output for high-intensity indoor cultivation.

0–100% Dimming

RS485 control provides 0–100% dimming, letting output be adjusted precisely through the compatible control system.

Recommended Hanging Height

ILUMINAR recommends deploying the fixture approximately 30–60 cm (12–24”) above the top of the plants.

Plus Controller Required

A separately purchased ILUMINAR Plus Controller is required to operate this fixture. The fixture ships with its initial default set to Null/Off and must be connected to a properly configured controller before operation.

Commercial Daisy-Chain Control

The control platform is designed for multi-fixture commercial installations, with daisy-chain expansion specified as unlimited when used with a Plus Repeater.

Sosen LED Drivers

The fixture uses Sosen LED drivers with a manufacturer-specified power factor above 0.9.

IP65 Aluminum Construction

An aluminum heatsink provides passive cooling, and the fixture carries an IP65 rating for demanding grow-room environments.

50,000-Hour LED Lifespan

ILUMINAR rates the fixture’s LEDs for a 50,000-hour operating lifespan.

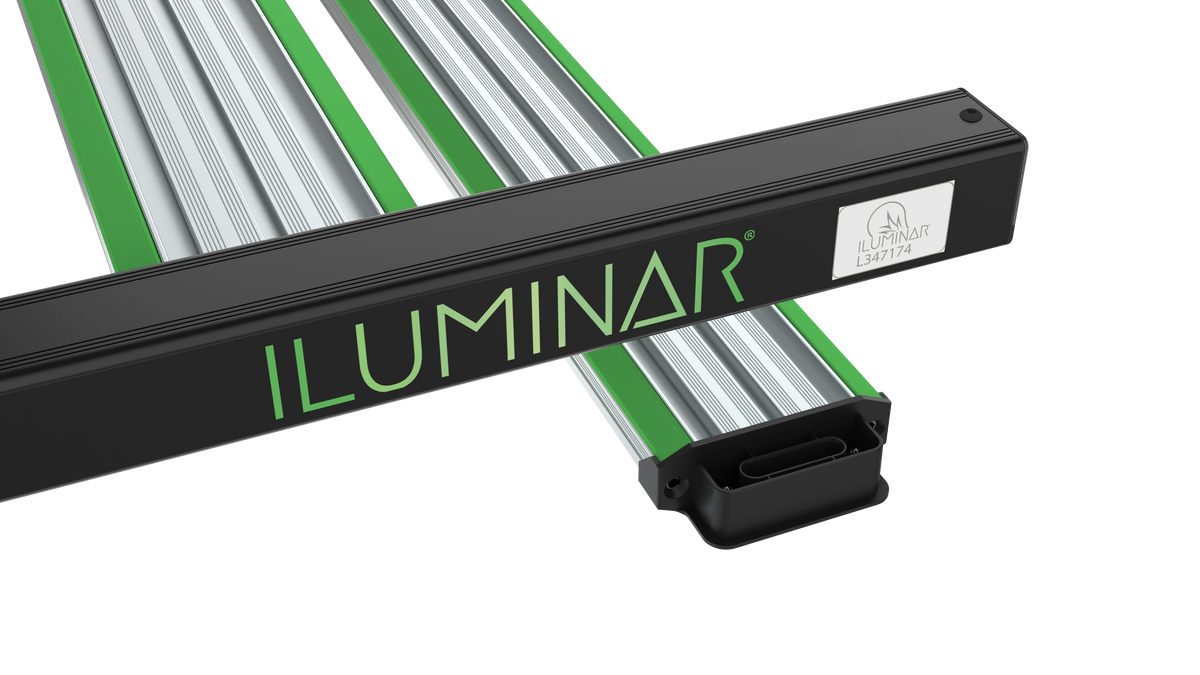

Replaceable LED Bars & Driver

The folding fixture is designed with individually serviceable LED bars and a separate driver box, simplifying component replacement in commercial installations.

Choosing a Voltage Configuration

120 Volt — for standard installations running on conventional 120V circuits.

240 Volt — for higher-voltage residential or commercial circuits, drawing lower current per fixture.

277 Volt — for commercial facilities with 277V electrical infrastructure.

What’s Included

• 1 × iLogic MS Plus 1050W LED Fixture
• 1 × LED Driver
• 1 × 6’ Power Cable
• 1 × 3m RS485 Signal Cable
• 2 × Adjustable Hanging Kits
• 2 × Unadjustable Hanging Kits
• 1 × Allen Key

Note: The ILUMINAR Plus Controller is sold separately and is required for operation.
