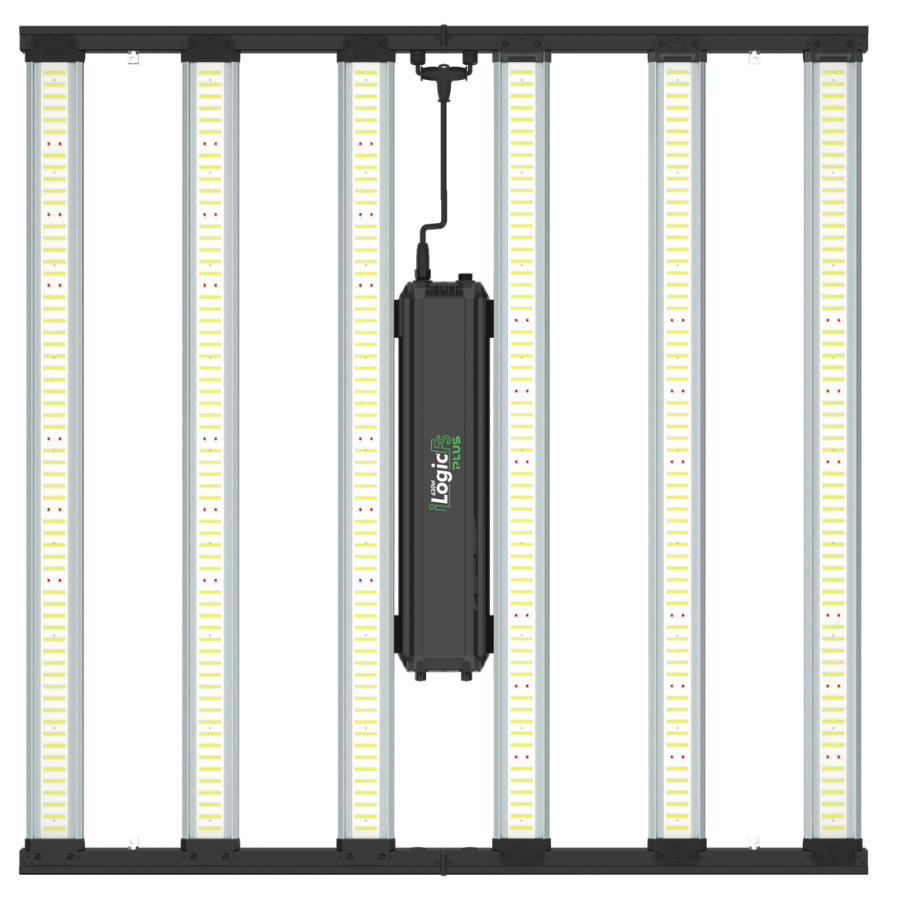

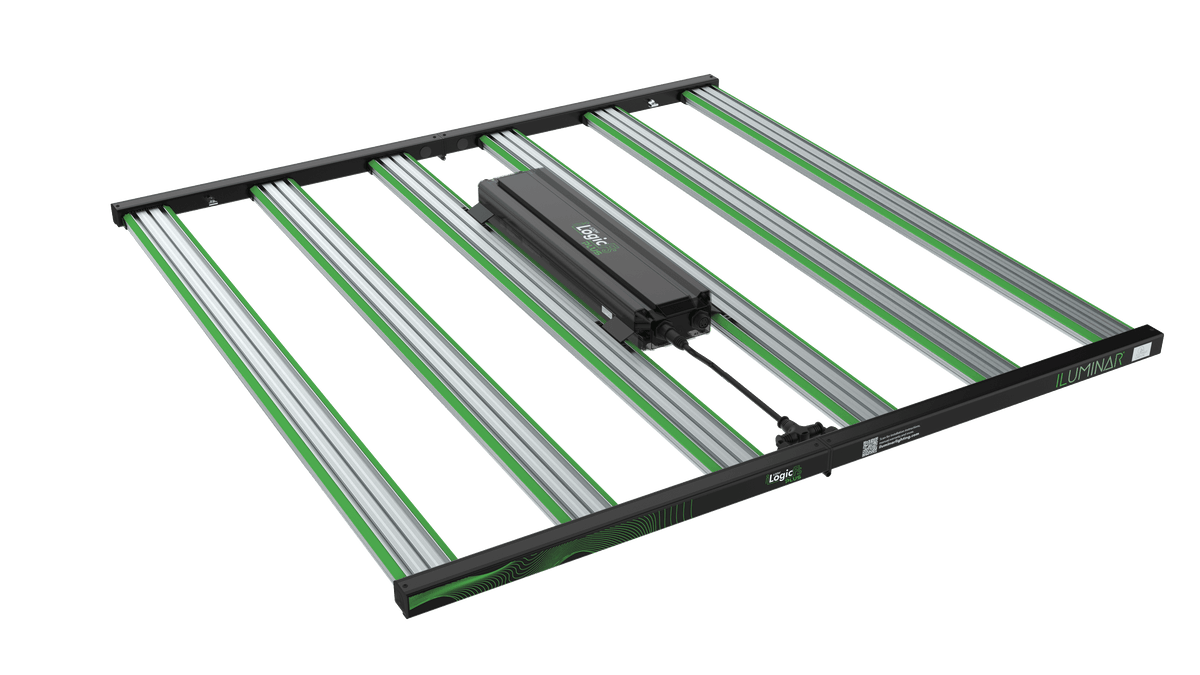

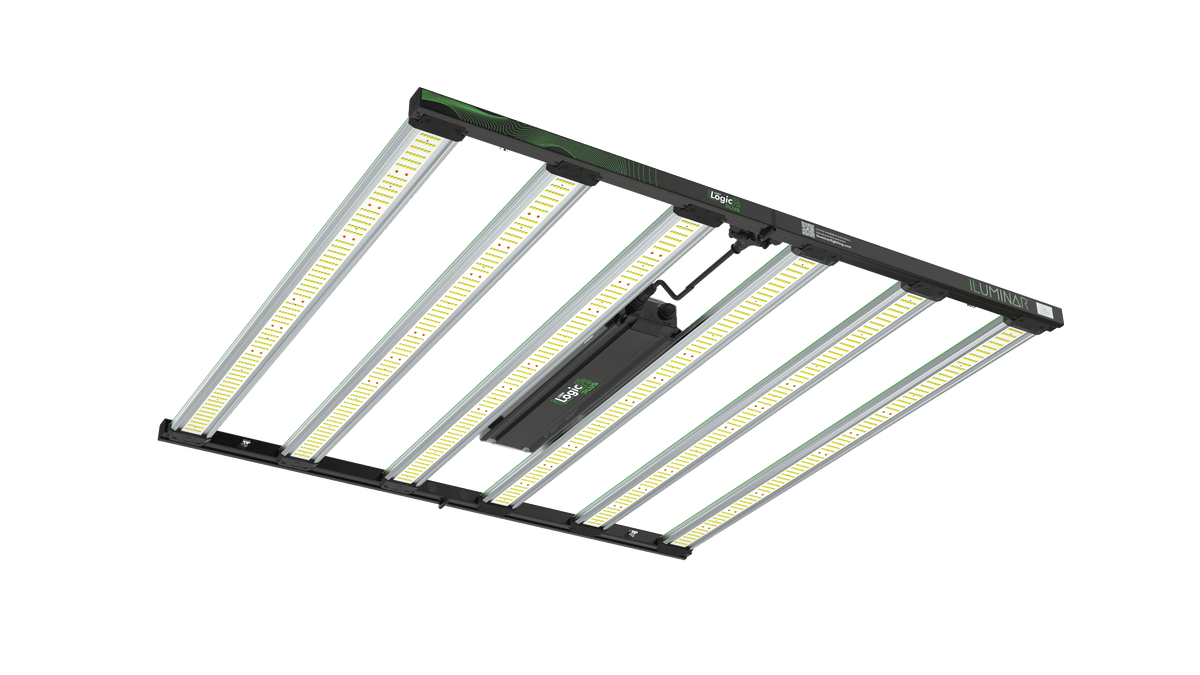

ILUMINAR iLogic FS Plus 630W Full Spectrum LED Grow Light

The ILUMINAR iLogic FS Plus 630W is a commercial full spectrum LED grow light designed for high-intensity flowering across a 4’ × 4’ footprint. ILUMINAR’s current specification rates the fixture at 2099 µmol/s PPF with an efficacy of 3.11 µmol/J, operating at 630W ±5%.

• Power: 630W LED
• Output: 2099 µmol/s PPF
• Efficacy: 3.11 µmol/J
• Coverage: 4’ × 4’

The fixture is powered by a Sosen LED driver and built on the same folding, serviceable platform as the rest of the iLogic Plus line.

2099 µmol/s High-Output Performance

With 2099 µmol/s PPF, the iLogic FS Plus 630W delivers high photon output for demanding flowering applications while holding a 630W power draw.

3.11 µmol/J Efficacy

An efficacy rating of 3.11 µmol/J provides efficient commercial LED performance, turning more of every watt into usable light.

Full Spectrum Samsung LED Array

The LED array combines:

• 1,872 Samsung LM281B+ Pro white LEDs
• 168 Honglitronic SMD3535 660nm red LEDs

Together they produce a 4000K full spectrum with a CRI of 85, designed for high-intensity flowering.

4’ × 4’ Flowering Coverage

The iLogic FS Plus 630W is designed to deliver high-intensity flowering light across a 4’ × 4’ footprint.

Recommended Hanging Height

ILUMINAR recommends deploying the fixture approximately 30–60 cm (12–24”) above the top of the plants.

0–100% Dimming

RS485 control provides 0–100% dimming, letting light intensity be adjusted through the compatible ILUMINAR control system.

Plus Controller Required

A separately purchased ILUMINAR Plus Controller is required to operate this fixture. The fixture’s initial setting is Null/Off, and the controller must be connected and configured before operation.

Scalable Daisy-Chain Control

The control platform supports unlimited daisy-chain expansion when used with a Plus Repeater, allowing multiple fixtures to be incorporated into larger commercial lighting systems.

Sosen LED Driver

The fixture is powered by a high-efficiency Sosen LED driver with a manufacturer-specified power factor above 0.9.

IP65 Aluminum Construction

An aluminum heatsink provides passive cooling, and the fixture carries an IP65 rating for demanding indoor cultivation environments.

50,000-Hour LED Lifespan

ILUMINAR rates the fixture’s LEDs for a 50,000-hour operating lifespan.

Replaceable LED Bars & Driver

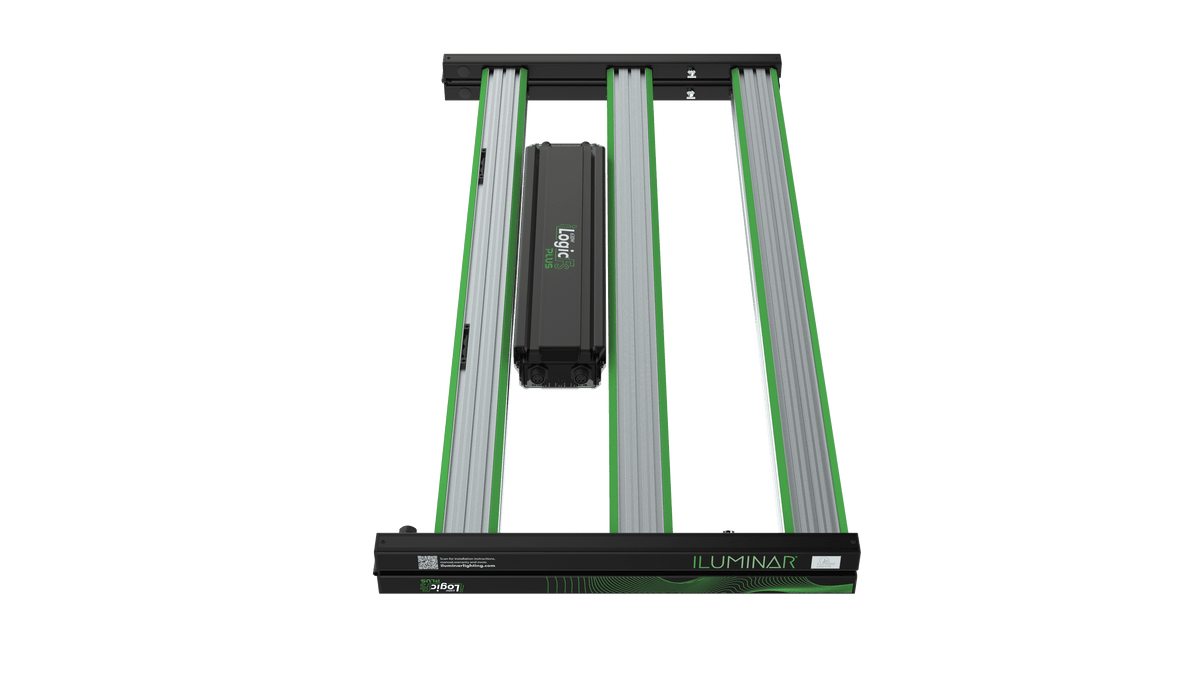

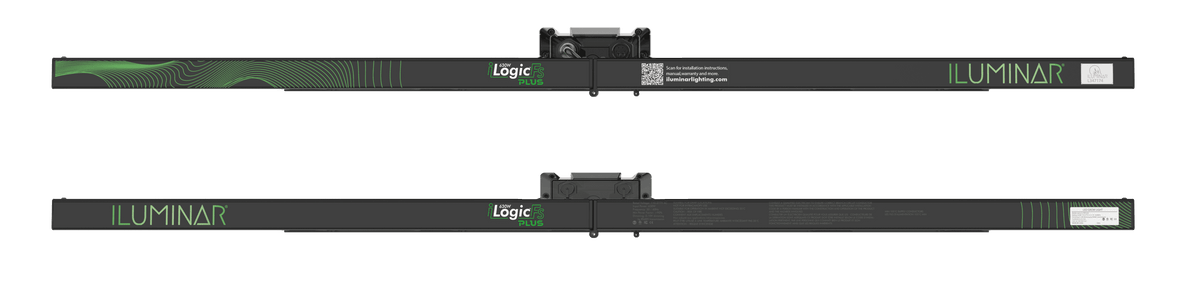

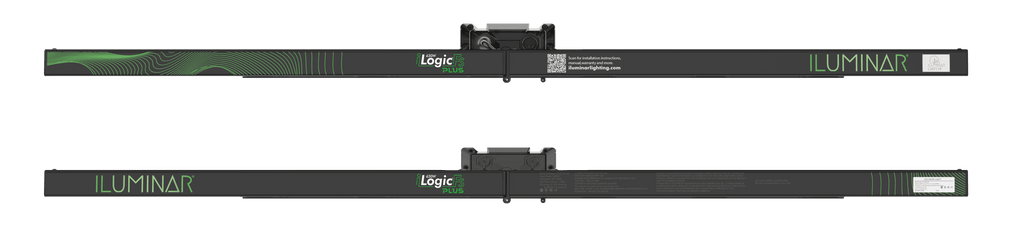

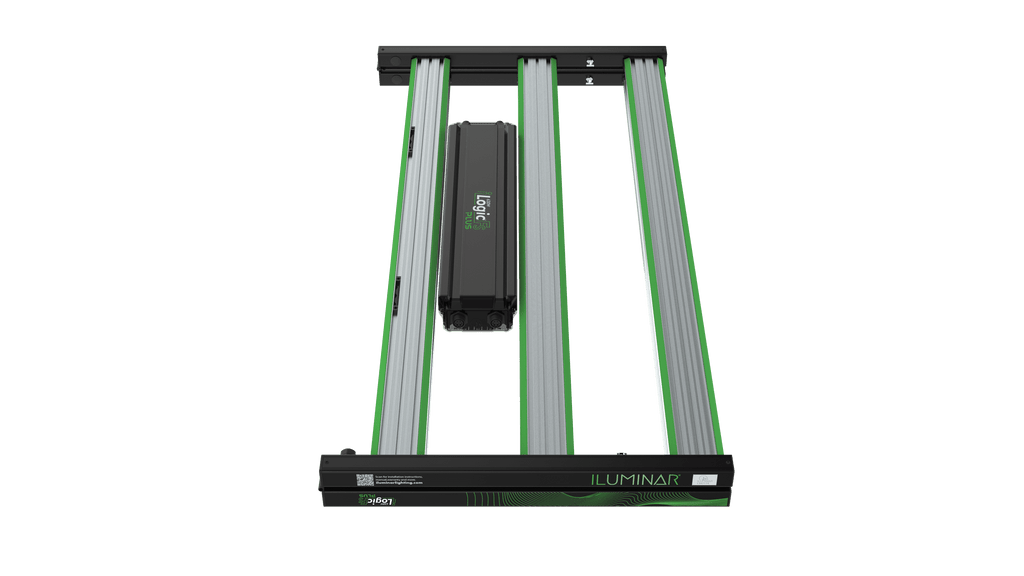

The fixture features a folding frame along with individually replaceable LED bars and a replaceable driver box for easier servicing.

Choosing a Voltage Configuration

120 Volt — for standard installations running on conventional 120V circuits.

240 Volt — for higher-voltage residential or commercial circuits, drawing lower current per fixture.

277 Volt — for commercial facilities with 277V electrical infrastructure.

What’s Included

• 1 × iLogic FS Plus 630W LED Fixture
• 1 × LED Driver
• 1 × 6’ Power Cable
• 1 × 3m RS485 Signal Cable
• 2 × Adjustable Hanging Kits
• 2 × Unadjustable Hanging Kits
• 1 × Allen Key

Note: The ILUMINAR Plus Controller is sold separately and is required for operation.
