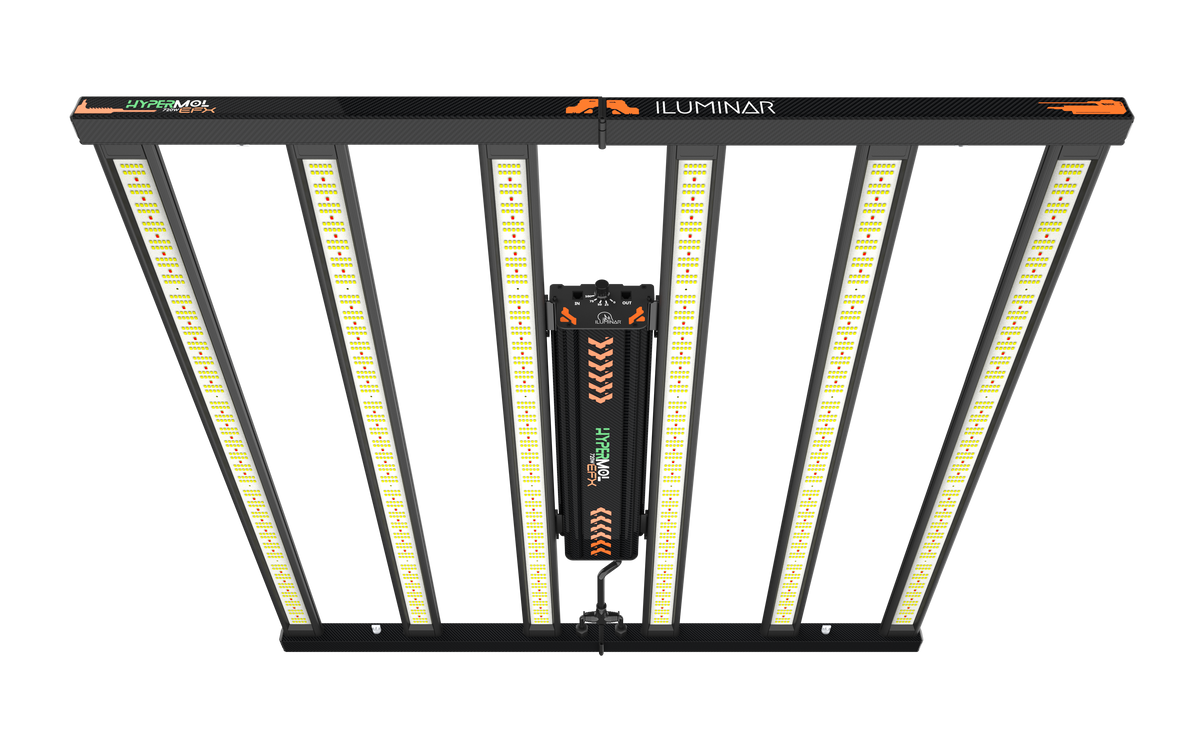

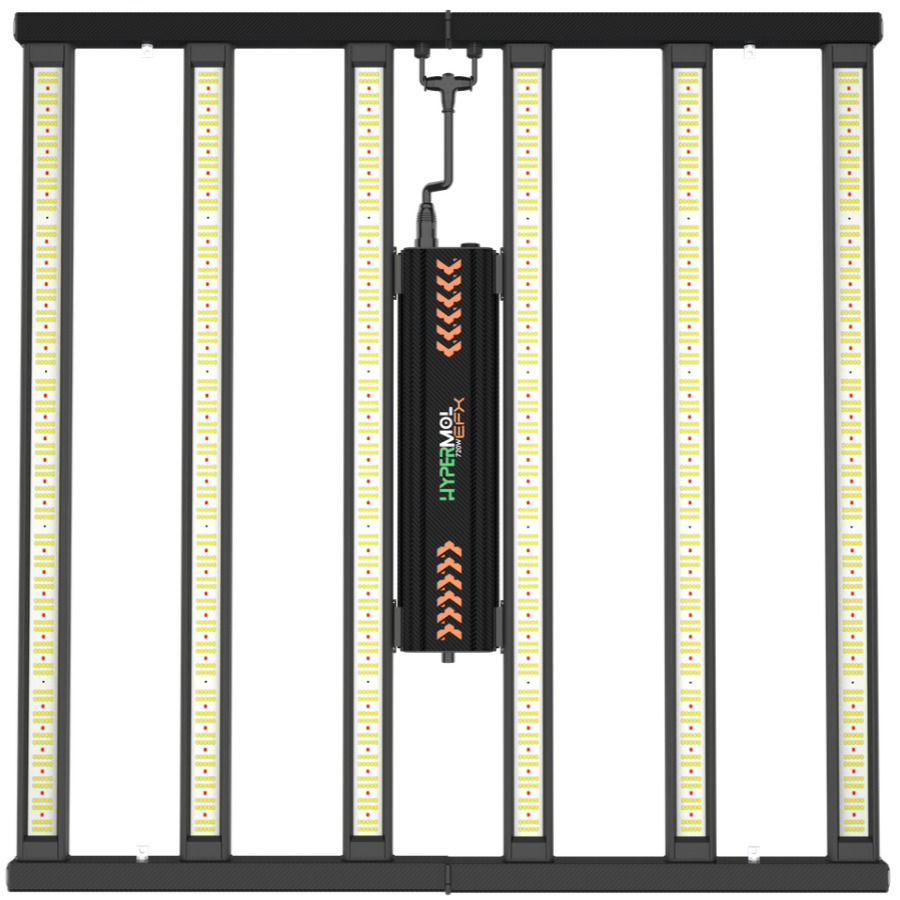

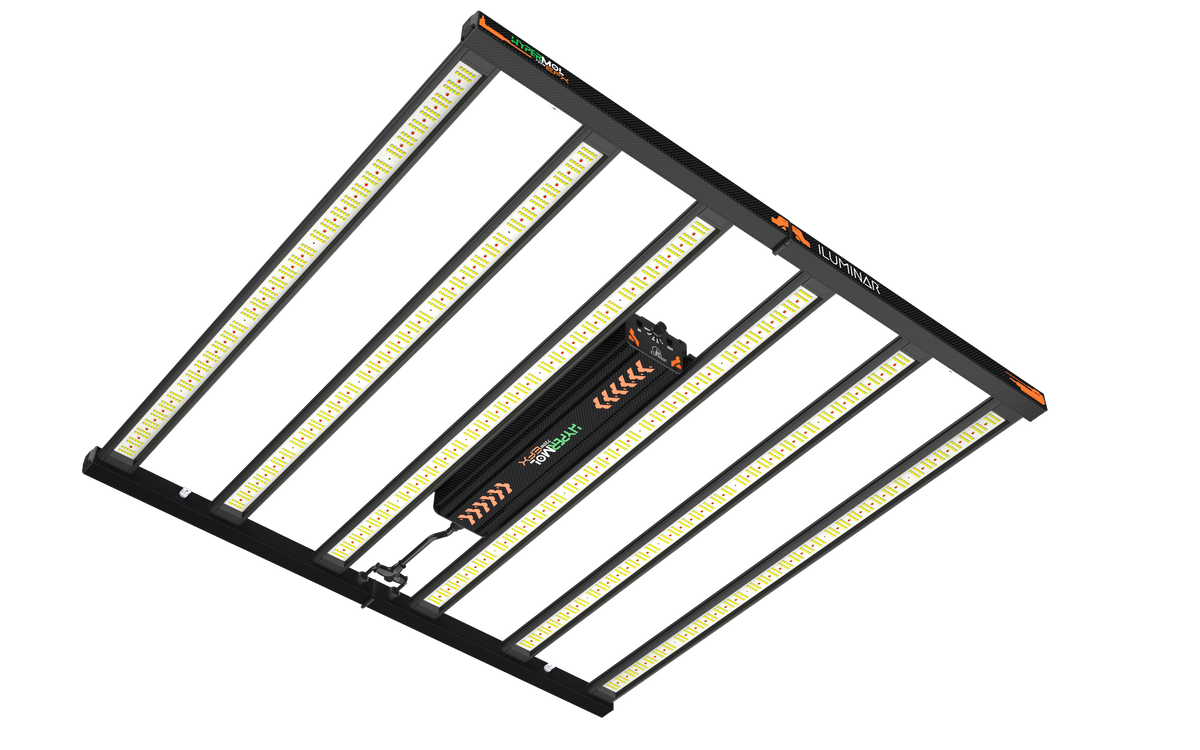

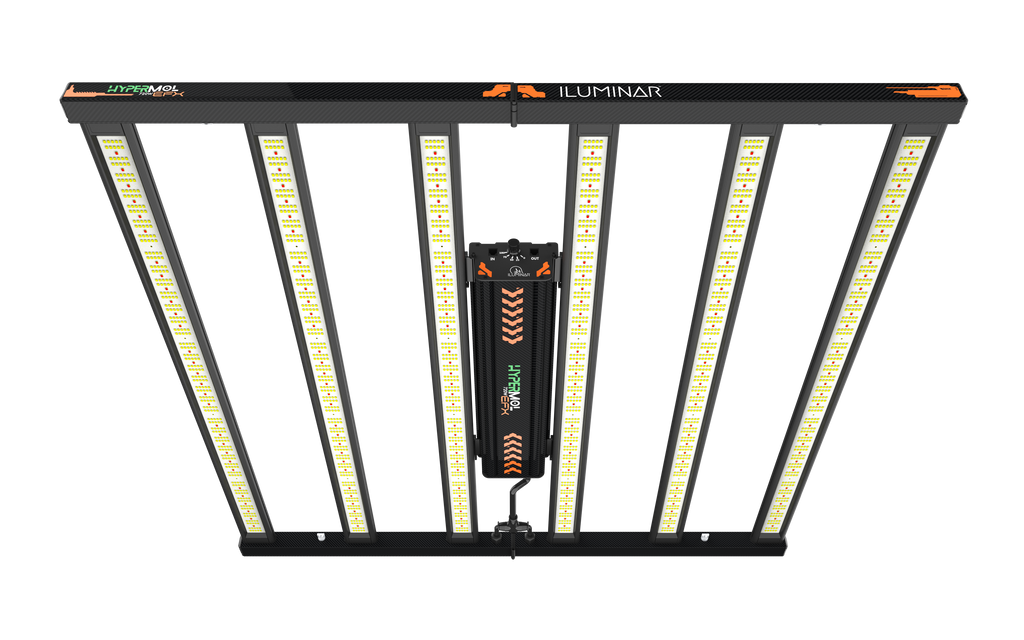

ILUMINAR HYPERMOL EFX 720W Full Spectrum LED Grow Light

The ILUMINAR HYPERMOL EFX 720W is a commercial full spectrum LED grow light delivering 2088 µmol/s PPF at 2.9 µmol/J. It combines Samsung LM281B+ Pro and Honglitronic 660nm diodes with 0–10V control, IP65 protection and a modular, serviceable design.

• Output: 2088 µmol/s PPF
• Efficacy: 2.9 µmol/J
• Diodes: Samsung + 660nm
• Control: 0–10V Dimming

Operating on AC 110–277V, the HYPERMOL EFX suits both standard and commercial electrical installations.

2088 µmol/s High-Output Lighting

Operating at 720W ±5%, the HYPERMOL EFX produces 2088 µmol/s PPF, providing high-intensity full spectrum output while keeping power consumption efficient.

2.9 µmol/J Efficacy

An efficacy rating of 2.9 µmol/J delivers efficient full spectrum output designed for indoor cultivation.

Samsung + 660nm Full Spectrum

The diode array combines:

• 2,100 Samsung LM281B+ Pro 4000K LEDs
• 180 Honglitronic SMD3535 660nm LEDs

Together they create a full spectrum with dedicated red output.

0–10V Control

0–10V input and output provide external dimming and controller compatibility, making the HYPERMOL EFX suitable for both individual fixtures and larger controlled lighting installations.

Fahold LED Driver

The fixture is powered by a Fahold LED driver with a manufacturer-specified power factor above 0.9.

120° Beam Angle

A wide 120° beam angle distributes light across the growing area.

Recommended Hanging Height

ILUMINAR recommends deploying the fixture approximately 30–60 cm (12–24”) above the top of the plants.

IP65 Protection

An IP65 rating protects the fixture against dust and water ingress, while its 32–95°F operating range supports use in controlled indoor cultivation environments.

50,000-Hour LED Lifespan

ILUMINAR rates the fixture’s LEDs for a 50,000-hour operating lifespan.

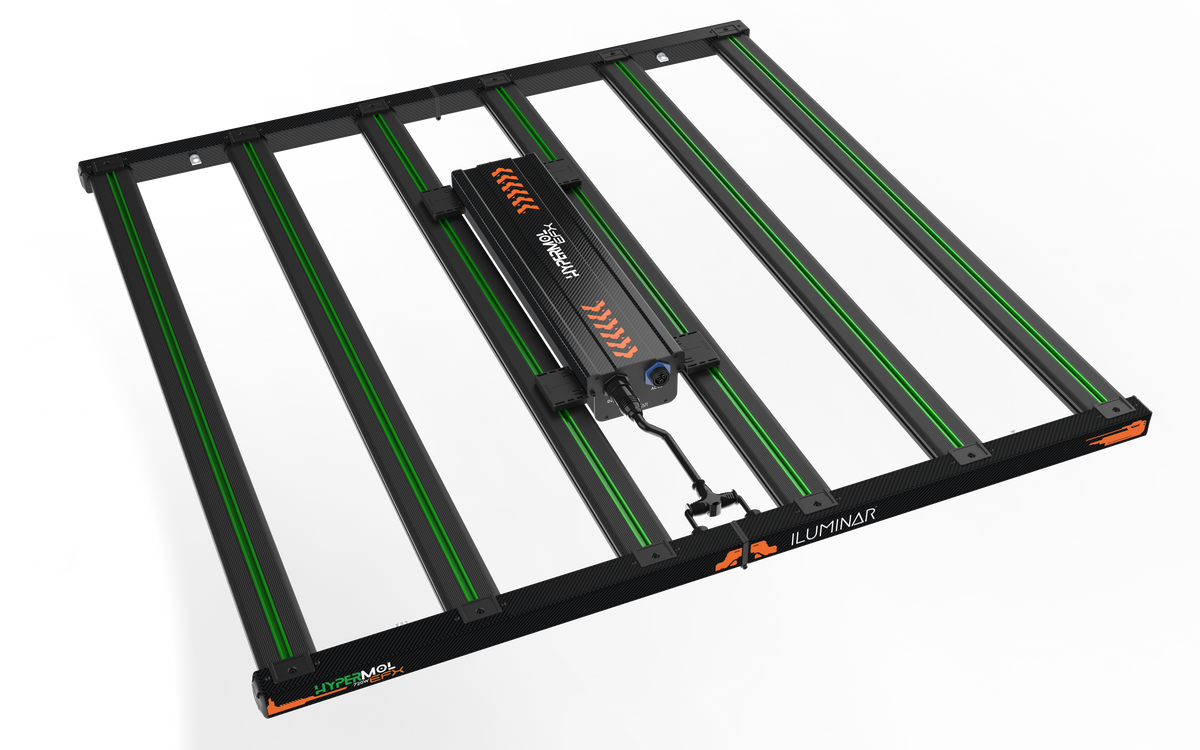

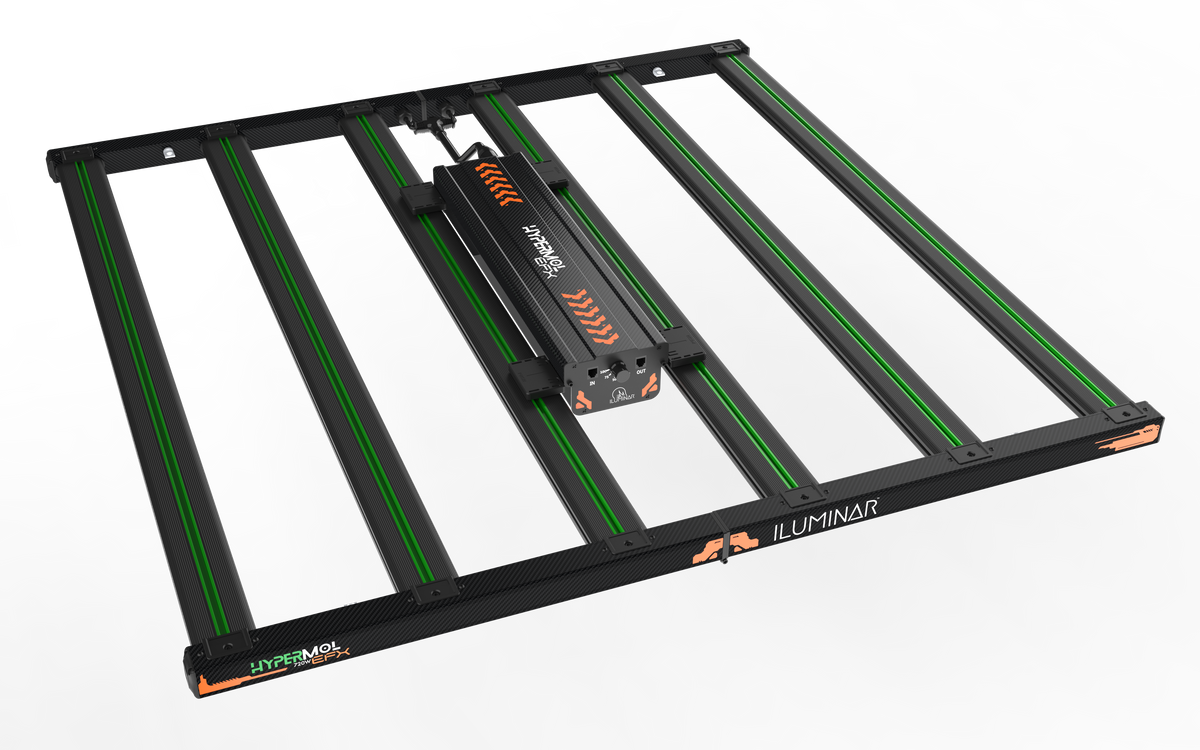

Modular, Replaceable Components

The aluminum fixture uses individually replaceable LED bars and a replaceable driver box, designed specifically for easier servicing and replacement.

Foldable Design

The HYPERMOL EFX features a folding aluminum frame for more compact handling and storage. It can be suspended with the included hanging hardware or installed using compatible rack mounting methods.

What’s Included

• 1 × HYPERMOL EFX 720W LED Fixture
• 1 × LED Driver
• 1 × 6’ Power Cable
• 1 × 3m RS485 Signal Cable
• 2 × Adjustable Hanging Kits
• 2 × Non-Adjustable Hanging Kits
• 1 × Allen Key
