Harvest Right HRC100 Pro Commercial Freeze Dryer

The Harvest Right HRC100 Pro Commercial Freeze Dryer is built for operations that have moved beyond home scale production but do not want the cost, complexity, or footprint of a massive industrial lyophilization system.

With nine full size stainless steel trays, 29.25 square feet of total tray area, and capacity for approximately 65 to 100 pounds of fresh material per batch, the HRC100 represents a substantial jump in throughput from Harvest Right's residential Pro models. At the same time, its 33.5 inch wide footprint keeps the machine manageable for commercial kitchens, farms, specialty food manufacturers, research environments, processing facilities, and growing production businesses.

Harvest Right designed the HRC100 around automation. Once the machine is properly installed, loaded, and started, the system controls the freeze drying process automatically. The owner's manual states that the operator can load the product, press start, and allow the machine to manage the process until an audible alert signals that the batch is finished.

That combination of commercial capacity, automated processing, standard industrial tray sizing, and relatively compact dimensions is what makes the HRC100 such a practical step between multiple smaller machines and true industrial freeze drying equipment.

Commercial Capacity Without an Industrial Footprint

The HRC100 is capable of processing approximately 65 to 100 pounds of fresh material per batch, depending on the moisture content, density, preparation, and product being processed.

For operations that have been running several smaller freeze dryers simultaneously, moving to the HRC100 can simplify the entire production workflow.

Instead of loading and unloading several chambers, maintaining several vacuum pumps, monitoring multiple batches, and cleaning several machines, operators can consolidate much of that work into one commercial platform.

At its published annual capacity of approximately 18,300 pounds of fresh material, the HRC100 can become the primary freeze drying system for many small and midsize commercial operations.

Nine Industrial Size Trays

The HRC100 uses nine stainless steel trays measuring approximately 18 inches wide by 26 inches deep by 0.9 inches high.

Together, they provide approximately 29.25 square feet of tray surface.

The larger tray format offers another major advantage for commercial facilities because the 18 by 26 inch footprint closely follows a common full size commercial sheet pan format.

That makes the machine easier to integrate into existing prep areas, carts, racks, and production workflows than systems using unusually shaped proprietary trays.

The owner's manual also warns against overloading trays because excessive loading can substantially increase batch time.

Fully Automatic Freeze Drying

Commercial capacity does not mean the operator has to manually control every stage of the process.

The HRC100 automatically manages the major phases of freeze drying.

Once the operator presses CONTINUE after loading the chamber, the machine begins freezing the material. From that point, Harvest Right states that everything is automatic unless the machine detects an error condition.

The system automatically progresses through chamber cooling, product freezing, vacuum freezing, primary drying, additional drying, and process completion.

The vacuum pump also turns on automatically once the material reaches the appropriate temperature.

This allows one operator to oversee a high volume processing system without constantly adjusting temperatures, vacuum pressure, or drying parameters.

Intelligent System Monitoring

Throughout the freeze drying process, the HRC100 continuously monitors its cooling, vacuum, and heating systems.

If the machine detects an abnormal condition, it displays information to help the operator identify and correct the problem.

Harvest Right also notes that while the machine is waiting for an operator response, the system may attempt to resolve the condition automatically. If it succeeds, the error disappears and the batch continues.

For commercial environments, this built in diagnostic monitoring is particularly valuable because it reduces the amount of constant supervision required during long production cycles.

Designed for Pre Frozen Product

Harvest Right strongly recommends pre freezing material before loading the HRC100.

The owner's manual specifically recommends freezing product for at least 48 hours before loading.

Pre freezing helps reduce initial freeze time, reduce overall batch duration, minimize potential vacuum problems, improve production consistency, and increase throughput across a busy production schedule.

The manual also recommends keeping material in a single layer and below the tops of the trays.

Once the chamber has completed its initial cooling stage, the operator loads the frozen trays promptly to prevent thawing before the cycle begins.

Large Scale Vacuum Freeze Drying

The HRC100 removes moisture using a combination of freezing, controlled vacuum pressure, and precisely managed shelf temperatures.

During the process, moisture inside the product freezes and is subsequently removed as vapor under deep vacuum.

This approach allows operators to create dry, shelf stable products without relying on the prolonged high heat associated with conventional dehydration.

The machine's vacuum environment is central to the process. Harvest Right states that drying can occur once vacuum pressure reaches approximately 500 mTorr.

Commercial Vacuum Pump

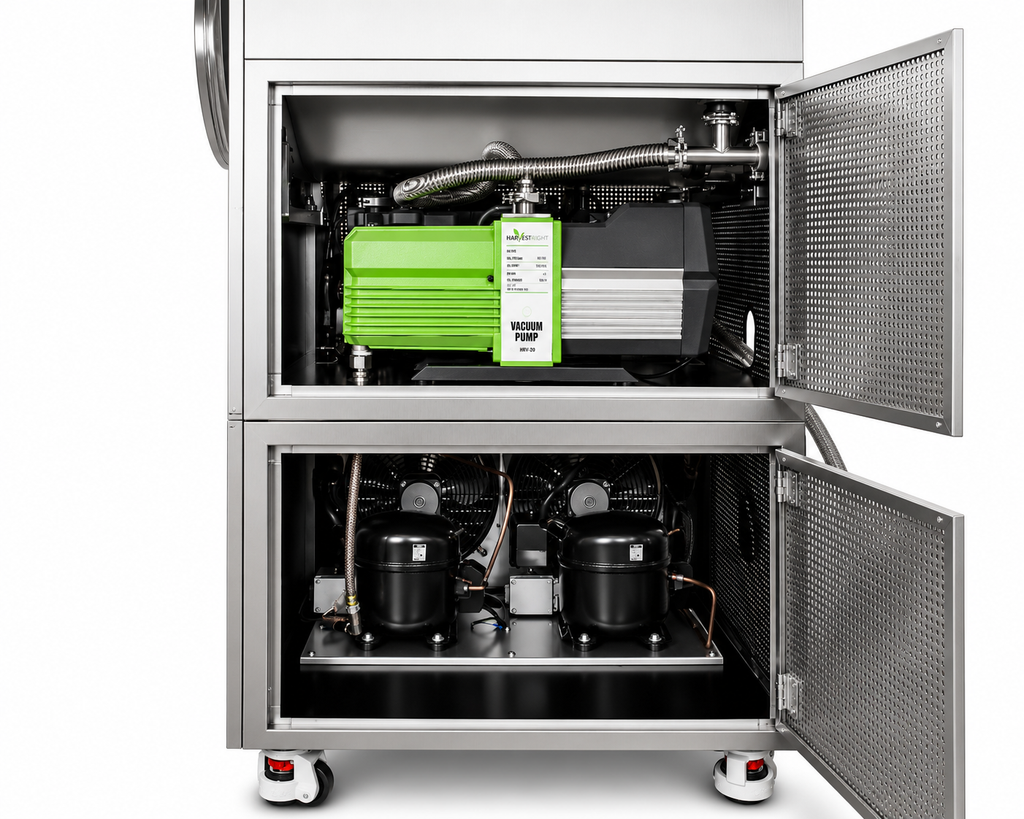

The HRC100 includes a commercial vacuum pump integrated within the machine housing.

Published pump specifications include a flow rate of 14 CFM, 220V power at 50 or 60Hz, single phase operation, 2.2 liters of oil capacity, and a maximum vacuum rating of 10 micron.

The internal pump configuration keeps the system more self contained than smaller Harvest Right machines with an external pump sitting beside the cabinet.

The owner's manual confirms that the vacuum pump is installed internally, with the vacuum hose already attached and the pump oil prefilled before shipment.

Integrated Vacuum Pump Design

Housing the pump inside the HRC100 cabinet provides several practical advantages in a commercial environment.

It reduces loose equipment around the machine, shortens the visible plumbing path, protects the pump from accidental movement, and gives the entire installation a cleaner and more permanent appearance.

The integrated pump also receives power automatically from the freeze dryer. The pump switch remains in the ON position, but electrical power is supplied only when the freeze dryer reaches the appropriate stage of the cycle.

Vacuum Pump Oil Management

Unlike an oil free pump, the HRC100 commercial vacuum pump requires pump oil.

Harvest Right recommends checking the oil after every batch.

Oil does not necessarily need to be changed after each cycle. If it remains transparent, it can continue to be used. If the oil becomes cloudy or dirty, Harvest Right recommends changing it immediately.

The exact maintenance interval therefore depends heavily on the material being processed and how much vapor or contamination reaches the vacuum pump.

Closed Vacuum System

Freeze drying requires a properly sealed chamber.

The HRC100 uses a closed vacuum system consisting of the chamber, acrylic door, gasket, vacuum hose, pump, drain valve, and purge valve.

Harvest Right identifies several common vacuum leak points, including vacuum pump hose connections, contaminated pump oil, low pump oil level, damaged vacuum hose gaskets, an open drain valve, an open purge valve, an improperly connected vacuum hose, a door not fully latched, a dirty door gasket, and door alignment issues.

Maintaining this closed system is essential to consistent freeze drying performance.

Two Stage Door Seal

The HRC100 uses a two stage door latch. The first stage secures the acrylic door. The second stage compresses the door against the rubber gasket to create the vacuum seal.

Operators should visually confirm that the acrylic door is fully contacting the gasket before starting a batch.

A properly sealed door prevents vacuum leaks and helps the system achieve the low pressure necessary for drying.

Purge and Clean Air Valve

The HRC100 includes a dedicated 3/8 inch purge and clean air valve.

This valve remains closed during freeze drying and is opened after the process is complete to repressurize the vacuum chamber.

The commercial design separates this function from the drain line, giving operators more deliberate control over chamber venting.

Commercial Drain System

Water removed from the product collects as ice inside the chamber during freeze drying.

During defrost, the melted water exits through the drain line.

The HRC100 uses a 3/4 inch NPT female drain connection, allowing facilities to adapt the machine to a longer drain hose or permanent drainage system.

That is particularly useful in commercial installations where repeatedly emptying buckets would add unnecessary labor.

Adjustable Extra Dry Time

Near the end of a standard batch, the HRC100 enters an additional drying stage.

The default Extra Dry Time is two hours, but operators can increase or decrease it depending on product requirements or production schedules.

This gives operators another layer of control when processing products with different thicknesses, moisture contents, or drying characteristics.

Custom Freeze Drying Controls

The HRC100 also allows experienced operators to customize important processing variables, including initial freeze temperature, target vacuum pressure, extra dry time, and drying temperature.

Harvest Right identifies 500 mTorr as a suitable drying pressure for most materials. Increasing pressure may reduce cycle time but can increase the risk of product collapse. Lowering pressure may increase cycle time while potentially improving finished product quality.

This gives commercial users a meaningful level of process control without requiring separate external controllers.

Adjustable Drying Temperature

The standard drying temperature is approximately 125°F, but operators can adjust it through the Customize settings.

Higher temperatures may reduce drying time but can scorch certain products. Lower temperatures may increase processing time but can be useful for materials that benefit from gentler drying conditions.

Once changed, customized settings remain stored for subsequent batches until they are modified again.

Candy Processing Capability

The HRC100 software also includes specialized settings for high temperature candy processing.

Candy processing allows operators to warm trays and run shorter high temperature cycles designed specifically for low moisture confectionery products.

Harvest Right notes that normal foods should not be run using these high temperature Candy settings.

For businesses producing freeze dried candy alongside conventional freeze dried foods, this gives the HRC100 another potentially valuable revenue stream without requiring separate equipment.

Warm Trays Function

When a batch finishes, the trays may be cold if the product has remained inside the machine after completion.

Removing extremely cold trays into humid room air can cause condensation, which may partially rehydrate the finished product.

The HRC100 therefore provides a Warm Trays function.

Harvest Right recommends warming the trays to at least room temperature and removing them approximately 5 to 10 minutes after activating the function.

This feature can be particularly useful in commercial facilities where operators may not be standing beside the machine at the exact moment a batch completes.

More Dry Time

Operators should verify that every portion of a batch is completely dry before packaging.

Harvest Right warns that even a few pieces containing residual moisture can compromise everything stored in the same package.

If material still contains moisture, it can be returned to the chamber and the operator can select More Dry Time.

This provides an easy way to finish a batch without restarting the entire freeze drying cycle.

Automatic Product Protection After Completion

If the operator cannot immediately unload the HRC100, the machine does not simply allow the product to warm and absorb moisture.

Harvest Right states that the system can cool and freeze the finished material to preserve it until the operator is ready to unload.

For commercial workflows where batch completion may occur overnight or between shifts, this can provide valuable operational flexibility.

Commercial Electrical Requirements

The HRC100 requires a dedicated 220V, single phase, 30 amp electrical circuit.

The machine uses a NEMA 10 30P plug and requires a corresponding NEMA 10 30 receptacle.

Harvest Right describes the receptacle as the same style commonly associated with an electric clothes dryer.

The owner's manual specifies 220V at 60Hz, single phase, a peak current draw of 28 amps, and a required 30 amp double pole breaker.

Unlike Harvest Right's smaller residential models, the HRC100 therefore requires appropriate electrical preparation before installation.

No Extension Cords

Harvest Right specifically warns against using an extension cord with the HRC100.

The manufacturer also advises against surge protectors and GFI outlets because they may cause unnecessary breaker trips.

For a permanent commercial installation, the machine should be connected directly to the properly rated dedicated circuit.

Operating Environment

The HRC100 performs best in a cool, dry, clean indoor environment.

Harvest Right identifies 45°F to 75°F as the most efficient operating temperature range.

Higher ambient temperatures increase refrigeration workload and can substantially extend batch times.

The owner's manual gives a useful example: a batch requiring approximately 24 hours at 75°F may take more than 40 hours when ambient conditions become significantly hotter.

Harvest Right states that the HRC100 should not be operated above 95°F, and operating above that temperature can void the warranty.

Commercial Cooling System Care

The HRC100's condenser requires clear airflow to operate efficiently.

The side vents, filter door, and condenser coils should remain free of dust and debris.

Blocked ventilation can cause overheating and reduce refrigeration efficiency.

This becomes particularly important in bakeries, agricultural processing rooms, kitchens, and dusty production environments where airborne material can accumulate more quickly.

Built for Long Production Cycles

At approximately 985 pounds, the HRC100 is not intended to be moved around like a home freeze dryer.

It is a permanent commercial production machine.

The tall cabinet format keeps its footprint surprisingly compact for its output, measuring approximately 33.5 inches wide, 37.25 inches deep, and 70 inches high.

That vertical design allows nine large trays and commercial refrigeration components to fit into a floor area of only about nine square feet.

Stainless Steel Processing Environment

Commercial operators frequently need surfaces that are durable and straightforward to clean.

The HRC100 uses stainless steel trays and a commercial cabinet design suitable for regular food processing workflows.

Trays can be removed for loading, unloading, cleaning, and staging between batches.

The standard industrial tray dimensions can also simplify integration with prep tables, pan racks, transport carts, and other commercial kitchen equipment.

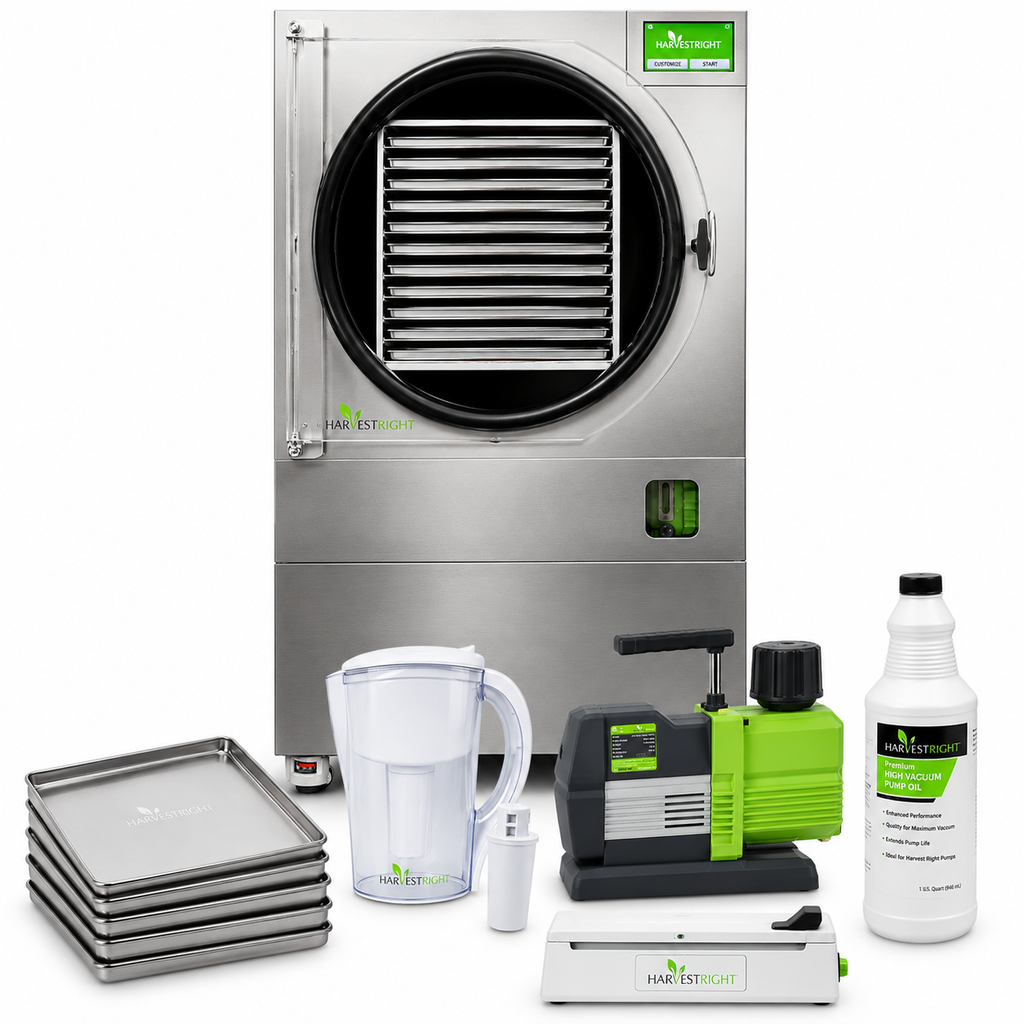

What's Included

• Harvest Right HRC100 Pro Commercial Freeze Dryer
• Integrated Commercial Vacuum Pump
• Vacuum Hose
• Pre Filled Vacuum Pump Oil
• Nine Stainless Steel Trays
• Shelving Unit
• Oil Filter
• Owner's Manual
• WiFi Upgrade Kit
