CenturionPro DBT Model 5 Dry Batch Trimmer

The CenturionPro DBT Model 5 Dry Batch Trimmer is the largest and highest-capacity machine in the CenturionPro Dry Batch Trimmer lineup. Engineered for industrial-scale harvests, centralized processing facilities, and high-volume commercial operations, it combines exceptional throughput with the gentle handling needed to protect the appearance and quality of properly dried plant material.

Capable of processing up to 216 pounds of dry material per hour, the DBT Model 5 effectively doubles the production capacity of the DBT Model 4. Its dual trimming sections and two oversized tumblers allow facilities to move through substantial harvest volumes while reducing dependence on large manual processing crews.

• Dry Processing Capacity: Up to 216 lbs/hr
• Configuration: Dual 66-Inch Trimming Sections
• Automation: Variable Speed + Timer Control
• Warranty: 3-Year Manufacturer Warranty

CenturionPro’s Soft Tumble Technology gently rotates dried material through each electropolished stainless steel tumbler. Rather than relying on aggressive suction or high-impact cutting, the controlled tumbling action encourages unwanted leaf material to pass through the plastic blade sheets while helping preserve the natural structure and appearance of the finished product.

Integrated Variable Speed Control allows operators to adjust tumbler movement according to material size, density, moisture level, and desired finish. Lower speeds provide more delicate handling, while higher speeds increase movement and throughput for larger or denser batches.

The DBT Model 5 also includes timer control, allowing teams to establish repeatable cycle lengths and reduce the risk of over-processing. Once the ideal combination of speed and duration has been identified, operators can reproduce the same settings across future batches for greater consistency between shifts and harvests.

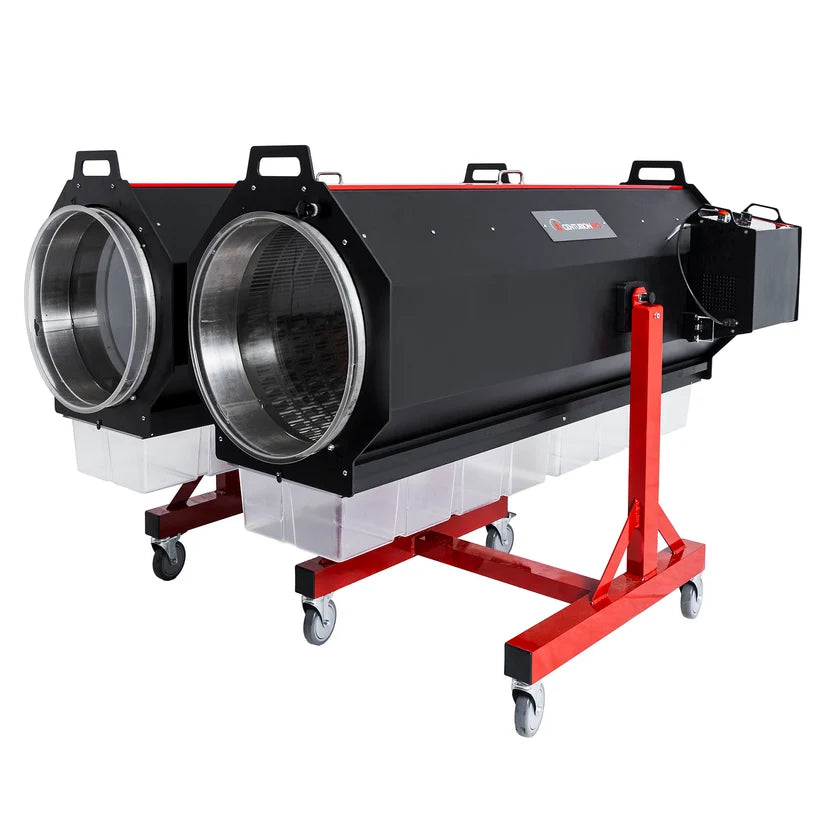

Two 66-inch tumblers provide the substantial processing area required for industrial production. Each tumbler measures approximately 20 inches in diameter and is paired with its own trimming section, plastic blade sheet, and collection trays.

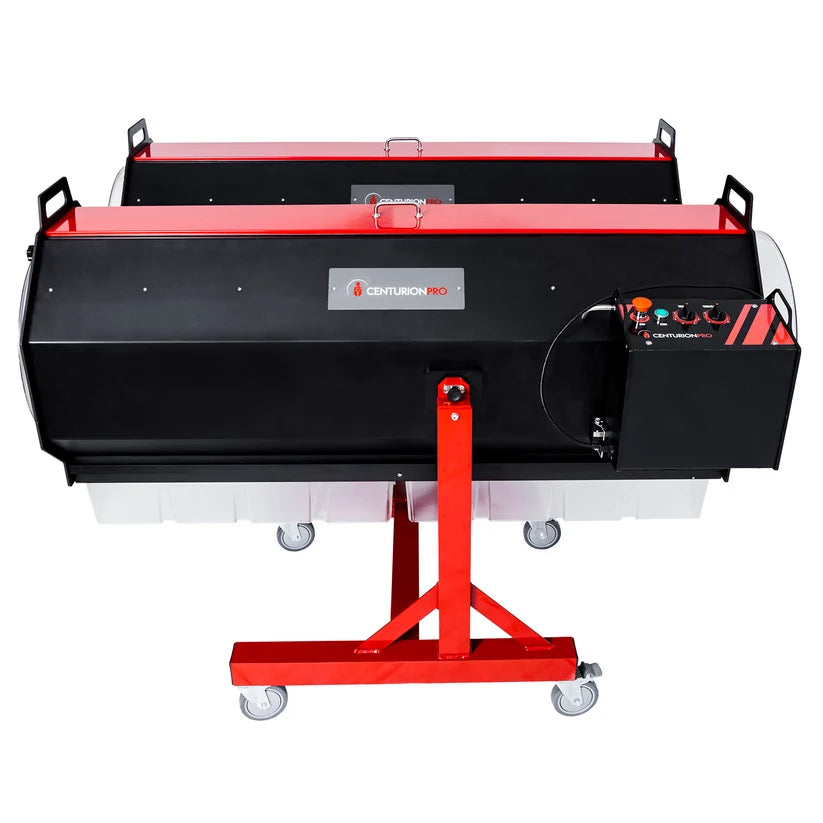

An adjustable industrial stand supports the full dual-section system and includes locking casters for facility mobility. The wheeled design makes it easier to reposition the machine for loading, unloading, cleaning, maintenance, or changes to the processing workflow.

Despite its enormous processing capacity, the DBT Model 5 operates from standard North American 110V power. Its efficient electrical design simplifies installation compared with larger systems that require specialized high-voltage infrastructure.

Four removable trim trays collect separated plant material beneath the two trimming sections. This keeps the workspace organized, simplifies cleanup, and allows recovered material to be managed separately after each batch.

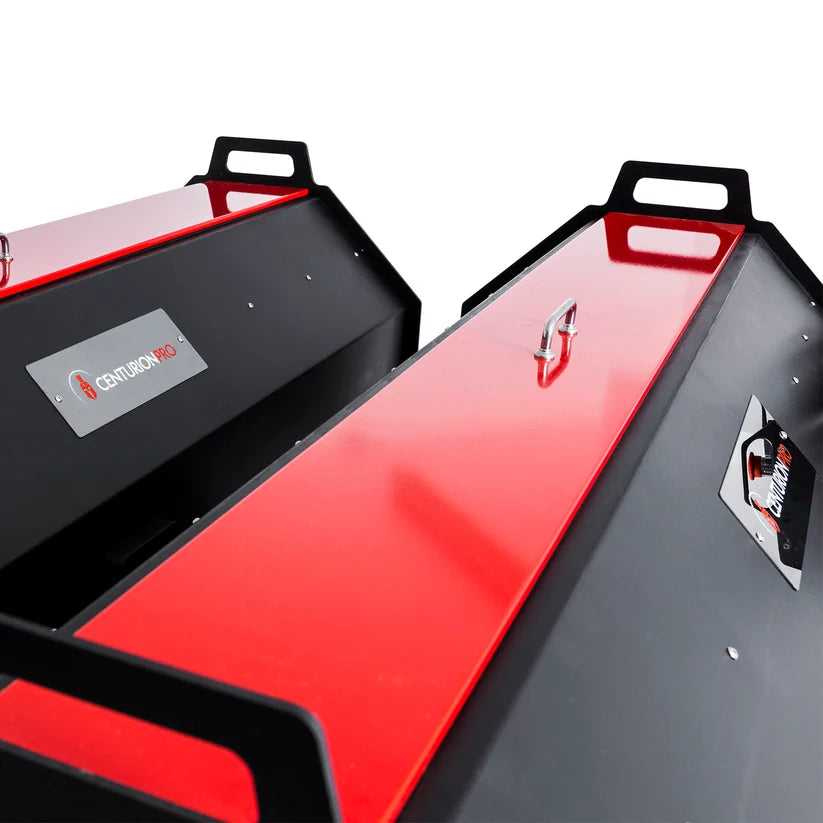

Built from anodized aluminum and electropolished stainless steel, the DBT Model 5 is designed for repeated commercial operation. Its straightforward mechanical layout, replaceable plastic blade sheets, removable tumblers, and accessible collection trays help reduce downtime during cleaning and routine maintenance.

Backed by a 3-year manufacturer warranty, the CenturionPro DBT Model 5 is engineered for facilities that need maximum dry-processing capacity, repeatable automated cycles, adjustable control, and consistent results across the largest harvest volumes.

Soft Tumble Technology

The DBT Model 5 uses CenturionPro’s Soft Tumble Technology to gently rotate properly dried plant material across the trimming surfaces. Rather than using aggressive suction, the material moves naturally through the dual tumblers so unwanted leaf matter can separate gradually through the plastic blade sheets.

Benefits include:

• Gentle dry processing
• Consistent batch-to-batch results
• Reduced surface damage
• No separate blower system
• No lubricating sprays required
• Better control over delicate material
• Industrial throughput without aggressive handling

Up to 216 lbs Per Hour

The DBT Model 5 processes up to approximately 216 pounds of properly dried plant material per hour. Actual performance depends on:

• Material moisture
• Batch size
• Plant density
• Preparation quality
• Tumbler speed
• Timer setting
• Desired finish
• Blade-sheet cleanliness
• Operator experience

The DBT Model 5 effectively doubles the rated processing capacity of the DBT Model 4.

Dual Trimming Sections

The machine contains two complete dry-trimming sections operating within one industrial frame. Each section includes:

• One electropolished stainless steel tumbler
• One plastic blade sheet
• Dedicated trim collection
• Controlled tumbler movement

This dual-section configuration allows facilities to process significantly larger batches while maintaining controlled material handling.

Two 66-Inch Tumblers

The DBT Model 5 includes two oversized electropolished stainless steel tumblers. Each tumbler measures approximately 66 inches long and 20 inches in diameter. Together they provide the processing area required for the largest commercial dry harvests.

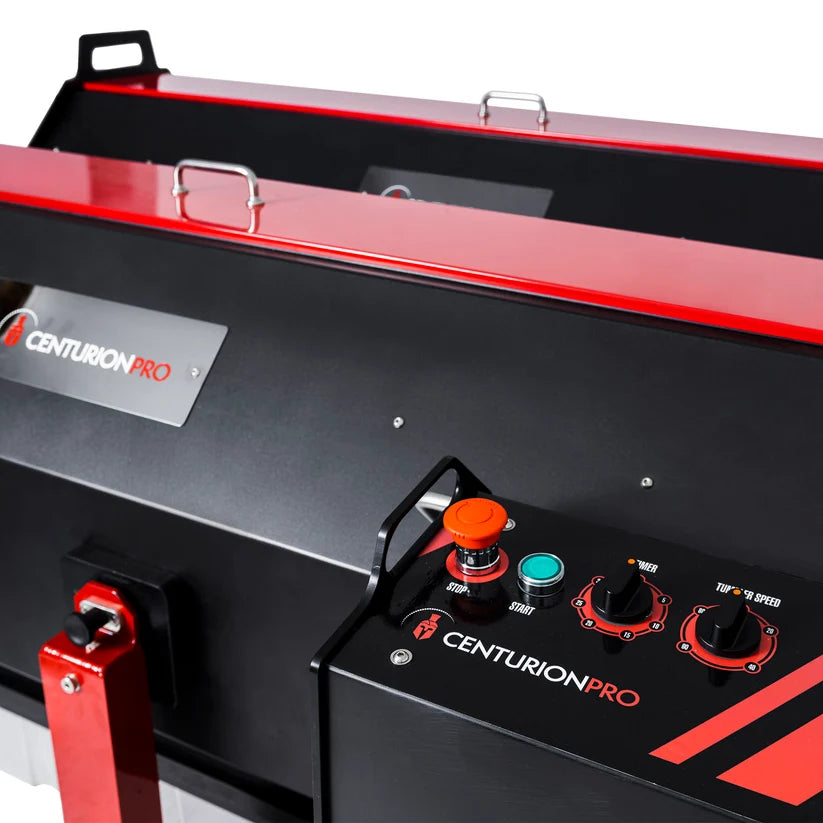

Integrated Variable Speed Control

Variable Speed Control is included as standard equipment. Operators can adjust the tumbler speed according to the characteristics of each batch.

Lower speeds support:

• Gentler handling
• Delicate dried material
• Smaller flower structures
• Reduced risk of over-processing
• Greater control over finished appearance

Higher speeds support:

• Denser batches
• Increased material movement
• Faster processing
• Greater hourly throughput
• More aggressive leaf separation when required

Automatic Timer Control

The integrated timer allows operators to establish repeatable trimming cycles. Once the ideal speed and processing duration have been identified, timer control can help:

• Prevent over-processing
• Improve consistency
• Reduce constant monitoring
• Standardize operating procedures
• Maintain production rhythm
• Free staff for other facility tasks

Designed for Industrial Harvests

The DBT Model 5 is intended for:

• Large commercial facilities
• Centralized post-harvest operations
• High-volume dry-processing rooms
• Facilities replacing large manual crews
• Operators scaling beyond the DBT Model 4
• Production teams requiring repeatable automated cycles
• Businesses processing multiple large batches each day

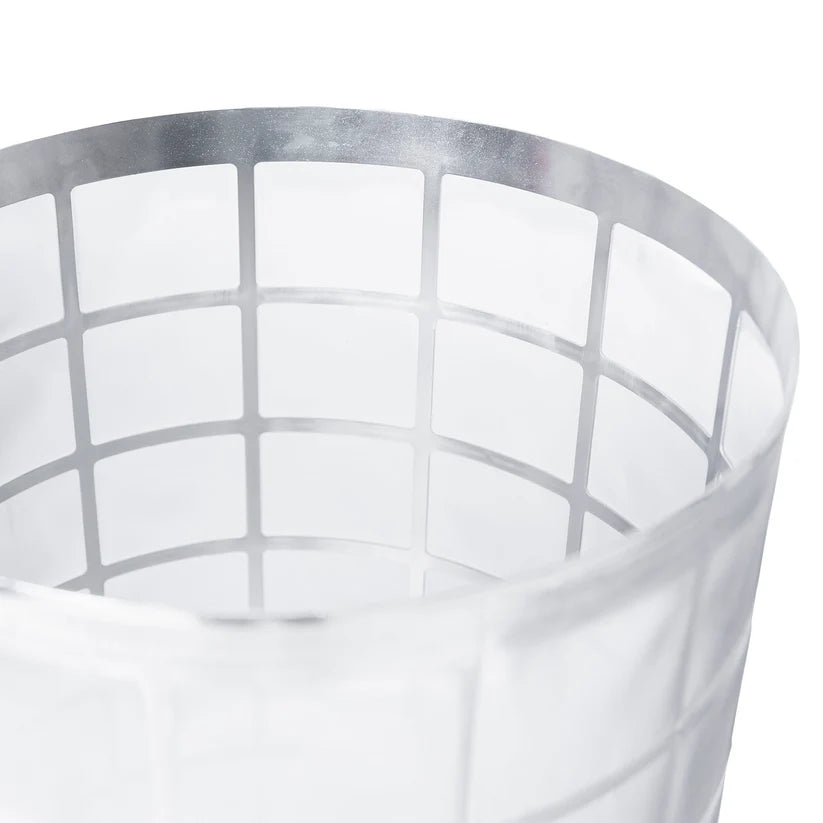

Plastic Blade Sheets

The DBT Model 5 uses plastic blade sheets designed specifically for delicate dry processing. These sheets allow unwanted leaf material to pass through while limiting the aggressive contact associated with rigid metal cutting systems.

Benefits include:

• Gentle separation
• Consistent trimming action
• Reduced abrasion
• Replaceable construction
• Straightforward cleaning
• Easy inspection between batches

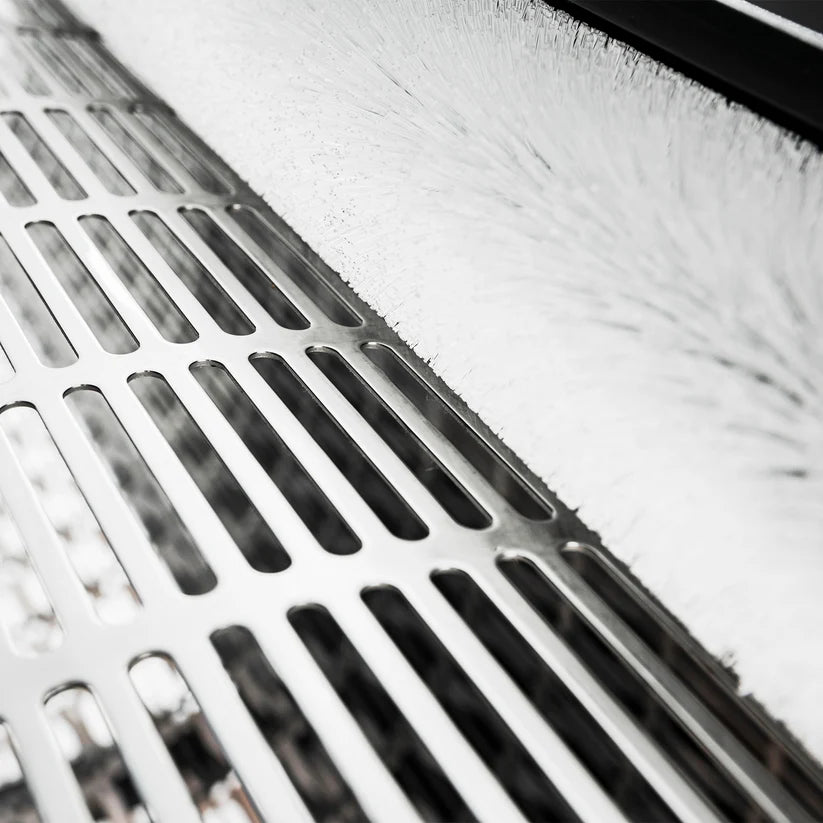

Electropolished Stainless Steel Tumblers

Both standard tumblers are manufactured from electropolished stainless steel. This provides:

• Corrosion resistance
• Smooth material movement
• Easy cleaning
• Long commercial service life
• No applied non-stick coating
• Dependable industrial performance

Anodized Aluminum Construction

The machine frame and primary housing components are built from anodized aluminum. This provides:

• Commercial-grade strength
• Corrosion resistance
• Stable operation
• Straightforward exterior cleaning
• Long-term reliability
• Reduced weight compared with heavier steel structures

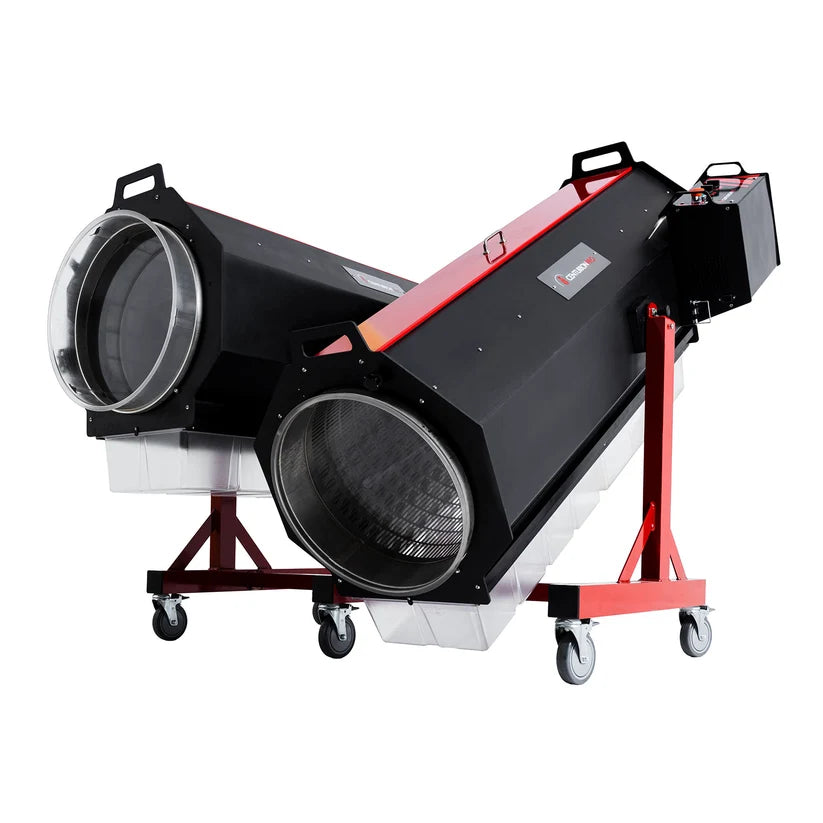

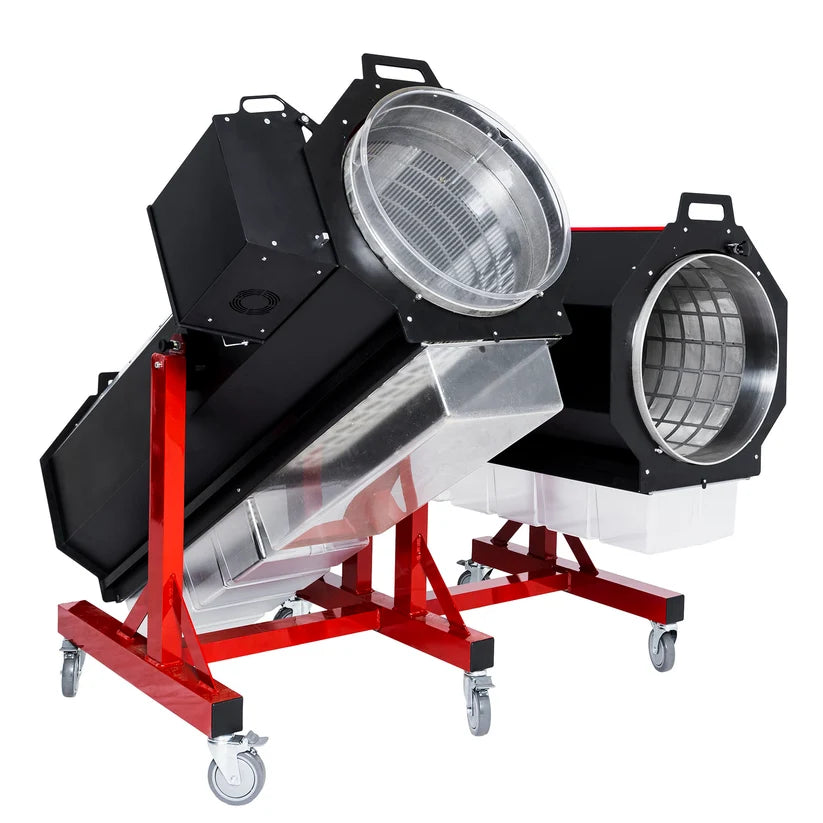

Adjustable Mobile Stand

The DBT Model 5 includes an industrial adjustable stand with locking casters. The stand helps operators:

• Improve loading ergonomics
• Simplify unloading
• Reposition the machine within a facility
• Move the system for cleaning
• Adjust the working angle
• Lock the machine securely during operation

Standard 110V Operation

The DBT Model 5 is designed for standard North American 110V power. Its electrical configuration supports easier integration into existing facilities without requiring the specialized three-phase infrastructure used by some industrial processing systems. International operation is supported at 220V. Electrical installation should always follow the manufacturer’s instructions and local electrical requirements.

Quiet Blower-Free Processing

The DBT Model 5 does not require a separate blower or leaf collector. This reduces:

• Operating noise
• Electrical demand
• Hose management
• Additional equipment footprint
• Setup complexity
• Blower maintenance

Four Trim Collection Trays

Four removable trim trays collect separated plant material beneath the two trimming sections. The collection system helps:

• Maintain a cleaner workspace
• Organize separated material
• Simplify recovery
• Reduce product loss
• Speed up cleanup
• Keep the two trimming sections manageable

Consistent Batch Processing

The DBT Model 5 processes dried material in controlled batches. Operators can adjust each run according to:

• Material dryness
• Batch weight
• Material density
• Tumbler speed
• Timer duration
• Desired finish

Testing smaller batches before full-capacity production helps establish the best operating settings.

Designed for Properly Dried Material

The DBT Model 5 is intended exclusively for dry processing. Material that is too moist may not separate effectively, while excessively dry material may become brittle and lose more surface material during tumbling. The best results come from material that is dry enough for unwanted leaves to detach while retaining enough flexibility to withstand controlled movement.

Reduced Manual Labor

With processing capacity reaching approximately 216 pounds per hour, the DBT Model 5 dramatically reduces dependence on large manual trimming crews. A smaller team can manage the automated process while other staff focus on:

• Material preparation
• Quality inspection
• Packaging
• Storage
• Equipment cleaning
• Inventory management
• Production planning

Recommended Operating Practices

• Read the complete owner’s manual before operating.
• Confirm the machine can safely pass through facility doors before delivery and installation.
• Position the machine on a stable, level floor.
• Lock all caster wheels before operation.
• Confirm both tumblers, plastic blade sheets, and all four trim trays are installed correctly.
• Inspect the power cords, controls, and timer before each use.
• Process only properly dried plant material.
• Remove large stems and branches before loading.
• Begin with smaller test batches.
• Start at a lower speed setting.
• Increase speed gradually when required.
• Use conservative timer settings during initial testing.
• Balance material loading across both trimming sections.
• Do not overfill either tumbler.
• Leave enough open space for material to tumble freely.
• Inspect material after each test cycle.
• Keep hands, tools, jewelry, and loose clothing away from moving components.
• Never operate the machine with guards or protective components removed.
• Disconnect all electrical power before cleaning or maintenance.
• Keep the motor, timer, and control box away from water.
• Allow both tumblers to stop completely before unloading.
• Clean both tumblers, blade sheets, trim trays, and the stand after each operating session.

Preparing Material for Dry Trimming

Before processing:

• Remove large stems and branches.
• Confirm unwanted leaves are dry enough to separate.
• Avoid loading freshly cut or damp material.
• Avoid material that crumbles during light handling.
• Group similarly sized material together.
• Maintain consistent moisture levels within each batch.
• Divide material evenly between both sections.
• Test a smaller sample first.
• Adjust speed and timer settings based on the results.

Consistent preparation improves throughput, finish quality, and repeatability.

Loading Both Tumblers

Material should be distributed evenly between the two trimming sections. Do not completely fill either tumbler. Adequate open space is required for the material to rotate and move across the plastic blade sheets. Overloading may:

• Restrict material movement
• Produce uneven results
• Increase cycle time
• Reduce separation efficiency
• Place unnecessary stress on the motors and drive components
• Make unloading more difficult

Setting the Tumbler Speed

Begin at a lower Variable Speed Control setting. Observe how the material moves within each tumbler and gradually increase speed as required. The correct setting will vary according to:

• Material density
• Flower size
• Moisture content
• Batch weight
• Desired finish
• Timer duration

Setting the Timer

Begin with a short timer cycle during initial testing. Inspect the material at the end of the cycle and add more time only when necessary. Once the ideal cycle has been identified:

• Record the material type
• Record the moisture condition
• Record the batch weight
• Record the speed setting
• Record the timer duration
• Use the documented settings as a starting point for future batches

Adjusting the Stand

Before adjusting the stand:

• Stop both tumblers completely.
• Disconnect electrical power.
• Confirm the machine is stable.
• Adjust the stand to the desired position.
• Secure all adjustment points.
• Lock all casters before restarting.

Never adjust the stand while either tumbler is moving.

Monitoring the Trim

Inspect the material regularly during the first several batches. Different plant varieties, densities, and moisture levels may require different combinations of speed and time. Documenting successful settings helps maintain consistency across future harvests, operators, and production shifts.

Cleaning & Maintenance

Cleaning After Each Use

• Disconnect all electrical power.
• Allow both tumblers to stop completely.
• Remove the tumblers according to the owner’s manual.
• Remove the plastic blade sheets when required.
• Empty all four trim trays.
• Brush away loose plant material.
• Clean both tumblers and blade sheets.
• Wipe down the anodized aluminum frame.
• Clean the adjustable stand and casters.
• Allow all components to dry completely.
• Do not reconnect power until the machine is fully dry.

Tumbler Cleaning

• Remove loose debris using a soft brush.
• Wash with warm water and mild soap when required.
• Rinse thoroughly.
• Allow each tumbler to dry completely.
• Avoid metal scrapers and aggressive abrasive tools.
• Do not reinstall wet tumblers.

Plastic Blade Sheet Care

• Remove accumulated plant material after each operating session.
• Inspect both blade sheets for cracks, deformation, or excessive wear.
• Wash gently with mild soap and water.
• Avoid sharp tools that may damage the sheets.
• Replace damaged components with approved CenturionPro parts.
• Allow the sheets to dry fully before reinstalling.

Trim Tray Cleaning

• Empty all four trays after each batch.
• Brush away loose plant material.
• Wash with mild soap and water when necessary.
• Rinse thoroughly.
• Allow all trays to dry completely before reinstalling.

Timer and Control Care

• Keep the timer and Variable Speed Control components clean and dry.
• Do not spray water directly onto controls.
• Inspect switches, dials, and electrical connections regularly.
• Stop using the machine if timer or speed operation becomes inconsistent.
• Have electrical repairs performed by qualified personnel.

Stand and Caster Maintenance

• Remove plant material from the stand after every use.
• Wipe down the complete frame.
• Inspect adjustment points for looseness.
• Confirm all caster locks function correctly.
• Tighten loose hardware as required.
• Replace damaged wheels, locks, or fasteners before operating.

Roller and Drive Inspection

• Inspect rollers and drive components regularly.
• Remove buildup that may interfere with tumbler movement.
• Check for slipping, vibration, unusual sound, or uneven rotation.
• Replace worn parts using approved CenturionPro components.
• Do not operate the machine if either tumbler fails to rotate smoothly.

Storage

• Clean and dry the machine before storage.
• Store indoors in a dry environment.
• Lock all caster wheels.
• Protect the power cords, timer, and control box.
• Do not place heavy objects on the machine.
• Store removable tumblers, blade sheets, and trays safely.
• Ensure the machine is protected from impact and moisture.

CenturionPro Dry Batch Trimmer Warranty

CenturionPro Dry Batch Trimmers are backed by a manufacturer warranty covering defects in materials and workmanship from the original date of purchase. Warranty coverage varies by model. DBT Model 0 includes a 2 year manufacturer warranty, while DBT Models 1, 2, 3, 4, and 5 include a 3 year manufacturer warranty.

The warranty covers the repair or replacement of parts found to be defective due to manufacturing defects under normal use. It does not cover normal wear and tear or consumable components, including belts, O-rings, brushes, bearings, blades, or other parts subject to regular use.

To receive full warranty coverage, your machine must be registered with CenturionPro after purchase in accordance with the manufacturer’s registration requirements.

If a warranty claim is approved, replacement parts will be supplied at no charge. Customers are responsible for shipping costs associated with returning defective parts or equipment for inspection or service.

For warranty assistance, please contact CenturionPro Technical Support with your machine model, serial number, proof of purchase, and a description of the issue. Warranty approval and service are provided at the discretion of CenturionPro Solutions in accordance with their published warranty terms.

Why Choose the DBT Model 5

• Processes Up to 216 lbs Dry Per Hour
• Dual 66-Inch Trimming Sections for Maximum Throughput
• Variable Speed and Timer Control for Repeatable Cycles
• 3-Year Manufacturer Warranty

What's Included

• CenturionPro DBT Model 5 Dry Batch Trimmer
• Two Complete DBT Trimming Sections
• Two Electropolished Stainless Steel Tumblers
• Two Plastic Blade Sheets
• Four Removable Trim Trays
• Integrated Variable Speed Control
• Integrated Timer Control
• Adjustable Industrial Stand
• Locking Casters
• Power Connections
• Owner’s Manual
