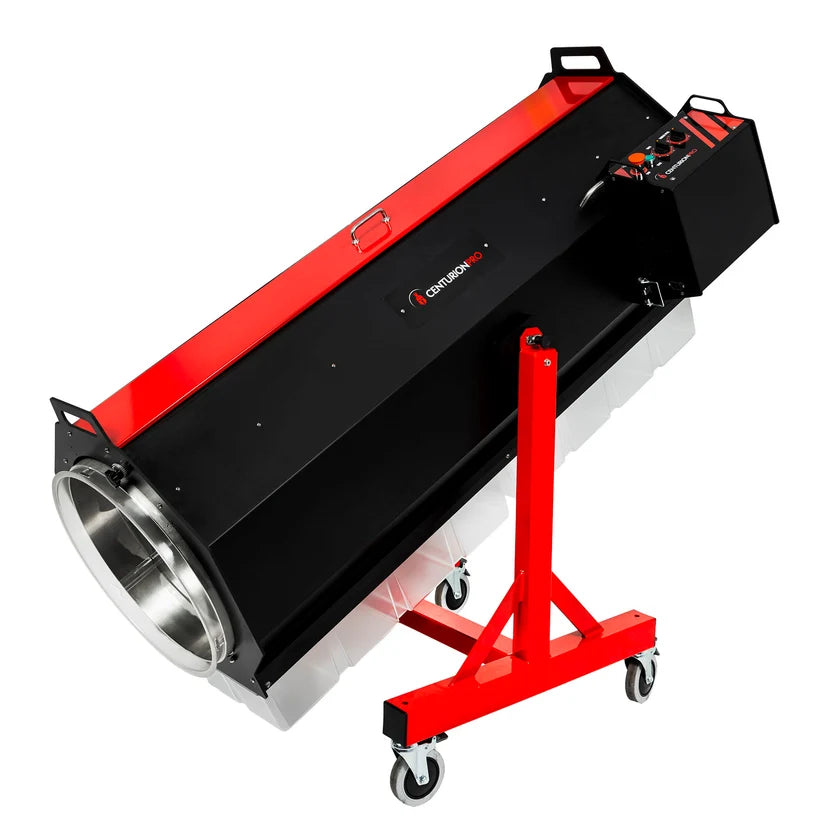

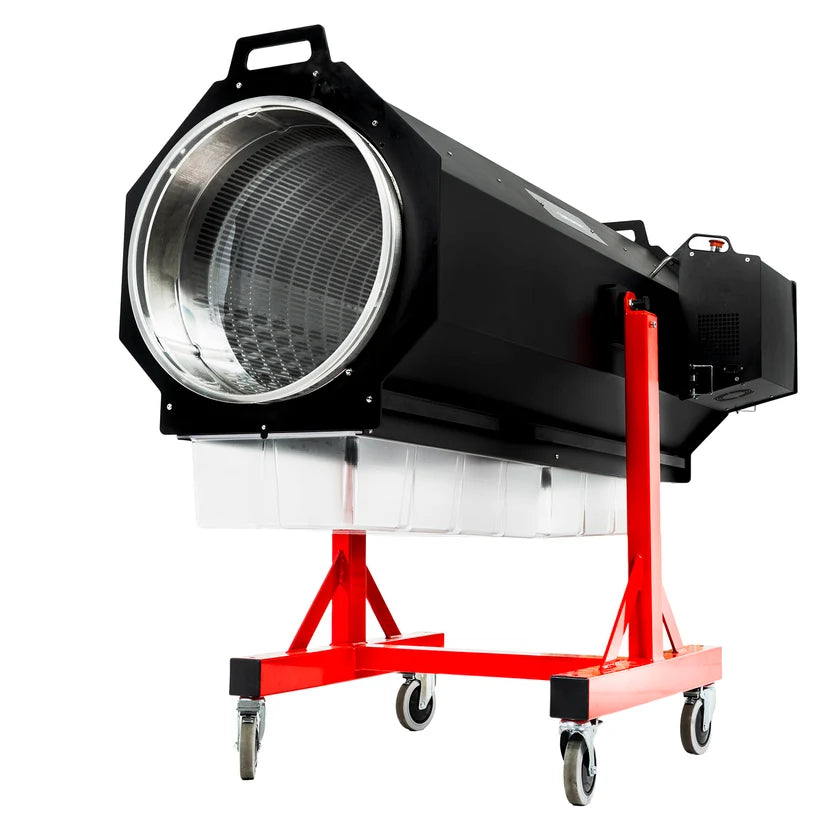

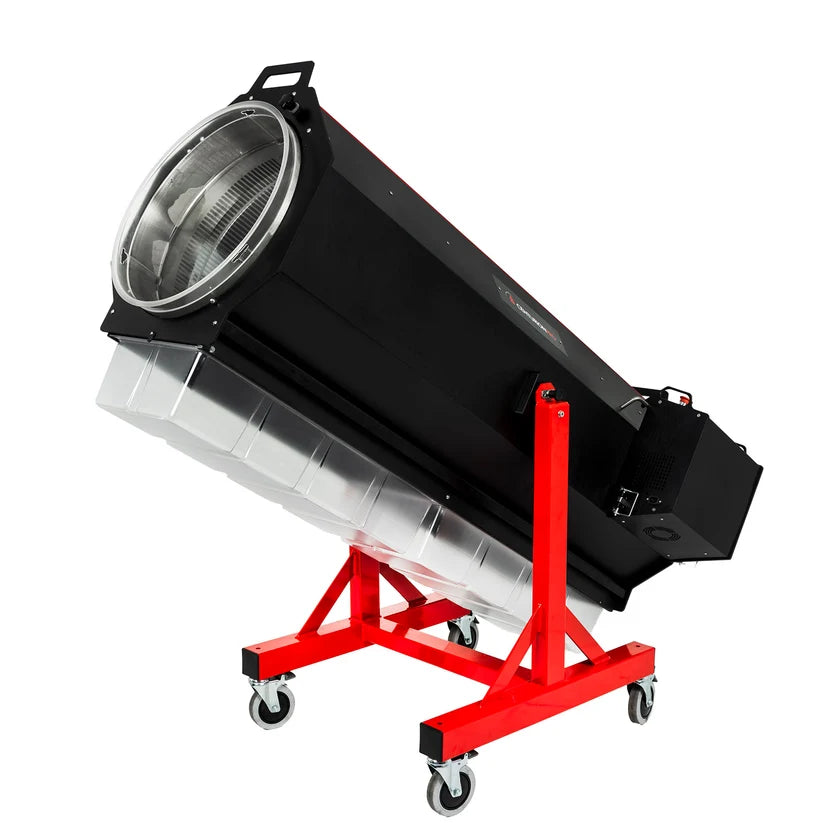

CenturionPro DBT Model 4 Dry Batch Trimmer

The CenturionPro DBT Model 4 Dry Batch Trimmer is an industrial-scale dry-processing system engineered for large harvests, commercial facilities, and operators who need exceptional throughput without sacrificing gentle handling or consistency.

Capable of processing up to 108 pounds of properly dried plant material per hour, the DBT Model 4 can replace the output of a large manual trimming crew while delivering repeatable results across every batch. Its combination of Soft Tumble Technology, integrated Variable Speed Control, and automatic timer control gives operators precise command over speed and cycle duration.

• Processes Up to 108 lbs Dry Per Hour
• Variable Speed Control with Integrated Timer
• Adjustable Industrial Stand for Mobile Positioning
• 3-Year Manufacturer Warranty

Unlike trimming systems that rely on aggressive suction or high-impact cutting, the DBT Model 4 gently rotates dried material inside a large electropolished stainless steel tumbler. This controlled movement encourages unwanted leaf matter to pass through the plastic blade sheet while helping preserve the natural structure and appearance of the finished material.

The integrated Variable Speed Control allows the tumbler rate to be adjusted according to material size, density, moisture level, and desired finish. Lower speeds provide gentler handling for delicate batches, while higher settings increase movement and throughput for denser material.

An automatic timer allows operators to establish repeatable cycle lengths and stop the machine at the end of each programmed run. Once the ideal settings have been identified, teams can reproduce the same process across future batches while reducing the risk of over-processing.

The DBT Model 4 includes an adjustable industrial stand with locking casters. This mobile platform improves loading, unloading, cleaning, and facility positioning while allowing the machine to be moved between processing areas as production requirements change.

Its oversized tumbler measures approximately 66 inches long and 20 inches in diameter, providing the capacity required for high-volume dry processing. The machine measures 67 inches long, 36 inches wide, and 53 inches high, creating a substantial but efficient footprint for commercial facilities.

The anodized aluminum frame and electropolished stainless steel tumbler are engineered for repeated industrial use. A 1/4 HP motor provides dependable movement while drawing only approximately 3 amps from a standard North American 110V supply.

A removable trim collection system captures separated plant material beneath the tumbler, helping keep the surrounding workspace organized and simplifying recovery after each batch.

The DBT Model 4 is also compatible with an optional Sorter Conversion Kit. This accessory transforms the trimmer into a high-capacity size sorter in less than five minutes and can sort up to approximately 125 pounds of material per hour.

Backed by a 3-year manufacturer warranty, the CenturionPro DBT Model 4 is built for commercial operators who need industrial dry-processing capacity, adjustable control, automated timing, mobile positioning, and dependable batch-to-batch consistency.

Soft Tumble Technology

The DBT Model 4 uses CenturionPro’s Soft Tumble Technology to gently rotate properly dried plant material across the trimming surface. Rather than relying on aggressive suction, the material tumbles naturally so unwanted leaf matter can separate gradually through the plastic blade sheet.

Benefits include:

• Gentle dry processing
• Consistent batch-to-batch performance
• Reduced surface damage
• No separate blower system
• No lubricating sprays required
• Improved control over delicate material
• Professional finish quality at industrial scale

Up to 108 lbs Per Hour

The DBT Model 4 processes up to approximately 108 pounds of properly dried plant material per hour. Actual throughput will depend on:

• Material moisture
• Batch size
• Plant density
• Preparation quality
• Tumbler speed
• Timer setting
• Desired finish
• Blade-sheet cleanliness
• Operator experience

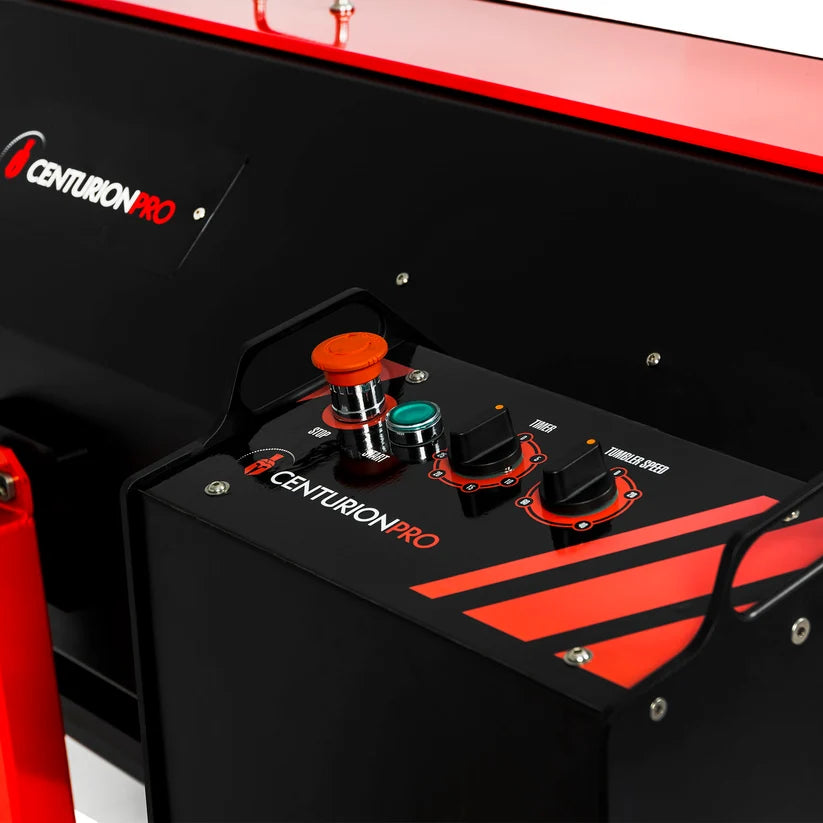

Integrated Variable Speed Control

Variable Speed Control is included as standard equipment. Operators can adjust tumbler speed according to the characteristics of each batch.

Lower speeds support:

• Gentler processing
• Delicate material
• Smaller flower structures
• Reduced risk of over-processing
• Greater control over finished appearance

Higher speeds support:

• Denser batches
• Increased material movement
• Faster processing
• Greater hourly throughput
• More aggressive leaf separation when required

Automatic Timer Control

The integrated timer allows operators to program repeatable trimming cycles. Once the ideal speed and processing duration have been established, the timer can help:

• Prevent over-processing
• Improve batch consistency
• Reduce constant monitoring
• Standardize operating procedures
• Free staff for other production tasks
• Deliver repeatable results across multiple shifts

Designed for Large Commercial Harvests

The DBT Model 4 is designed for:

• Large commercial facilities
• High-volume dry-processing rooms
• Centralized harvest operations
• Facilities replacing large manual crews
• Production teams requiring repeatable cycles
• Operators scaling beyond smaller batch trimmers
• Businesses needing mobile industrial equipment

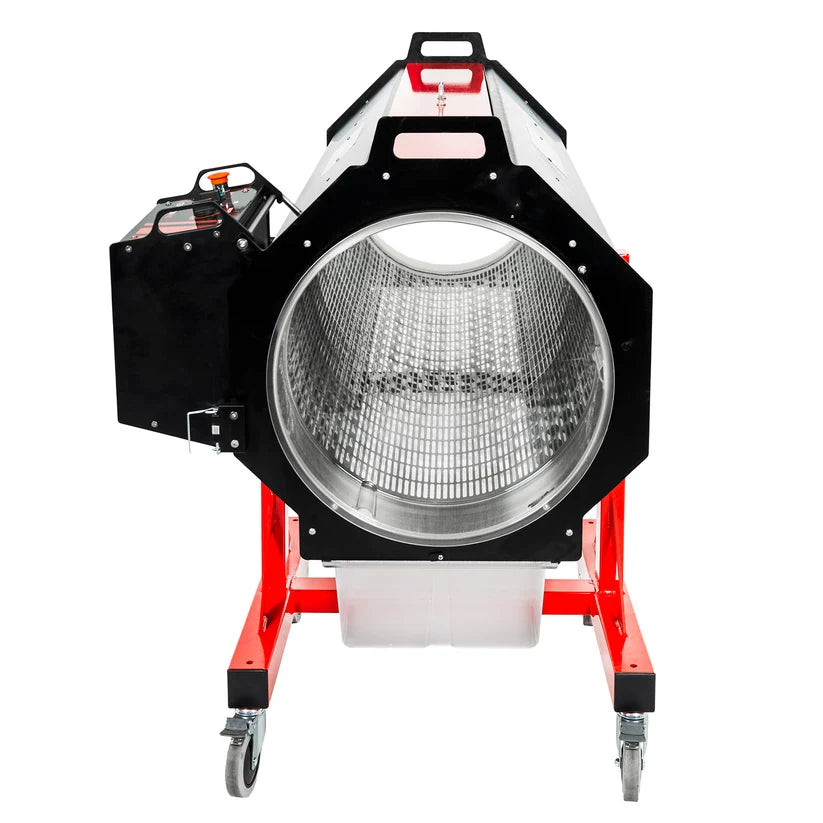

66-Inch Stainless Steel Tumbler

The DBT Model 4 includes one oversized electropolished stainless steel tumbler measuring approximately 66 inches long and 20 inches in diameter. Its substantial processing chamber supports large batch volumes while maintaining the gentle movement required for controlled dry trimming.

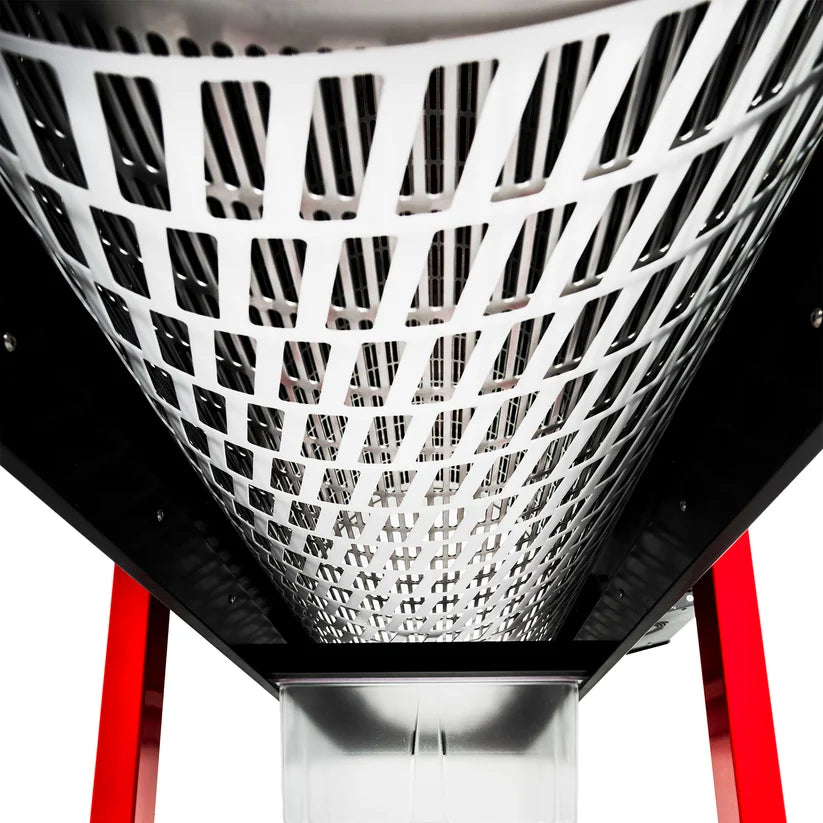

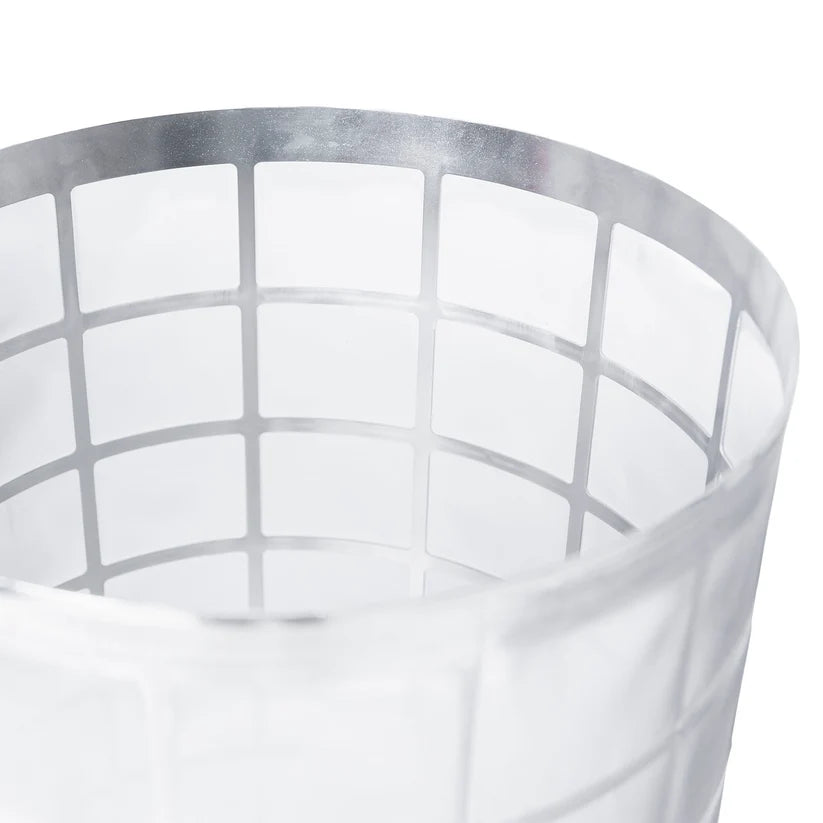

Plastic Blade Sheet

The DBT Model 4 uses a plastic blade sheet designed for delicate dry processing. The sheet allows unwanted leaf material to pass through while limiting the aggressive contact associated with rigid cutting systems.

Benefits include:

• Gentle separation
• Consistent trimming action
• Reduced abrasion
• Replaceable construction
• Straightforward cleaning
• Easy visual inspection

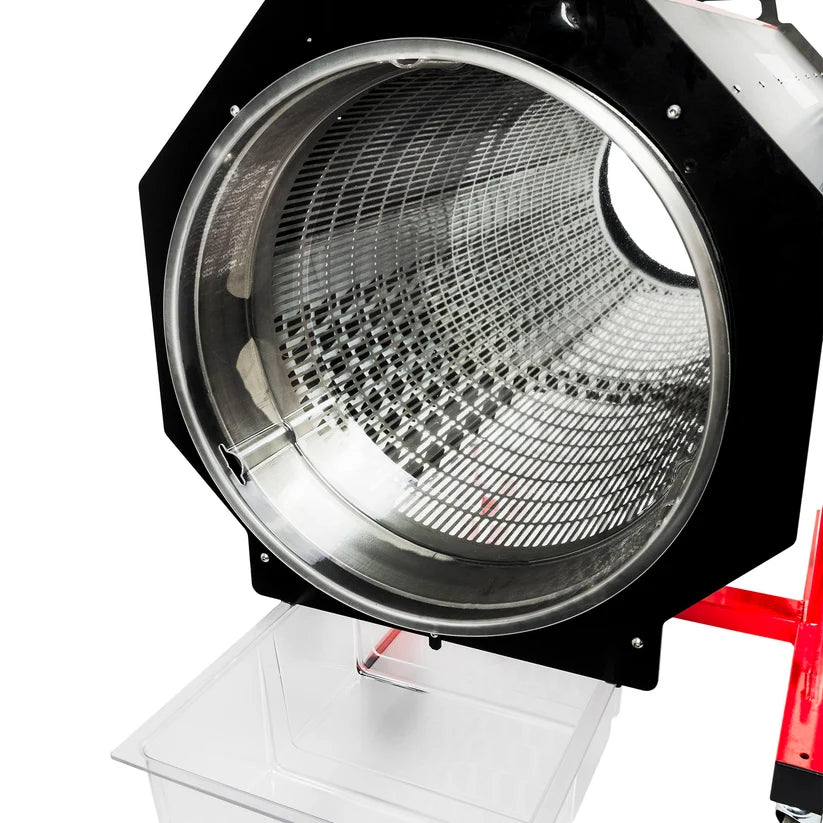

Electropolished Stainless Steel Tumbler

The standard tumbler is manufactured from electropolished stainless steel. This provides:

• Corrosion resistance
• Smooth material movement
• Easy sanitation
• Long service life
• No applied non-stick coating
• Dependable industrial performance

Anodized Aluminum Construction

The DBT Model 4 uses a durable anodized aluminum frame and housing. This provides:

• Commercial-grade strength
• Corrosion resistance
• Stable operation
• Straightforward exterior cleaning
• Long-term reliability
• Reduced weight compared with heavier steel frames

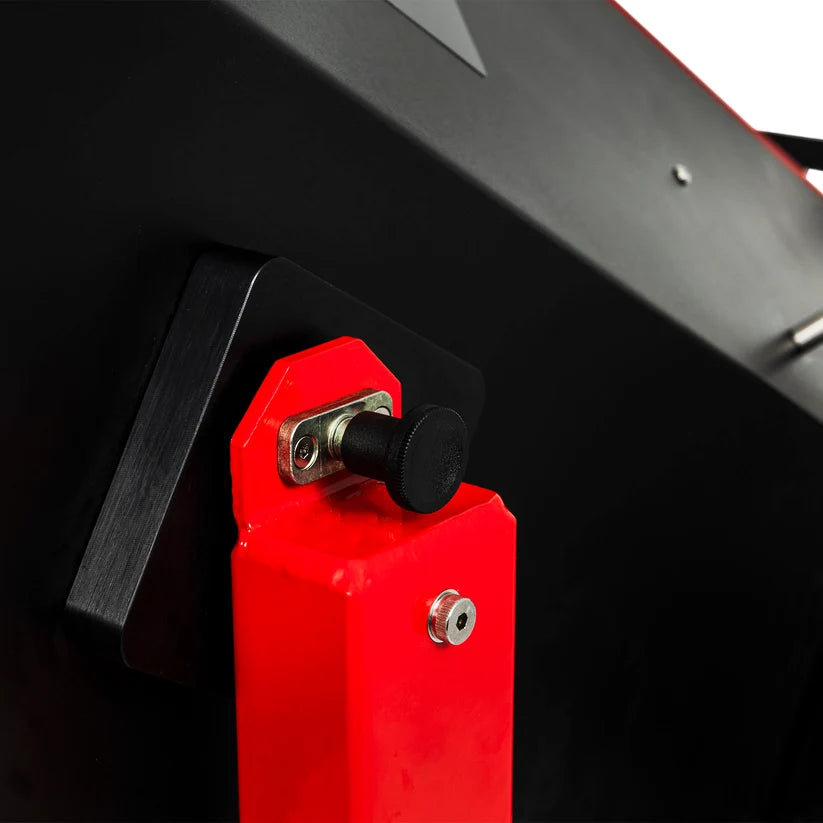

Adjustable Mobile Stand

The included industrial stand allows operators to adjust the machine’s angle and reposition it throughout a facility. The stand provides:

• Improved loading ergonomics
• Easier unloading
• Better cleaning access
• Mobile facility placement
• Locking caster stability
• Flexible workflow integration

Standard 110V Operation

The DBT Model 4 operates from a standard North American 110V supply and draws approximately 3 amps. This provides:

• Straightforward facility setup
• No high-amperage industrial circuit requirement
• Low electrical consumption for its capacity
• Greater flexibility in machine placement
• Easier integration into existing processing rooms

International operation is rated at approximately 220V and 1.5 amps.

Quiet Blower-Free Operation

The DBT Model 4 does not require a separate blower or leaf collection system. This reduces:

• Operating noise
• Electrical demand
• Hose management
• Equipment footprint
• Setup complexity
• Routine blower maintenance

Integrated Trim Collection

Removable trim trays collect separated plant material beneath the tumbler during operation. The collection system helps:

• Maintain a cleaner workspace
• Organize separated material
• Simplify recovery
• Reduce product loss
• Speed up cleanup
• Support further material processing

Optional Sorter Conversion Kit

The optional DBT4 Sorter Conversion Kit transforms the machine into a commercial size sorter in less than five minutes. Once installed, the system can sort up to approximately 125 pounds of material per hour. This upgrade allows one machine to support two separate post-harvest functions:

• Dry batch trimming
• Finished-material size sorting

The conversion kit can help reduce equipment duplication while improving facility efficiency. Selectable above.

Optional Parts Kit

The DBT4 Parts Kit allows facilities to keep critical replacement components available during high-volume processing periods. The kit may include components such as:

• Roller assemblies
• Plastic blade sheet
• Blade-sheet holders
• Brush assembly
• Collection bins

Keeping replacement components on hand can reduce downtime during cleaning, maintenance, or unexpected wear. Selectable above.

Consistent Batch Control

The DBT Model 4 processes material in controlled batches. Operators can adjust each run according to:

• Material dryness
• Batch weight
• Flower density
• Tumbler speed
• Timer duration
• Desired finish

Testing a smaller batch before full production helps establish the ideal speed and cycle length.

Designed for Properly Dried Material

The DBT Model 4 is intended exclusively for dry processing. Material that is too moist may not separate effectively, while excessively dry material may become brittle and lose more surface material during tumbling. The best results come from material that is dry enough for unwanted leaves to detach while retaining enough flexibility to withstand controlled movement.

Reduced Manual Labor

With processing capacity reaching approximately 108 pounds per hour, the DBT Model 4 can replace a substantial manual trimming workload. One operator can manage the automated batch process while other team members focus on:

• Material preparation
• Quality inspection
• Packaging
• Storage
• Equipment cleaning
• Inventory management

Recommended Operating Practices

• Read the complete owner’s manual before operating.
• Position the machine on a stable, level floor.
• Lock all stand casters before operation.
• Confirm the tumbler, plastic blade sheet, and trim trays are installed correctly.
• Inspect the electrical cord, controls, and timer before each use.
• Process only properly dried plant material.
• Remove large stems and branches before loading.
• Begin with a smaller test batch.
• Start at a lower speed setting.
• Increase tumbler speed gradually when necessary.
• Use a conservative timer setting during initial testing.
• Do not overfill the tumbler.
• Leave adequate open space for material to tumble freely.
• Inspect the batch after each test cycle.
• Keep hands, tools, jewelry, and loose clothing away from moving components.
• Never operate the machine with safety guards removed.
• Disconnect electrical power before cleaning or maintenance.
• Keep the control box and motor away from water.
• Allow the tumbler to stop completely before unloading.
• Clean the tumbler, blade sheet, trays, and stand after every operating session.

Preparing Material for Dry Trimming

Before processing:

• Remove large stems and branches.
• Confirm unwanted leaves are dry enough to separate.
• Avoid loading freshly cut or damp material.
• Avoid material that crumbles under light handling.
• Group similarly sized material into each batch.
• Maintain consistent moisture levels within the batch.
• Test a smaller sample first.
• Adjust speed and timer settings based on the result.

Consistent preparation improves throughput, finish quality, and repeatability.

Batch Loading

Do not completely fill the tumbler. Material requires sufficient open space to rotate and move across the plastic blade sheet. Overloading may:

• Restrict material movement
• Produce inconsistent results
• Increase processing time
• Reduce separation efficiency
• Place unnecessary stress on drive components
• Make unloading more difficult

Setting the Tumbler Speed

Begin at a lower Variable Speed Control setting. Observe material movement and gradually increase speed as required. The correct setting will vary according to:

• Material density
• Flower size
• Moisture content
• Batch weight
• Desired finish
• Timer duration

Setting the Timer

Start with a short timer cycle during initial testing. Inspect the material at the end of the cycle and add additional time only when necessary. Once the ideal time has been identified:

• Record the plant variety
• Record the moisture condition
• Record the batch weight
• Record the speed setting
• Record the timer duration
• Use the documented settings as a starting point for future batches

Adjusting the Stand

Before adjusting the stand:

• Stop the machine completely.
• Disconnect electrical power.
• Confirm the unit is stable.
• Adjust the stand to the desired position.
• Secure all adjustment points.
• Lock all casters before restarting.

Never adjust the stand while the tumbler is moving.

Monitoring the Trim

Inspect the material regularly during the first several batches. Different plant varieties and moisture levels may require different combinations of speed and time. Documenting successful settings helps operators maintain consistency across future harvests and production shifts.

Cleaning & Maintenance

Cleaning After Each Use

• Disconnect the machine from electrical power.
• Allow the tumbler to stop completely.
• Remove the tumbler according to the owner’s manual.
• Remove the plastic blade sheet when required.
• Empty all trim trays.
• Brush away loose plant material.
• Clean the tumbler and blade sheet.
• Wipe down the anodized aluminum frame.
• Clean the adjustable stand and casters.
• Allow all components to dry completely.
• Do not reconnect power until the machine is fully dry.

Tumbler Cleaning

• Remove loose debris with a soft brush.
• Wash with warm water and mild soap when required.
• Rinse thoroughly.
• Allow the tumbler to dry completely.
• Avoid metal scrapers and aggressive abrasive tools.
• Do not reinstall the tumbler while wet.

Plastic Blade Sheet Care

• Remove accumulated plant material after each operating session.
• Inspect the sheet for cracks, deformation, or excessive wear.
• Wash gently using mild soap and water.
• Avoid sharp tools that may damage the sheet.
• Replace damaged components with approved CenturionPro parts.
• Allow the sheet to dry fully before reinstalling.

Trim Tray Cleaning

• Empty every tray after each batch.
• Brush away loose plant material.
• Wash with mild soap and water when necessary.
• Rinse thoroughly.
• Allow trays to dry completely before reinstalling.

Timer and Control Care

• Keep the timer and Variable Speed Control box clean and dry.
• Do not spray water directly onto the controls.
• Inspect switches, dials, and electrical connections regularly.
• Stop using the machine if speed or timer operation becomes inconsistent.
• Have electrical repairs completed by qualified personnel.

Stand and Caster Maintenance

• Remove plant material from the stand after every use.
• Wipe down the frame.
• Inspect adjustment points for looseness.
• Confirm the caster locks operate correctly.
• Tighten loose hardware when required.
• Replace damaged wheels, locks, or fasteners before operating.

Roller and Drive Inspection

• Inspect the rollers and drive system regularly.
• Remove buildup that may interfere with tumbler movement.
• Check for slipping, vibration, unusual noise, or uneven rotation.
• Replace worn parts using approved CenturionPro components.
• Do not operate the machine if the tumbler fails to rotate smoothly.

Sorter Kit Cleaning

• Remove the conversion components after use when necessary.
• Brush away loose plant material.
• Clean each sorting surface carefully.
• Inspect chutes and screens for obstruction or damage.
• Allow all components to dry before storage.
• Store conversion parts where they cannot be bent or crushed.

Storage

• Clean and dry the machine before storage.
• Store indoors in a dry environment.
• Lock all caster wheels.
• Protect the electrical cord, timer, and control box.
• Do not place heavy objects on the machine.
• Store removable tumblers, blade sheets, and trays safely.
• Protect Sorter Kit components from bending or impact.

CenturionPro Dry Batch Trimmer Warranty

CenturionPro Dry Batch Trimmers are backed by a manufacturer warranty covering defects in materials and workmanship from the original date of purchase. Warranty coverage varies by model. DBT Model 0 includes a 2 year manufacturer warranty, while DBT Models 1, 2, 3, 4, and 5 include a 3 year manufacturer warranty.

The warranty covers the repair or replacement of parts found to be defective due to manufacturing defects under normal use. It does not cover normal wear and tear or consumable components, including belts, O-rings, brushes, bearings, blades, or other parts subject to regular use.

To receive full warranty coverage, your machine must be registered with CenturionPro after purchase in accordance with the manufacturer’s registration requirements.

If a warranty claim is approved, replacement parts will be supplied at no charge. Customers are responsible for shipping costs associated with returning defective parts or equipment for inspection or service.

For warranty assistance, please contact CenturionPro Technical Support with your machine model, serial number, proof of purchase, and a description of the issue. Warranty approval and service are provided at the discretion of CenturionPro Solutions in accordance with their published warranty terms.

Why Choose the DBT Model 4

• Dry Processing Capacity: Up to 108 lbs/hr
• Automation: Variable Speed + Integrated Timer
• Mobility: Adjustable Industrial Wheeled Stand
• Warranty: 3-Year Manufacturer Warranty

What's Included

• CenturionPro DBT Model 4 Dry Batch Trimmer
• Electropolished Stainless Steel Trimming Tumbler
• Plastic Blade Sheet
• Removable Trim Trays
• Integrated Variable Speed Control
• Integrated Timer Control
• Adjustable Industrial Stand
• Locking Casters
• Power Cord
• Owner’s Manual

Specifications
