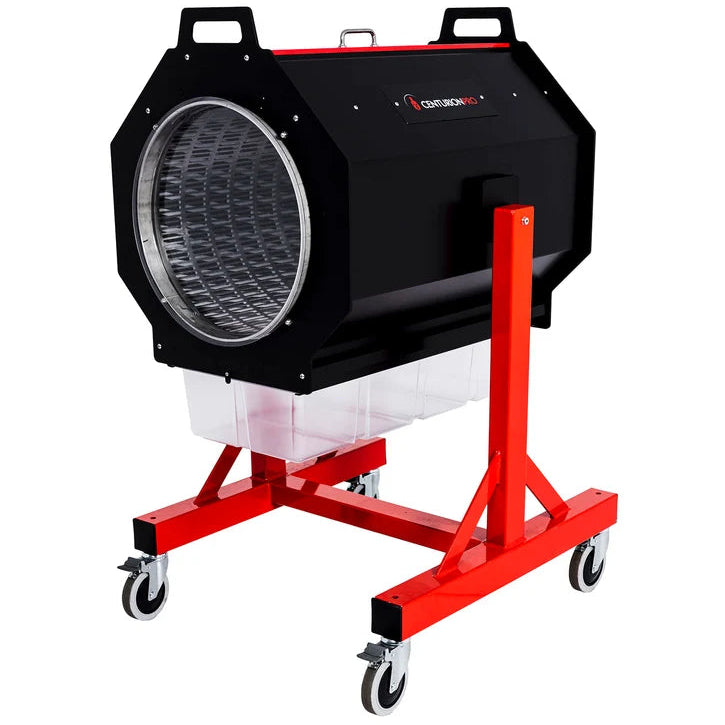

CenturionPro DBT Model 3 Dry Batch Trimmer

The CenturionPro DBT Model 3 Dry Batch Trimmer is a high-capacity dry-processing machine engineered for medium to large harvests that require significantly greater throughput without sacrificing gentle handling or finish quality.

Capable of processing up to 60 pounds of properly dried plant material per hour, the DBT Model 3 dramatically reduces repetitive manual labor while maintaining consistent results from batch to batch. Its combination of Soft Tumble Technology and integrated Variable Speed Control allows operators to adjust tumbler movement according to material size, density, moisture level, and desired finish.

• Processes Up to 60 lbs Dry Per Hour
• Variable Speed Soft Tumble Technology
• Adjustable Mobile Stand for Easy Repositioning
• 3-Year Manufacturer Warranty

Unlike trimming systems that rely on aggressive suction, the DBT Model 3 gently rotates dried material inside an electropolished stainless steel tumbler. This controlled movement encourages unwanted leaf matter to separate through the plastic blade sheet while helping preserve the natural structure and appearance of the finished material.

Variable Speed Control comes standard with the DBT Model 3. Operators can reduce tumbler speed for more delicate batches or increase it for denser material and higher processing volumes. This added control makes it easier to dial in repeatable settings across different plant varieties and moisture conditions.

The DBT Model 3 also includes an adjustable mobile stand. The stand improves loading, unloading, cleaning, and facility movement while allowing operators to position the tumbler at a practical working angle. Integrated casters make it easier to move the machine between processing areas without requiring a second person.

Its 33-inch-long tumbler measures 18 inches in diameter, providing substantially greater batch capacity than the smaller DBT Model 2. The larger processing chamber supports commercial throughput while still maintaining the gentle tumble action that defines the CenturionPro DBT lineup.

The machine measures approximately 38 inches long, 31 inches wide, and 53 inches high with the stand installed. At 150 pounds, it provides a stable commercial platform while remaining mobile enough to reposition within a production facility.

The anodized aluminum body and electropolished stainless steel tumbler are built for repeated commercial use. A removable trim tray collects separated material beneath the tumbler, helping keep the work area organized and preparing collected material for optional secondary screening.

The DBT Model 3 is compatible with optional Kief Tumblers in 95, 125, 150, and 180-micron configurations. After the trimming cycle is complete, operators can exchange the standard tumbler for the selected fine-screen tumbler and process the collected trim separately.

Each screen size provides a different balance between refinement and recovery. Smaller micron screens prioritize finer separation, while larger screens allow faster passage and greater overall recovery with more plant matter potentially included.

Powered by a 1/8 HP motor, the DBT Model 3 draws approximately 1.2 amps at 110V in North America. Its low electrical demand allows it to operate from a standard outlet without the specialized power requirements associated with larger industrial systems.

Backed by a 3-year manufacturer warranty, the CenturionPro DBT Model 3 is designed for operators who need high-volume dry processing, adjustable speed control, mobile positioning, optional fine-material recovery, and consistent commercial results.

Soft Tumble Technology

The DBT Model 3 uses CenturionPro’s Soft Tumble Technology to gently rotate properly dried plant material across the trimming surface. Rather than relying on a high-powered blower system, the batch tumbles naturally so unwanted leaf matter can separate gradually.

Benefits include:

• Gentle dry processing
• Consistent batch-to-batch results
• Reduced surface damage
• No separate blower system
• No lubricating sprays required
• Better control over delicate material
• Professional finish quality

Up to 60 lbs Per Hour

The DBT Model 3 processes up to approximately 60 pounds of properly dried plant material per hour. Actual throughput depends on:

• Material moisture
• Batch size
• Plant density
• Preparation quality
• Tumbler speed
• Desired finish
• Processing duration
• Tumbler and blade-sheet cleanliness

The 60 lbs/hr capacity reflects the current manufacturer information supplied for this model.

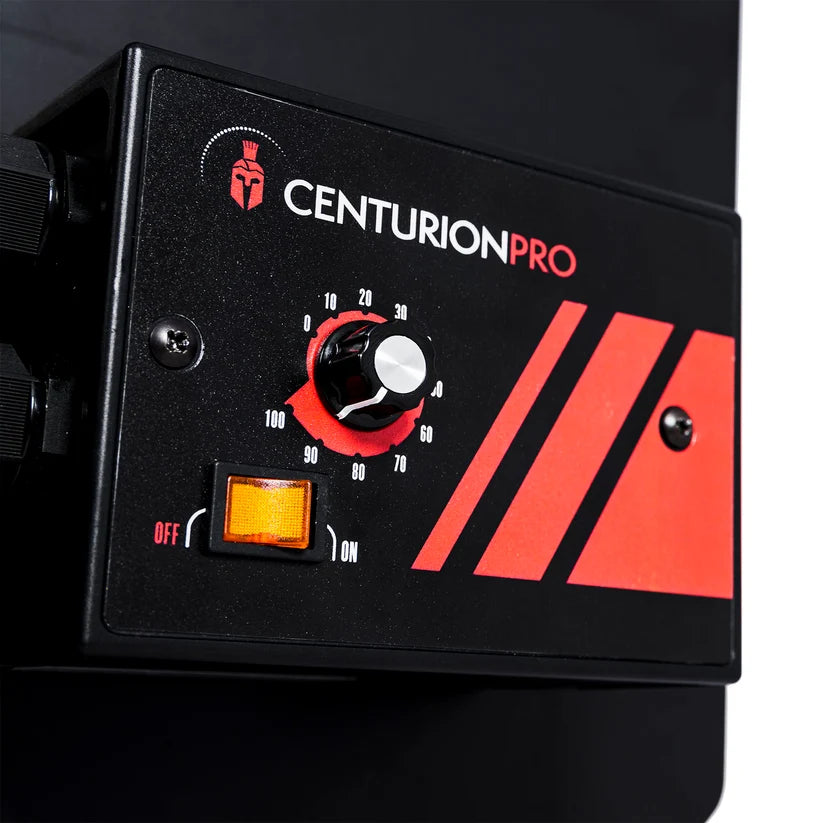

Integrated Variable Speed Control

Variable Speed Control is included with the DBT Model 3. Operators can adjust tumbler speed according to the characteristics of each batch.

Lower speeds support:

• Gentler handling
• More delicate material
• Smaller flower structures
• Reduced risk of over-processing
• Greater control over final appearance

Higher speeds support:

• Denser batches
• Increased material movement
• Faster processing
• Greater hourly throughput
• More aggressive leaf separation when required

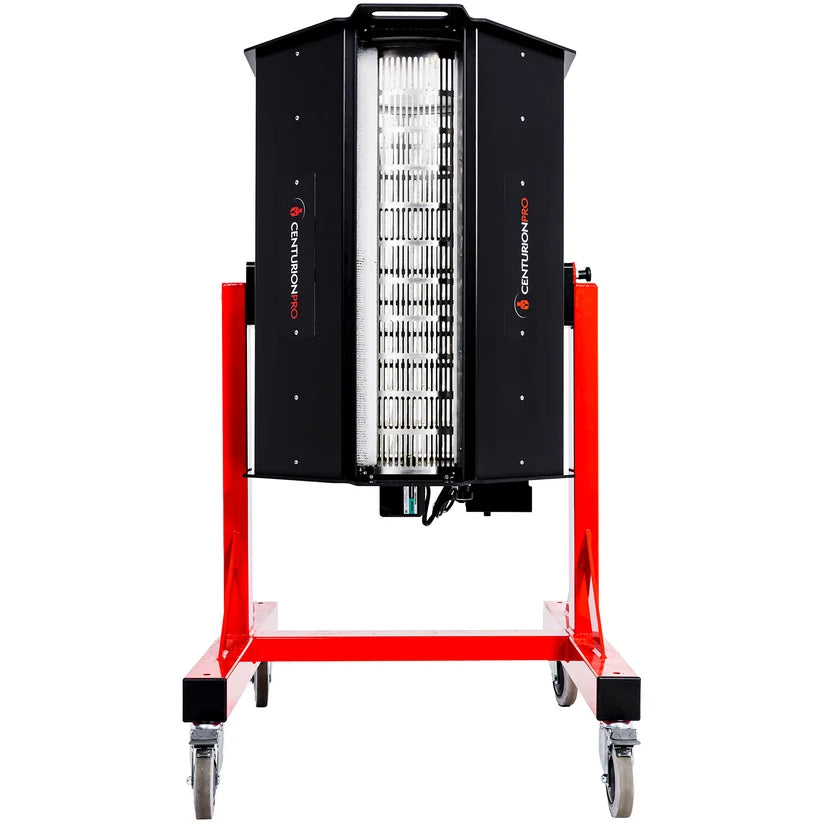

Adjustable Mobile Stand

The DBT Model 3 includes an adjustable wheeled stand. The stand allows operators to:

• Change the operating angle
• Improve loading ergonomics
• Simplify unloading
• Move the machine between rooms
• Roll the unit aside for cleaning
• Position the trimmer within changing workflows

This feature is especially useful in commercial spaces where equipment must be repositioned regularly.

Designed for Medium to Large Harvests

The DBT Model 3 is well suited for:

• Medium commercial harvests
• Large boutique production rooms
• Expanding indoor gardens
• Dedicated dry-processing facilities
• Operators replacing large manual crews
• Facilities requiring adjustable batch control
• Businesses needing mobile processing equipment

33-Inch Stainless Steel Tumbler

The DBT Model 3 includes one electropolished stainless steel tumbler measuring approximately 33 inches long and 18 inches in diameter. Its larger dimensions provide considerably more processing capacity while maintaining the controlled movement required for gentle dry trimming.

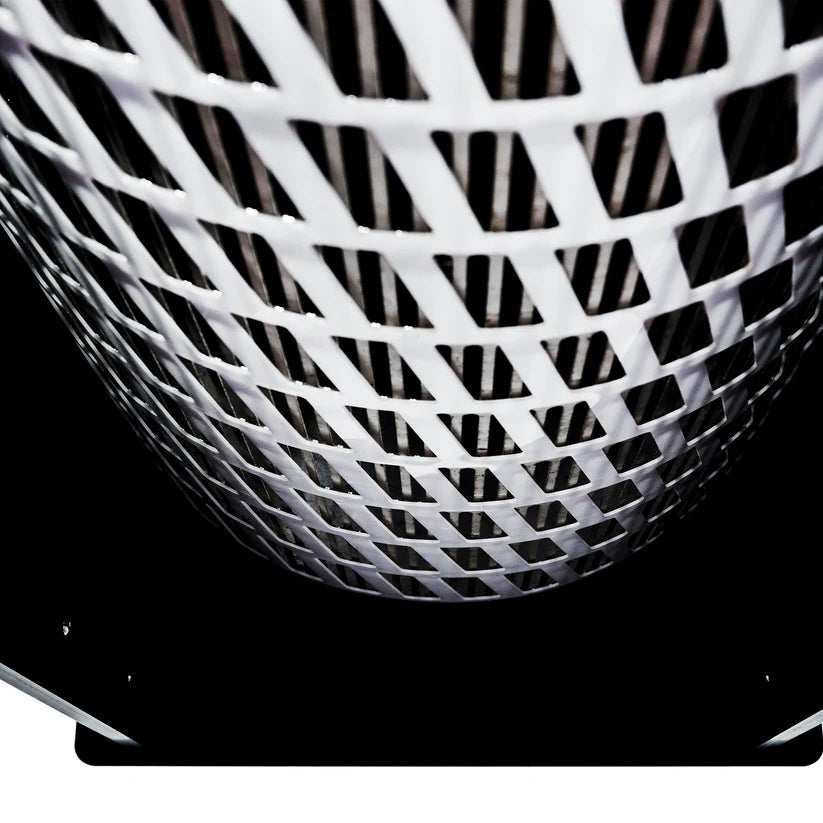

Plastic Blade Sheet

The DBT Model 3 uses a plastic blade sheet designed specifically for delicate dry processing. The blade sheet allows unwanted leaf material to pass through while reducing the aggressive contact associated with harder cutting systems.

Benefits include:

• Gentle separation
• Consistent trimming action
• Reduced abrasion
• Replaceable construction
• Straightforward cleaning and inspection

Electropolished Stainless Steel Tumbler

The standard tumbler is manufactured from electropolished stainless steel. This provides:

• Corrosion resistance
• Smooth material movement
• Easy cleaning
• Long service life
• No applied non-stick coating
• Reliable commercial performance

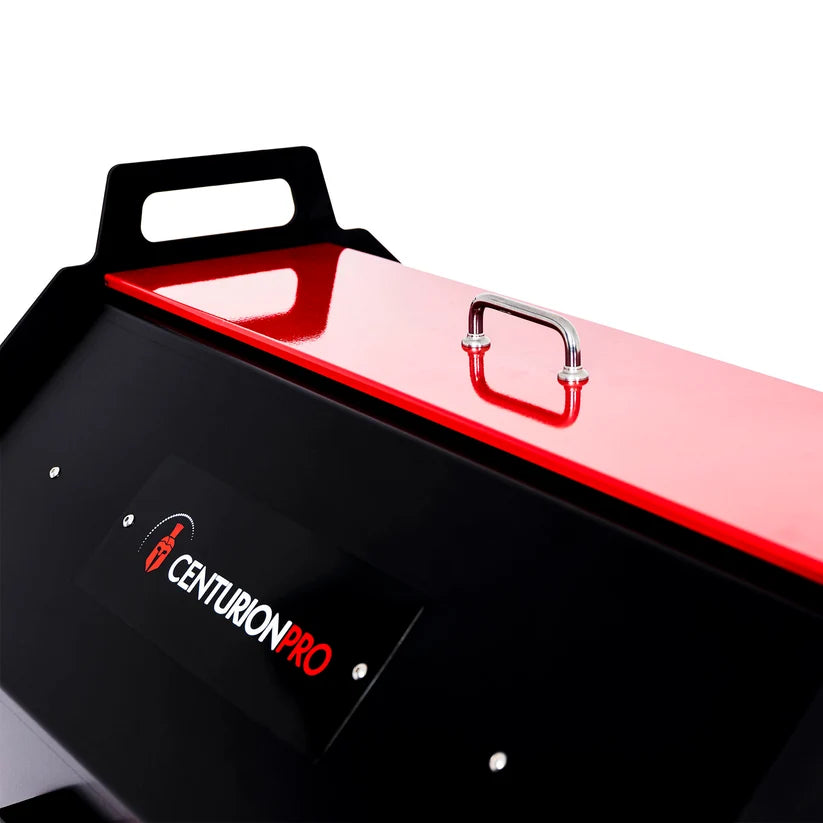

Anodized Aluminum Body

The machine housing is constructed from anodized aluminum. This provides:

• Commercial durability
• Corrosion resistance
• Stable operation
• Manageable overall weight
• Straightforward exterior cleaning
• Long-term reliability

Standard 110V Operation

The DBT Model 3 runs on a standard North American 110V outlet and draws approximately 1.2 amps. This provides:

• Simple facility installation
• No specialized circuit requirement
• Low electrical consumption
• Easy repositioning
• Flexible room placement

International operation is rated at approximately 220V and 0.6 amps.

Quiet Blower-Free Operation

The DBT Model 3 does not require a separate blower or leaf collector. This reduces:

• Operating noise
• Electrical demand
• Hose management
• Equipment footprint
• Setup complexity
• Routine maintenance requirements

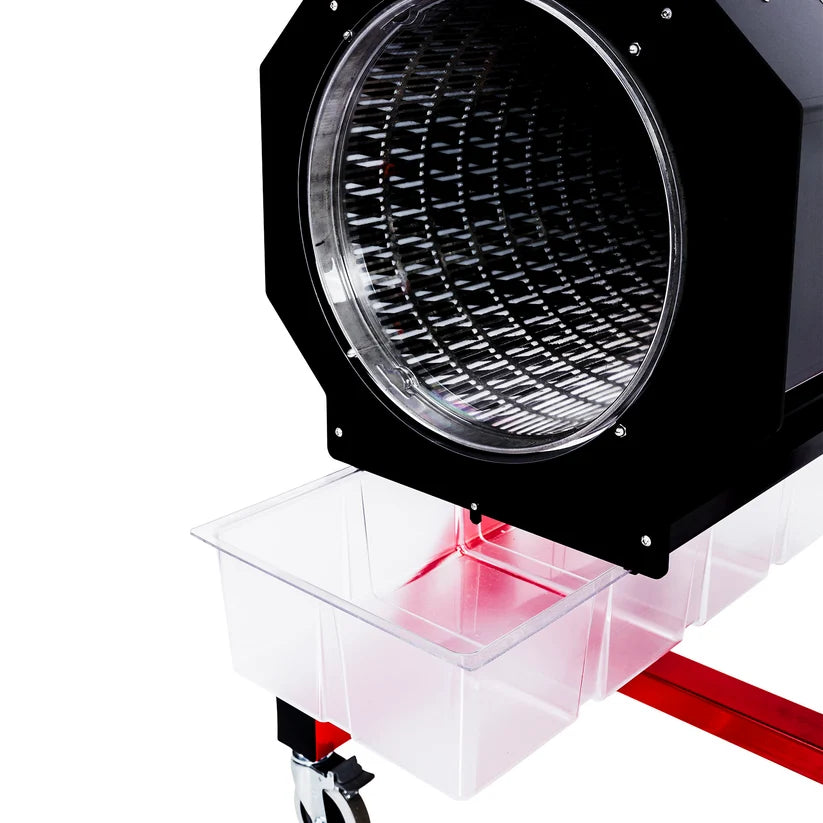

Integrated Trim Tray

A removable trim tray collects separated plant material beneath the tumbler during operation. The tray helps:

• Keep the workspace cleaner
• Organize separated material
• Simplify recovery
• Reduce product loss
• Prepare trim for optional secondary screening
• Speed up cleanup between batches

Optional Kief Tumbler System

The optional DBT3 Kief Tumbler allows operators to process collected trim after the primary trimming cycle. The workflow includes:

• Complete the dry-trimming batch
• Remove the finished material
• Empty the collected trim
• Exchange the standard tumbler for the selected Kief Tumbler
• Process the trim through the fine stainless steel screen
• Collect the separated fine material

This gives the machine both trimming and secondary separation capabilities.

Available Micron Sizes

DBT3 Kief Tumblers are available in 95, 125, 150, and 180 Micron, selectable above. Each option produces a different balance between refinement, throughput, and recovery.

95-Micron Kief Tumbler — Prioritizes the finest and most refined separation. It allows less plant material through the screen and is best suited to operators who prioritize purity over maximum recovery speed.

125-Micron Kief Tumbler — Provides a balance between fine separation and overall yield. It is a versatile option for operators seeking cleaner material without using the tightest available screen.

150-Micron Kief Tumbler — Supports faster separation while maintaining relatively refined output. It is a practical general-purpose option for balancing recovery speed and material quality.

180-Micron Kief Tumbler — Allows the fastest passage and may provide greater total recovery. Because of the larger openings, more plant material may pass through compared with finer screens.

No Lubricating Sprays Required

The Soft Tumble system does not require lubricating sprays during processing. This helps maintain a cleaner workflow and prevents unnecessary residues from being introduced onto finished material.

Consistent Batch Control

The DBT Model 3 processes material in controlled batches. Operators can adjust each run according to:

• Material dryness
• Batch weight
• Flower density
• Tumbler speed
• Desired finish
• Processing time

Testing a small batch before full production helps establish the best speed and duration for each plant variety.

Designed for Properly Dried Material

The DBT Model 3 is intended exclusively for dry processing. Material that is too moist may not separate effectively, while excessively dry material may become brittle and lose more surface material during tumbling. The best results come from material that is sufficiently dry for unwanted leaves to detach while retaining enough flexibility to withstand controlled tumbling.

Reduced Manual Labor

With capacity reaching approximately 60 pounds per hour, the DBT Model 3 significantly reduces dependence on repetitive manual trimming. One operator can manage the batch process while other team members focus on preparation, inspection, packaging, storage, and additional harvest tasks.

Recommended Operating Practices

• Read the complete owner’s manual before operating.
• Place the machine on a stable, level surface.
• Lock the stand casters before operation.
• Confirm the tumbler, plastic blade sheet, and trim tray are installed correctly.
• Inspect the electrical cord and controls before each use.
• Process only properly dried plant material.
• Remove large stems and branches before loading.
• Begin with a small test batch.
• Start at a lower speed setting.
• Increase tumbler speed gradually when required.
• Adjust the stand angle carefully before loading.
• Do not overfill the tumbler.
• Leave sufficient open space for material to tumble freely.
• Check the batch periodically to prevent over-processing.
• Keep hands, clothing, jewelry, and tools away from moving components.
• Never operate the machine with guards or protective components removed.
• Disconnect electrical power before cleaning or servicing.
• Keep electrical components away from water.
• Allow the tumbler to stop completely before unloading.
• Clean the tumbler, blade sheet, and trim tray after each operating session.

Preparing Material for Dry Trimming

Before processing:

• Remove large stems and branches.
• Confirm that unwanted leaves are dry enough to separate.
• Avoid loading freshly cut or wet material.
• Avoid material that crumbles under light handling.
• Group similarly sized material together.
• Use consistent moisture levels within each batch.
• Test a small sample before processing the full batch.
• Adjust speed and processing time based on the results.

Consistent preparation improves throughput, finish quality, and repeatability.

Batch Loading

Do not completely fill the tumbler. Material requires sufficient open space to rotate and move across the blade sheet. Overloading may:

• Restrict material movement
• Produce uneven results
• Increase processing time
• Reduce separation efficiency
• Place additional stress on the motor and drive system

Setting the Tumbler Speed

Begin at a lower Variable Speed Control setting. Observe how the material moves inside the tumbler and gradually increase speed as required. The correct setting will vary according to:

• Material density
• Flower size
• Moisture content
• Batch weight
• Desired finish
• Processing duration

Adjusting the Stand

Before changing the stand angle:

• Stop the machine completely.
• Disconnect electrical power.
• Confirm the unit is stable.
• Adjust the stand to the desired position.
• Lock all adjustment points.
• Lock the casters before restarting.

Do not adjust the stand while the tumbler is moving.

Monitoring the Trim

Inspect the batch periodically during the first few operating cycles. Different plant varieties and moisture levels may require different combinations of speed and time. Once the ideal settings are identified, document them for more consistent future batches.

Cleaning & Maintenance

Cleaning After Each Use

• Disconnect the machine from electrical power.
• Allow the tumbler to stop completely.
• Remove the tumbler according to the manufacturer’s instructions.
• Remove the plastic blade sheet when required.
• Empty the trim tray.
• Brush away loose plant material.
• Clean the tumbler and blade sheet.
• Wipe down the anodized aluminum housing.
• Clean the adjustable stand and casters.
• Allow every component to dry completely.
• Do not reconnect electrical power until the machine is fully dry.

Tumbler Cleaning

• Remove loose debris with a soft brush.
• Wash with warm water and mild soap when necessary.
• Rinse thoroughly.
• Allow the tumbler to dry completely.
• Avoid metal scrapers and abrasive tools.
• Do not reinstall the tumbler while wet.

Plastic Blade Sheet Care

• Remove accumulated plant material after each operating session.
• Inspect the sheet for cracks, distortion, or excessive wear.
• Wash gently with mild soap and water.
• Avoid sharp tools that may damage the cutting surface.
• Replace damaged sheets with approved CenturionPro components.
• Allow the sheet to dry fully before reinstalling.

Trim Tray Cleaning

• Empty the tray after every batch.
• Brush away loose material.
• Wash using mild soap and water when required.
• Rinse thoroughly.
• Allow the tray to dry completely before reinstalling.

Stand and Caster Maintenance

• Remove plant material from the stand after each use.
• Wipe down the frame.
• Inspect adjustment points for looseness.
• Check caster movement and locking function.
• Tighten loose hardware when necessary.
• Replace damaged casters or fasteners before operating.

Exterior Cleaning

• Disconnect electrical power.
• Wipe the body using a lightly dampened cloth.
• Do not spray water into the motor, controls, bearings, or electrical housing.
• Do not submerge the machine.
• Dry all surfaces before storage or reuse.

Variable Speed Control Care

• Keep the control box clean and dry.
• Do not spray water directly onto the controls.
• Inspect the dial and electrical connections regularly.
• Stop using the machine if speed becomes inconsistent.
• Have electrical repairs performed by qualified personnel.

Roller and Drive Inspection

• Inspect the rollers and drive system regularly.
• Remove buildup that may interfere with tumbler movement.
• Check for slipping, unusual noise, vibration, or uneven rotation.
• Replace worn components using approved CenturionPro parts.
• Do not operate the machine if the tumbler fails to rotate smoothly.

Kief Tumbler Cleaning

• Remove collected material immediately after use.
• Brush loose particles from the screen.
• Wash gently using mild soap and water if required.
• Avoid bending, crushing, or puncturing the mesh.
• Allow the tumbler to dry completely.
• Store it where the screen cannot be damaged.

Storage

• Clean and dry the machine before storage.
• Store indoors in a dry environment.
• Lock the caster wheels.
• Protect the power cord and control box from damage.
• Do not place heavy objects on the machine.
• Store the tumbler, blade sheet, and trim tray safely.
• Protect optional fine-screen tumblers from crushing or punctures.

CenturionPro Dry Batch Trimmer Warranty

CenturionPro Dry Batch Trimmers are backed by a manufacturer warranty covering defects in materials and workmanship from the original date of purchase. Warranty coverage varies by model. DBT Model 0 includes a 2 year manufacturer warranty, while DBT Models 1, 2, 3, 4, and 5 include a 3 year manufacturer warranty.

The warranty covers the repair or replacement of parts found to be defective due to manufacturing defects under normal use. It does not cover normal wear and tear or consumable components, including belts, O-rings, brushes, bearings, blades, or other parts subject to regular use.

To receive full warranty coverage, your machine must be registered with CenturionPro after purchase in accordance with the manufacturer’s registration requirements.

If a warranty claim is approved, replacement parts will be supplied at no charge. Customers are responsible for shipping costs associated with returning defective parts or equipment for inspection or service.

For warranty assistance, please contact CenturionPro Technical Support with your machine model, serial number, proof of purchase, and a description of the issue. Warranty approval and service are provided at the discretion of CenturionPro Solutions in accordance with their published warranty terms.

Why Choose the DBT Model 3

• Dry Processing Capacity: Up to 60 lbs/hr
• Speed Control: Integrated Variable Speed Control
• Mobility: Adjustable Wheeled Stand Included
• Warranty: 3-Year Manufacturer Warranty

What's Included

• CenturionPro DBT Model 3 Dry Batch Trimmer
• Electropolished Stainless Steel Trimming Tumbler
• Plastic Blade Sheet
• Removable Trim Tray
• Integrated Variable Speed Control
• Adjustable Mobile Stand
• Locking Casters
• Power Cord
• Owner’s Manual
