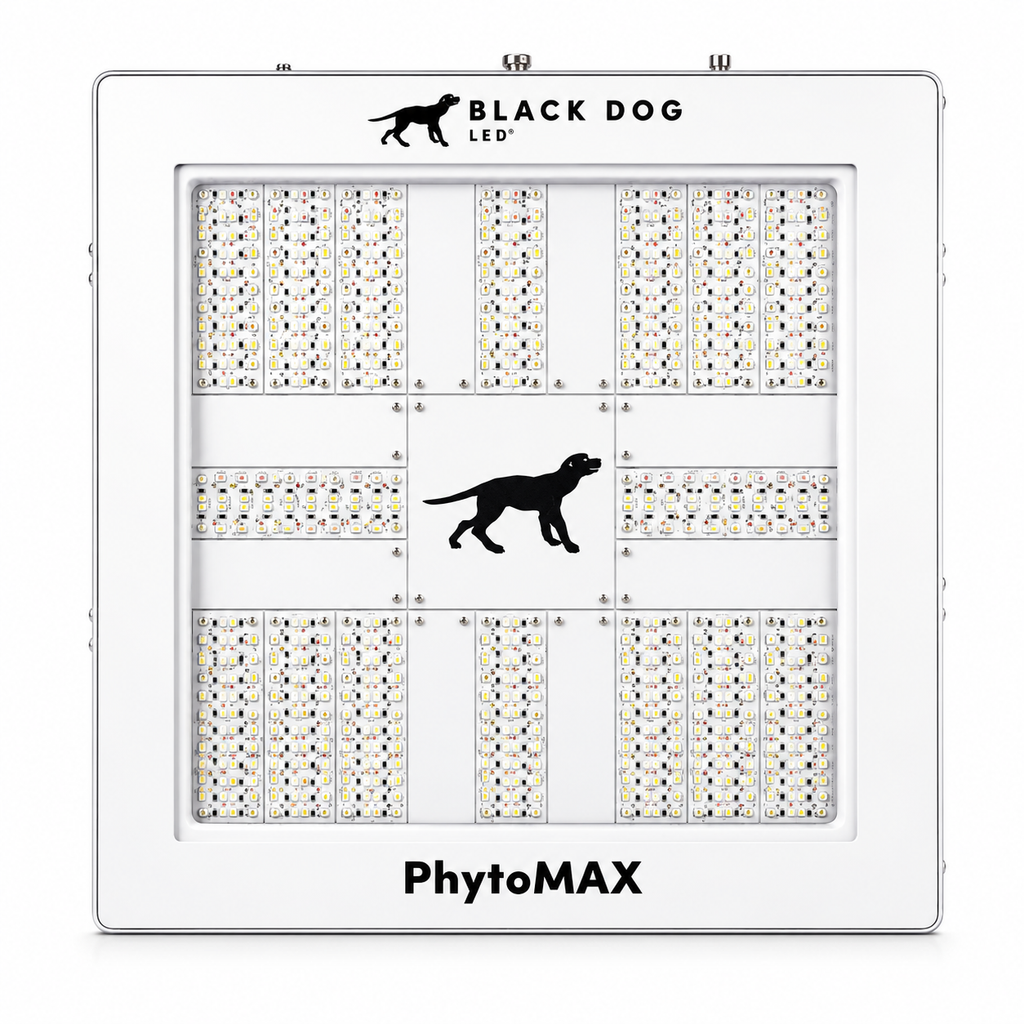

Black Dog LED PhytoMAX-4 16S LED Grow Light
Buying Multiple? Request Volume Pricing
The Black Dog LED PhytoMAX-4 16S is a high output 1000W LED grow light designed for large indoor growing areas that require intense light levels, broad spectral coverage, and precise control. Producing 2,125 µmol/s of total PBAR output, the 16S is Black Dog LED's 1000 watt PhytoMAX fixture and is positioned as an LED alternative to high output 1200W double ended HPS systems.
At the core of the fixture is Black Dog LED's Phyto Genesis Spectrum, which combines eight LED colors spanning ultraviolet, visible PAR wavelengths, and infrared. Rather than concentrating exclusively on conventional PAR output, the spectrum is designed to influence photosynthesis and plant morphology throughout the growing cycle.
The PhytoMAX-4 16S combines this specialized spectrum with 15% to 100% dimming, active LED cooling, 448 LEDs, multiple voltage configurations, a compact 19" x 19" housing, and a rated mean time before failure exceeding 70,000 hours.
Black Dog LED's Phyto Genesis Spectrum uses eight distinct LED colors to provide wavelengths extending beyond the conventional 400 to 700 nm PAR range.
The PhytoMAX-4 16S produces 2,125 µmol/s of total PBAR output from 280 to 800 nm, consisting of:
This broad spectral approach incorporates ultraviolet and far red directly into the fixture rather than requiring separate supplemental lighting.
Approximately 3% of the Phyto Genesis Spectrum is ultraviolet light below 400 nm.
Black Dog LED distributes UV throughout the fixture so ultraviolet reaches the illuminated growing area alongside the rest of the spectrum instead of being concentrated through separate UV bars.
UV wavelengths can influence several photomorphogenic responses in plants. Black Dog includes this portion of the spectrum to encourage compact plant structure, pigmentation, and natural plant defense responses throughout the growing cycle.
Because ultraviolet falls outside the traditional 400 to 700 nm PAR range, Black Dog measures it separately within the broader 280 to 800 nm PBAR output.
The Phyto Genesis Spectrum incorporates two violet wavelengths within the 400 to 450 nm range. Violet light can penetrate dense plant canopies and provide useful light deeper within plant structure.
Blue light from approximately 450 to 480 nm contributes strongly to chlorophyll driven photosynthesis while also influencing plant morphology. Black Dog balances blue light against other wavelengths to encourage more compact growth and improved canopy penetration.
Green and yellow wavelengths from approximately 480 to 600 nm are supplied through broad spectrum white LEDs.
These wavelengths contribute to photosynthesis and provide more natural visual illumination, making plant color and condition easier to inspect under the fixture.
Black Dog intentionally balances this portion of the spectrum with stronger blue and red output rather than relying primarily on broad spectrum white LEDs.
Red wavelengths from approximately 600 to 700 nm provide a major contribution to photosynthesis. The Phyto Genesis Spectrum includes two distinct red peaks balanced against blue wavelengths to help manage excessive stem elongation.
Far red and infrared wavelengths from approximately 700 to 750 nm extend the spectrum beyond conventional PAR. These wavelengths can contribute to photosynthetic efficiency through interactions associated with the Emerson Effect.
The result is a lighting spectrum that extends from ultraviolet through the visible range and into far red.
The PhytoMAX-4 16S produces 2,125 µmol/s of PBAR output while drawing 1000 watts.
Black Dog positions the fixture as a high intensity LED replacement for 1200W double ended HPS lighting, providing substantial photon output while operating at a lower fixture wattage.
The 16S is rated for a vegetative footprint of approximately 5' x 5' and a flowering footprint of approximately 4' x 4'.
The PhytoMAX-4 16S supports industry standard 0 to 10V dimming and can be adjusted from approximately 15% through 100% output.
This allows growers to reduce intensity during propagation, early growth, acclimation periods, or lower light applications, then increase output as the canopy develops.
A compatible 0 to 10V controller is required for external dimming control.

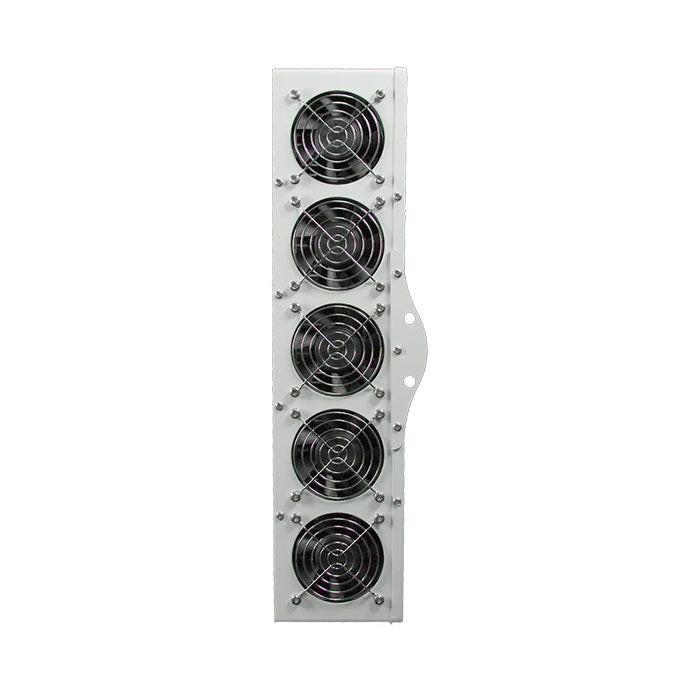

The PhytoMAX-4 16S uses active cooling to manage LED operating temperatures.
Keeping LEDs cooler can help preserve operating efficiency and extend service life, particularly for specialized ultraviolet and violet LEDs. Black Dog's design incorporates multiple redundant cooling fans rather than relying on a single fan.
The expected fan life is rated at more than 70,000 hours, matching the fixture's stated mean time before failure.

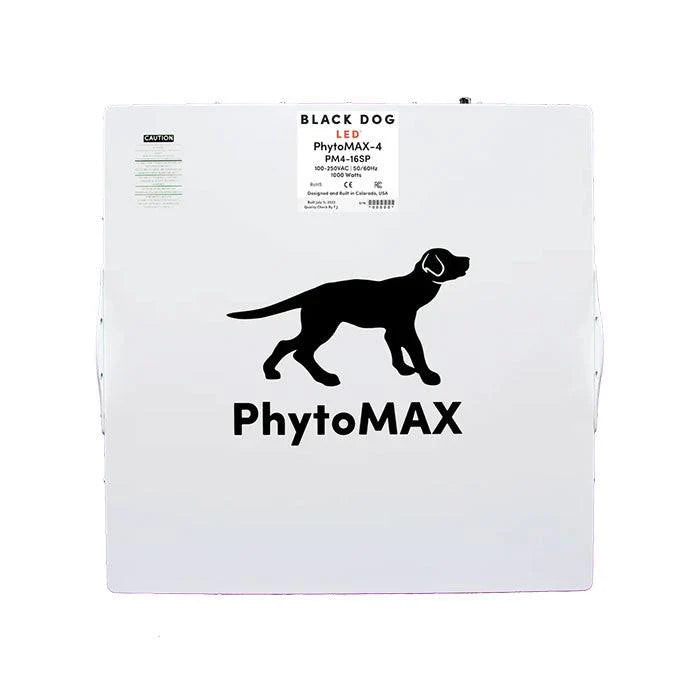

Despite drawing 1000 watts and producing more than 2,100 µmol/s of total PBAR output, the PhytoMAX-4 16S measures only 19" x 19" x 4.5".
The fixture weighs 43 lb, making secure overhead mounting important.
A pair of V hooks and ratcheting rope hangers are included to simplify installation.
The PhytoMAX-4 16S is available in SP and SC configurations.
The spectrum, wattage, output, dimensions, and core lighting performance are the same between the two models. The primary difference is the power connection and supported input voltage.
PhytoMAX-4 16SP — The SP model uses a standard IEC power connection and supports 100 to 250V at 50/60 Hz. Black Dog does not recommend the SP connection for greenhouse environments.
PhytoMAX-4 16SC — The SC model uses a locking, water tight power connection and supports a wider 100 to 277V at 50/60 Hz input range. This configuration is useful where a more secure power connection or 277V electrical service is required.
Black Dog also identifies a 347V SX model as a special order configuration.
The PhytoMAX-4 16S draws 1000 watts at full output and has a power factor of 0.99.
Current draw varies according to supply voltage: 100V at 10.0A, 120V at 8.33A, 208V at 4.81A, 230V at 4.35A, 240V at 4.17A, and 277V at 3.61A on the SC model only.
Available cord configurations include NEMA 5-15, NEMA 6-15, NEMA 7-15 for the SC model, and pigtail options.
The included power cord is 8 feet long.
Black Dog LED designs and assembles the PhytoMAX-4 series in Colorado.
The PhytoMAX-4 16S contains 448 LEDs and is designed around active thermal management, long operating life, and high output from a relatively compact fixture.
Certifications listed for the fixture include UL 1598, UL 8800, ETL, CE, FCC, and RoHS.
Choose between a 120V NEMA 5-15 cord or a 240V NEMA 6-15 cord to match your electrical setup. If you are unsure which cord your installation requires, the 120V option is the standard choice for most indoor grow rooms and tents. Additional configurations, including NEMA 7-15 on the SC model and pigtail options, may be available directly through Black Dog LED for specialized installations.
| Brand | Black Dog LED |
| Model | PhytoMAX-4 16S |
| Fixture Variants | 16SP, 16SC |
| Veg Footprint | 5' x 5' |
| Flower Footprint | 4' x 4' |
| Power Draw | 1000W |
| PBAR Output, 280 to 800 nm | 2,125 µmol/s |
| UV Output, 280 to 400 nm | 63 µmol/s |
| PAR Output, 400 to 700 nm | 1,904 µmol/s |
| IR Output, 700 to 800 nm | 158 µmol/s |
| Spectrum | Phyto Genesis Full Spectrum |
| LED Colors | 8 |
| Number of LEDs | 448 |
| Dimming | 0 to 10V, 15% to 100% |
| Dimensions | 19" x 19" x 4.5" |
| Weight | 43 lb |
| SP Voltage Range | 100 to 250V, 50/60 Hz |
| SC Voltage Range | 100 to 277V, 50/60 Hz |
| 100V Current Draw | 10.0A |
| 120V Current Draw | 8.33A |
| 208V Current Draw | 4.81A |
| 230V Current Draw | 4.35A |
| 240V Current Draw | 4.17A |
| 277V Current Draw | 3.61A, SC Model Only |
| Power Factor | 0.99 |
| Included Power Cord Length | 8 ft |
| Power Cord Options | NEMA 5-15, NEMA 6-15, NEMA 7-15 on SC Model, Pigtails |
| Operating Temperature | -4°F to 104°F |
| Heat Output | 3,410 BTU |
| Mean Time Before Failure | More Than 70,000 Hours |
| Expected Fan Life | More Than 70,000 Hours |
| Certifications | UL 1598, UL 8800, ETL, CE, FCC, RoHS |
| Warranty | 5 Years |
| Brand | Black Dog LED |
| Model | PhytoMAX-4 16S |
| Fixture Variants | 16SP, 16SC |
| Veg Footprint | 5' x 5' |
| Flower Footprint | 4' x 4' |
| Power Draw | 1000W |
| PBAR Output, 280 to 800 nm | 2,125 µmol/s |
| UV Output, 280 to 400 nm | 63 µmol/s |
| PAR Output, 400 to 700 nm | 1,904 µmol/s |
| IR Output, 700 to 800 nm | 158 µmol/s |
| Spectrum | Phyto Genesis Full Spectrum |
| LED Colors | 8 |
| Number of LEDs | 448 |
| Dimming | 0 to 10V, 15% to 100% |
| Dimensions | 19" x 19" x 4.5" |
| Weight | 43 lb |
| SP Voltage Range | 100 to 250V, 50/60 Hz |
| SC Voltage Range | 100 to 277V, 50/60 Hz |
| 100V Current Draw | 10.0A |
| 120V Current Draw | 8.33A |
| 208V Current Draw | 4.81A |
| 230V Current Draw | 4.35A |
| 240V Current Draw | 4.17A |
| 277V Current Draw | 3.61A, SC Model Only |
| Power Factor | 0.99 |
| Included Power Cord Length | 8 ft |
| Power Cord Options | NEMA 5-15, NEMA 6-15, NEMA 7-15 on SC Model, Pigtails |
| Operating Temperature | -4°F to 104°F |
| Heat Output | 3,410 BTU |
| Mean Time Before Failure | More Than 70,000 Hours |
| Expected Fan Life | More Than 70,000 Hours |
| Certifications | UL 1598, UL 8800, ETL, CE, FCC, RoHS |
| Warranty | 5 Years |
