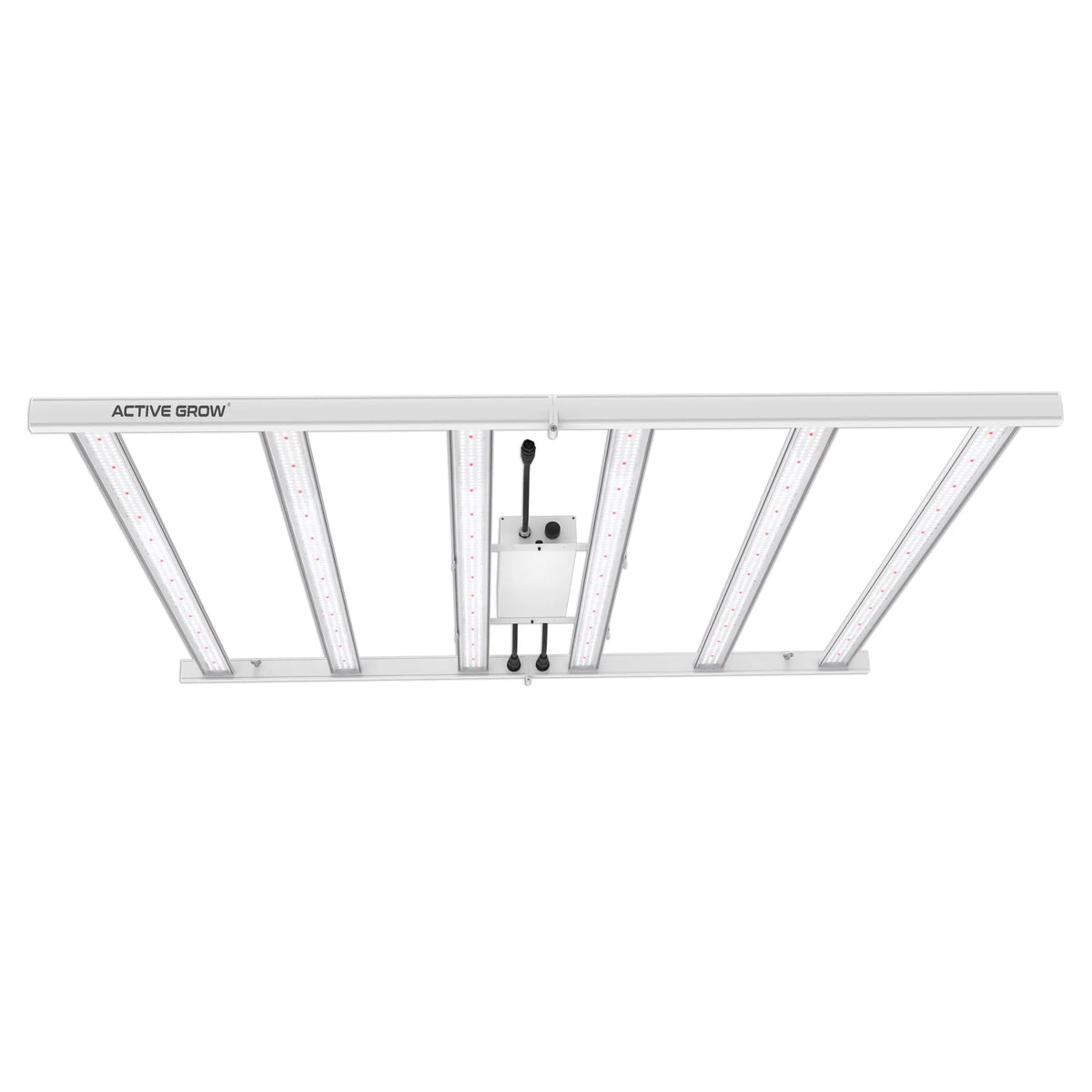

Active Grow 680W LoPro Max LED Grow Light – Sun White Spectrum

The Active Grow 680W LoPro Max LED Grow Light is a low-profile commercial horticultural fixture designed for controlled environment agriculture, vertical racks, benches, sea-of-green layouts and other space-conscious installations.

• Power: 680W
• Spectrum: Sun White Full Spectrum
• Dimming: 0–10V
• Lifetime: Q90 50,000 Hours

Its Sun White Spectrum combines enhanced blue and balanced red output with high CRI, while the fixture’s low-profile, foldable construction provides flexible installation in both new facilities and retrofit projects.

680W Sun White Spectrum

Active Grow’s Sun White Spectrum is engineered for controlled environment agriculture, with enhanced blue for crop quality, balanced red for yield and a CRI of 94 for accurate visual inspection.

The spectrum is designed for full-cycle cultivation across a wide range of crops, including flowers, fruits, vegetables, leafy greens, herbs, legumes, tropical plants and ornamentals.

1904 µmol/s PBAR Output

Active Grow rates the LoPro Max 680W at 1904 µmol/s of PBAR output (280–800nm) at 2.80 µmol/J, delivering high-intensity light for demanding controlled-environment crops.

4’ × 4’ Flower / 5’ × 5’ Veg Coverage

Active Grow rates the fixture for a 4’ × 4’ flowering footprint and a 5’ × 5’ vegetative footprint, with a mounting height of 6–36” above the canopy.

Low-Profile Commercial Design

At just 1.50 inches thick, the LoPro Max is designed for installations where vertical clearance matters. Its form factor works with benches, vertical racks, retrofits and new commercial builds.

Uniform Canopy Coverage

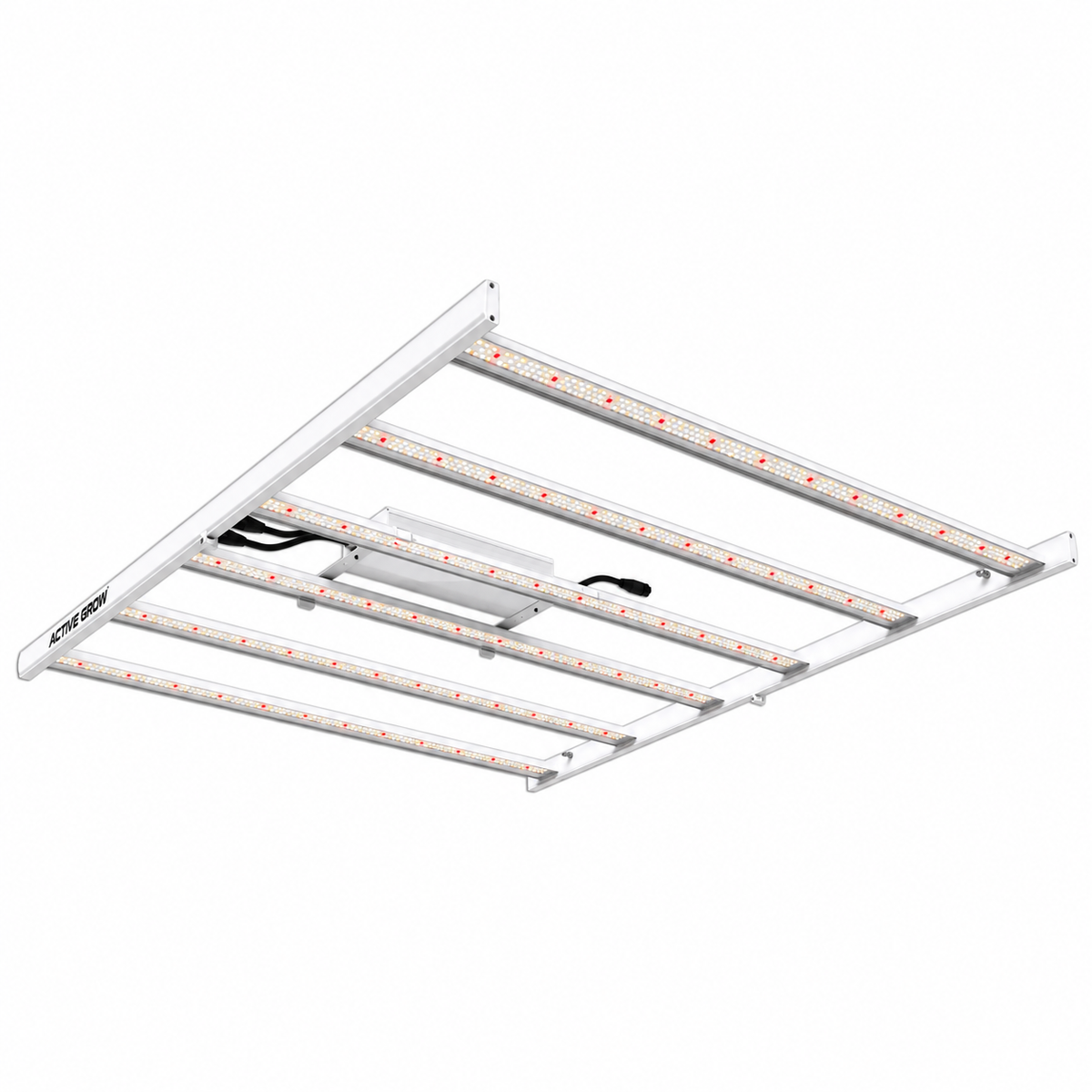

Premium chipsets are arranged to provide uniform light distribution across a 120° beam and deep canopy penetration for crops with high daily light integral requirements.

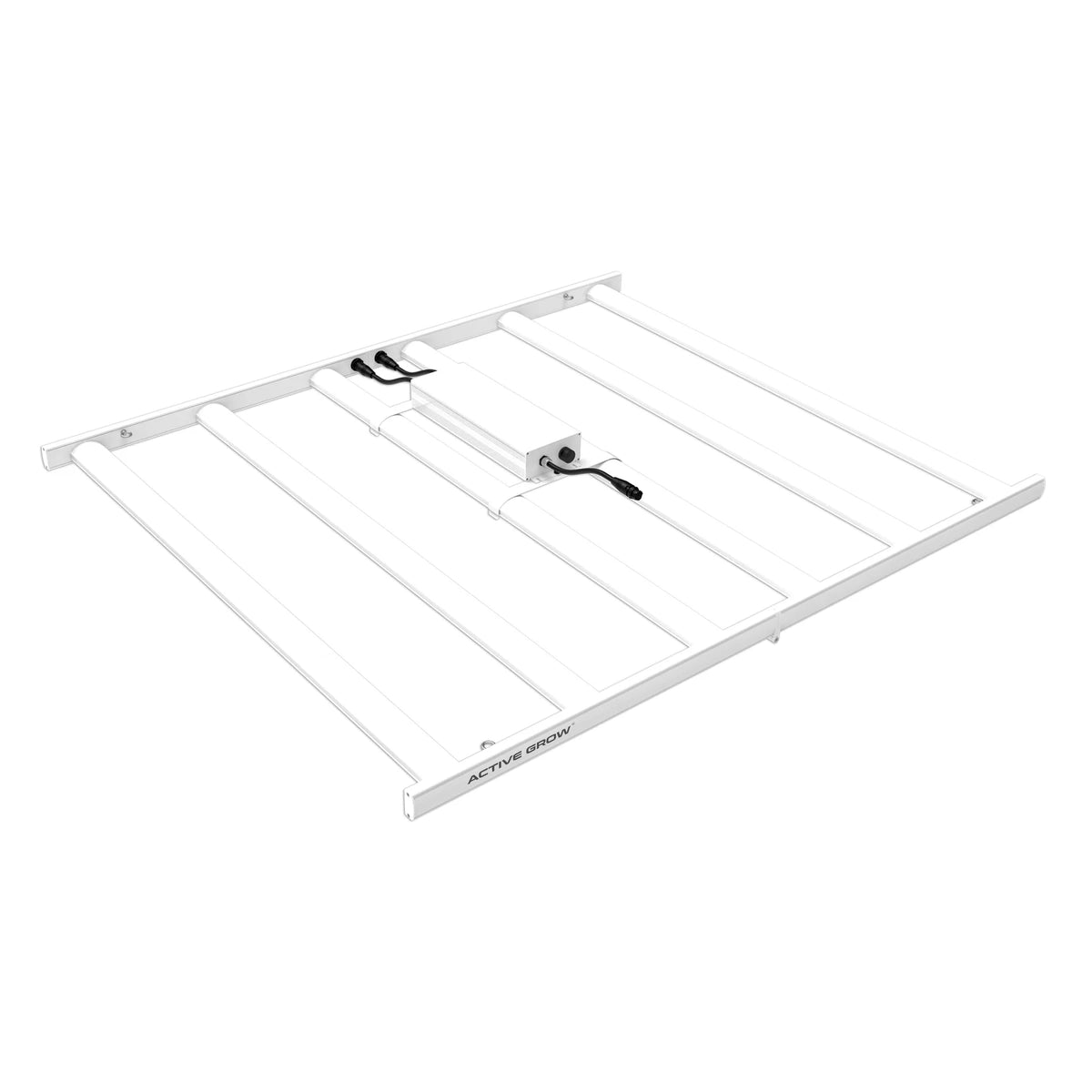

Foldable Fixture

A built-in hinge lets the LoPro Max fold for more convenient transportation, storage and installation.

Flexible Driver Installation

The driver can be installed onboard or remotely, giving commercial growers more flexibility when configuring their lighting system and managing available space.

0–10V Dimming & Smart Control

The LoPro Max supports standard 0–10V dimming and is compatible with Active Grow’s Plant Lighting Smart Controller, TrolMaster and compatible 0–10V dimmers.

Daisy-Chain Power & Dimming

Multiple fixtures can be daisy chained for both power and dimming, enabling centralized control across larger installations.

Choosing a Voltage Configuration

120–277V — for standard and most commercial installations, from conventional 120V circuits up to 277V.

208–480V — for large commercial facilities with high-voltage electrical infrastructure, including 480V systems.

Passive Cooling

Passive thermal management cools the fixture without fans, with a maximum ambient operating temperature of 104°F (40°C).

IP65 Rated

IP65-rated construction provides protection against the dust and water exposure commonly encountered in controlled growing environments.

Q90 50,000-Hour Rated Lifetime

Active Grow rates the LoPro Max for a Q90 lifetime of 50,000 hours.

What’s Included

• Active Grow 680W LoPro Max LED Grow Light
• Pigtail Power Cord
• Rack Hanging Accessories
• 0–10V Dimming Cable

Specifications
