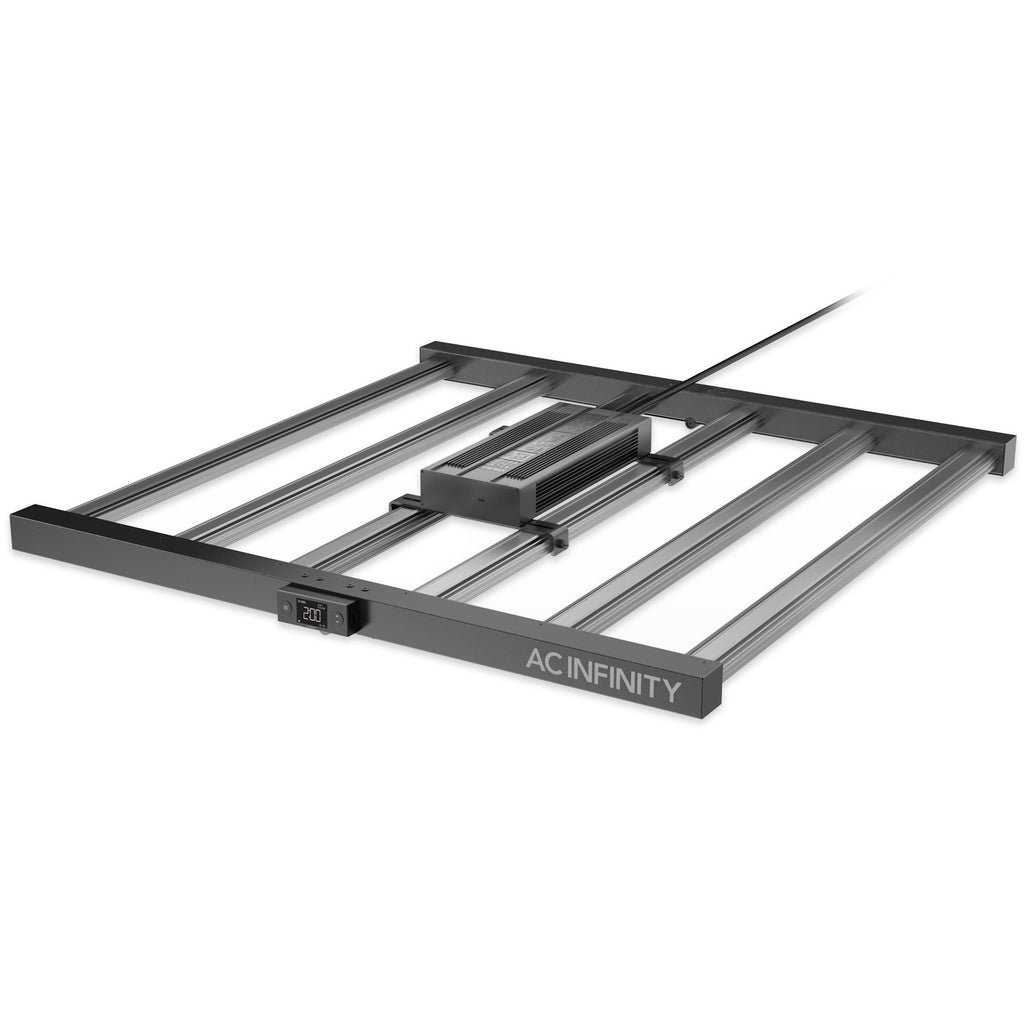

AC Infinity IONFRAME EVO6 500W LED Grow Light

The AC Infinity IONFRAME EVO6 500W LED Grow Light is a commercial grade full spectrum fixture built for growers who need powerful output, broad coverage, and precise control in a 4 x 4 flowering space. Equipped with genuine Samsung LM301H EVO diodes, an algorithmically spaced bar style layout, and intelligent scheduling, the EVO6 delivers strong canopy penetration and highly uniform light distribution from edge to edge.

Its 500 watt output supports a 5 x 5 foot vegetative footprint and a 4 x 4 foot flowering footprint, making it well suited for grow tents, dedicated grow rooms, hydroponic systems, and larger indoor gardens. The open bar design spreads light across the canopy more evenly than compact board style fixtures, helping reduce hotspots while improving coverage through dense plant growth.

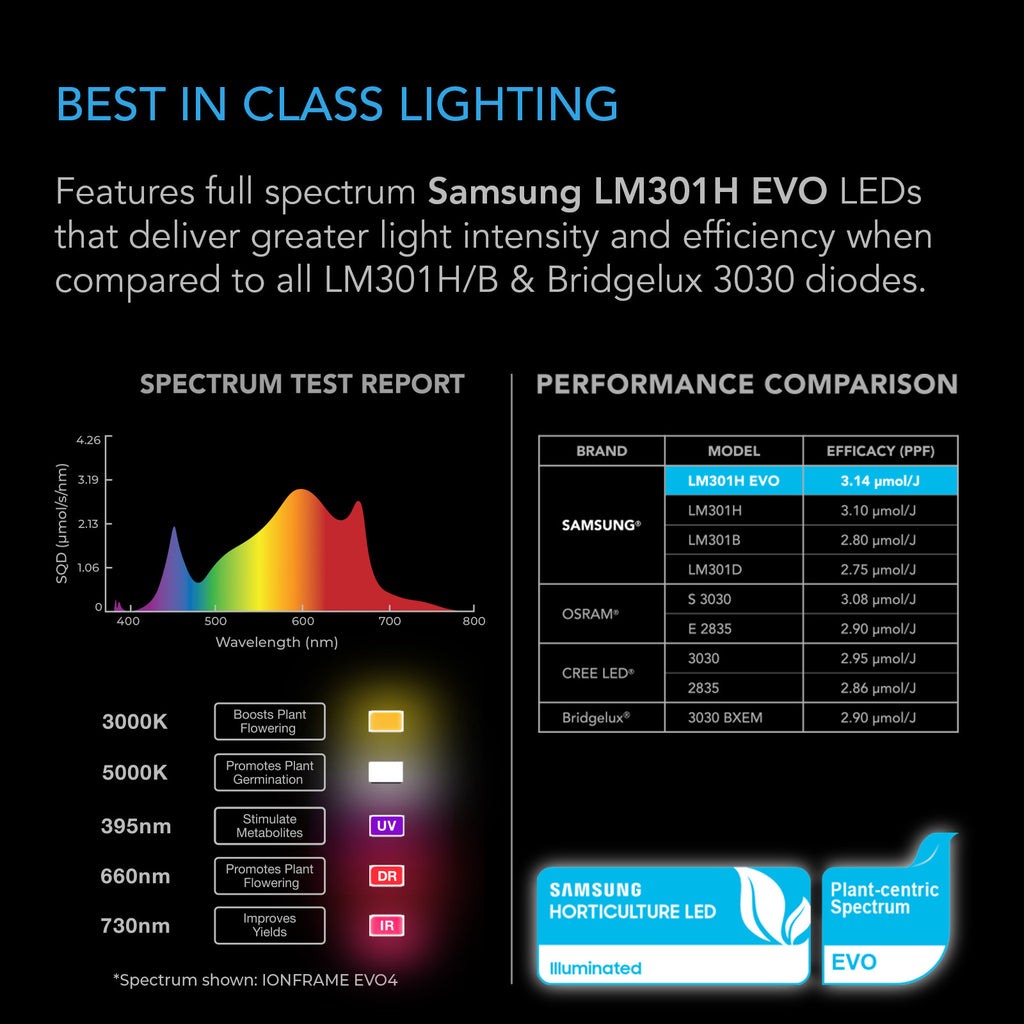

The full spectrum combines 3000K and 5000K white light, 660nm deep red, 730nm far red, and 395nm UV wavelengths. This balanced output supports seedlings, vigorous vegetative development, flowering, and fruiting without requiring separate fixtures for different growth stages.

The included Schedule Controller provides 10 brightness levels, automatic daily schedules, and gradual sunrise and sunset dimming. Growers can also connect the EVO6 to a compatible AC Infinity UIS Controller for WiFi or Bluetooth app access, environmental automation, custom programs, alerts, and historical grow data.

A removable SOSEN driver can be mounted away from the fixture to reduce heat above the canopy. The steel and aluminum frame provides silent passive cooling, while the IP65 rated construction is designed to withstand the humid conditions commonly found in indoor growing environments.

Samsung LM301H EVO Diodes

The EVO6 uses genuine Samsung LM301H EVO horticultural LEDs rated at up to 3.14 µmol/J per diode. These high efficiency chips produce strong usable light while supporting lower energy consumption than earlier LED generations.

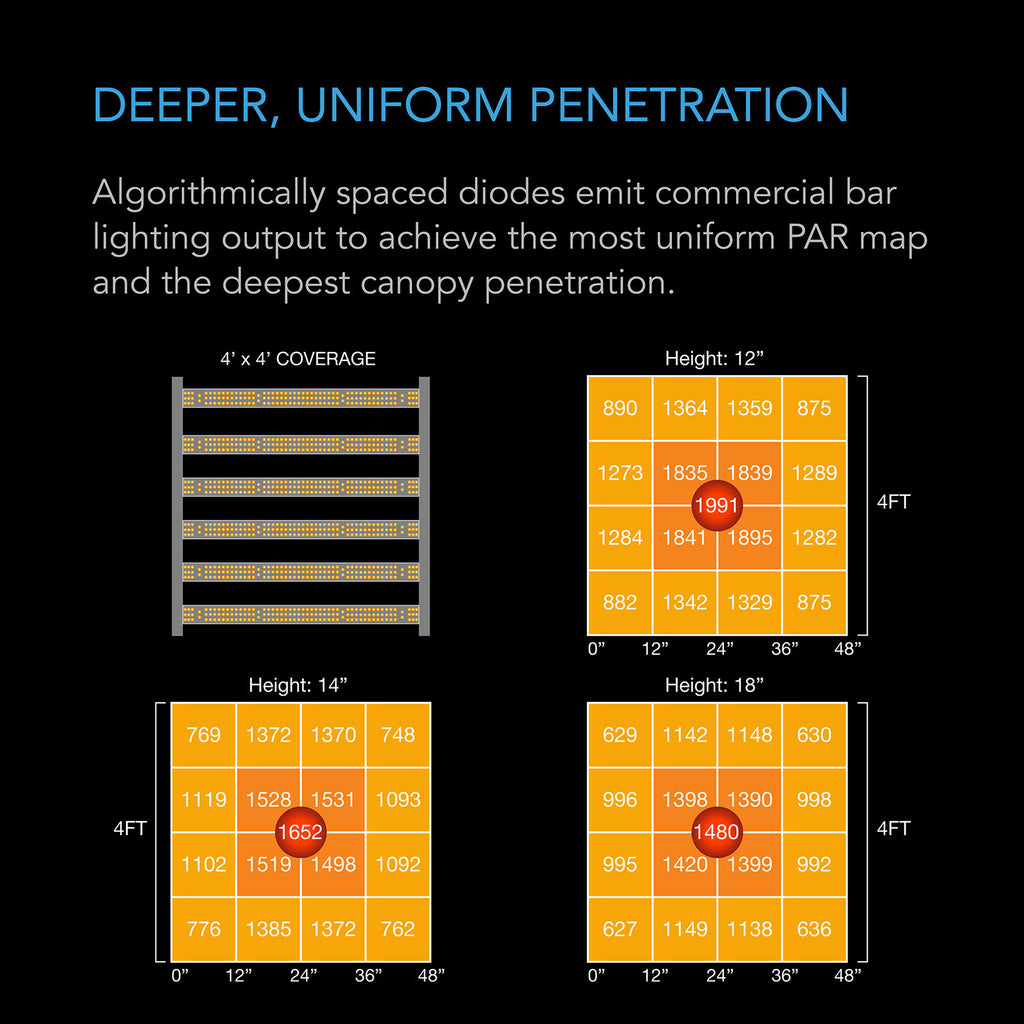

Uniform 4 x 4 Flowering Coverage

Algorithmically spaced diodes across the bar style frame create a more even PPFD map with fewer concentrated hotspots. This helps plants across the entire 4 x 4 flowering area receive more consistent light intensity.

Full Spectrum Plant Lighting

The integrated spectrum includes 3000K and 5000K white LEDs with 660nm deep red, 730nm far red, and 395nm UV. The fixture can support plants through propagation, vegetative growth, flowering, and fruiting.

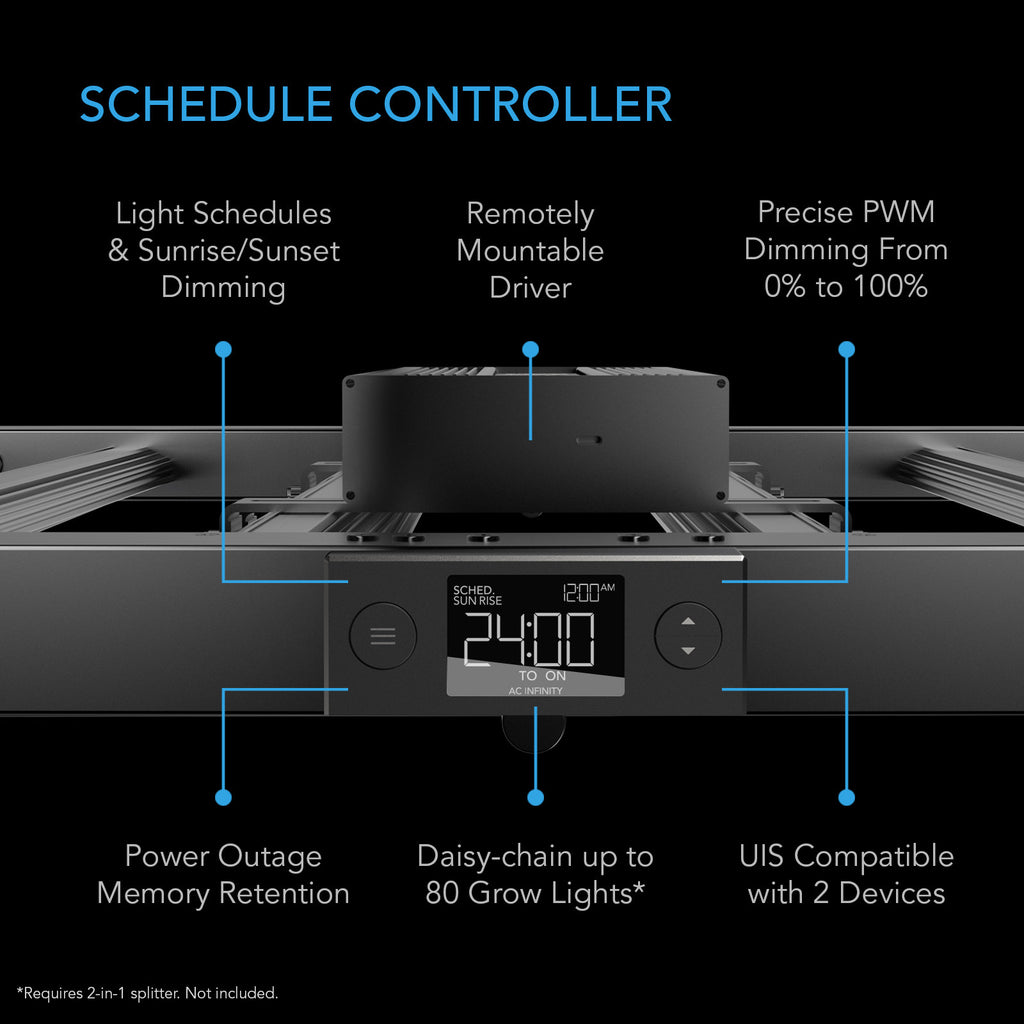

Smart Schedule and Dimming Controls

The included controller offers 10 brightness levels, recurring light schedules, and sunrise and sunset transitions. This allows output and photoperiods to be adjusted as plants mature.

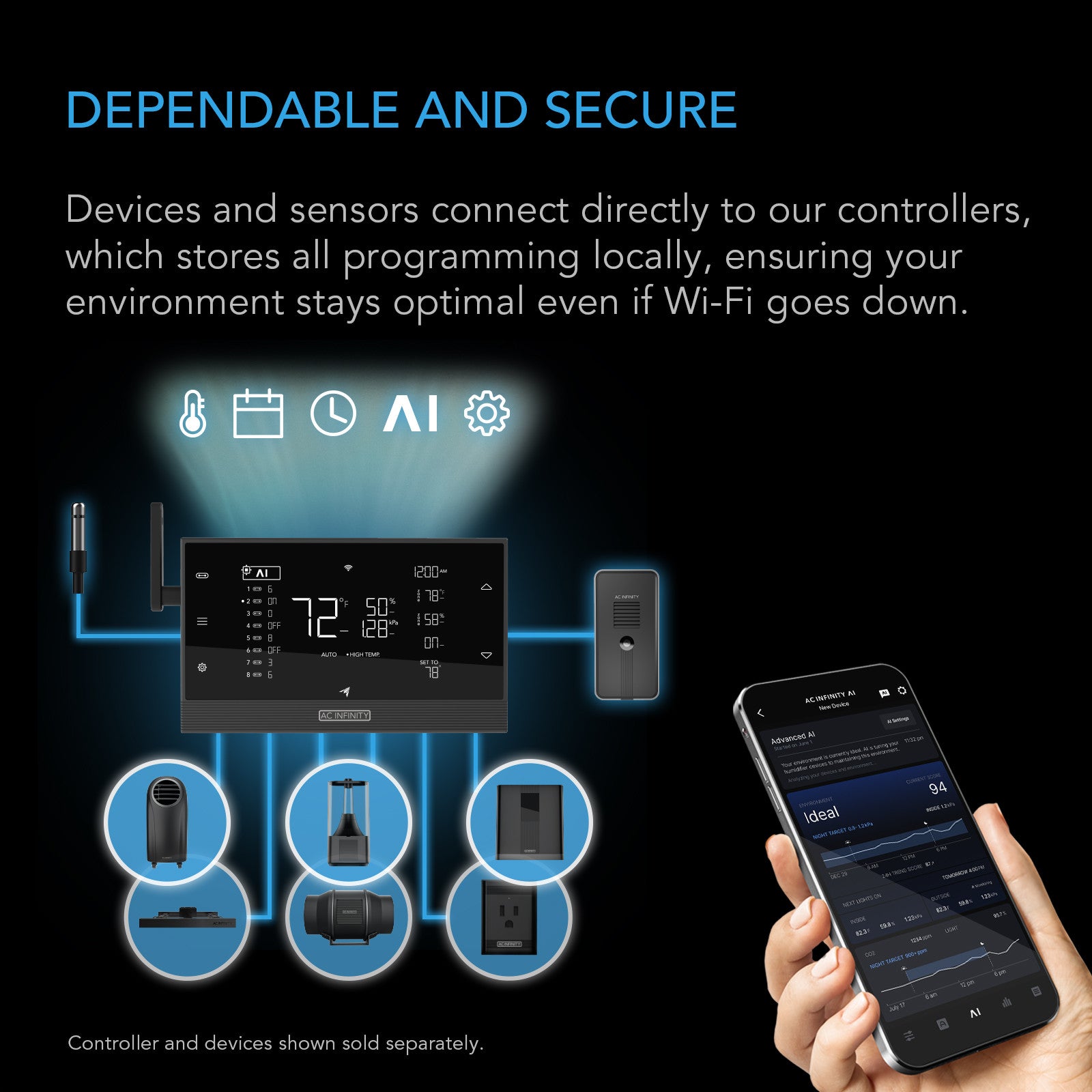

UIS Platform Compatibility

Connect the IONFRAME EVO6 to a compatible AC Infinity UIS Controller for app based monitoring and control. Depending on the selected controller, growers can access WiFi or Bluetooth connectivity, environmental triggers, notifications, grow recipes, and historical data.

Removable Driver and Passive Cooling

The SOSEN driver can be mounted away from the light to reduce heat inside the growing area. The fanless aluminum and steel structure dissipates heat silently without moving parts that require routine maintenance.

Commercial Ready Construction

The EVO6 features IP65 moisture resistance, ETL certified electrical safety, magnetic mounting compatibility, and support for daisy chaining up to 80 fixtures using splitter dongles sold separately.

What's Included

• One AC Infinity IONFRAME EVO6 500W LED Grow Light
• One Schedule Controller
• One SOSEN LED Driver
• One Power Cord
• Hanging Hardware
• One User Manual
