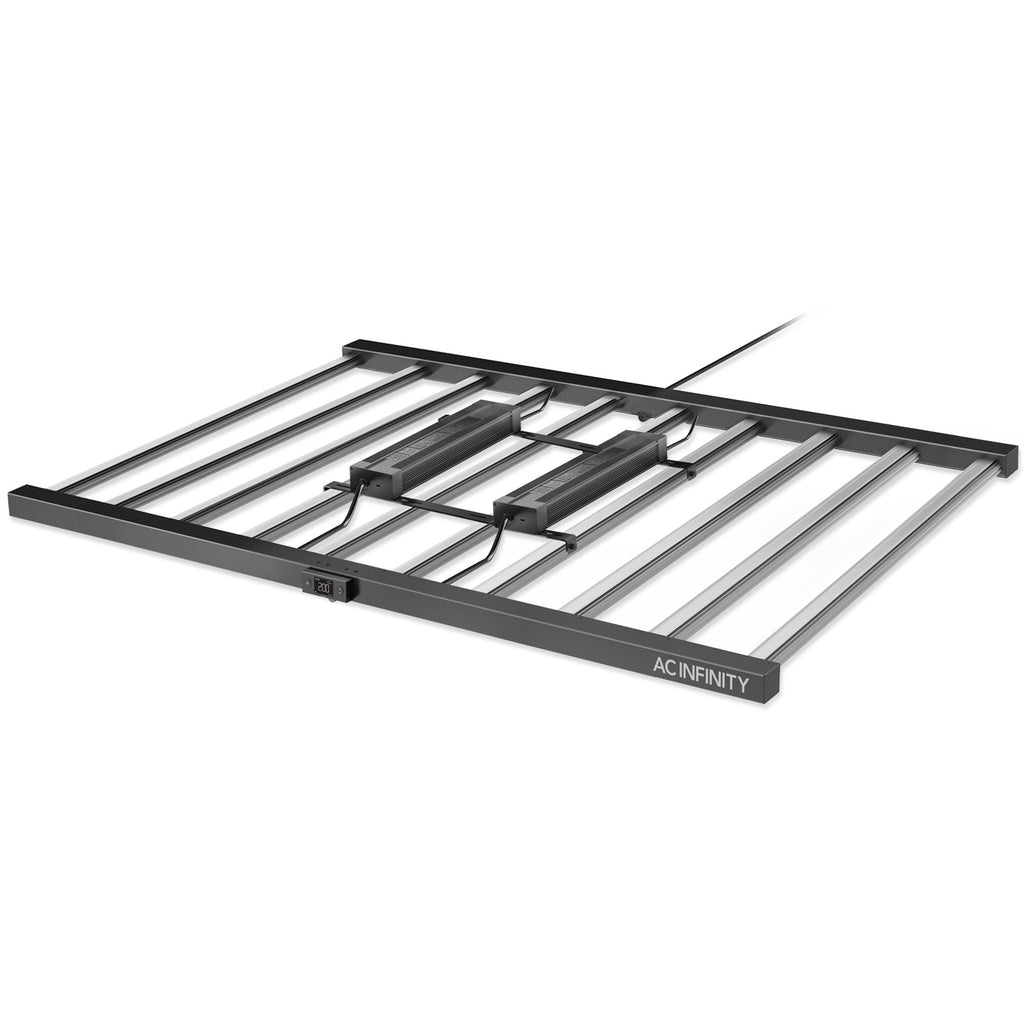

AC Infinity IONFRAME EVO10 1000W LED Grow Light

The AC Infinity IONFRAME EVO10 1000W LED Grow Light is a commercial grade full spectrum fixture designed for large indoor gardens that require powerful output, broad coverage, and precise environmental control. Built with 3,710 genuine Samsung LM301H EVO diodes, an algorithmically spaced bar style frame, and integrated scheduling, the EVO10 delivers high intensity lighting across a 6 x 6 foot flowering footprint and up to 7 x 7 feet of vegetative coverage.

Its open bar configuration distributes light more evenly than a compact board style fixture, helping reduce concentrated hotspots while improving coverage across the edges of the canopy. The result is a more consistent PPFD map and stronger light penetration through dense growth, making the EVO10 well suited for large grow tents, dedicated grow rooms, hydroponic systems, vertical farms, and commercial horticulture facilities.

The full spectrum combines 3000K and 5000K white light, 660nm deep red, 730nm far red, and 395nm UV wavelengths. This broad output supports plants through propagation, vegetative development, flowering, and fruiting without requiring separate fixtures for different growth stages.

An included Schedule Controller provides 10 brightness levels, recurring daily programs, and gradual sunrise and sunset transitions. Growers can also connect the fixture to a compatible AC Infinity UIS Controller to unlock app based monitoring, WiFi or Bluetooth control, environmental triggers, grow recipes, notifications, and historical performance data.

The modular construction allows the SOSEN 1000W driver to be mounted away from the fixture, helping reduce heat above the canopy. A steel and aluminum frame provides silent passive cooling, while the IP65 rated housing is designed to withstand the humidity commonly found in indoor growing environments.

For large scale growers who need serious output without sacrificing control or uniformity, the AC Infinity IONFRAME EVO10 offers a complete lighting platform built for demanding indoor horticulture.

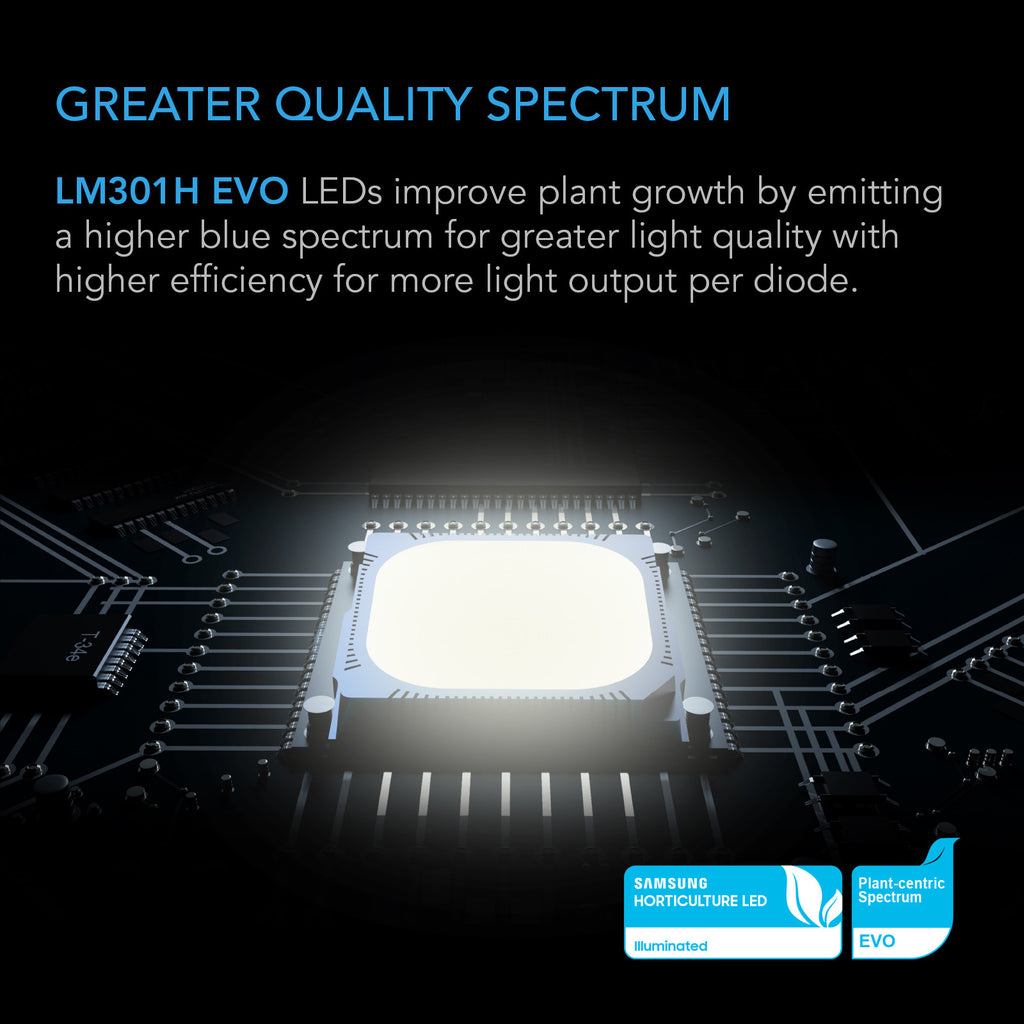

Samsung LM301H EVO Diodes

The EVO10 uses 3,710 genuine Samsung LM301H EVO diodes rated at up to 3.14 µmol/J per diode. These high efficiency horticultural LEDs deliver strong usable light output while helping maintain efficient power consumption across a large growing area.

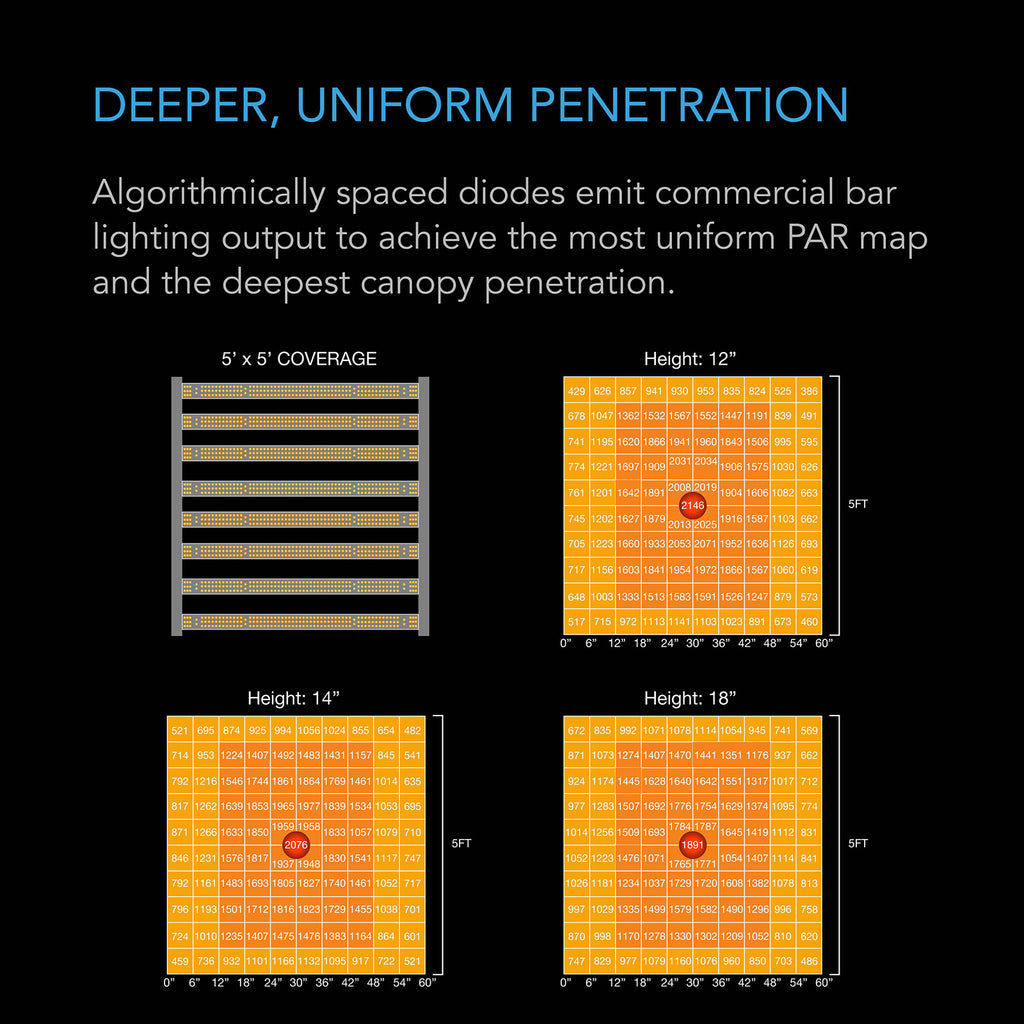

Wide 6 x 6 Flowering Coverage

The fixture is designed for a 6 x 6 foot flowering footprint and up to 7 x 7 feet of vegetative coverage. Its large frame and distributed diode layout help maintain more consistent intensity from the center of the canopy to the outer edges.

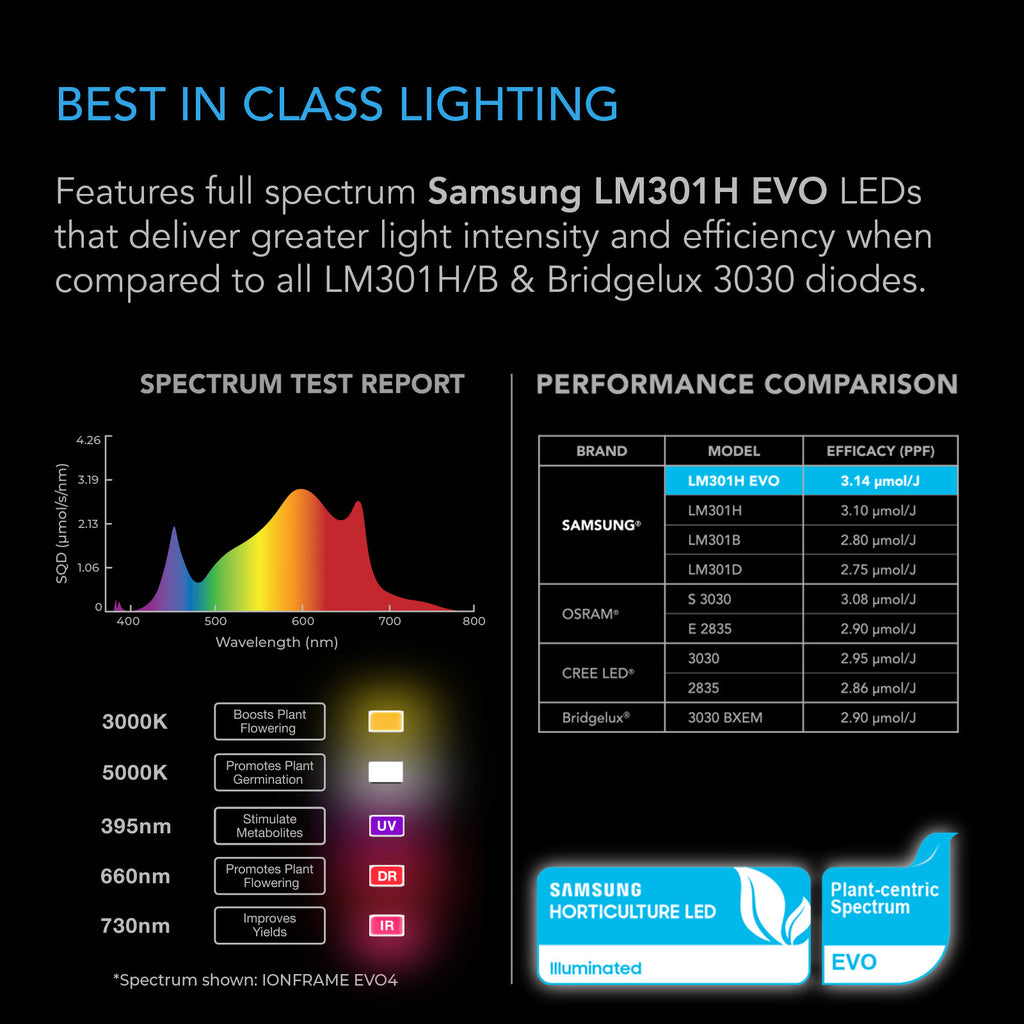

Full Spectrum Plant Lighting

The integrated spectrum combines 3000K and 5000K white LEDs with 660nm deep red, 730nm far red, and 395nm UV. This balanced output supports seedlings, leafy growth, flowering plants, and fruiting crops under one fixture.

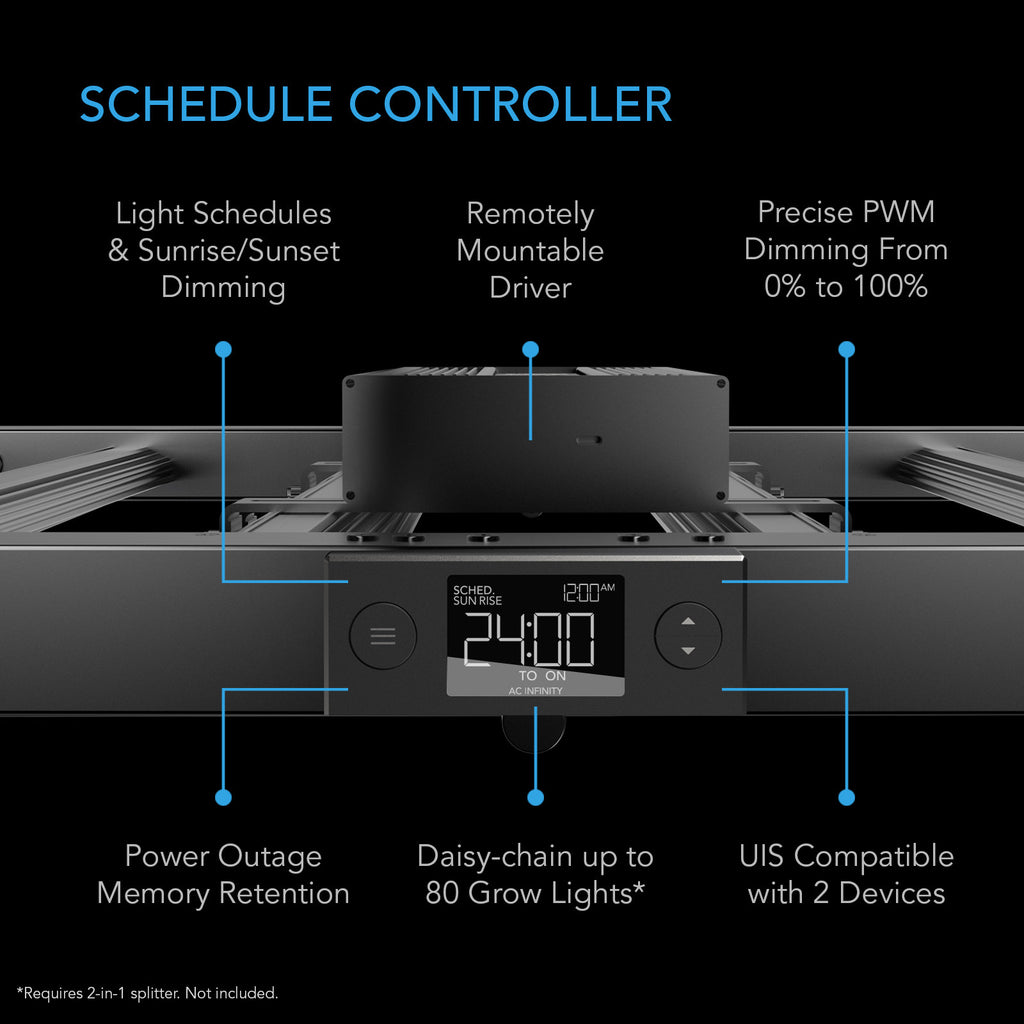

Intelligent Schedule Control

The included controller offers 10 brightness levels, automatic daily schedules, and gradual sunrise and sunset dimming. These controls make it easier to match light intensity and timing to each stage of plant development.

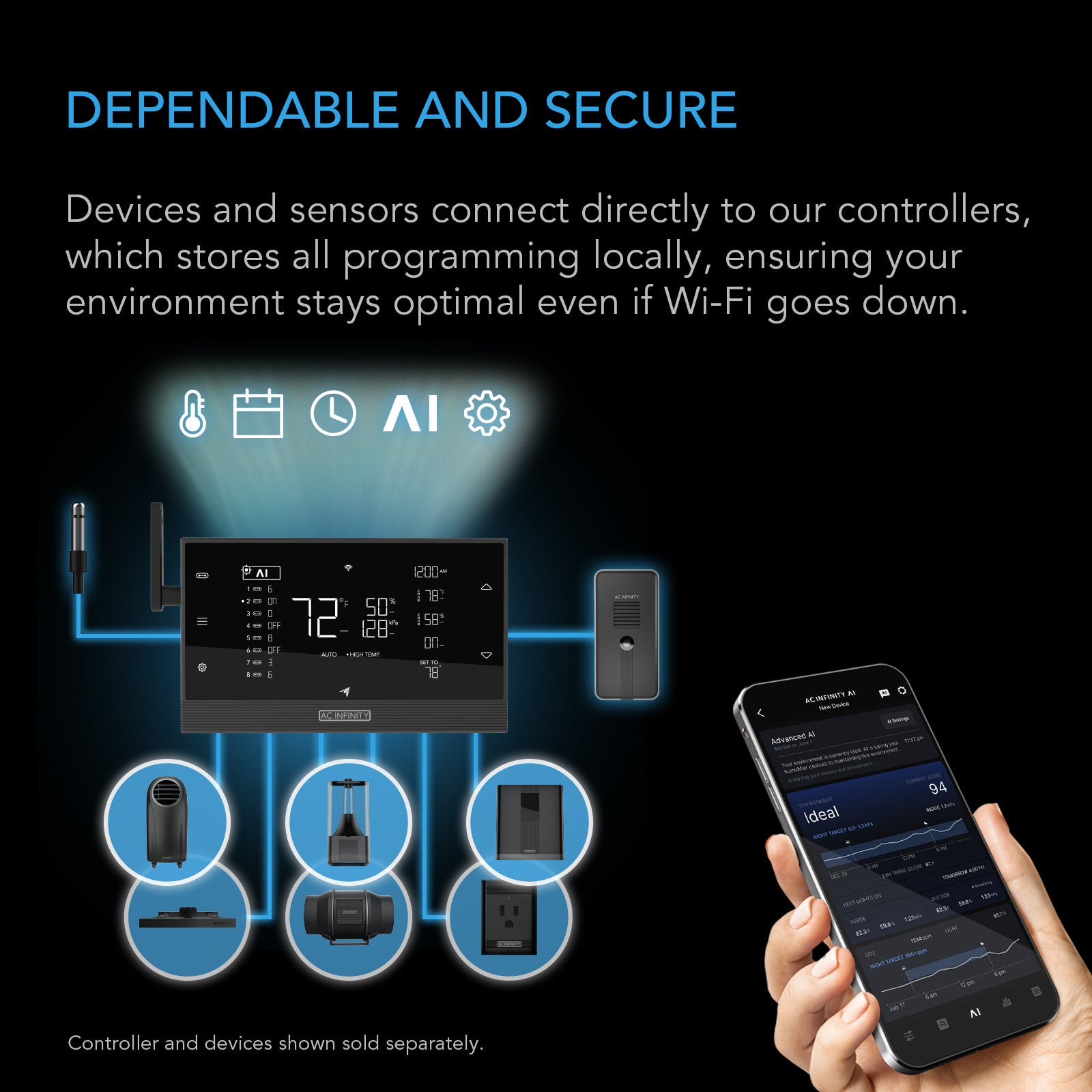

UIS Platform Compatibility

Pair the IONFRAME EVO10 with a compatible AC Infinity UIS Controller for expanded automation. Depending on the controller selected, growers can access remote app control, temperature and humidity triggers, VPD based programming, alerts, grow recipes, and historical data.

Removable Driver and Passive Cooling

The SOSEN driver can be mounted remotely to move heat away from the growing area. The fanless steel and aluminum structure dissipates heat silently without moving parts that require routine maintenance.

Commercial Grade Construction

The EVO10 is IP65 rated for moisture resistance and ETL certified for electrical safety. It also supports daisy chaining up to 80 compatible fixtures using splitter dongles sold separately, making it suitable for larger multi light installations.

What's Included

• One AC Infinity IONFRAME EVO10 1000W LED Grow Light
• One Schedule Controller
• One SOSEN 1000W LED Driver
• Power Cords
• Hanging Hardware
• One User Manual
