AC Infinity IONBOARD S44 430W LED Grow Light

The AC Infinity IONBOARD S44 is a 430W full spectrum LED grow light designed for complete 4' x 4' grow coverage. Built around horticulture series Samsung LM301H diodes, the S44 combines optimized full spectrum output, algorithmically positioned LEDs, passive cooling, and smart control compatibility in a compact board style fixture.

The current generation S44 has been updated from the older 400W LM301B version still shown by some retailers. AC Infinity's current manufacturer listing specifies 430W output and Samsung LM301H diodes, so those are the specifications used for this product page.

• Power: 430W Full Spectrum LED
• Coverage: 4' x 4' Grow Area
• Diodes: Samsung LM301H
• Controls: 0–100% Dimming + UIS

With integrated 0 to 100% dimming, IP65 protection, fanless aluminum construction, and UIS smart controller compatibility, the S44 is designed for growers who want full cycle lighting and automation across a standard 4' x 4' tent.

430W High Output Design

The current IONBOARD S44 operates at 430 watts, providing the intensity required for a complete 4' x 4' grow footprint.

This updated power level gives the current S44 more output than the previous 400W version while retaining the same compact board style form factor.

Important: the current 430W manufacturer specification is used here rather than older 400W retailer data.

Samsung LM301H Diodes

The current S44 uses Samsung LM301H horticulture series LEDs.

These diodes are designed specifically for plant lighting applications and provide efficient full spectrum output suitable for germination, vegetative development, and flowering.

The current fixture combines 3000K and 6500K white diodes to provide broad spectrum coverage throughout the complete growth cycle.

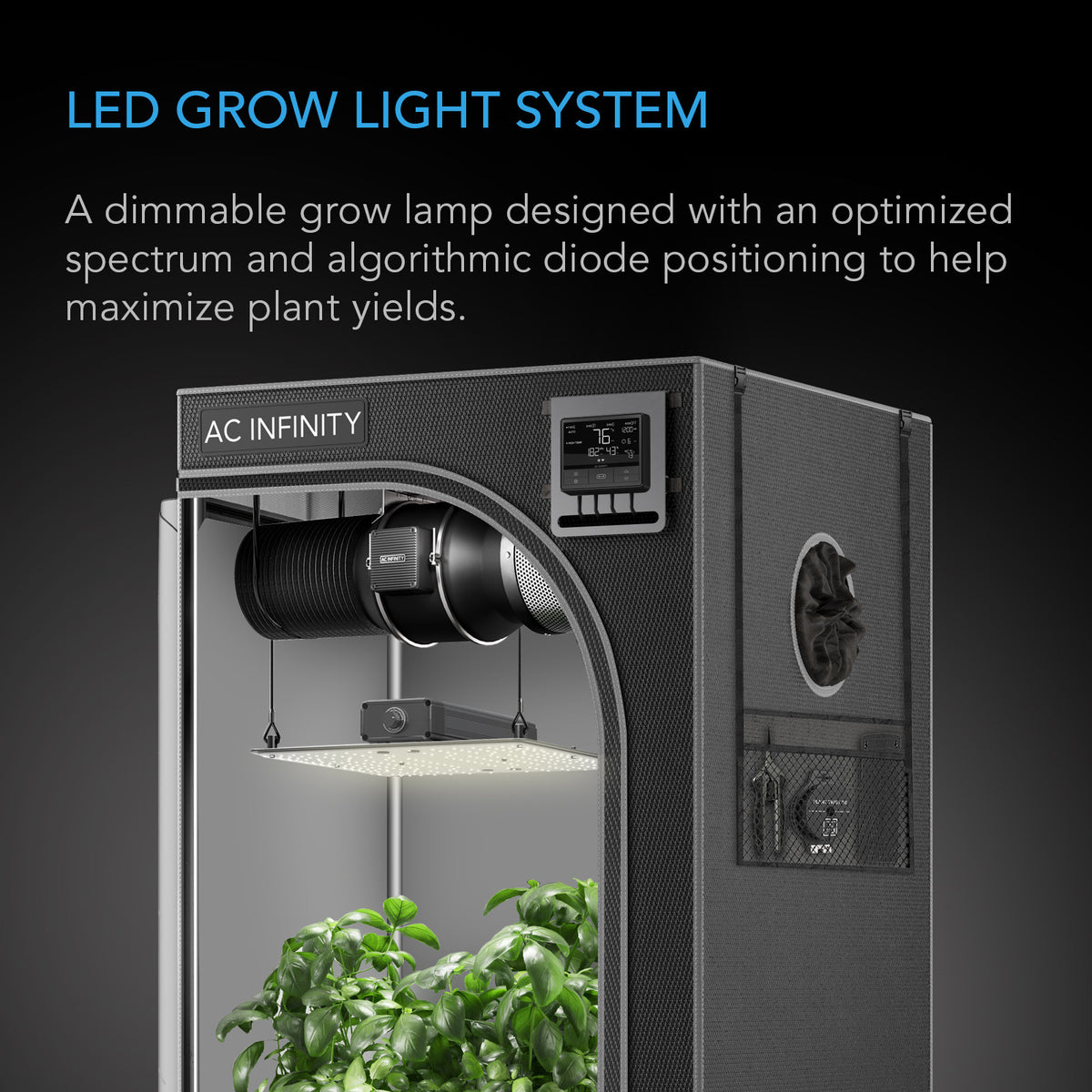

Full 4' x 4' Coverage

The IONBOARD S44 is designed for a 4' x 4' grow footprint.

Its square format aligns closely with one of the most common indoor tent sizes, allowing one fixture to serve as the primary light source for the entire canopy.

The optimized diode placement is intended to provide useful edge to edge intensity rather than concentrating excessive light only at the center.

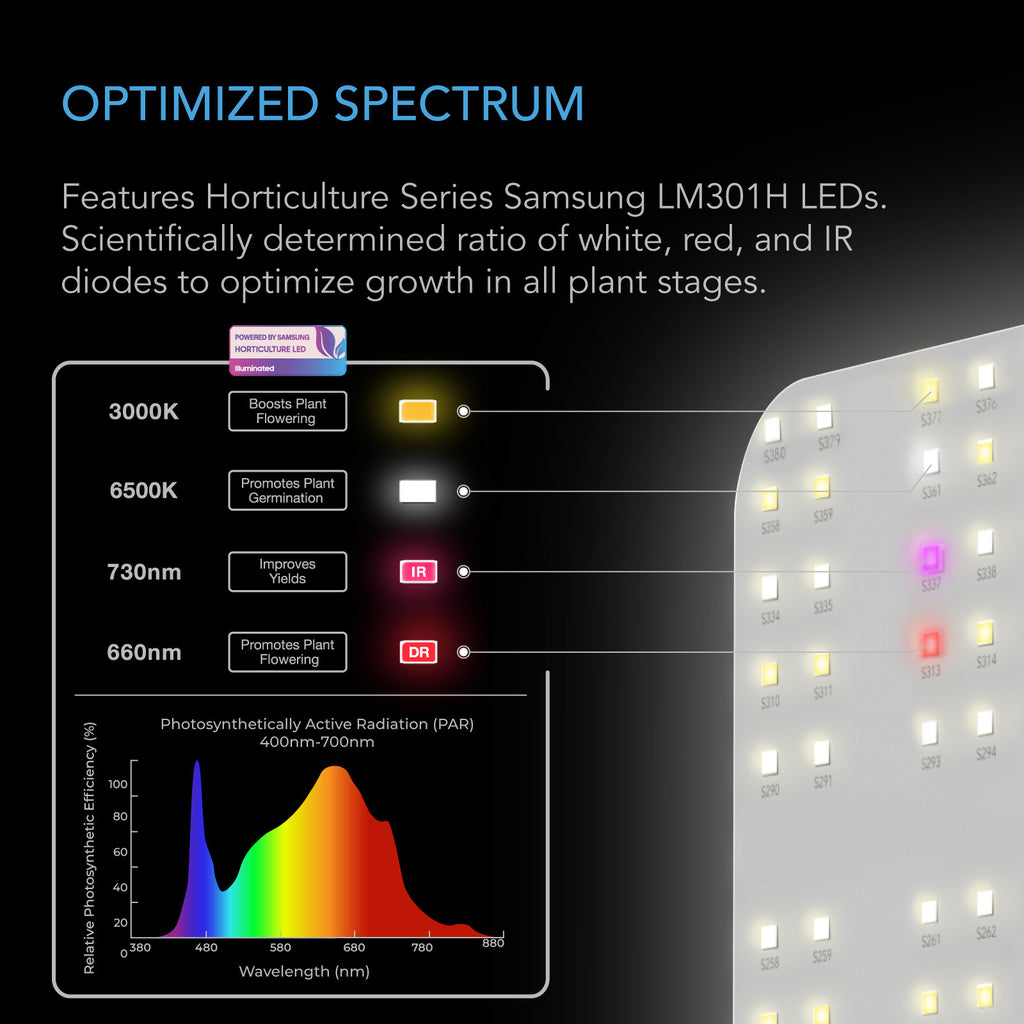

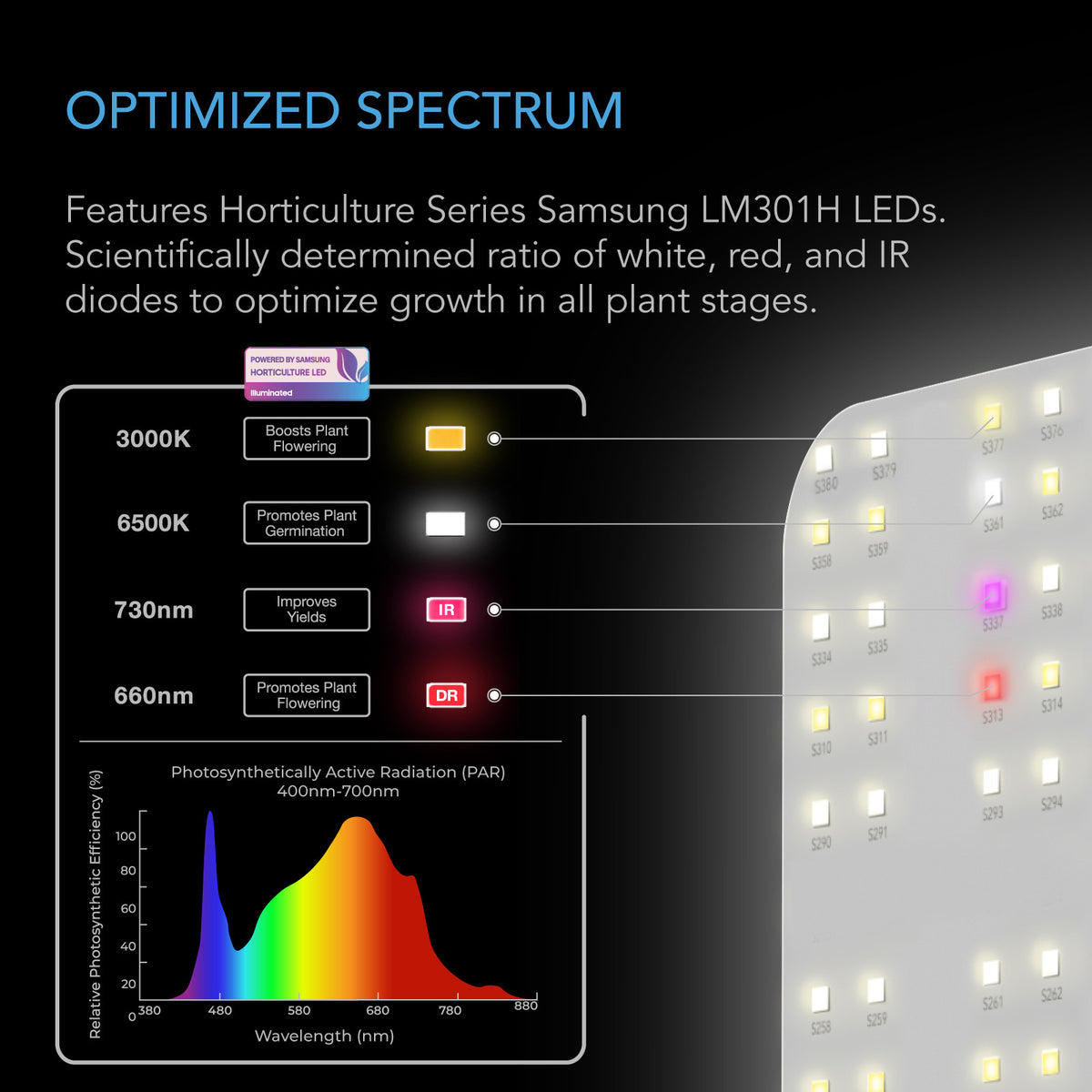

Optimized Full Spectrum

The S44 uses a horticultural full spectrum designed for use through all major plant stages.

Its warm and cool white output supports germination, seedlings, vegetative growth, and flowering.

This allows growers to keep one fixture installed throughout the complete cycle rather than switching between separate veg and bloom lights.

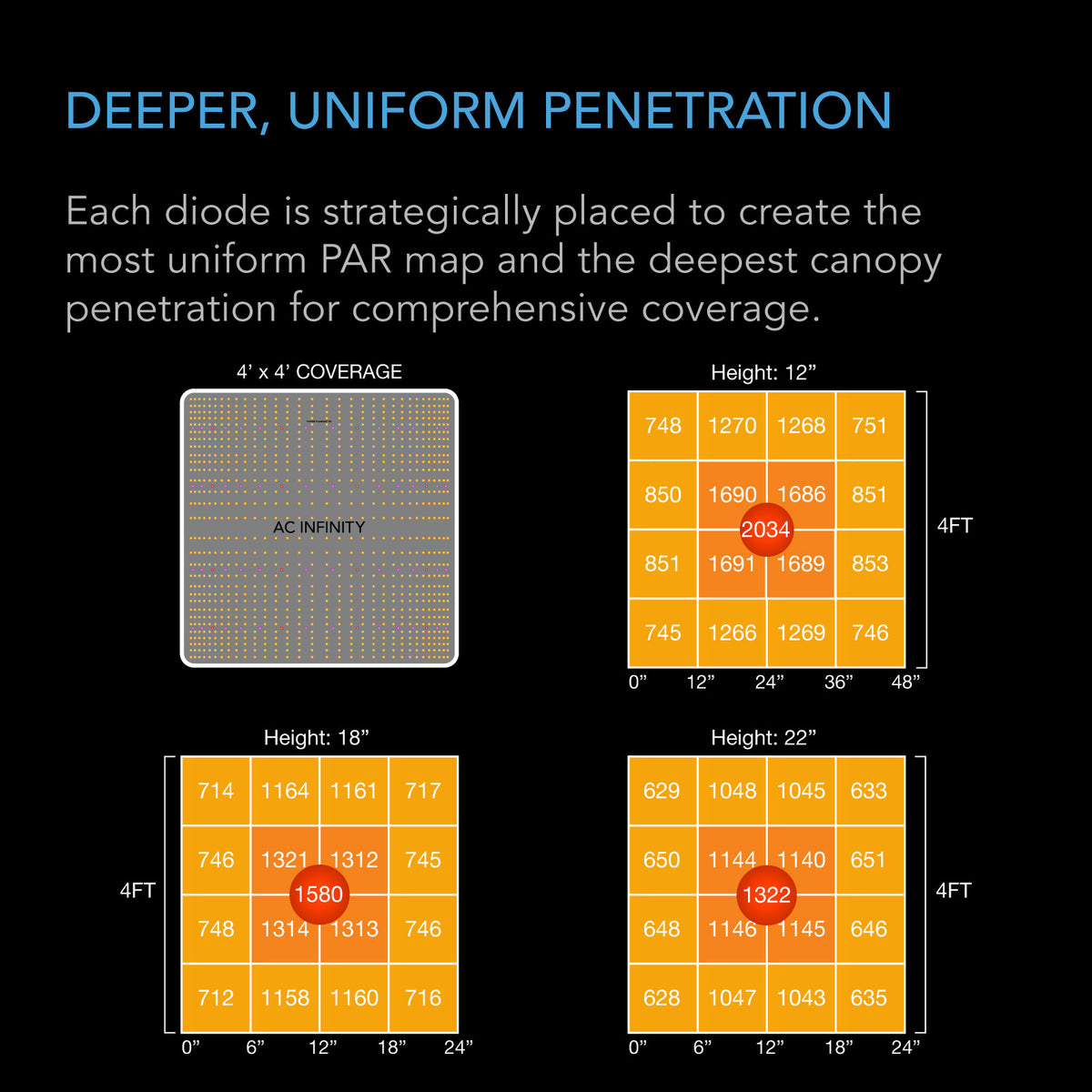

Algorithmically Positioned LEDs

AC Infinity positions the S44's LEDs according to an optimized layout rather than a simple evenly spaced grid.

The arrangement is designed to improve PAR uniformity, edge to edge coverage, canopy penetration, and overall light distribution.

This helps reduce center hot spots and improve usable light levels around the perimeter of the 4' x 4' canopy.

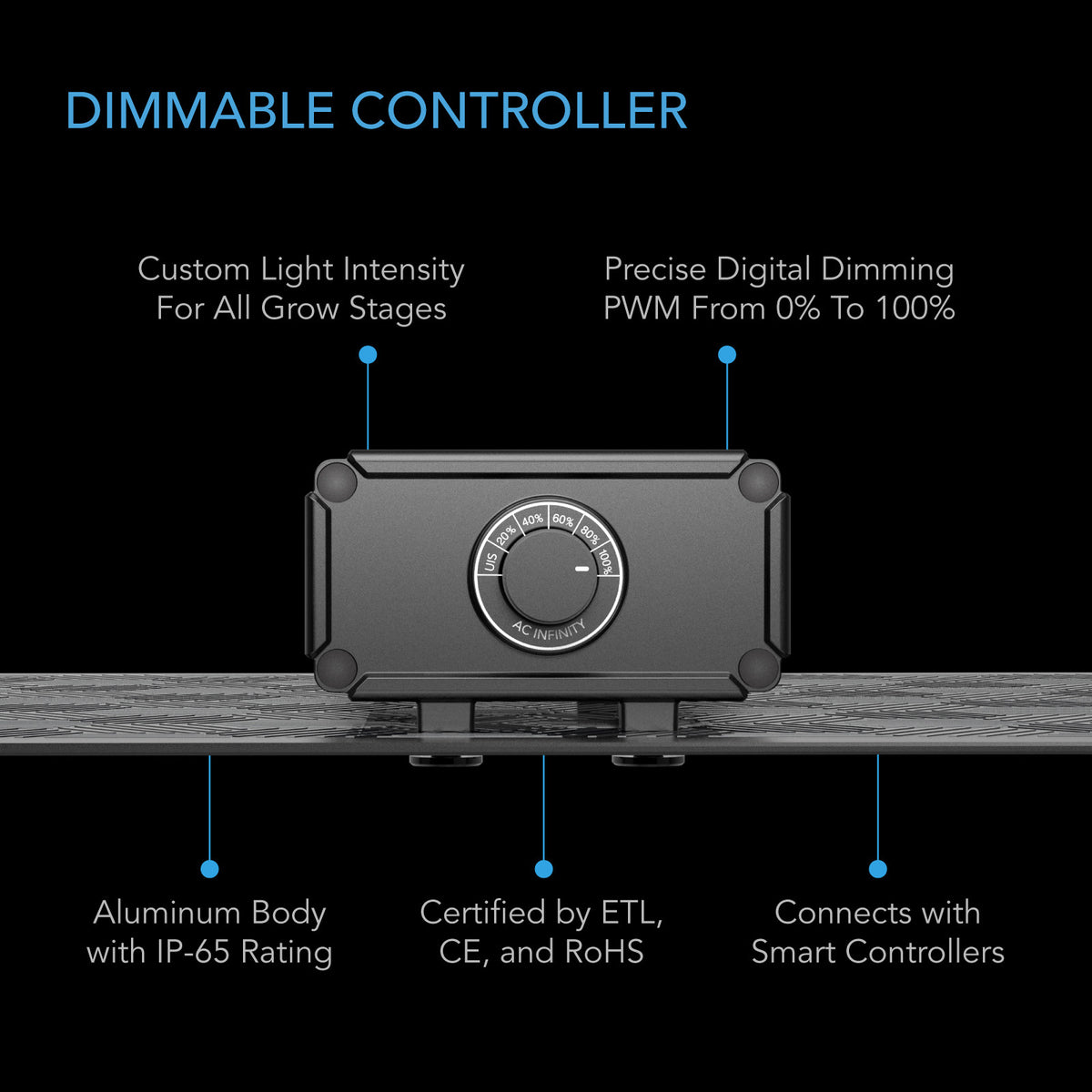

0–100% Dimming

The proprietary LED driver allows 0 to 100% brightness control.

The integrated control knob adjusts output in 20% increments, making it easy to lower intensity during early growth and increase power as plants mature.

This allows the same fixture to serve different growth stages without changing hanging equipment or replacing the light.

UIS Smart Controller Compatible

The IONBOARD S44 is part of AC Infinity's UIS platform.

When connected to a compatible controller, growers can access additional automation features including lighting schedules, automated grow cycles, environmental triggers, app control, remote monitoring, and advanced programming.

Compatible options include the Controller 69 Pro, Controller 69 Pro+, and Controller AI+.

AC Infinity App Control

With a compatible UIS controller, the S44 can be managed through the AC Infinity app.

Growers can adjust schedules, automation, and lighting behavior remotely while coordinating the fixture with compatible inline fans, circulation fans, and other UIS equipment.

This allows the grow light to function as part of a larger environmental automation system.

Daisy Chain Support

The S44's proprietary driver includes connectivity for expanding the lighting setup.

Additional compatible LED fixtures can be linked using AC Infinity expansion accessories, allowing growers to scale beyond one 4' x 4' area while maintaining centralized control.

Expansion dongles may be required depending on the configuration.

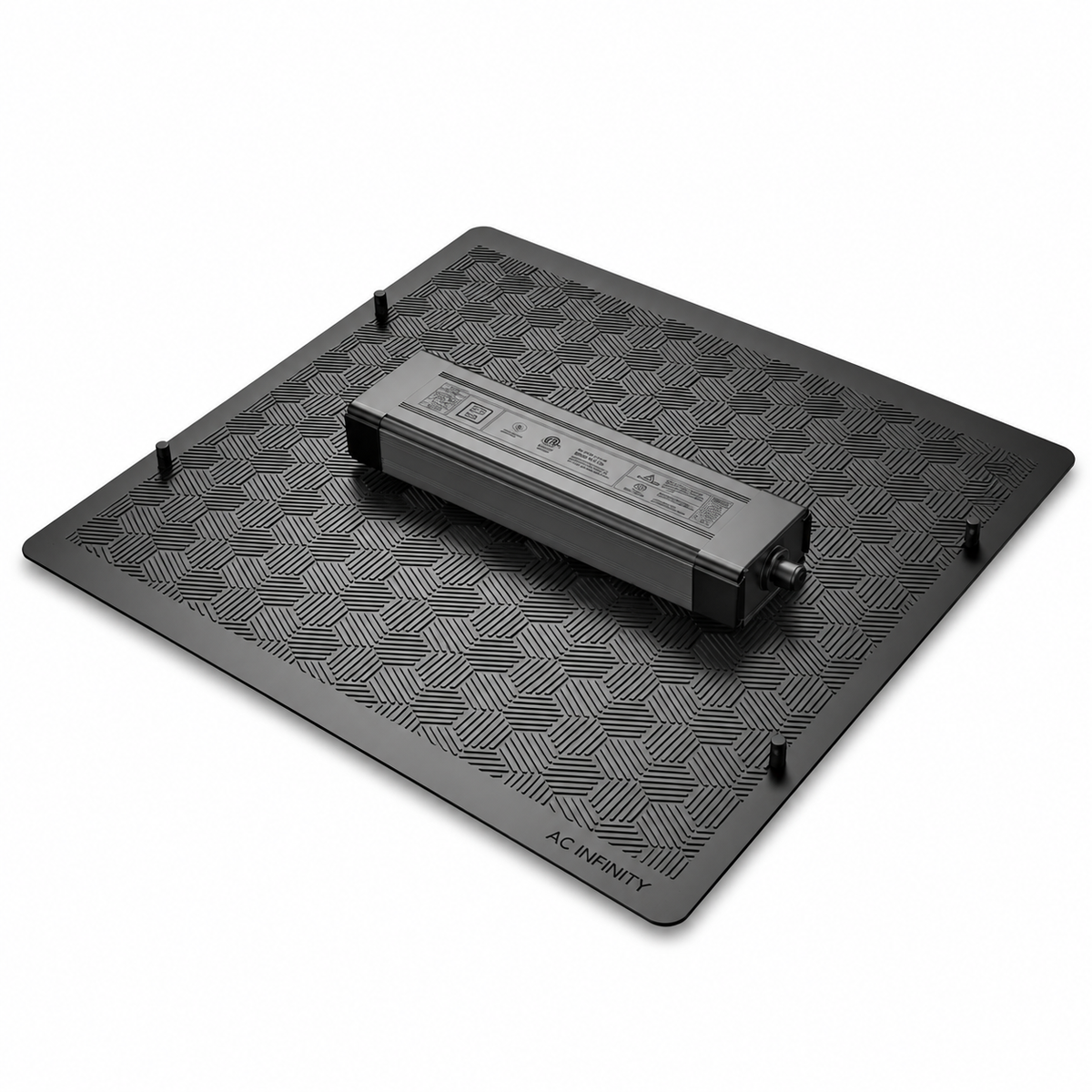

Fanless Thermal Management

The IONBOARD S44 uses a fanless unibody aluminum board to dissipate heat.

The fixture body acts as a passive heatsink, spreading heat across the aluminum surface without relying on active cooling fans.

This reduces operating noise, moving parts, fan maintenance, and potential fan failure.

IP65 Construction

The fixture is built to IP65 standards.

This helps protect internal components against dust and moisture exposure commonly found in humid indoor grow environments.

The sealed design makes the S44 better suited to tents and grow rooms than unsealed household lighting equipment.

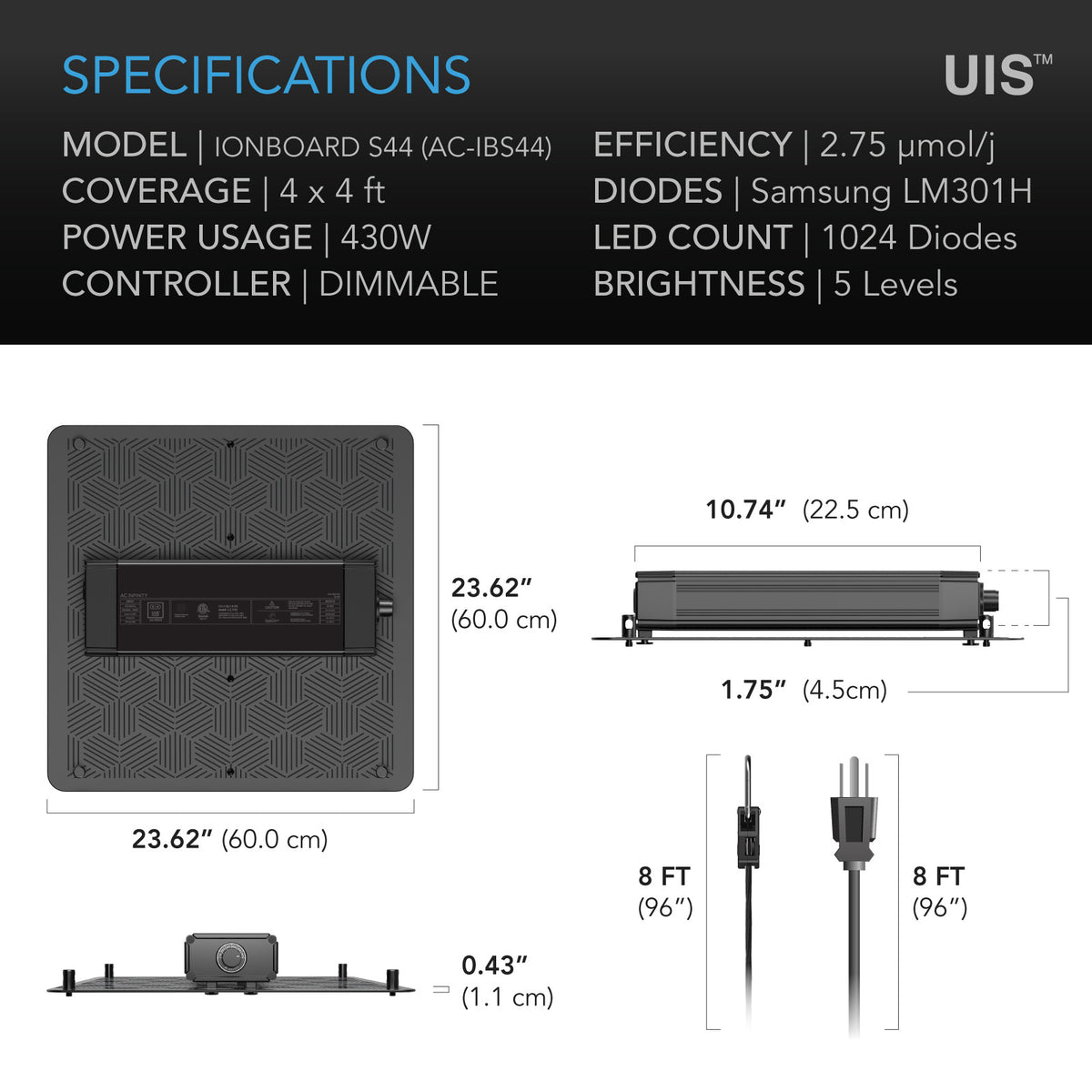

Compact Board Design

Older published specifications list the S44 fixture at approximately 23.62" x 23.62", giving it a relatively compact physical footprint compared with the 4' x 4' canopy it is designed to illuminate.

This leaves room around the fixture for air circulation, ducting, and other grow tent equipment.

Optional Smart Controllers

The S44 can be purchased on its own or bundled with a compatible AC Infinity UIS smart controller for added automation.

Controller 69 Pro — Independent programming UIS controller.

Controller 69 Pro+ — Independent programming UIS controller with 8-port connectivity for larger setups.

Controller AI+ — Environmental controller with AI powered learning and dynamic level adjusting.

What's Included

• AC Infinity IONBOARD S44 LED Grow Light
• Proprietary LED Driver
• Pair of Metal Bar Hangers
• Rope Hangers

Compatible UIS controllers and expansion accessories are sold separately.
