AC Infinity IONBEAM S11 11" LED Grow Light Bars

The AC Infinity IONBEAM S11 is a four-bar full spectrum LED lighting kit designed for inter-canopy, supplemental, propagation, or small-scale primary lighting applications. Each 11" bar uses Samsung LM301H EVO horticultural diodes and a slim aluminum housing that can be positioned around areas a primary overhead grow light may not fully reach.

The complete system draws 30W and includes four LED bars, a digital dimming and schedule controller, steel mounting bars, and mounting hardware. The fixtures are also IP65 rated for use in humid indoor growing environments.

• Kit: Four 11" LED Light Bars
• Diodes: Samsung LM301H EVO
• Power: 30W Full Spectrum LED
• Controls: 10 Levels + Daily Schedule

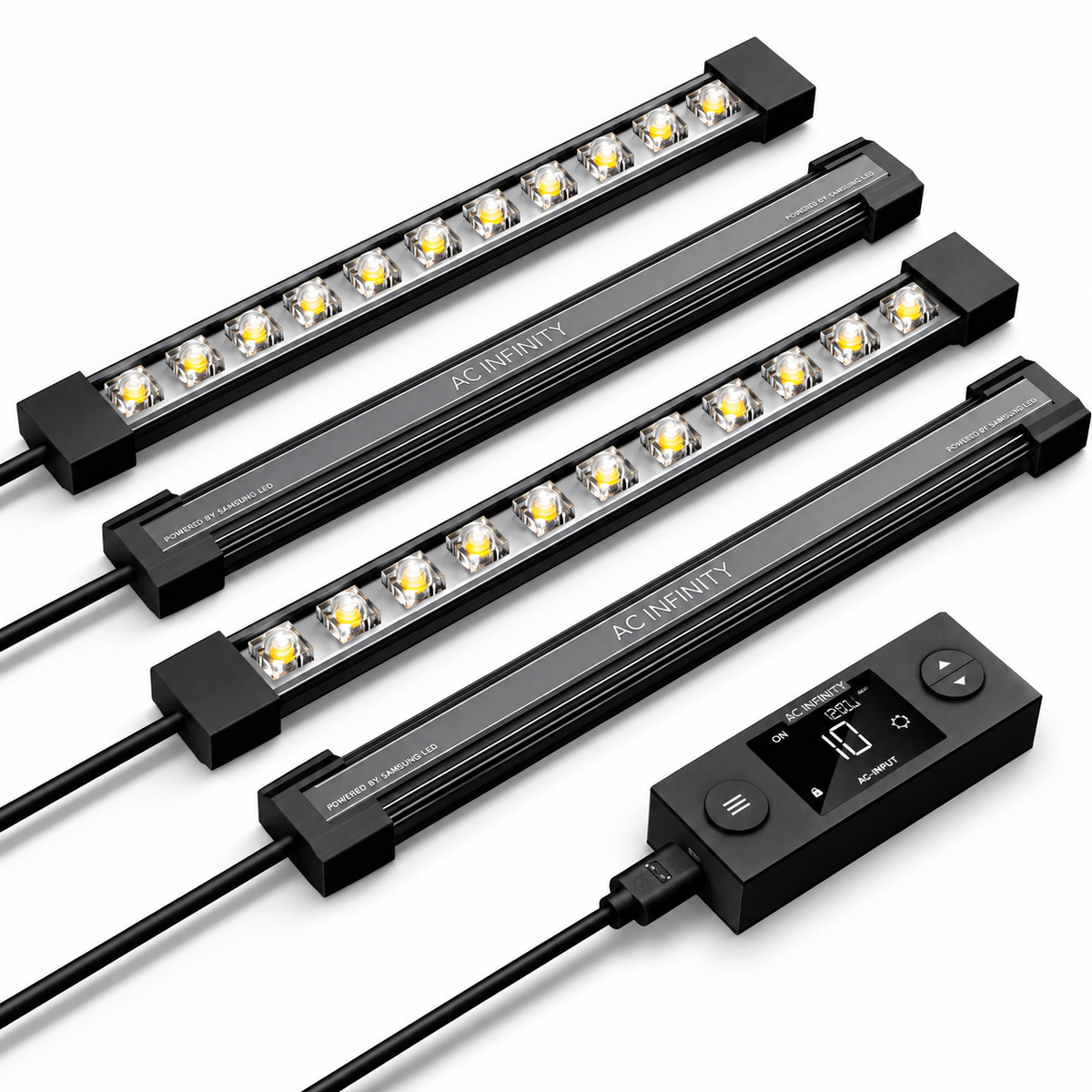

Four 11" LED Light Bars

The IONBEAM S11 kit includes four compact 11" grow light bars.

Their small form factor makes them useful for positioning light around or beneath an existing canopy, along tent walls, inside propagation setups, or as primary lighting in appropriately sized smaller growing spaces.

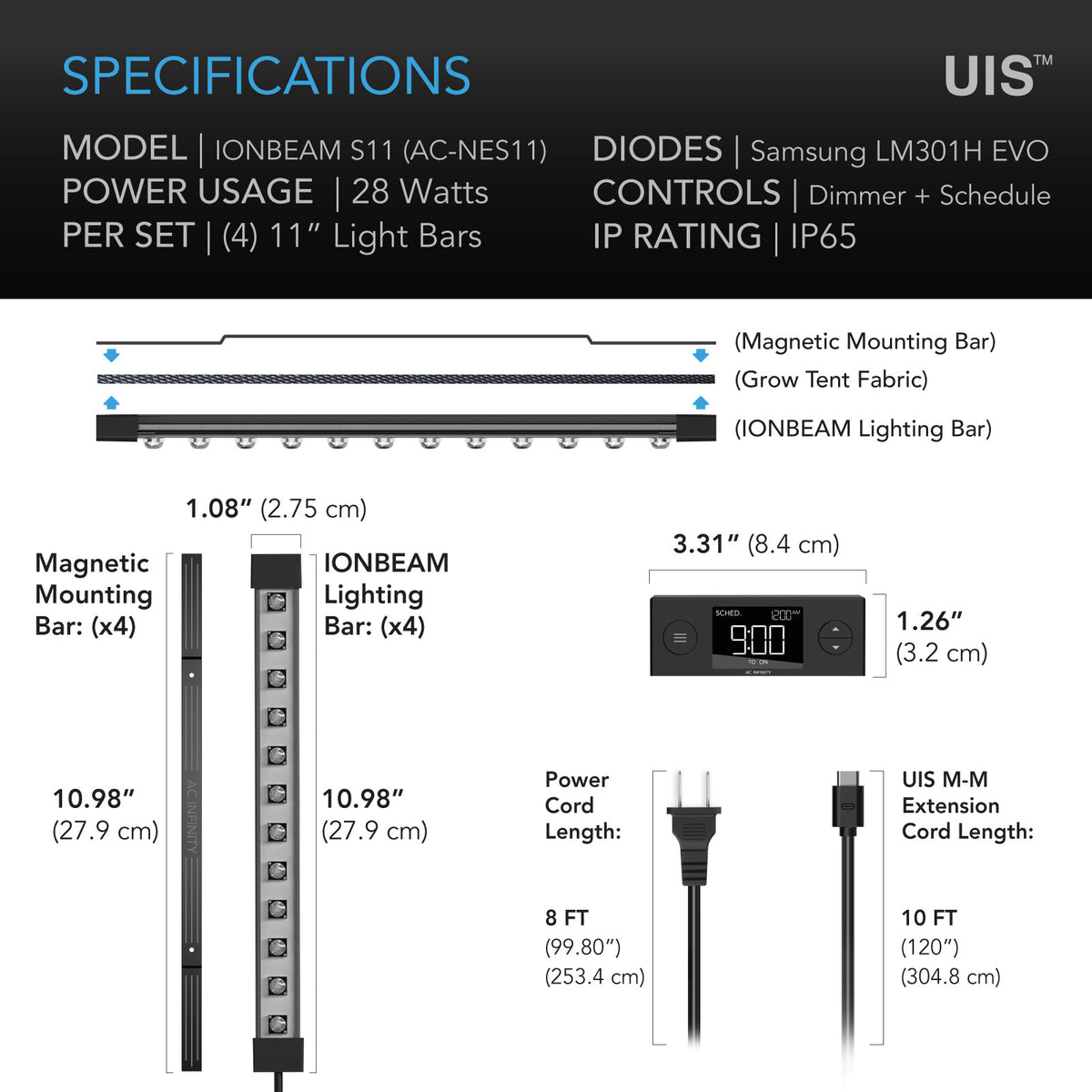

Each bar measures approximately 10.98" x 1.08".

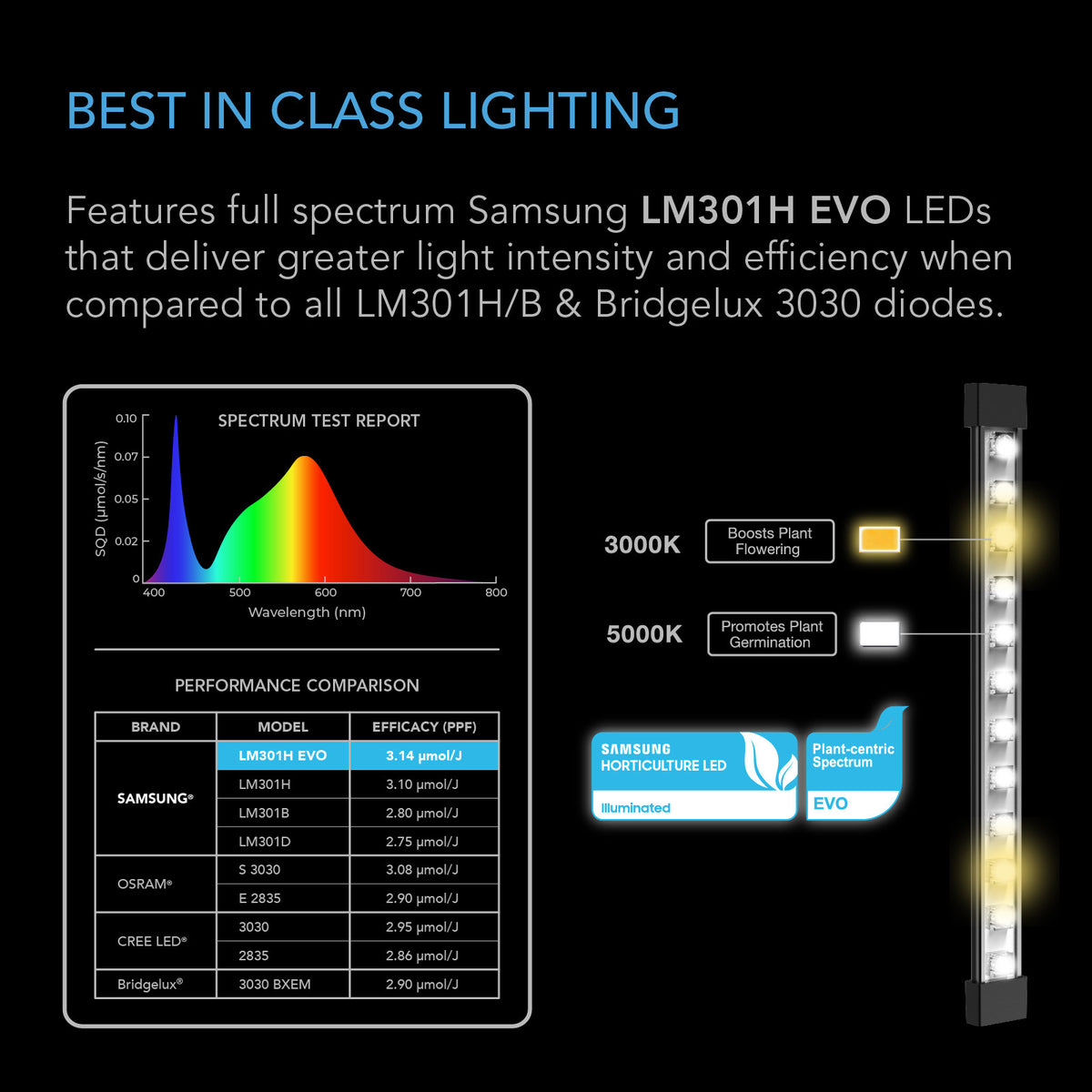

Samsung LM301H EVO Diodes

Each IONBEAM S11 light bar uses 12 Samsung LM301H EVO LEDs, for a total of 48 diodes across the four-bar kit.

AC Infinity rates the LM301H EVO diodes at 3.14 µmol/J PPE at the diode level.

These horticultural LEDs provide the efficiency and light quality needed for supplemental plant lighting while keeping the fixtures compact.

Full Spectrum Output

The S11 uses a full spectrum built around 3000K white and 5000K white diodes.

This combination provides broad-spectrum lighting suitable for multiple stages of plant development.

The bars can be used to supplement a larger overhead fixture or provide dedicated light for seedlings, propagation, and smaller growing areas.

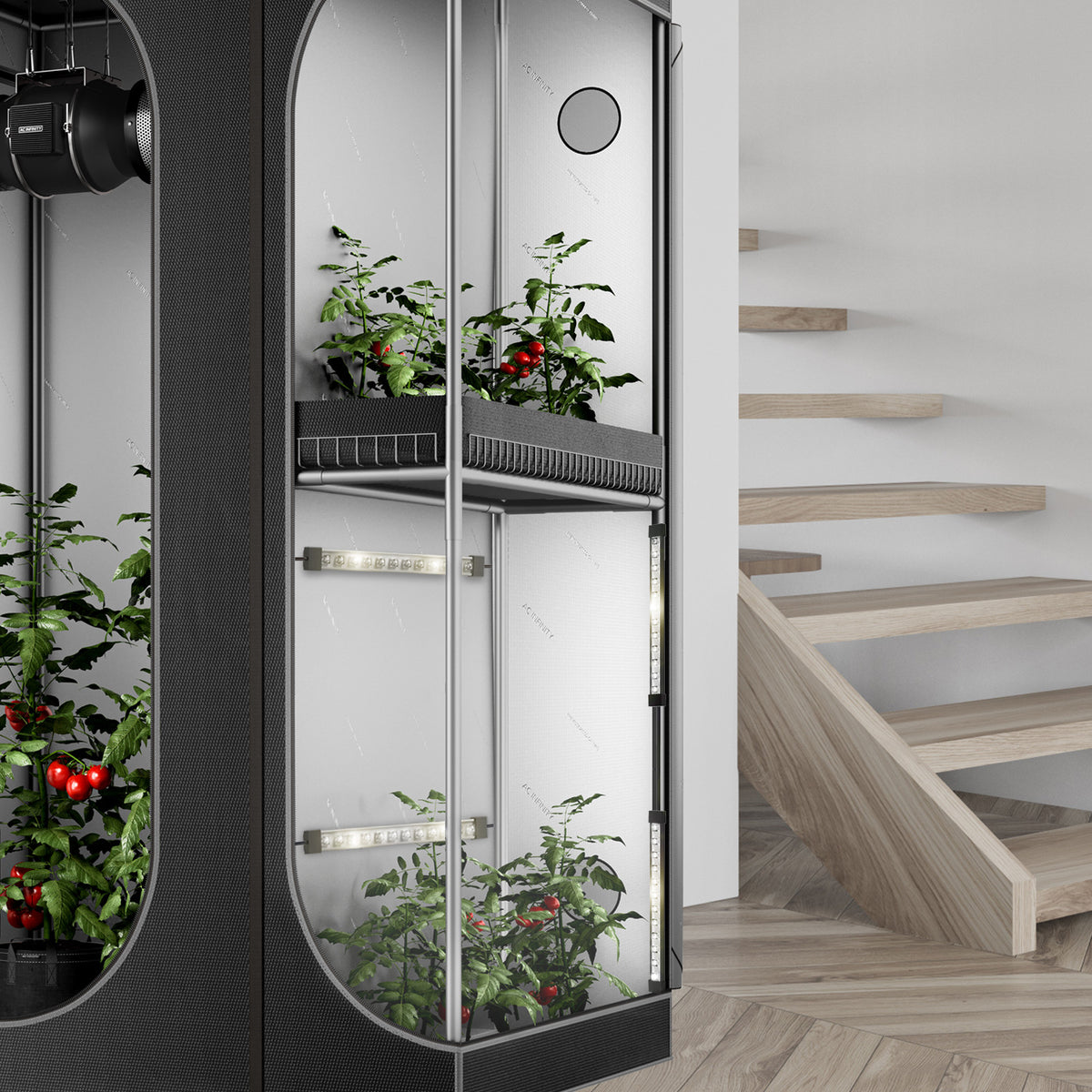

Inter-Canopy Lighting

One of the primary uses of the IONBEAM S11 is inter-canopy lighting.

The slim bars can be positioned around areas that receive less direct light from an overhead fixture, helping distribute additional illumination deeper into the growing space.

This gives growers more flexibility than relying entirely on one top-mounted fixture.

Supplemental Grow Lighting

The IONBEAM S11 can also be positioned around the edges of a grow area to supplement an existing LED fixture.

Additional bars can be linked to expand the lighting setup further when more coverage is required.

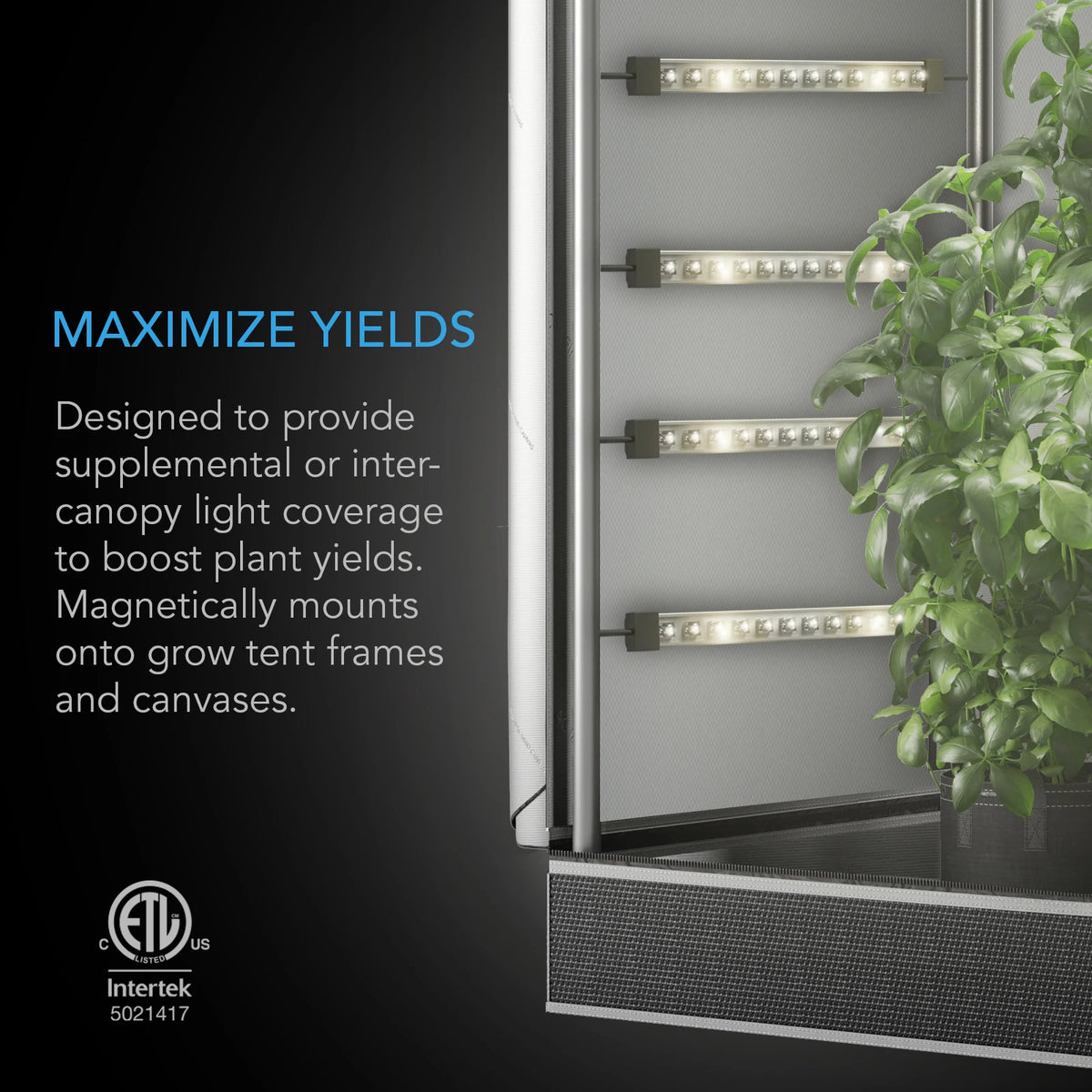

Magnetic Grow Tent Mounting

The included steel mounting bars allow the IONBEAM fixtures to magnetically attach to grow tent frames or canvas surfaces.

This gives growers flexibility to reposition the lights without permanently mounting them to the tent structure.

Mounting screws are also included for more permanent installations or use as primary lighting in smaller setups.

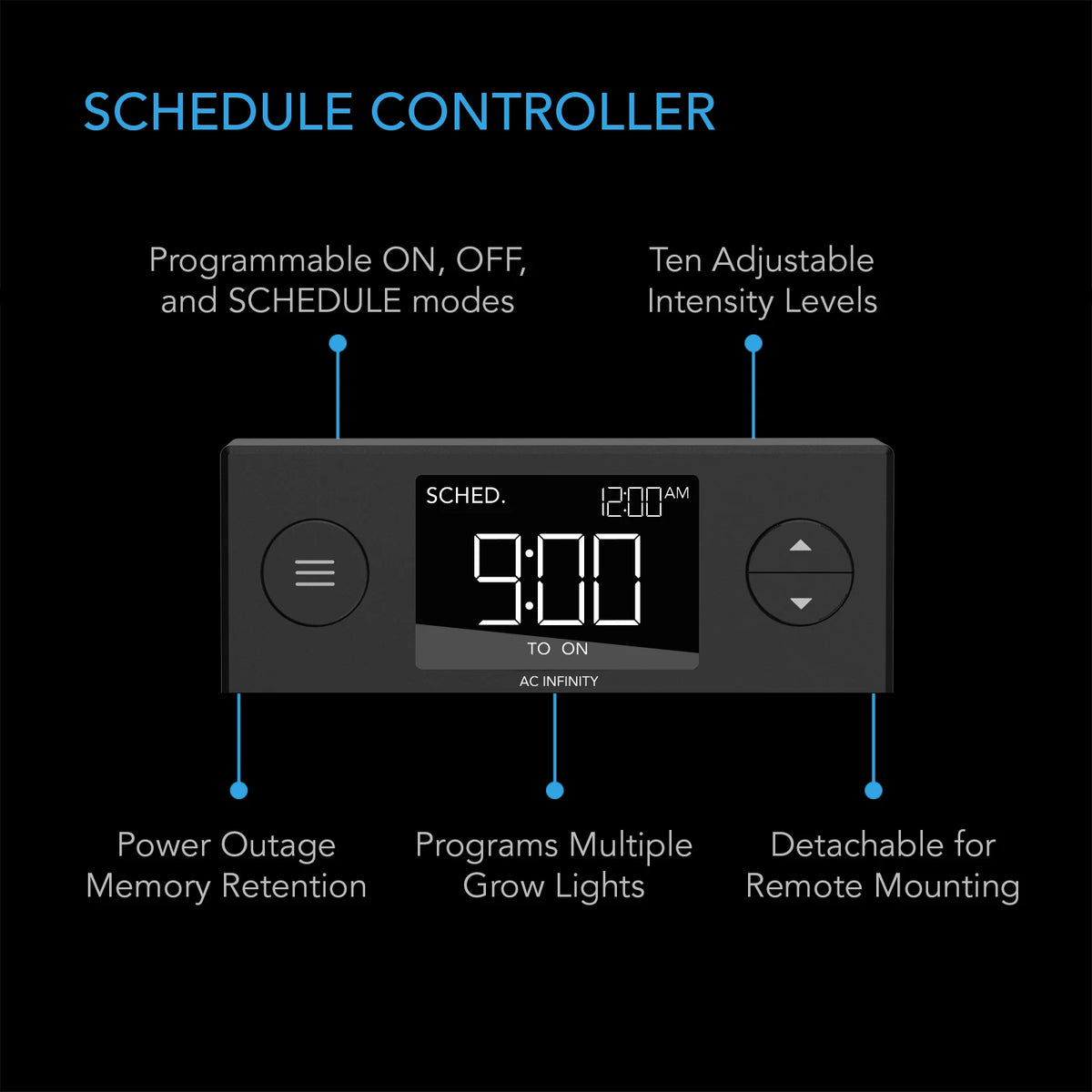

Digital Dimming Controller

The included controller provides 10 brightness intensity levels.

Growers can select a suitable light level for the application instead of operating the bars at full output continuously.

The controller includes OFF mode, ON mode, SCHEDULE mode, 10 brightness levels, and daily schedule programming.

Daily Scheduling

Built-in scheduling allows the IONBEAM S11 to follow a repeatable daily lighting cycle without requiring a separate outlet timer.

This is especially useful when the bars are being used for supplemental lighting that needs to run only during part of the main photoperiod.

UIS Controller Compatibility

The included lighting controller features a UIS connection port.

This allows the IONBEAM S11 to connect with compatible AC Infinity UIS controllers for expanded automation, including grow cycles, schedules, climate-based triggers, advanced automation, app control, alerts, climate charts, and CSV data export.

A compatible smart controller is required for these expanded UIS and app functions.

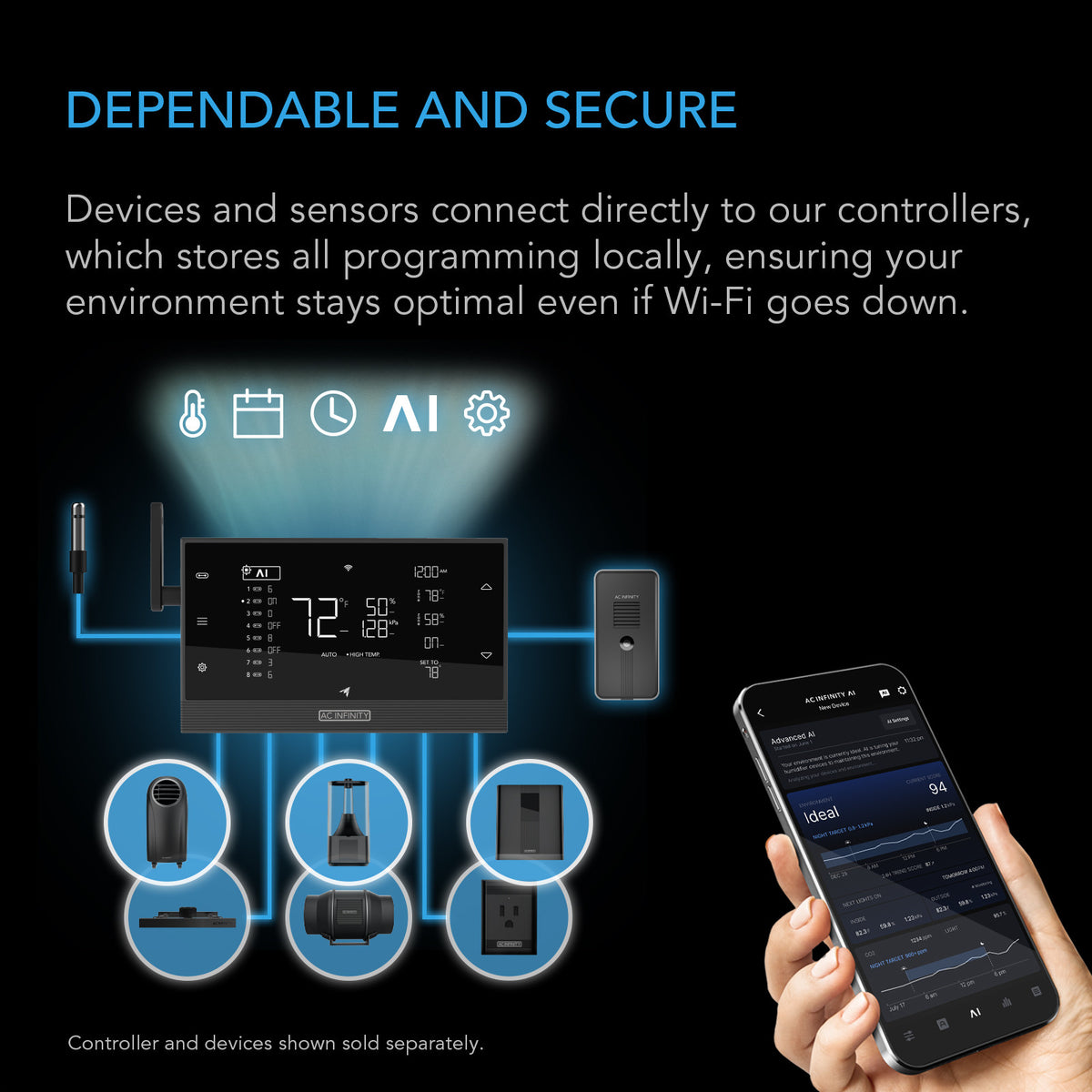

AC Infinity App Integration

When paired with a compatible WiFi-enabled UIS controller, the IONBEAM S11 can become part of the broader AC Infinity smart grow ecosystem.

Growers can coordinate the light bars with compatible fans, humidifiers, grow lights, and other UIS equipment while accessing remote monitoring and automation through the AC Infinity app.

IP65 Protection

The light bars are rated IP65, helping protect them against dust and moisture exposure in indoor growing environments.

This makes the bars better suited for humid tents and propagation spaces than non-sealed household lighting products.

Aluminum Unibody Construction

Each bar uses a unibody aluminum housing and board design.

The aluminum structure helps dissipate heat from the LEDs while keeping the fixtures lightweight and low profile.

Passive Cooling

The IONBEAM S11 does not rely on cooling fans.

Heat is dissipated through the aluminum housing, allowing the light bars to operate quietly while eliminating fan-related maintenance.

Propagation & Humidity Dome Use

AC Infinity also lists the IONBEAM S11 as compatible with its humidity domes.

This allows the bars to be used for seed germination and propagation, where compact low-profile lighting can be positioned close to the propagation area.

50,000 Hour Life Expectancy

The IONBEAM S11 is rated for approximately 50,000 hours of operating life.

Its solid-state LED design and passive thermal management help support long-term use without cooling fans or other moving components.

Optional Smart Controllers

The IONBEAM S11 can be purchased with its included dimming and schedule controller alone, or bundled with a compatible AC Infinity UIS smart controller for expanded automation.

Controller 69 Pro — Independent programming UIS controller.

Controller 69 Pro+ — Independent programming UIS controller with 8-port connectivity for larger setups.

Controller AI+ — Environmental controller with AI powered learning and dynamic level adjusting.

What's Included

• IONBEAM S11 LED Light Bars (x4)
• Digital Dimming / Schedule Controller (x1)
• Steel Mounting Bars (x4)
• Mounting Screws
• Power Adapter / Cord
• Connection Cables
