AC Infinity Controller 69 Pro+ Smart Climate Controller

The AC Infinity Controller 69 Pro+ is an 8-port smart environmental controller designed to automate compatible AC Infinity UIS equipment from one central interface. Connect up to eight different devices, including fans, grow lights, humidifiers, and other UIS equipment, then assign shared or independent climate and time-based programming to each port.

Its included 12-foot sensor probe monitors temperature, humidity, and VPD, allowing compatible devices to respond dynamically as environmental conditions change. The controller also connects to the AC Infinity app over WiFi or Bluetooth for remote monitoring, advanced programming, alerts, historical charts, and data export.

• Device Control: 8 Independent UIS Ports
• Sensors: Temperature, Humidity + VPD
• Connectivity: WiFi + Bluetooth App
• Automation: Schedules, Triggers + Cycles

Control Up to 8 Devices

The Controller 69 Pro+ expands the UIS platform to eight independently programmable device ports.

Each connected device can receive its own operating rules, allowing a grow light, inline fan, circulation fan, and humidifier to respond differently even when managed from the same controller.

This makes the Pro+ especially useful for larger or more complex grow environments where four ports may not provide enough capacity.

Temperature, Humidity & VPD Monitoring

The included environmental probe monitors three key growing conditions: temperature, relative humidity, and VPD.

The controller can use these readings as automation triggers, giving growers more control than a basic thermostat or humidistat alone.

Dynamic Environmental Automation

Compatible devices can automatically change operating levels as conditions change.

Rather than being limited to simple ON/OFF control, the Controller 69 Pro+ can adjust fan speed and grow light intensity in response to temperature, humidity, and VPD.

This allows connected equipment to react gradually as the grow environment moves away from programmed targets.

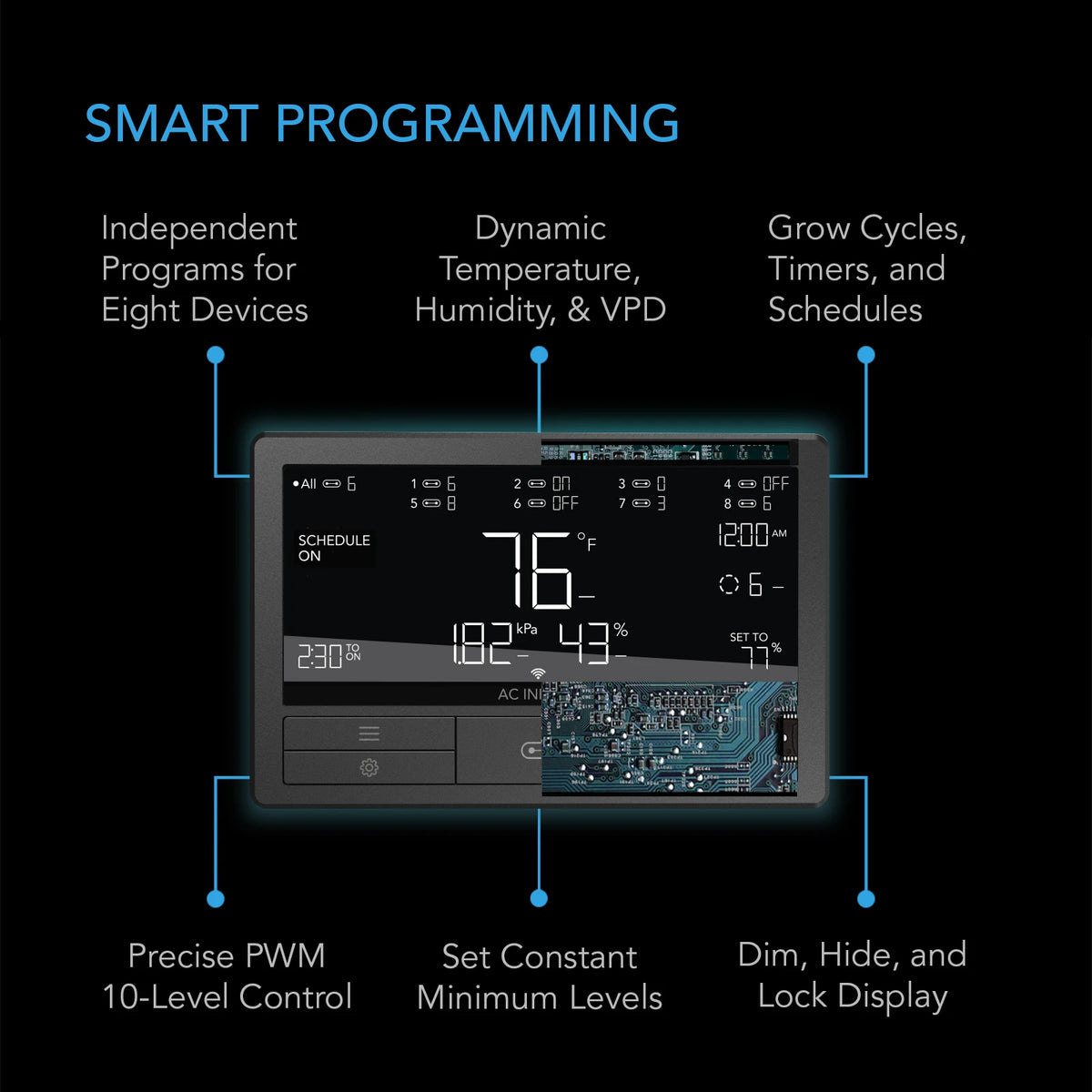

Independent Device Programming

Each of the eight ports can be programmed separately or coordinated with shared settings.

Available programming includes climate triggers, grow cycles, schedules, timers, minimum levels, and custom transitions.

This makes it possible to build different routines for lighting, ventilation, circulation, and humidity control from one controller.

Minimum Baseline Levels

The Controller 69 Pro+ supports minimum operating levels for compatible devices.

For example, a fan can remain running at a low baseline speed and then automatically increase when a temperature, humidity, or VPD trigger is reached.

This allows environmental equipment to operate more continuously instead of constantly cycling between fully ON and fully OFF.

Grow Cycles, Timers & Scheduling

Built-in time-based programming lets growers configure repeatable operating routines without relying on separate timers.

Timer, cycle, and schedule modes can be assigned to individual devices, giving each port its own automation behavior.

WiFi + Bluetooth Connectivity

The Controller 69 Pro+ connects with the AC Infinity app using WiFi or Bluetooth.

Bluetooth supports local connection, while WiFi enables remote access through the app.

The supplied technical specifications identify the WiFi connection as 2.4 GHz.

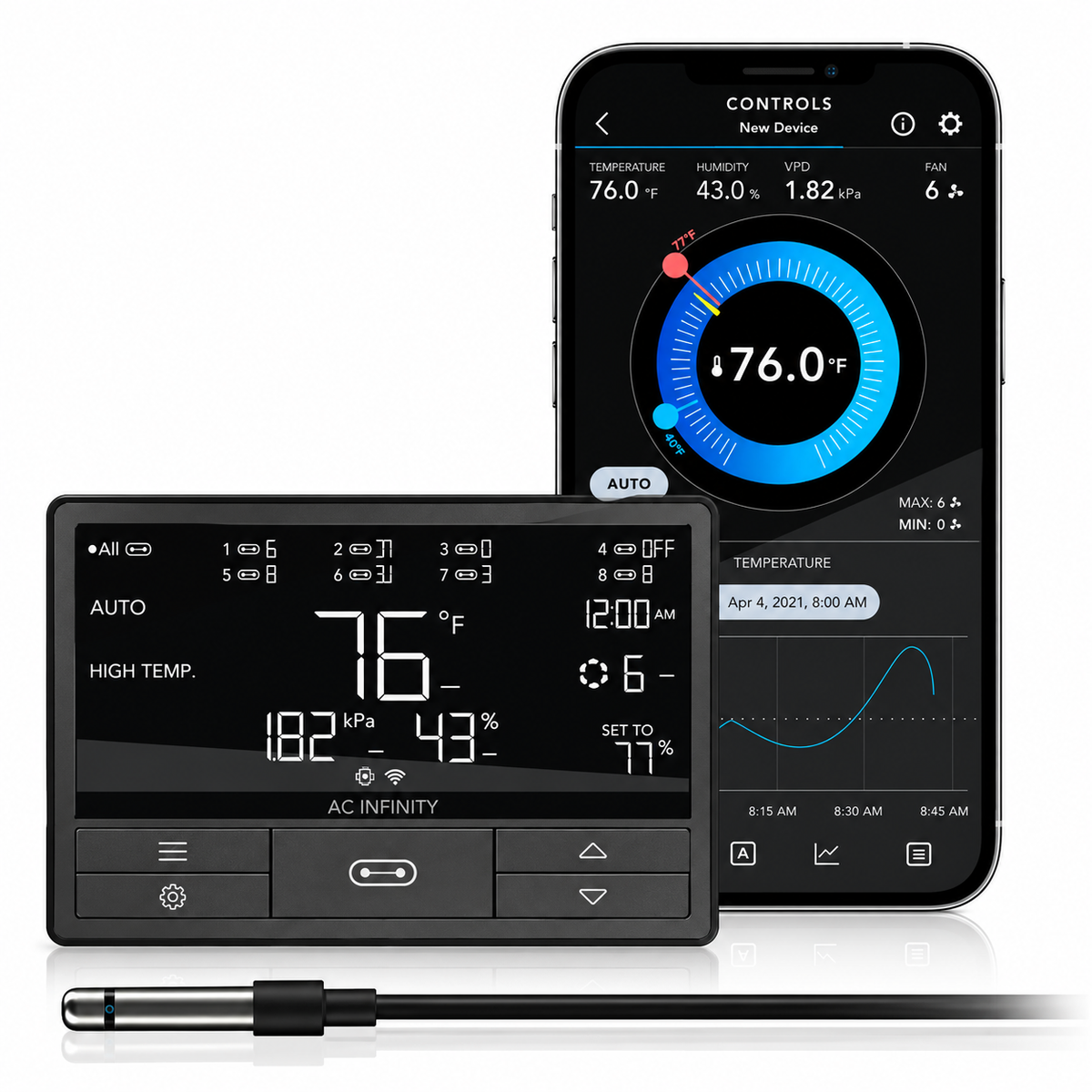

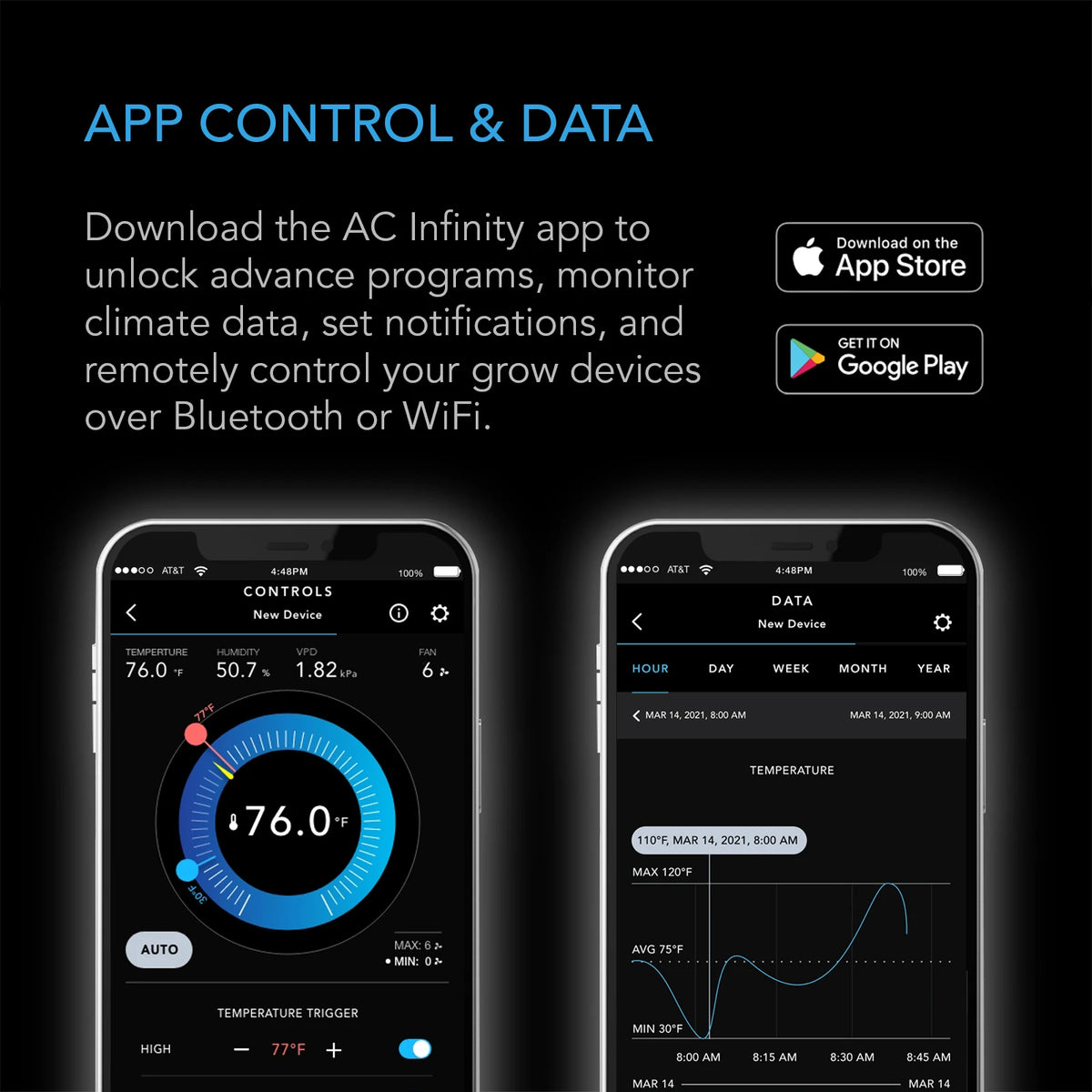

AC Infinity App Control

Connecting the controller to the AC Infinity app unlocks additional monitoring and programming capabilities.

Through the app, growers can remotely access connected devices, configure advanced automation, set alarms and notifications, view historical environmental charts, and export recorded data as CSV files.

Historical Climate Data

The app allows growers to review environmental readings over time instead of only seeing current conditions.

Historical charts can make it easier to spot recurring temperature or humidity swings and understand how connected equipment is affecting the grow environment.

CSV export is also supported for growers who want to retain or analyze environmental data outside the app.

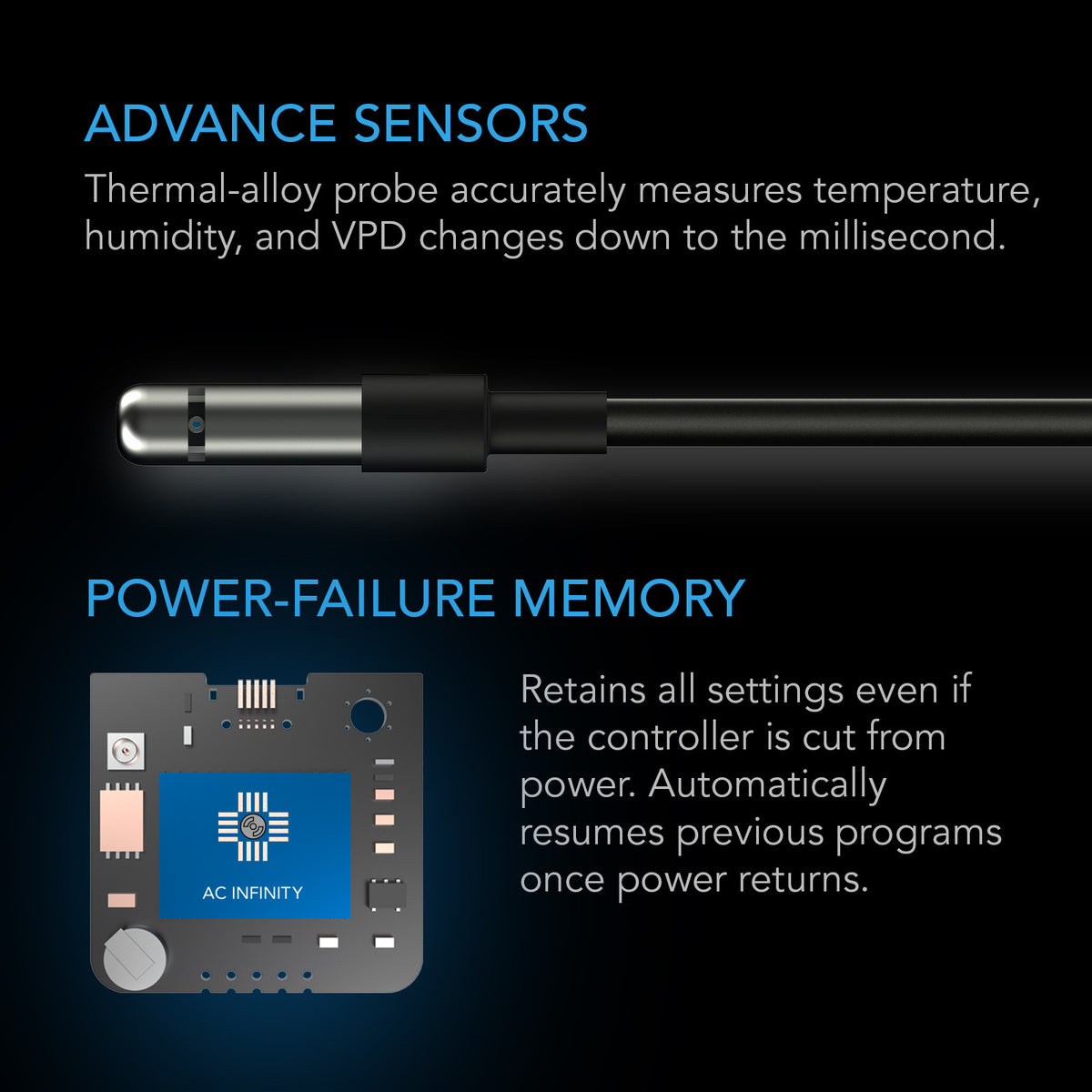

12-Foot Sensor Probe

The Controller 69 Pro+ includes a 12-foot environmental sensor probe.

Its length allows the controller to be mounted outside the grow tent while placing the sensing element inside the canopy area where environmental readings matter most.

The published probe length is 144 inches / 12 feet.

Backlit Digital Display

A large backlit display provides environmental readings and controller status directly from the unit.

Temperature can be displayed in Fahrenheit or Celsius, and the screen can be switched off while programmed automation continues operating in the background.

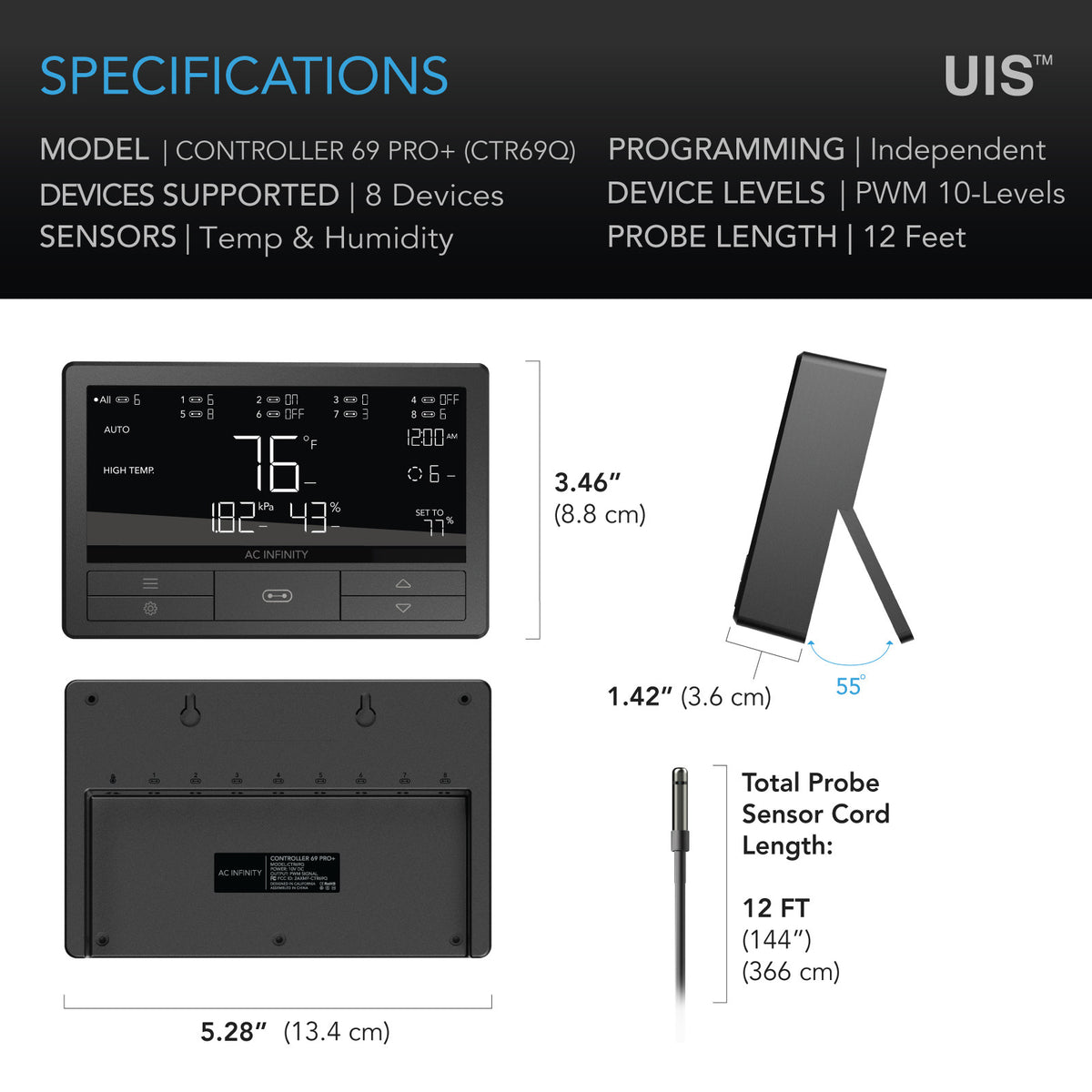

Larger Pro+ Display

The Controller 69 Pro+ uses a published 4.56" x 1.96" display, giving it more screen area for viewing environmental and control information.

The controller body itself measures approximately 5.28" x 3.46" x 1.42".

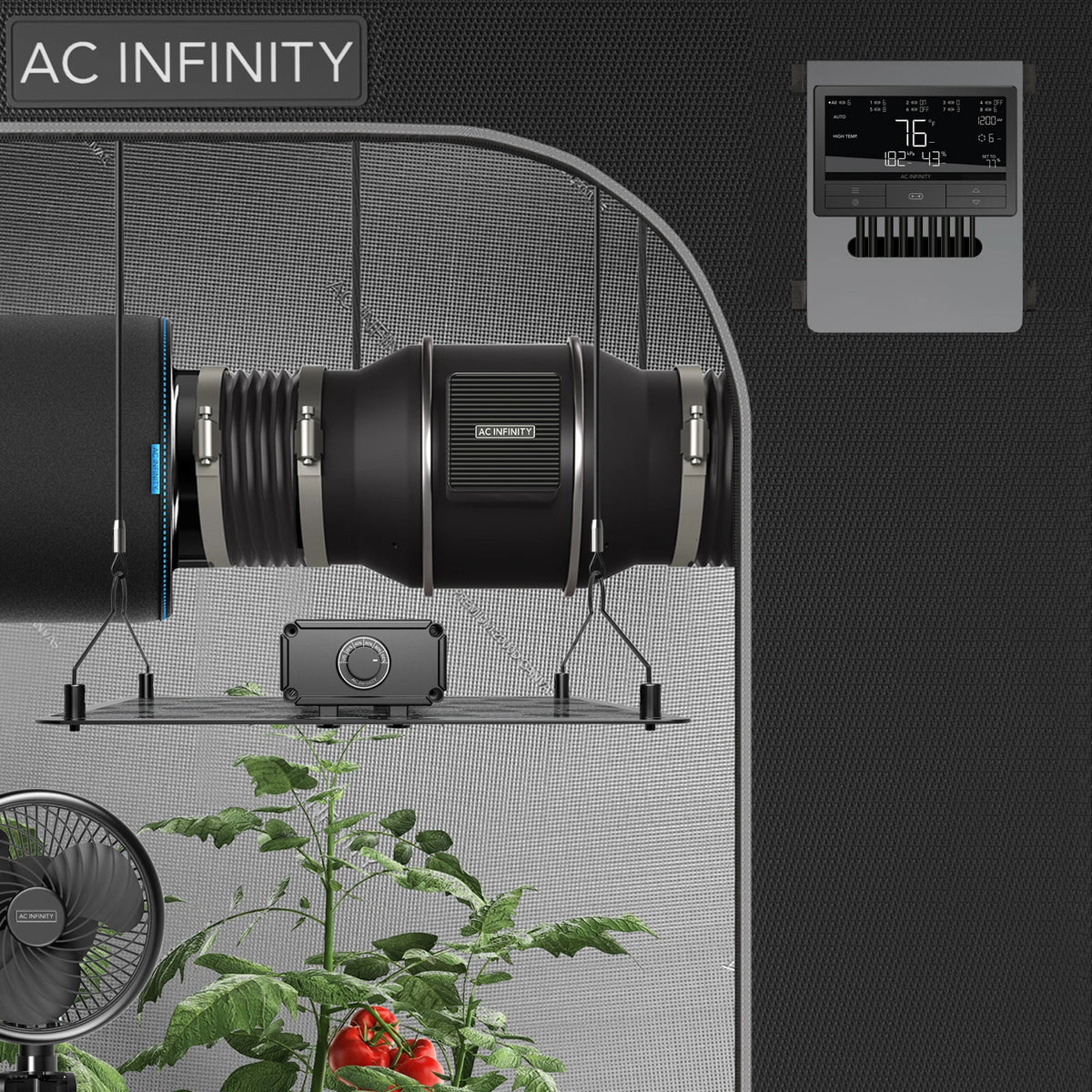

Desktop or Wall Mounting

The controller includes a built-in kickstand along with mounting hardware for wall installation.

This allows it to be positioned on a shelf, desk, tent exterior, or grow room wall depending on the setup.

UIS Ecosystem Compatibility

The Controller 69 Pro+ is designed around AC Infinity's UIS ecosystem.

Compatible equipment includes AC Infinity LED grow lights and EC fans, along with product families such as CLOUDLINE Inline Fans, CLOUDRAY Circulation Fans, CLOUDFORGE Humidifiers, IONBOARD LED Grow Lights, IONGRID LED Grow Lights, IONBEAM LED Light Bars, AIRLIFT Exhaust Fans, and CLOUDLIFT Circulation Fans.

The controller can also work with UIS Control Plugs and compatible lighting adapters.

Third-Party Lighting Support

Optional UIS lighting adapters allow the Controller 69 Pro+ to work with certain third-party grow lights.

Type-A adapters are intended for compatible RJ11/RJ12 lights using PWM or 0–10V dimming, while Type-B adapters support certain resistor-dimmer configurations. Compatibility varies by light and driver, so the correct adapter must be selected for the specific fixture.

What's Included

• AC Infinity Controller 69 Pro+
• 12' Temperature / Humidity / VPD Sensor Probe
• Wall Mounting Hardware
• Built-In Kickstand
