Active Grow LoPro EDGE Premium 3-Tier Grow Tent Kit: Complete Guide

Indoor growers working with limited floor space often run into the same problem: how do you increase productive growing area without simply adding more tents?

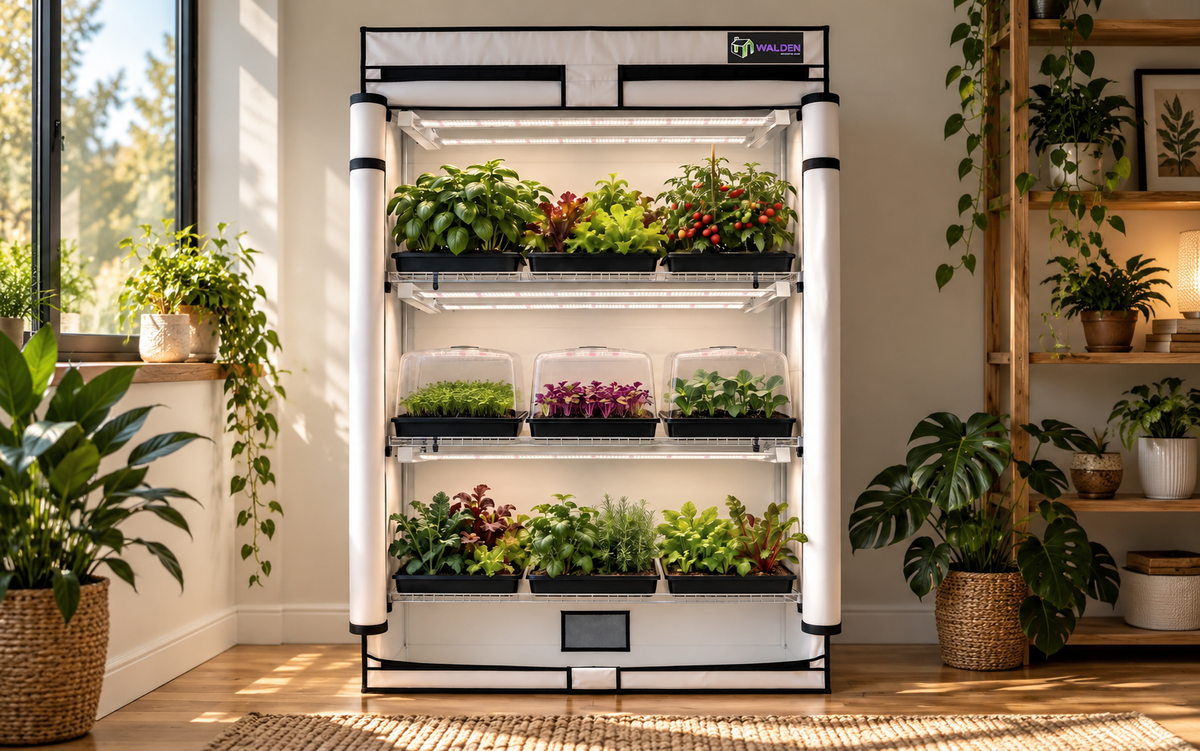

The Active Grow LoPro EDGE Premium 3-Tier Walden White LED Grow Tent Kit approaches the problem vertically.

Instead of one growing surface under one large fixture, the system combines three independent shelves with three low-profile 160W LoPro EDGE LED fixtures. The result is up to three separate 2' × 4' growing areas inside a footprint measuring roughly 49" × 27".

That makes it particularly interesting for growers working with seedlings, herbs, leafy greens, compact vegetables, propagation trays, flowers, and other crops that benefit from organized multi-tier production.

This guide explains how the system works, what the lighting specifications actually mean, and how to decide whether a three-tier setup makes sense for your growing space.

What Is the LoPro EDGE Premium 3-Tier Grow Tent Kit?

The LoPro EDGE Premium Kit is a complete tent and lighting system built around Active Grow's Walden White three-tier tent.

The kit includes:

• 1 × Walden White 3-Tier Grow Tent

• 3 × LoPro EDGE 160W LED Grow Lights

• 6 × Hydroponic Hangers

• 3 × RJ11 Dimming Cables

• 3 × Power and Daisy-Chain Cords

Each shelf receives its own LoPro EDGE fixture, giving the system 480W of total lighting power.

Combined output reaches 1,296 µmol/s across the 400–800nm range, with total traditional PPF of 1,248 µmol/s across 400–700nm.

That distinction matters because the LoPro EDGE spectrum extends into far-red wavelengths beyond the traditional PAR range.

Key Specifications at a Glance

Each 160W fixture produces:

• 432 µmol/s across 400–800nm

• 416 µmol/s PPF across 400–700nm

• 2.70 µmol/J efficacy

• Approximately 400 µmol/m²/s average PPFD across 2' × 4' at 12"

• Sun White Pro full spectrum

• 0–10V dimming capability

With three fixtures installed, each shelf effectively becomes its own dedicated growing zone.

Why Multi-Tier Growing Matters

The biggest advantage of this system is not simply the amount of light.

It is how efficiently the system uses vertical space.

A conventional 2' × 4' grow tent normally provides one primary canopy. The Walden White system provides three shelves measuring approximately 49.21" × 26.77" each.

For growers working with relatively short crops, that can dramatically increase usable growing area without increasing the footprint of the tent.

Three Independent Growing Levels

The shelves are spaced approximately 18 inches apart and are rated for up to 100 lb each.

That layout works particularly well for:

• Seedling trays

• Microgreens

• Leafy greens

• Herbs

• Young vegetable plants

• Propagation

• Compact flowering plants

• Research or trial crops

The shelves can also be removed in 18-inch sections when additional vertical clearance is required.

That means the tent does not have to remain a fixed three-tier system.

You could operate three shelves for compact plants, remove a section for taller crops, or reconfigure the interior as your plants develop.

Understanding the LoPro EDGE Lighting System

The lighting is what separates this setup from a basic shelving tent.

Each tier receives a dedicated 160W LoPro EDGE LED fixture designed specifically for low-profile growing environments.

400 PPFD Across a 2' × 4' Area

At a 12-inch hanging height and full output, each fixture delivers an average PPFD of approximately 400 µmol/m²/s across a 2' × 4' growing area.

That is a useful level of intensity for a wide range of indoor crops.

It provides substantially more light than basic propagation or seed-starting fixtures while remaining practical for shelving environments where fixtures must operate relatively close to the canopy.

The dedicated light on each level also helps create a more predictable environment than trying to illuminate several shelves from a single overhead fixture.

2.70 µmol/J Efficiency

Each LoPro EDGE operates at an efficacy of 2.70 µmol/J.

In simple terms, efficacy measures how much usable photon output the fixture produces for the electrical energy it consumes.

Higher efficacy allows growers to generate more plant-usable light without simply increasing wattage.

With three fixtures, the complete kit draws 480W while producing 1,296 µmol/s across the expanded 400–800nm range.

Sun White Pro Spectrum Explained

Active Grow uses what it calls its Sun White Pro spectrum in the LoPro EDGE fixtures.

Rather than relying heavily on warm or red-dominant LEDs, the system starts with 5000K white LEDs and supplements them with targeted blue, deep red, and far-red wavelengths.

White-Based Full Spectrum

The spectrum includes:

• Approximately 450nm blue

• Broad 5000K white output

• 660nm deep red

• 730nm far-red

The overall fixture color temperature is approximately 5,200K with a CRI around 86.

This creates a relatively natural-looking white light compared with heavily red-biased horticultural fixtures.

For growers, that has a practical benefit.

Plants are easier to visually inspect under white light, making it easier to evaluate leaf color, nutrient issues, pest damage, and general plant health.

Blue, Red and Far-Red Light

Different portions of the spectrum influence plant growth in different ways.

Blue light is commonly associated with compact vegetative development and leaf growth.

Deep red light at approximately 660nm contributes strongly to photosynthesis and is widely used in horticultural lighting.

Far-red around 730nm extends beyond the traditional 400–700nm PAR measurement and can influence plant morphology and flowering responses.

The LoPro EDGE combines these wavelengths rather than concentrating exclusively on one stage of growth.

That makes the spectrum suitable for whole-cycle production rather than only propagation or flowering.

Low-Profile Fixtures for Vertical Growing

Vertical growing systems do not have much room to waste.

A bulky fixture can quickly reduce the available distance between the light and the plants.

Each LoPro EDGE measures approximately:

46.5" × 13.25" × 2"

At only about two inches thick, the fixtures preserve more usable vertical space between shelves.

They also weigh just 7.9 lb each, making them easier to mount and reposition.

Adjustable Hanging Height

The included hydroponic hangers allow each fixture to be positioned above its respective canopy.

As plants grow, growers can adjust the hanging height rather than permanently mounting the fixtures to the shelves.

That flexibility becomes especially important in compact systems where a few inches can significantly affect light intensity.

Dimming and EDGE Controller Integration

The LoPro EDGE fixtures support 0–10V dimming through an RJ11 control connection.

However, the Active Grow EDGE Controller is sold separately.

Without the controller, the fixtures operate at full output.

Why Dimming Is Useful

Not every crop needs maximum intensity all the time.

Seedlings and young plants may require less light than mature plants.

Dimming allows growers to reduce output when necessary instead of raising the fixture or changing the lighting system entirely.

When connected to the EDGE Controller, the fixtures can operate in several modes, including:

• Off

• On

• Auto

• Timer

• Cycle

The controller can also reduce lighting output automatically if temperatures rise beyond configured limits.

That creates an additional layer of environmental protection, especially in enclosed growing spaces.

Daisy-Chaining Power and Lighting Control

One of the cleaner features of the LoPro EDGE system is its ability to daisy-chain both power and control.

These are separate connections.

Power Daisy Chaining

At 120V, up to three LoPro EDGE fixtures can be connected in the supported power chain.

That means this three-light kit uses the full allowable chain at 120V.

Maximum supported configurations are:

• 3 fixtures at 120V

• 4 fixtures at 208V

• 5 fixtures at 240V

• 6 fixtures at 277V

The complete three-fixture system draws approximately 4A at 120V.

Control Daisy Chaining

RJ11 cables connect one fixture to the next.

When connected to an optional EDGE Controller, all three fixtures can therefore receive coordinated 0–10V control from a single controller.

This can make managing a multi-tier system considerably simpler than adjusting three fixtures individually.

The Walden White Tent

The lighting system is housed inside Active Grow's Walden White three-tier tent.

The assembled tent measures approximately:

49.21" × 26.77" × 75.98"

The tent uses a triple-layer PEVA construction with a 600D canvas exterior, light-blocking middle layer, and reflective interior.

Ventilation and Cable Access

The tent includes:

• Three 6" ducting ports

• Two 4" electrical ports

• One roll-up mesh vent

These provide routes for electrical cables, ventilation equipment, and additional environmental accessories.

The base kit itself focuses on the tent and lighting.

Ventilation, humidification, and the EDGE Controller can be added separately.

Building a More Automated Grow Environment

One of the advantages of the EDGE platform is the ability to expand beyond lighting.

The optional EDGE Controller can integrate compatible lighting with ventilation and other environmental equipment.

That can turn the tent from a manually managed shelving system into a more coordinated growing environment.

For example, an expanded setup could combine:

• LoPro EDGE lighting

• Temperature and humidity monitoring

• Inline ventilation

• Circulation fans

• Humidity equipment

• Automated lighting control

For growers operating multiple shelves, centralized environmental control can become increasingly valuable because conditions can vary between levels.

What Can You Grow in the LoPro EDGE 3-Tier Kit?

The system is particularly well suited to plants that remain relatively compact or can be grown within controlled vertical spacing.

Good candidates include:

Herbs and Leafy Greens

Basil, lettuce, kale, arugula, cilantro, parsley, and similar crops fit naturally into multi-tier production.

These plants generally do not require extreme vertical clearance and can make excellent use of the three independent shelves.

Seedlings and Propagation

The system can also be used for starting seedlings, maintaining young plants, or running propagation trays.

Dimming becomes especially useful here because young plants often require less intensity.

Compact Vegetables and Fruiting Plants

The higher output of the LoPro EDGE fixtures also makes the system capable of supporting more light-demanding crops.

However, plant height becomes an important consideration.

For taller fruiting plants, growers may want to remove one or more shelf sections to increase vertical clearance.

Flowers and Specialty Crops

The broad spectrum and adjustable shelf configuration also make the system suitable for flowers and other compact specialty plants grown indoors.

Who Is This Kit Best For?

The LoPro EDGE Premium system makes the most sense for growers who value productive growing area more than maximum plant height.

It is especially well suited for:

• Home growers maximizing limited space

• Indoor vegetable and herb production

• Propagation rooms

• Small commercial growers

• Educational growing environments

• Research applications

• Growers experimenting with vertical production

It may be less appropriate for growers who primarily grow very tall plants and need the entire height of a tent for a single canopy.

In those situations, a conventional single-level tent may provide more practical clearance.

Final Thoughts

The Active Grow LoPro EDGE Premium 3-Tier Walden White LED Grow Tent Kit is built around a straightforward idea: use vertical space more efficiently without sacrificing lighting performance.

Three 160W LoPro EDGE fixtures provide dedicated lighting for three separate growing levels, while the low-profile design preserves valuable clearance inside the tent.

At full output, each fixture delivers approximately 400 PPFD across a 2' × 4' area, backed by a 2.70 µmol/J efficacy and a white-based spectrum containing blue, deep red, and far-red wavelengths.

The removable shelving also prevents the system from becoming overly restrictive. Growers can operate all three tiers for compact crops or sacrifice a level when taller plants require additional room.

Add the optional EDGE Controller and compatible environmental equipment, and the system can expand into a much more automated indoor growing platform.

For growers focused on herbs, leafy greens, seedlings, vegetables, flowers, propagation, or other compact crops, the biggest advantage is simple: considerably more usable growing area without taking up considerably more floor space.

You can view the full specs and current details for the Active Grow LoPro EDGE Premium 3-Tier Walden White Grow Tent Kit here.
