Blue Alpine Large Select Freeze Dryer: Everything You Need to Know Before You Buy

A large freeze dryer is one of those purchases where the specifications only tell part of the story.

Capacity matters, but so do tray dimensions, electrical requirements, ventilation, vacuum pump maintenance, cycle times, noise, food preparation, and how much work happens between one batch and the next.

The Blue Alpine Large Select Freeze Dryer, model BA70LFD, is built for users who want significantly more processing room than a smaller home machine without moving to commercial electrical service.

It uses five 13 x 18-inch trays, offers up to 25 pounds of maximum food capacity, runs on 120V power, and pairs a ½ HP refrigeration compressor with an 8 CFM vacuum pump in its standard configuration.

But those numbers need context.

A 25-pound maximum capacity does not necessarily mean you should load 25 pounds of strawberries, soup, or other extremely wet foods into every batch. And although the machine uses familiar 120V power, it requires a dedicated 20-amp circuit.

Those are exactly the details worth understanding before placing an order.

Blue Alpine Large Select at a Glance

Key Specifications

The Large also has a maximum overall sublimated ice capacity of 3.62 gallons, with up to 2.61 gallons of ice sublimated during a 24-hour period.

Its five silicone mats are made from FDA food-grade silicone, and the heat rack can be adjusted from 1°F to 165°F.

Five Full 13 x 18-Inch Trays Are a Big Part of the Appeal

The Large uses five 13 x 18-inch half-sheet trays.

That is important for more than the headline capacity.

Large tray area makes it easier to spread sliced fruit, vegetables, meat, complete meals, candy, dairy products, and other foods into thin, even layers. Freeze drying works best when food is not stacked or overcrowded, so usable surface area can matter just as much as total pounds.

With all five trays installed, vertical clearance between trays is approximately 1.33 inches.

The rack can also be configured with fewer trays when additional vertical clearance is needed:

• Four trays: about 1.73 inches
• Two trays: about 3.54 inches
• One tray: about 7.16 inches

That flexibility is useful when processing foods that do not fit neatly into a standard shallow layer.

Understanding the 25-Pound Capacity

The Large is rated for a maximum food load of 25 pounds, but buyers should not interpret that as the ideal weight for every batch.

Water content changes everything.

For especially wet foods, keeping batches closer to roughly 16 pounds is a more practical target because excessive water vapor can place additional strain on the process and send more moisture toward the vacuum pump.

This makes the distinction important:

25 pounds is the machine's maximum load capacity. Around 16 pounds is a more realistic guideline for particularly wet foods.

Dense, relatively low-moisture foods behave differently from watermelon, strawberries, soup, yogurt, or other products carrying large amounts of water.

So when comparing freeze dryers purely by advertised pounds per batch, make sure you are comparing the same type of capacity.

What Owning the Blue Alpine Large Is Actually Like

You Need a Dedicated 20-Amp Circuit

This is probably the single most important installation requirement to verify before ordering.

The Large operates at 120V / 60Hz, but it requires a dedicated grounded 20-amp circuit.

Maximum machine draw is rated at 17 amps or 2,040 watts, while average draw is approximately 12 amps or 1,440 watts.

The freeze dryer should be plugged directly into the wall rather than an extension cord, and it should be the only device operating on that circuit.

That means this is something to plan before delivery, not after.

If the intended location does not already have an appropriate dedicated circuit, have the electrical situation evaluated before setting up the machine.

Plan the Room, Not Just the Counter

The freeze dryer itself measures:

24 inches wide x 25.5 inches deep x 34 inches high

and weighs approximately 130 pounds.

It also needs at least one foot of ventilation space around the unit and should be used in a room large enough to provide adequate airflow.

The machine produces heat while running.

That makes a garage, utility area, food-preparation workspace, basement, or dedicated preservation room potentially more practical than squeezing it into a tight cabinet enclosure.

Ambient temperature should remain between 32°F and 90°F.

Warmer operating environments can lengthen batches, increase moisture reaching the pump, and make the refrigeration system work harder.

Cool, well-ventilated installations are your friend.

It Is Not a Silent Appliance

Published operating noise is 64 to 78 dB, which is roughly comparable to a clothes dryer.

That does not necessarily make it excessively loud for a workshop or utility room.

It does mean you probably do not want to discover after installation that a 20- to 30-plus-hour batch is running a few feet from your desk, couch, or bedroom.

Location matters.

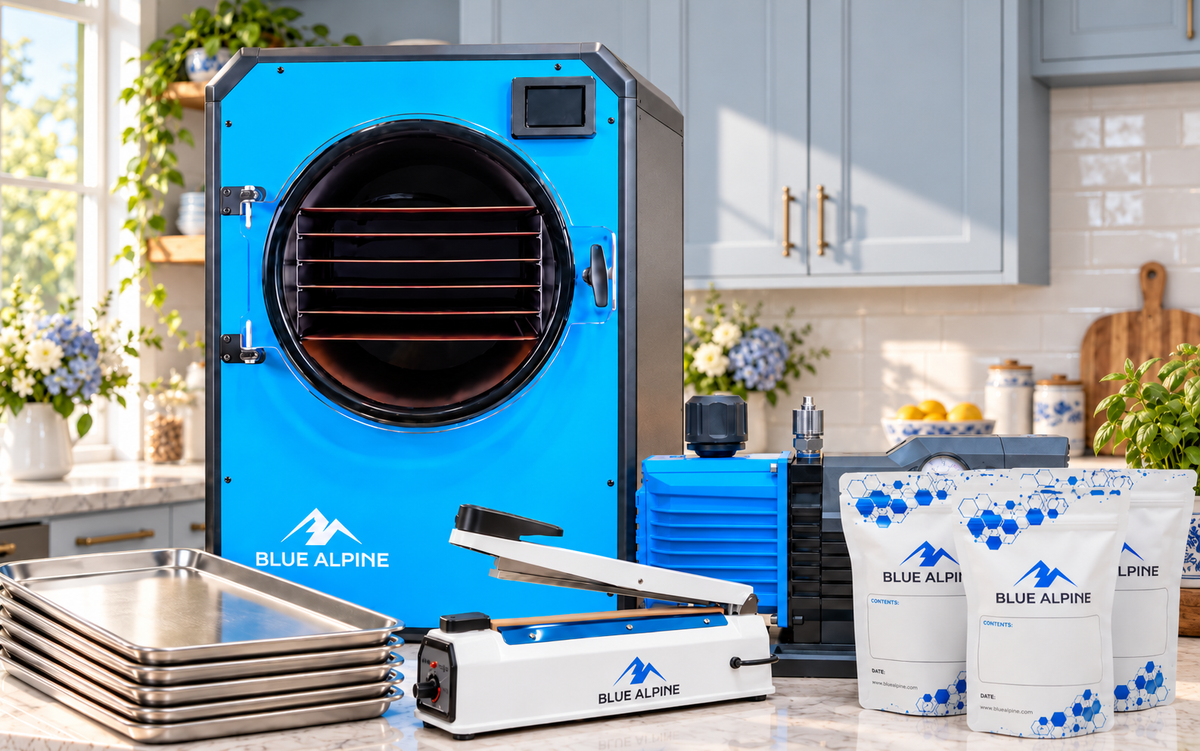

What Comes With It?

The standard package includes:

• Freeze dryer
• Power cord
• Premium vacuum pump and oil
• Five stainless steel trays
• Five silicone mats
• Impulse sealer
• 50 Mylar bags
• 50 oxygen absorbers

That is a useful starter package because you are not buying the machine only to discover that basic trays, mats, sealing equipment, and initial packaging supplies all need to be sourced separately.

Premium vs. Commercial Vacuum Pump

The standard configuration includes an 8 CFM, 1 HP premium vacuum pump.

A commercial vacuum pump is also available as an upgrade.

The commercial-pump setup is slightly different, including KF fittings and different gas ballast considerations.

For most buyers, the important takeaway is not to assume that the upgraded pump is simply plugged in exactly like the standard unit.

Follow the pump-specific setup instructions supplied with the machine.

How the Freeze-Drying Process Works

QuickStart Keeps the First Batches Simple

Blue Alpine has built its interface around a relatively straightforward workflow.

From the home screen, you can use QuickStart for a standard cycle or select dedicated recipes.

The machine includes presets for:

• Greens
• Meat
• Fruit
• Liquids
• Delicates

Those recipes can later be edited for freeze time, drying time, shelf temperature, and chamber pressure.

That balance is useful.

A new owner does not need to understand every pressure and temperature relationship before completing a first batch, while experienced users are not locked out of adjusting the process later.

Expect Freeze Drying to Take Time

Freeze drying is not dehydrating.

The overall process commonly takes approximately 18 to 36 hours, depending on the food, thickness, load size, water content, room temperature, and settings used.

Food is first frozen deeply.

The chamber is then placed under vacuum so frozen water can move directly from ice into vapor through sublimation.

Controlled heat from the tray rack helps drive that process.

The factory default freeze cycle is eight hours, while the default dry cycle is 24 hours.

Those settings can be adjusted as you gain experience.

Do not buy a freeze dryer expecting same-day food processing.

The tradeoff is an entirely different preservation process capable of removing dramatically more moisture than ordinary dehydration.

Pre-Freezing Can Help, but Do It Correctly

Pre-freezing food can be convenient and can reduce the amount of freezing the machine itself needs to perform.

However, you should not simply place frozen food into a warm chamber and skip directly to drying.

A better approach is to cool the chamber first so the frozen food does not begin melting as soon as it is loaded.

For pre-frozen foods, running an initial chamber cool-down before loading can help keep everything frozen before vacuum drying begins.

That is particularly important because partially melted food creates additional liquid water and can interfere with vacuum performance.

Food Preparation Has a Major Effect on Results

Even an excellent freeze dryer cannot overcome poor tray preparation.

Many fruits, vegetables, and meats work best when sliced to roughly 3/16 to 1/2 inch thick as a general starting point.

Thicker pieces take longer because moisture in the center has farther to travel before escaping.

Extremely thick pieces can retain moisture internally even when the exterior appears dry.

Consistency matters too.

A tray of evenly sliced strawberries is considerably easier to dry and evaluate than one containing pieces of wildly different sizes.

Keep foods arranged in a single layer whenever possible and avoid stacking or heavily overcrowding the trays.

How Do You Know a Batch Is Finished?

There are several ways to check.

You can break open one of the largest pieces and make sure the center is completely dry.

You can compare tray weights over time.

You can use an appropriate moisture meter.

You can also watch chamber pressure.

If the chamber is consistently holding very low pressure for an extended period and the food is dry internally, the batch is generally near completion.

When in doubt, additional drying time is usually the safer choice.

Maintenance You Should Understand Before Buying

Vacuum Pump Oil Is Part of Ownership

An oil-based vacuum pump is not maintenance-free.

Vacuum pump oil should generally be changed approximately every four to five batches, and the machine includes a reminder system for maintenance.

You should also look at the oil through the sight glass after each batch.

If it becomes cloudy, milky, heavily discolored, or visibly contaminated, change it sooner.

Used oil may sometimes be filtered and reused, but pump maintenance remains a normal part of freeze-dryer ownership.

If you want a completely hands-off appliance, freeze drying in general probably is not the category you are looking for.

Every Batch Ends With Defrosting

Water removed from your food has to go somewhere.

During processing, that moisture freezes against the chamber walls.

After removing the finished food, the chamber needs to be defrosted and drained.

Direct the drain hose into a suitable container, open the drain valve, run the defrost cycle, and allow the accumulated ice to melt.

Any remaining moisture should then be dried from the chamber.

Leaving the chamber clean and dry helps reduce the chance of mold and keeps the machine ready for its next batch.

The Condenser Needs Attention Too

The refrigeration condenser should be cleaned periodically to remove accumulated hair, dust, and debris.

A dirty condenser reduces airflow and forces the refrigeration system to work harder.

A good general maintenance schedule is to inspect and clean it about every six months, or sooner if the machine operates in a dusty environment.

Your First Batch May Be a Bread Run

One useful first-use step is a bread run.

The machine itself is tested before shipping, but new silicone mats and internal components may still have a slight new-equipment odor.

Running bread as a sacrificial first batch can help absorb lingering odors before you process food you actually intend to keep.

Discard the bread afterward.

After that, forgiving foods such as bananas or meat can make good early batches while you get familiar with the machine.

What Can You Freeze Dry?

The Large is suitable for a broad range of foods, including fruits, vegetables, meats, complete meals, dairy products, liquids, and delicate foods when the appropriate recipe and preparation are used.

But freeze drying is not universal.

Foods dominated by oils or fats generally do not freeze dry effectively.

High-sugar liquids such as juice can also be difficult because concentrated sugars can interfere with the drying process.

The built-in presets make experimentation easier.

The Greens recipe uses gentler heating.

Meat can tolerate a more aggressive process.

The Fruit recipe is designed for many common fruits.

More delicate foods can use the Delicates recipe.

For mixed batches, use settings appropriate for the most delicate food in the batch.

Warranty Coverage

The Blue Alpine Large carries a one-year full warranty, followed by a limited three-year warranty covering the sealed refrigeration system.

The refrigeration warranty applies to covered components such as the compressor, condenser, evaporator, tubing, and condenser fan.

The supplied vacuum pump also carries its own one-year warranty when operated and maintained according to the required procedures.

As with any equipment warranty, maintenance requirements matter.

Keep your purchase records, follow the recommended service schedule, and avoid unauthorized modifications.

Is the Blue Alpine Large Select Right for You?

It Makes the Most Sense If You Want Real Batch Capacity

The Large is particularly compelling for households or small operations that know they will use a freeze dryer regularly.

It gives you 1,170 square inches of tray area and full half-sheet-pan dimensions rather than forcing a substantial amount of food onto smaller trays.

That can make a meaningful difference when you are processing garden harvests, bulk purchases, meal-prep batches, meat, fruit, dairy, emergency food, or other foods in volume.

Make Sure You Have the Infrastructure for It

Before buying, confirm four things:

1. You have a dedicated grounded 120V, 20A circuit.
2. You have enough physical space for the 24 x 25.5 x 34-inch machine plus ventilation clearance.
3. The operating location can handle heat and approximately 64 to 78 dB of noise.
4. You are comfortable with pump-oil changes, defrosting, cleaning, and routine maintenance.

If all four boxes are checked, the Large becomes much easier to live with.

If they are not, address them before the freight shipment arrives.

Final Verdict

The Blue Alpine Large Select Freeze Dryer is not simply a bigger countertop appliance.

It is a serious home food-preservation machine built around five full 13 x 18-inch trays, a 15.7-inch chamber, up to 25 pounds of maximum food capacity, and a refrigeration and vacuum system designed to process substantial batches.

Its biggest strength is usable capacity.

The 1,170 square inches of tray space gives food room to be spread properly instead of stacked, while the 3.25-gallon liquid capacity and substantial ice-handling capability make the Large suitable for much more than occasional snack batches.

At the same time, prospective owners need to understand what comes with that capacity.

You need a dedicated 20-amp circuit. You need ventilation. You need enough space to deal with a 130-pound machine and its vacuum pump. You will hear it running. Vacuum-pump oil needs maintenance. Every batch needs to be defrosted. And learning how thickness, water content, shelf temperature, pressure, and drying time interact will produce better results than simply loading the trays to their maximum rating.

For someone who expects to freeze dry regularly, however, those requirements are part of owning capable equipment rather than reasons to avoid it.

The key is to buy the Large because you will actually use its tray area and processing capacity.

If that describes your household or operation, the Blue Alpine Large Select gives you a lot of room to grow without requiring a move to 240V power or a full commercial freeze-drying system.
